ILCT-710 Network Cable Testing Diagnostic Tool Kit Set- Ethernet LAN Cable Tester Wire Tracker Voltage Detector Punch Tool RJ45 RJ11

Sku: ILCT-710
$85.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

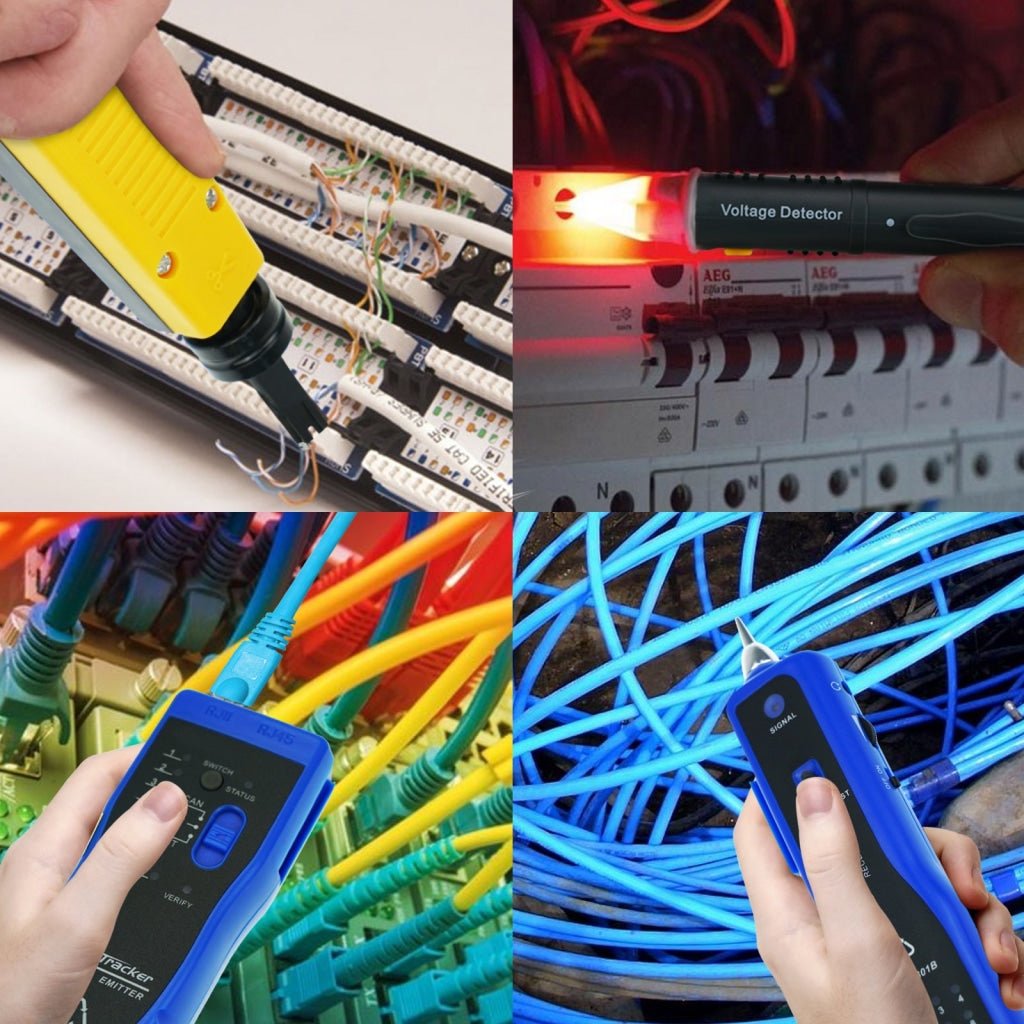

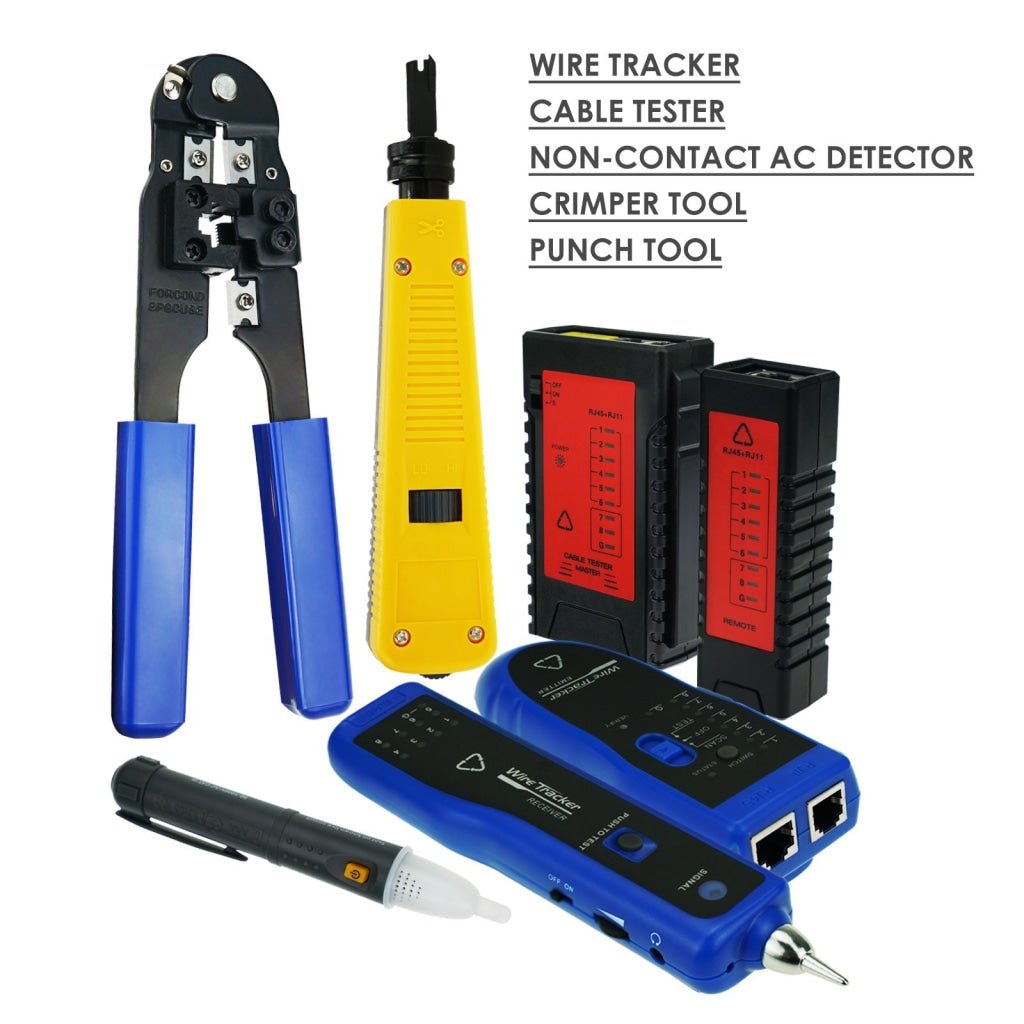

This Network toolkit can be widely used in the different situations, engineering, cable construction and etc. This kit set consists of wire tracker, network cable tester, non-contact AC voltage detector, punch tool and a crimping tool. With this toolkit in hand, your work will get much easier efficiently.



Specifications & Features:

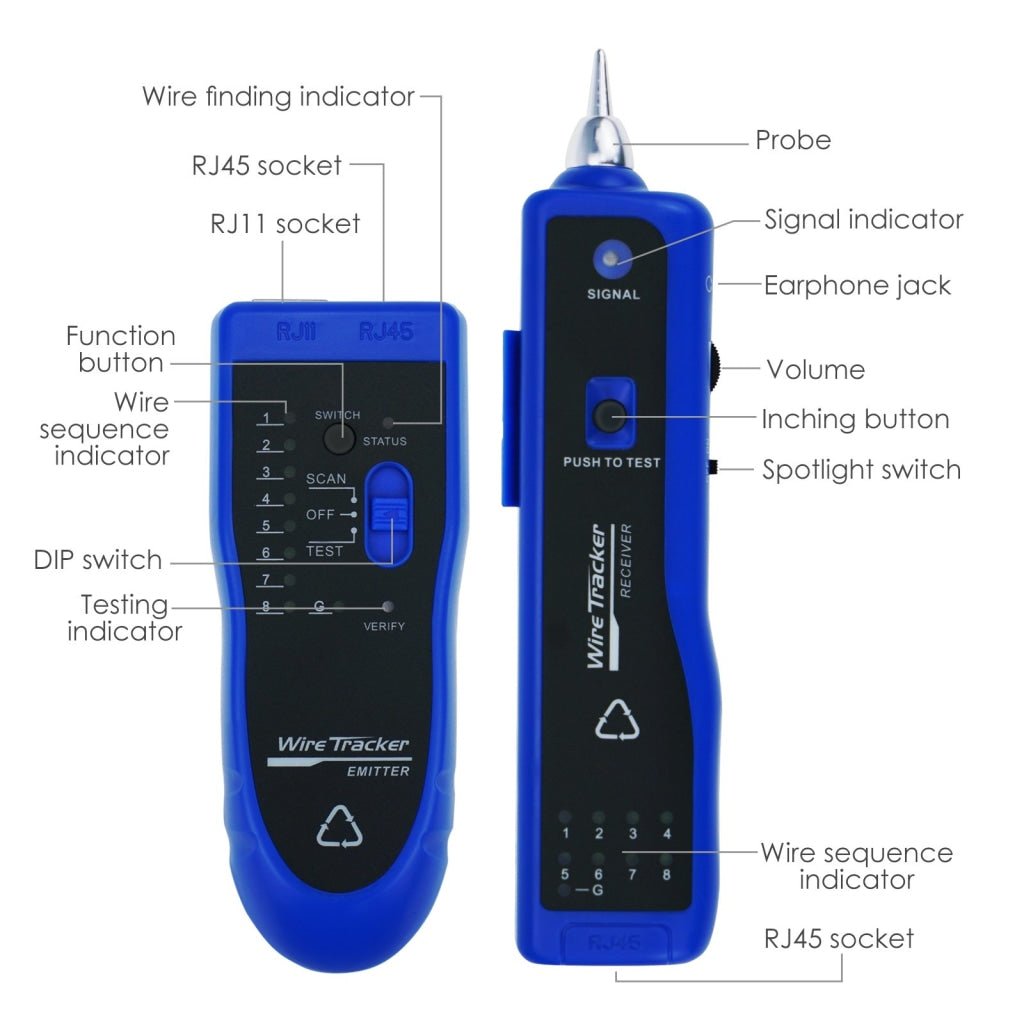

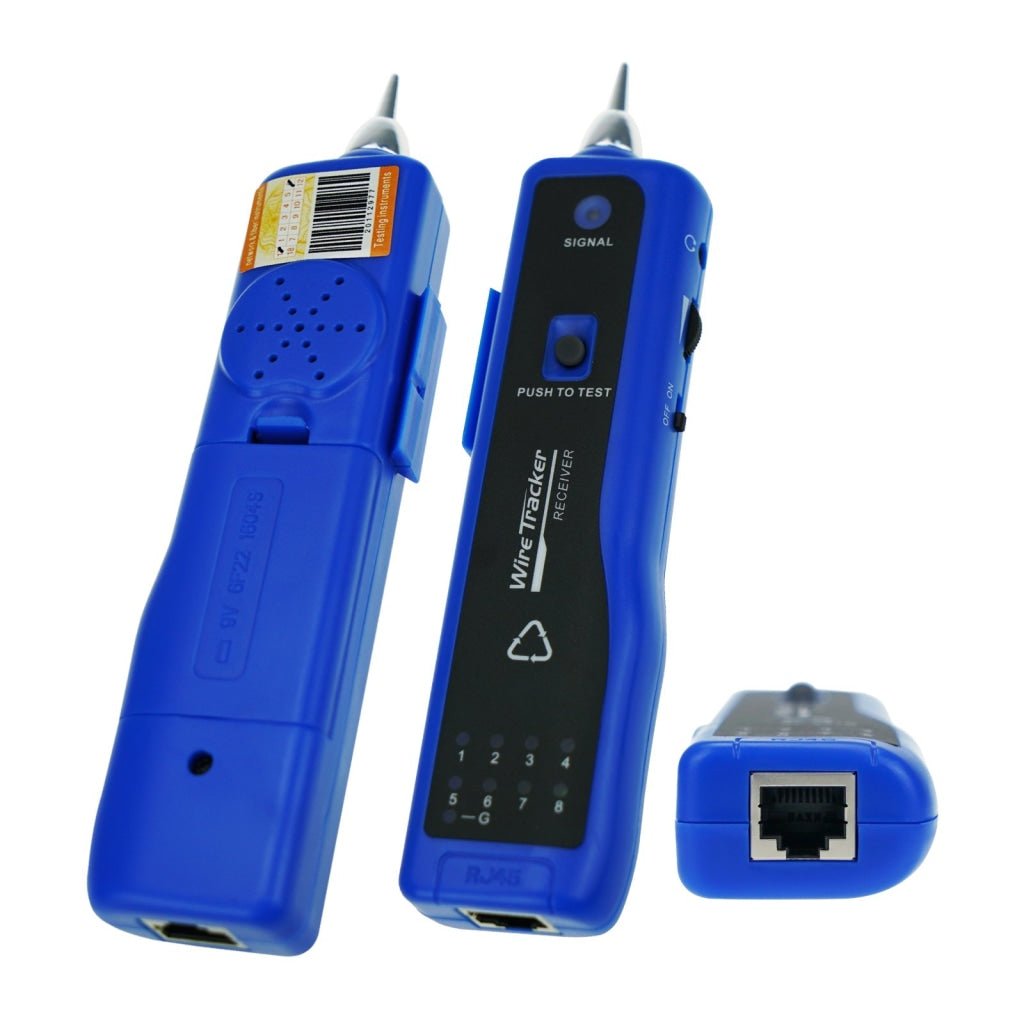

  • Wire Tracker function trace, locate and verify RJ11 and RJ45 cables & electric wire; judge short circuit, open circuit, breaking circuit and crossing; test DC level
  • Low voltage alarm indication
  • Power Supply: 9V battery
  • Max working current: 10mA(Emitter); 30mA(Receiver)
  • Distance of signal transmission: 2000m
  • Signal output electric status: 8Vp-p
  • Signal transmission format: Multi-frequency impulse
  • Frequency: 900-1000Hz

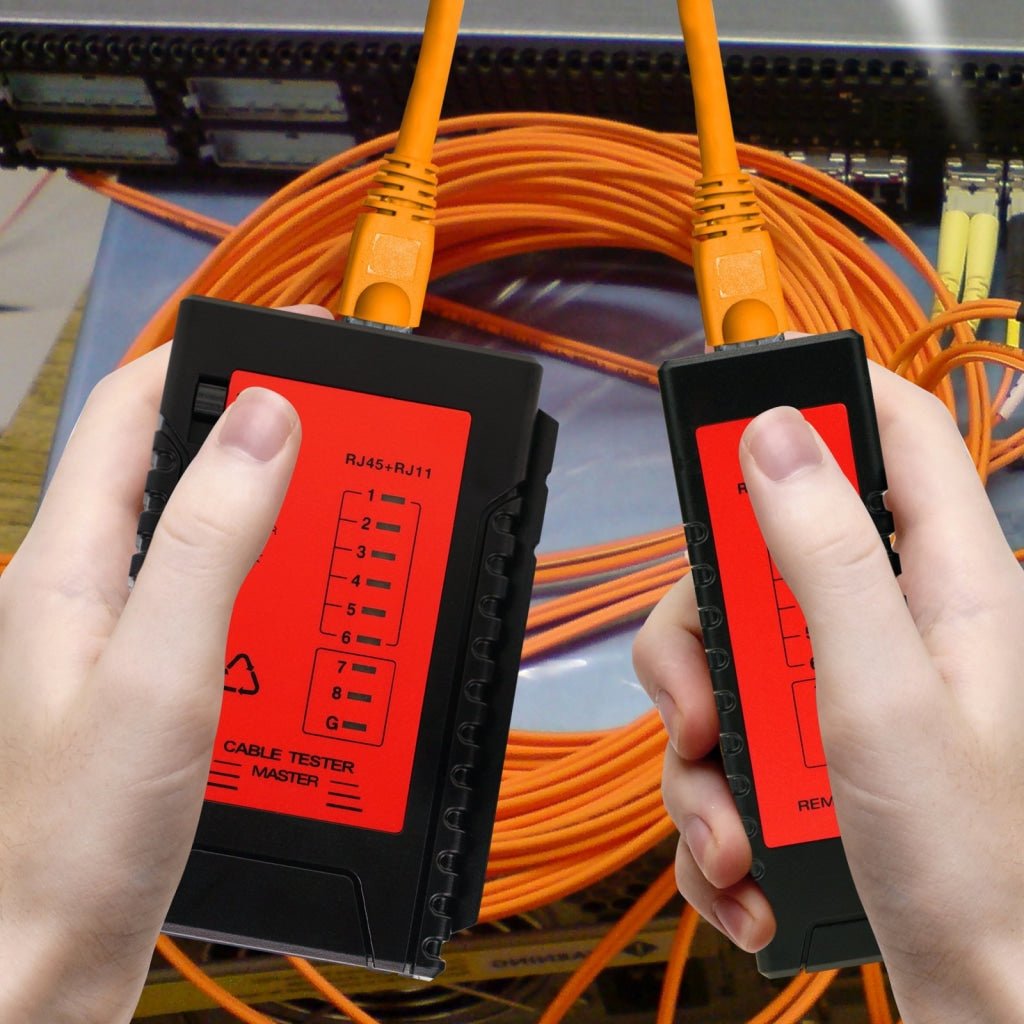

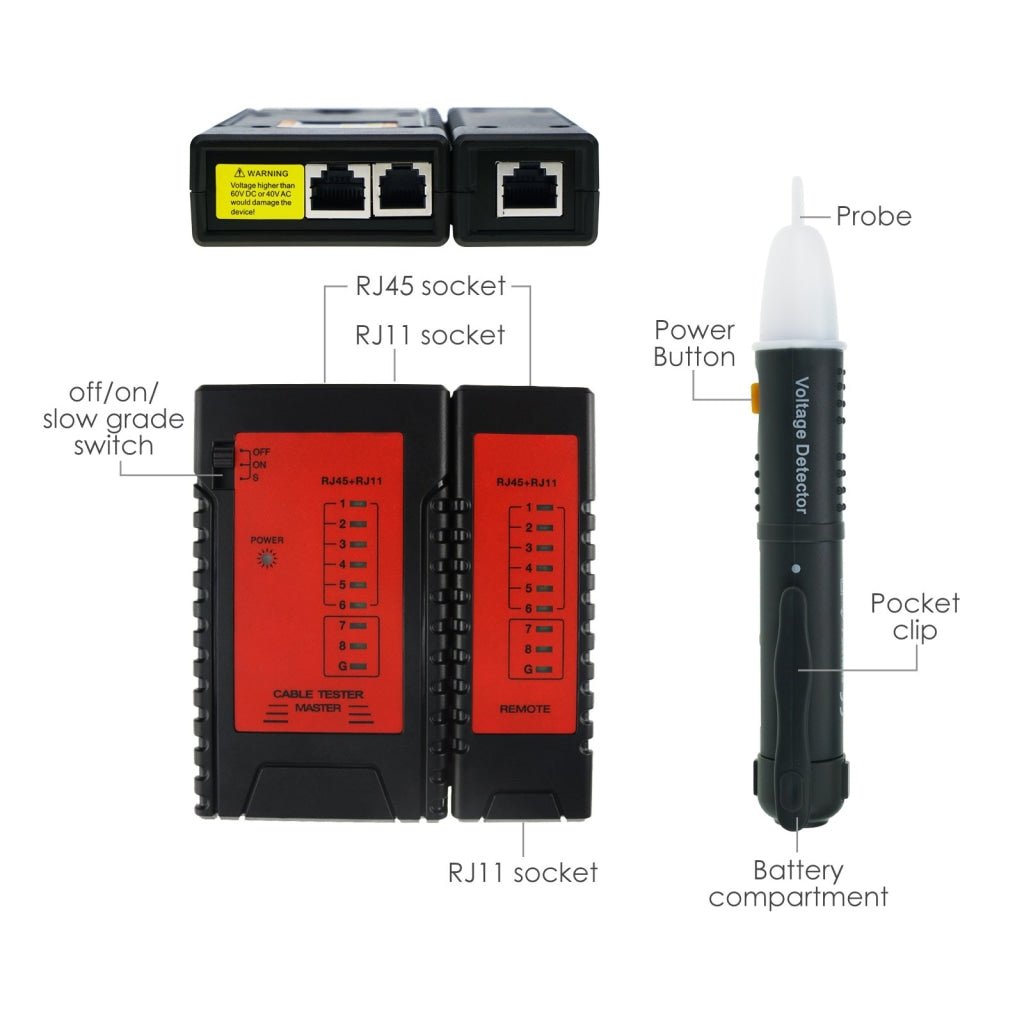

  • Network Cable Tester used for verifying RJ11/RJ45 cables status and test corresponding double-twisted cable 1,2,3,4,5,6,7,8 and G; judge wrong connection, short circuit and open circuit. Displays visible LED status and 9V battery power supply.
  • Non-contact Voltage Detector used to identify hot and neutral conductors, find a break in a wire and detect the AC voltage, test live wire and with a flash indication. It has LED and Tone. indicator and voltage range of 50-1000V AC. Its frequency range is 50-500Hz with measurement category of 1v, 1000v per ul 61010 and 2 pieces AAA batteries power supply

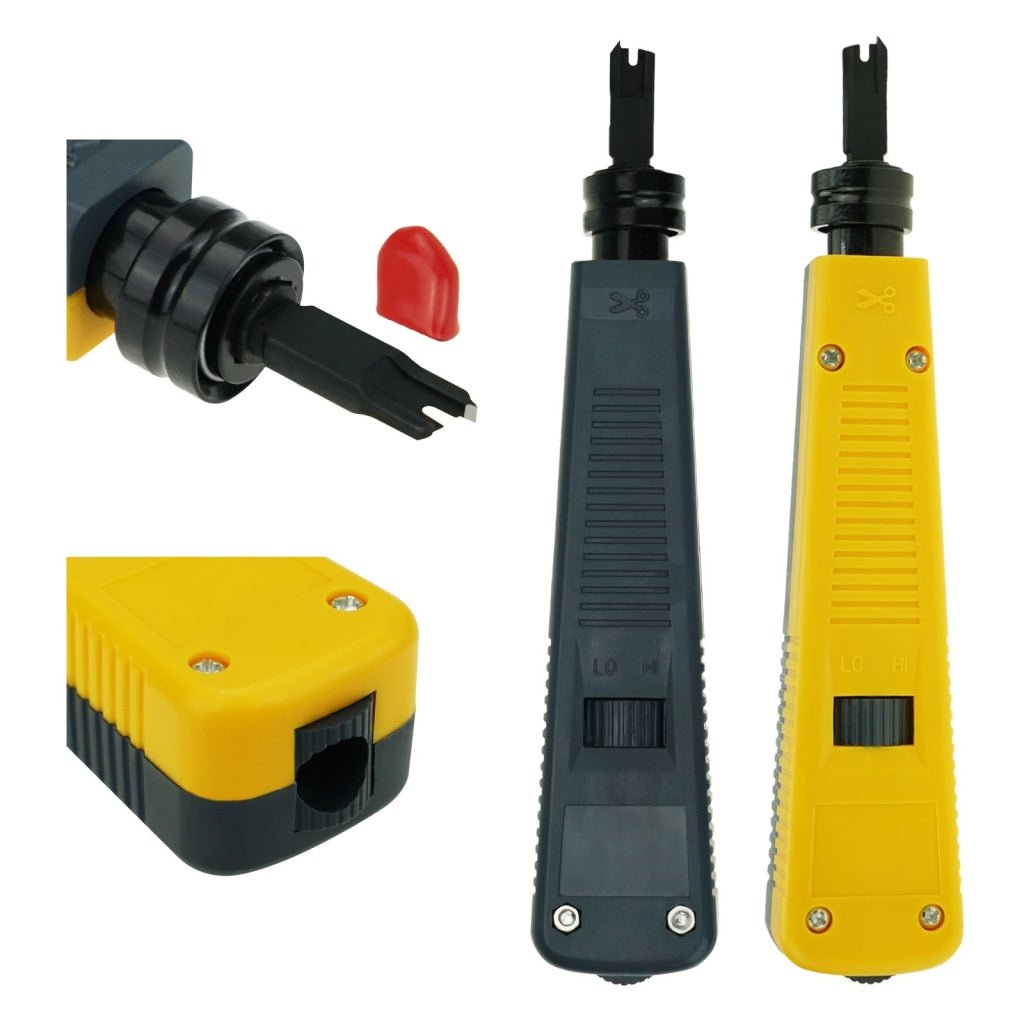

  • Punch Tool cuts the not needed cable with the blade and steady function

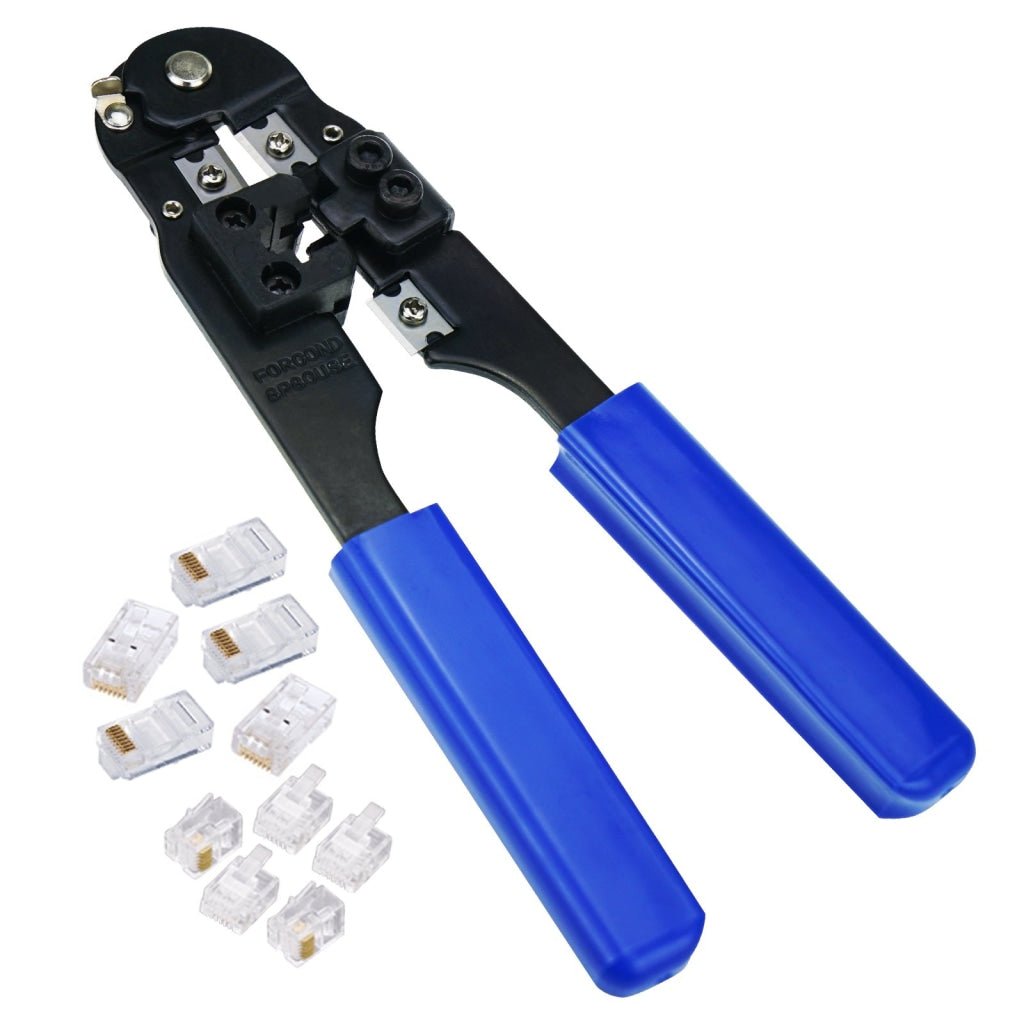

  • Crimping Tool Combo: 8P8c and 6P6C cable crimper. won't damage the shelled-wire. crimper mouth is hard and durable. just insert the crystal top into its position and press it.

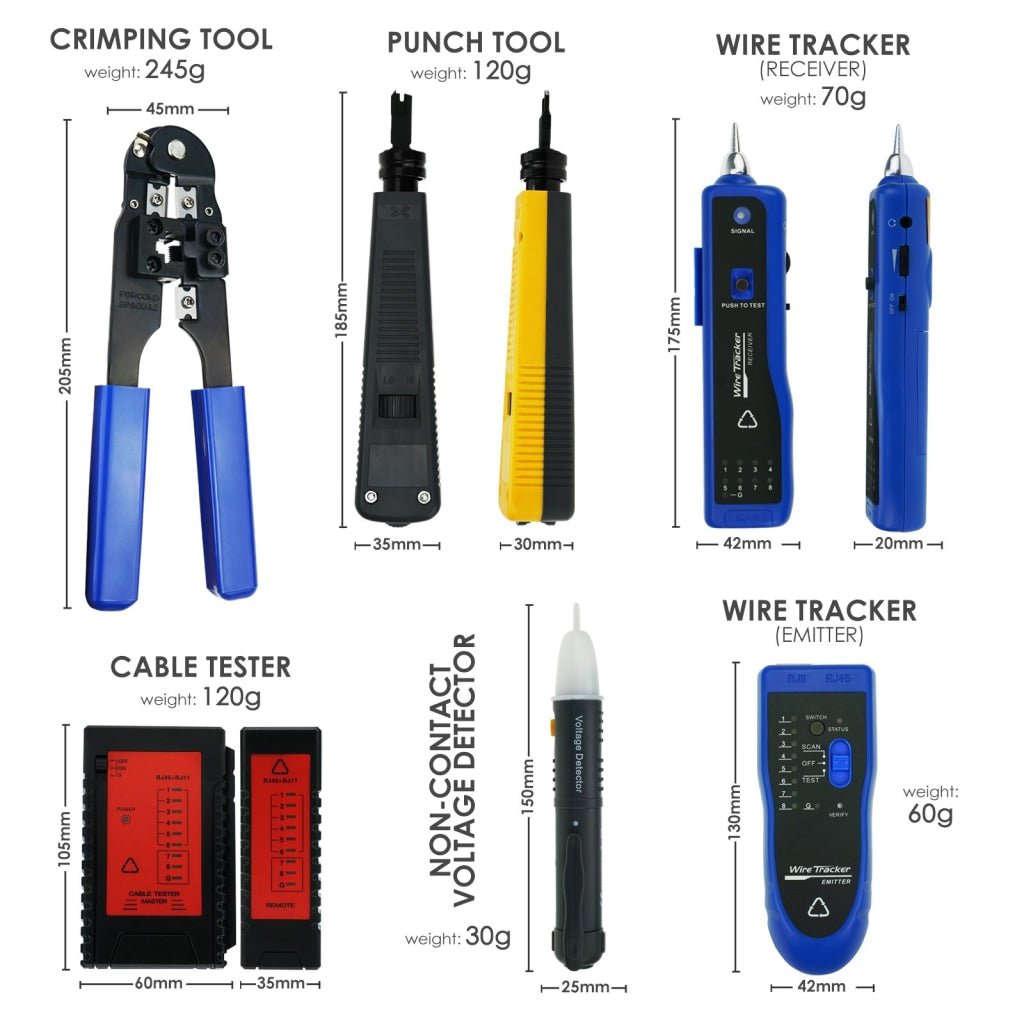

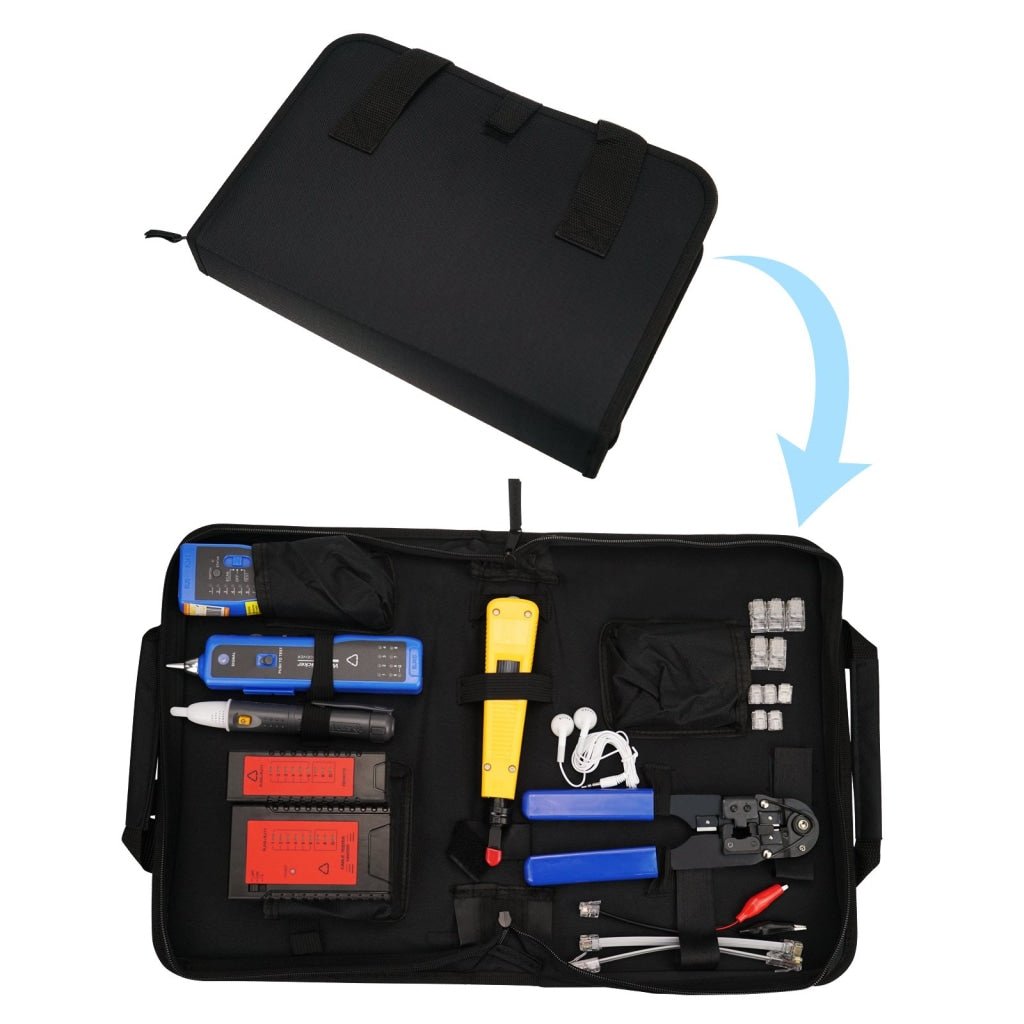

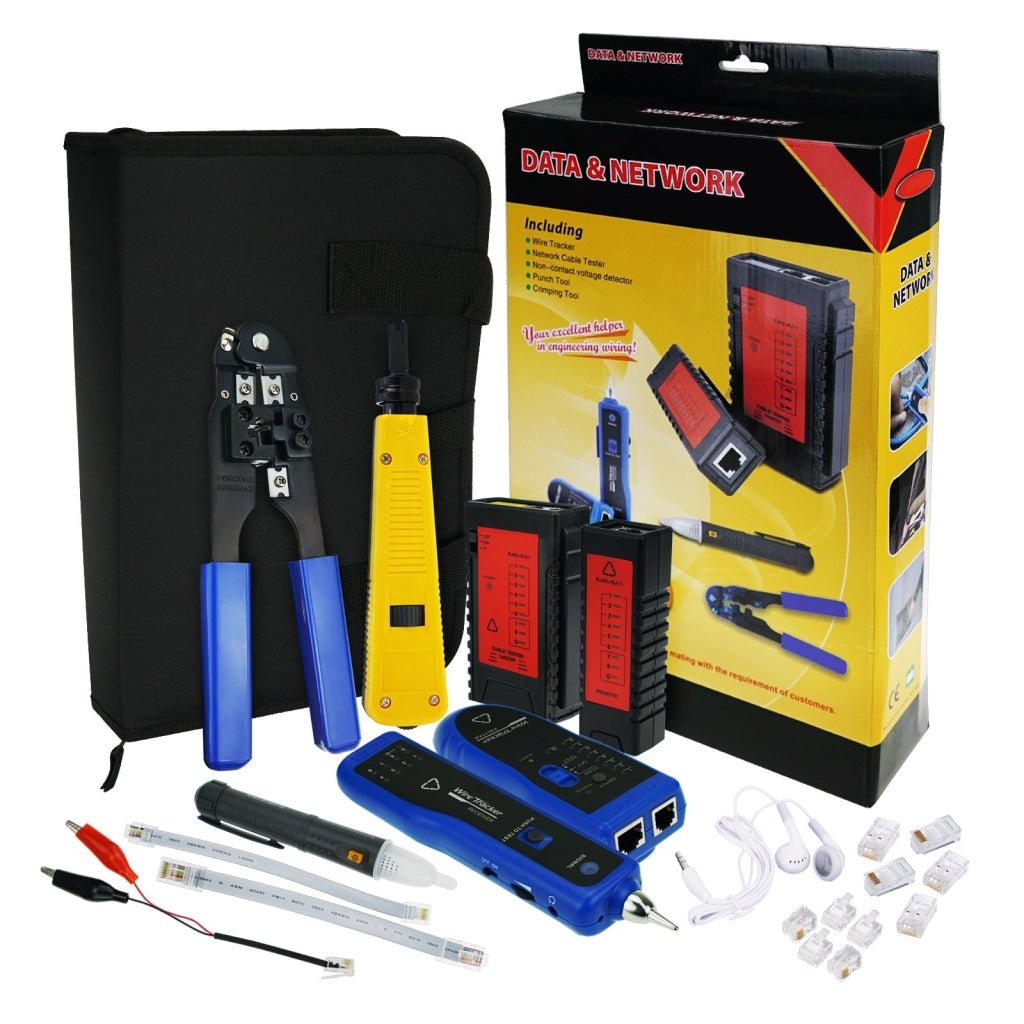

Set Includes:

  • 1 x Network cable tester set (Master, Remote)
  • 1 x Wire tracker set (Emitter, Receiver, Earphone, RJ45 adaptor cable, RJ11 adaptor cable, RJ11-to-Alligator clip adaptor cable)
  • 1 x Non-contact voltage detector
  • 1 x Punch tool
  • 1 x Crimping Tool
  • 2 x 9V battery
  • 5 x RJ45 connector (8P crystal plug)
  • 5 x RJ11 connector (6P crystal plug

A printed user manual is already included with this item. No digital user manual or software is available.

RETURN AND REFUND

Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

WARRANTY POLICY

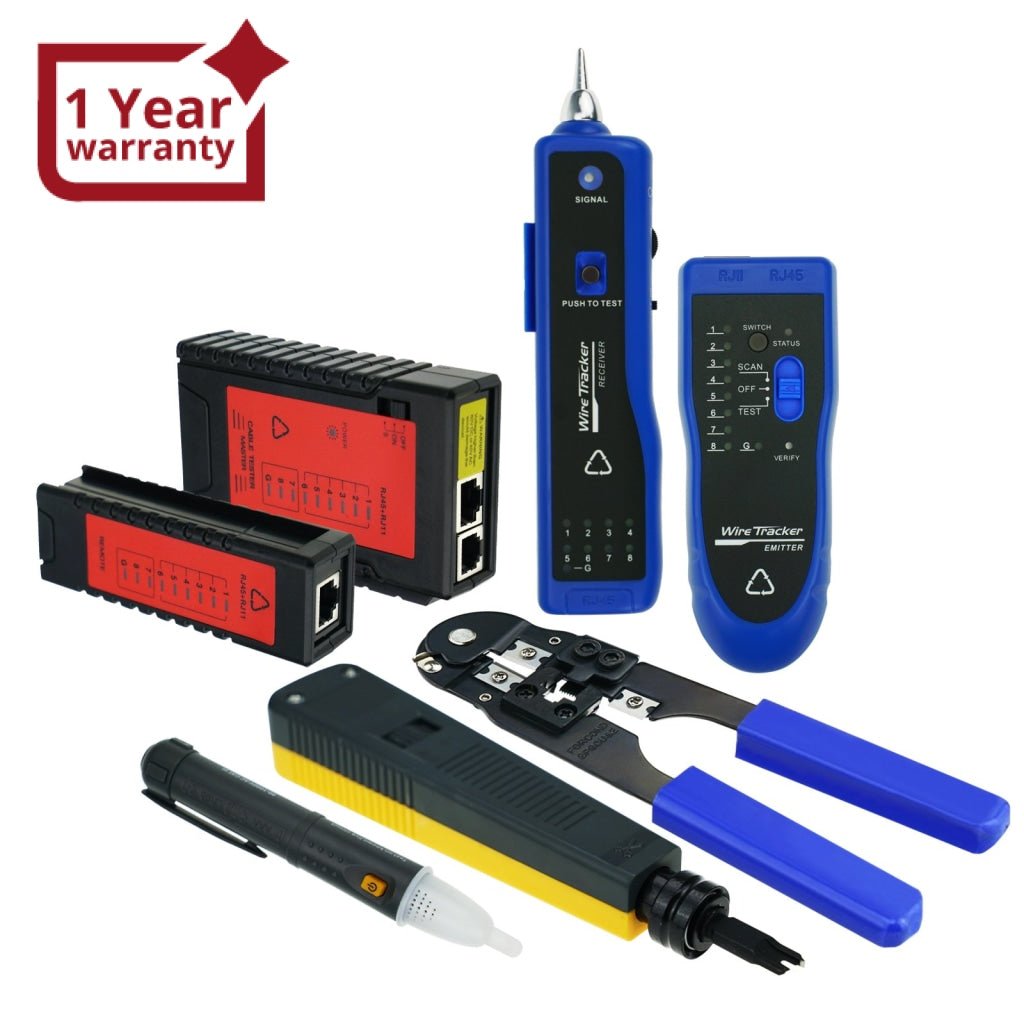

Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
