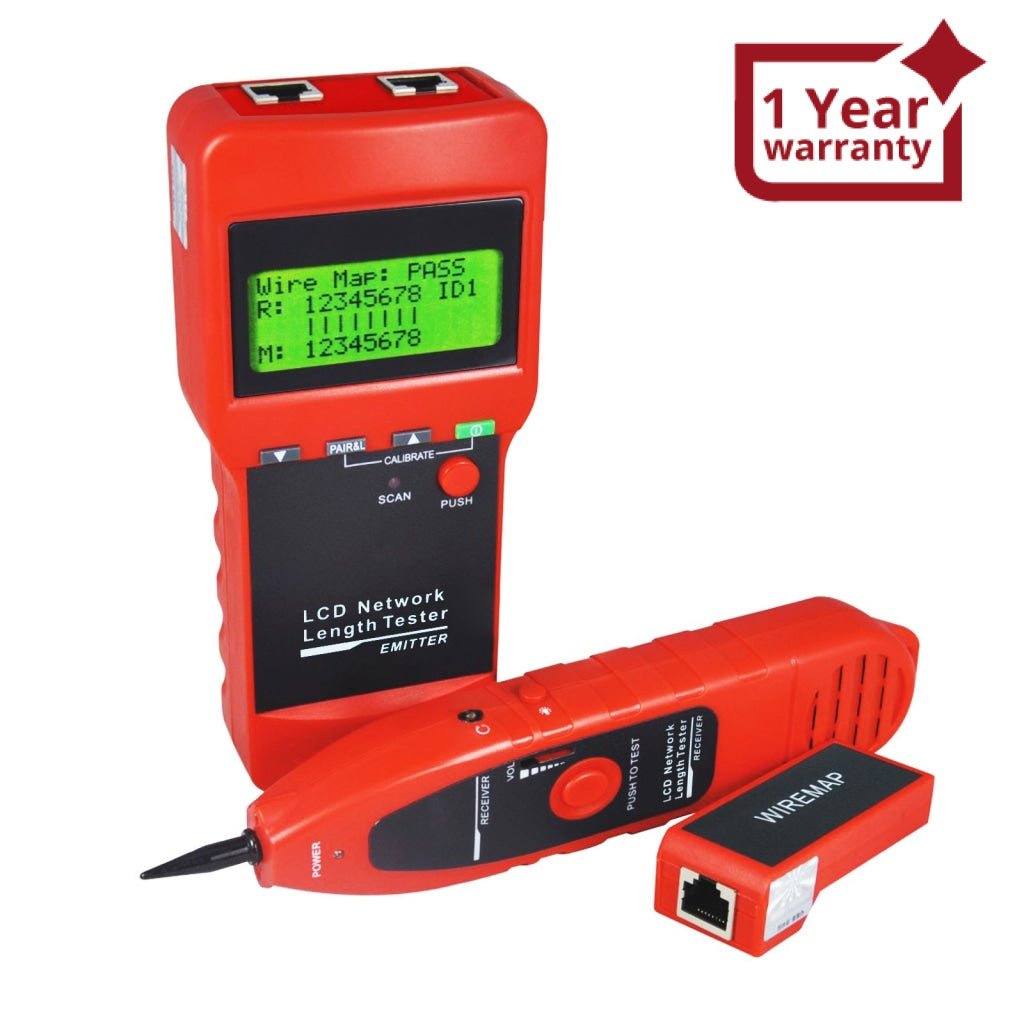

ILCT-708 Network LAN Cable Tester Wire Tracker Tracer Length

Sku: ILCT-708
$79.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay
This tester is a multipurpose network cable length tester with 3 major functions: hunting, wire sorting and circuit status testing with reliable accuracy. Widely applicable to computer network and other metal wire circuit and other fields. A highly recommended tool for technicians in installation and maintenance of weak current system such as communication line, comprehensive wiring circuit, etc.



Features

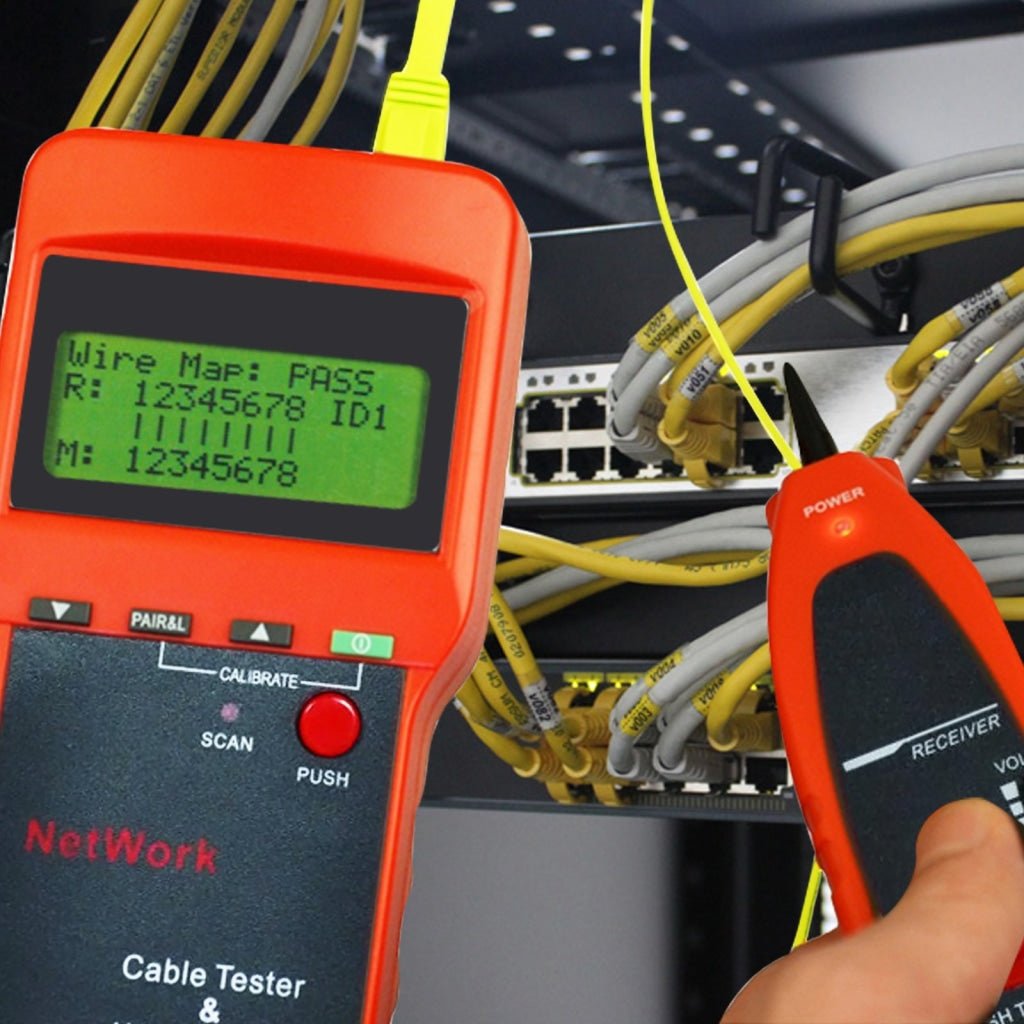

  • Audio probing and cable tracing function
  • Check wiring error in 5E, 6E, coaxial cable such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
  • Locate the wiring or connection error
  • Measure cable length and determine the distance of open circuit and short circuit
  • Dynamically calibrate cable length and make length measurement as accurate as 97%
  • Directly find the RJ45 cable
  • In search for other metal cable
  • Measuring network line-break
  • Measure twisted-pair length
  • Auto power off function
  • Simple and easy use. Big LCD screen to display test result clear
  • Portable unit with long battery life (standby 50 hours)
  • Automatically time-delay shut off
  • Measure length and pair with or without the far-end recognizer
  • Locate cable and there are 8 far-end passive (remote identifier) test jacks [1D1-ID8]
    (Note: only 1 ID1 is included on set )
  • Far-end recognizer (remote identification) with prompting voice
  • Self-checking function
  • Automatically compensate any change in battery capacity or ambient temperature
  • Single board computer software watchdog design with reliable operation



Specifications:
  • Display: Special 4 x 16 character big screen LCD lattice(valid visual field 61.6 x 25.2mm)

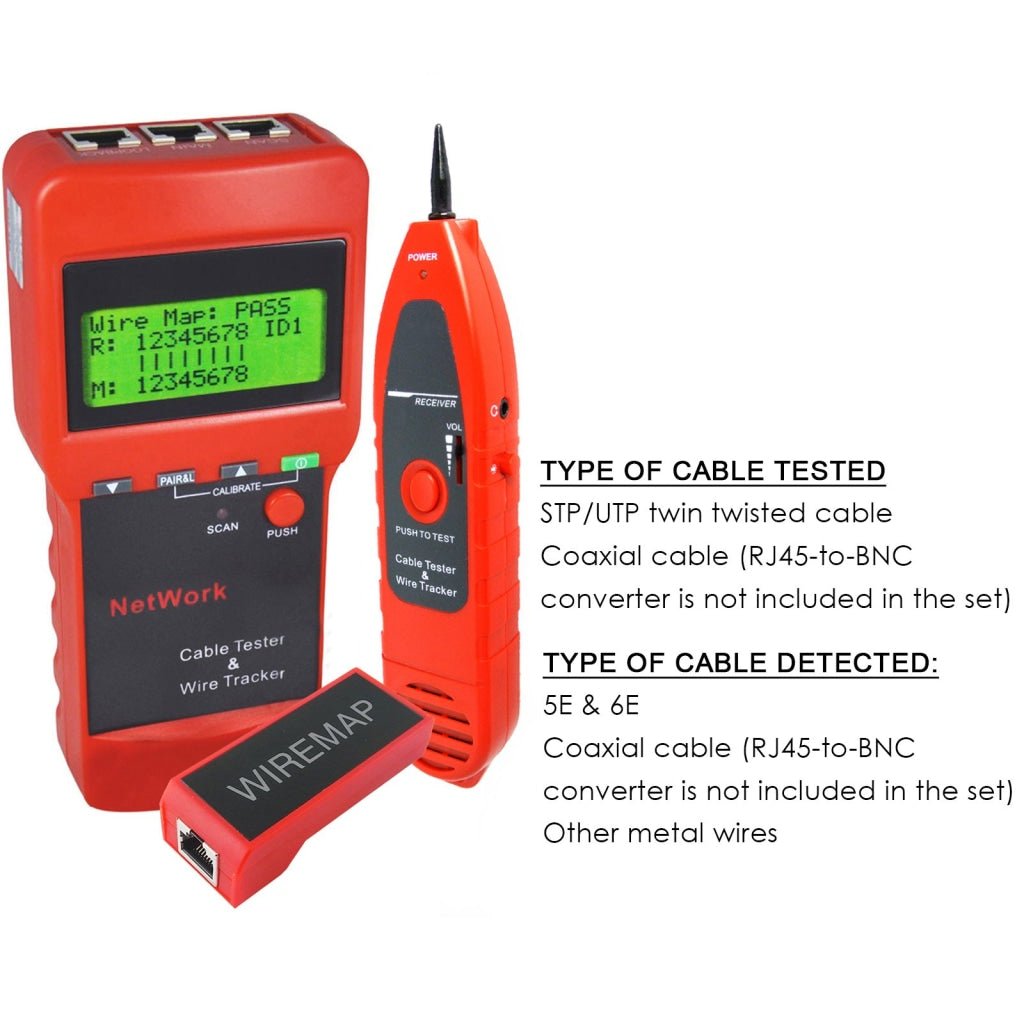

  • Type of Cable Tested
    • STP/UTP twin twisted cable
    • Coaxial cable (RJ45-to-BNC converter is not included in the set)
  • Type of cable detected
    • 5E & 6E
    • Coaxial cable (RJ45-to-BNC converter is not included in the set)
    • Other metal wires

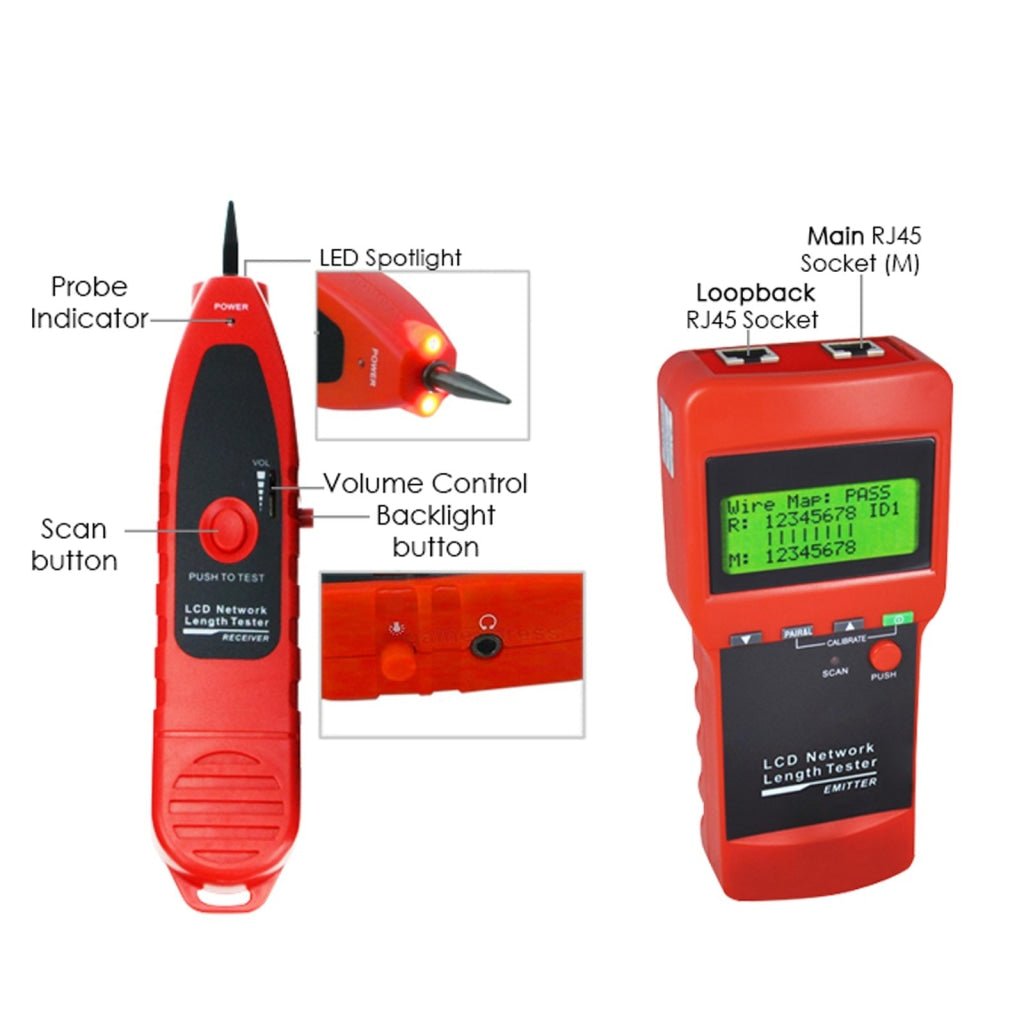

  • Tester Port

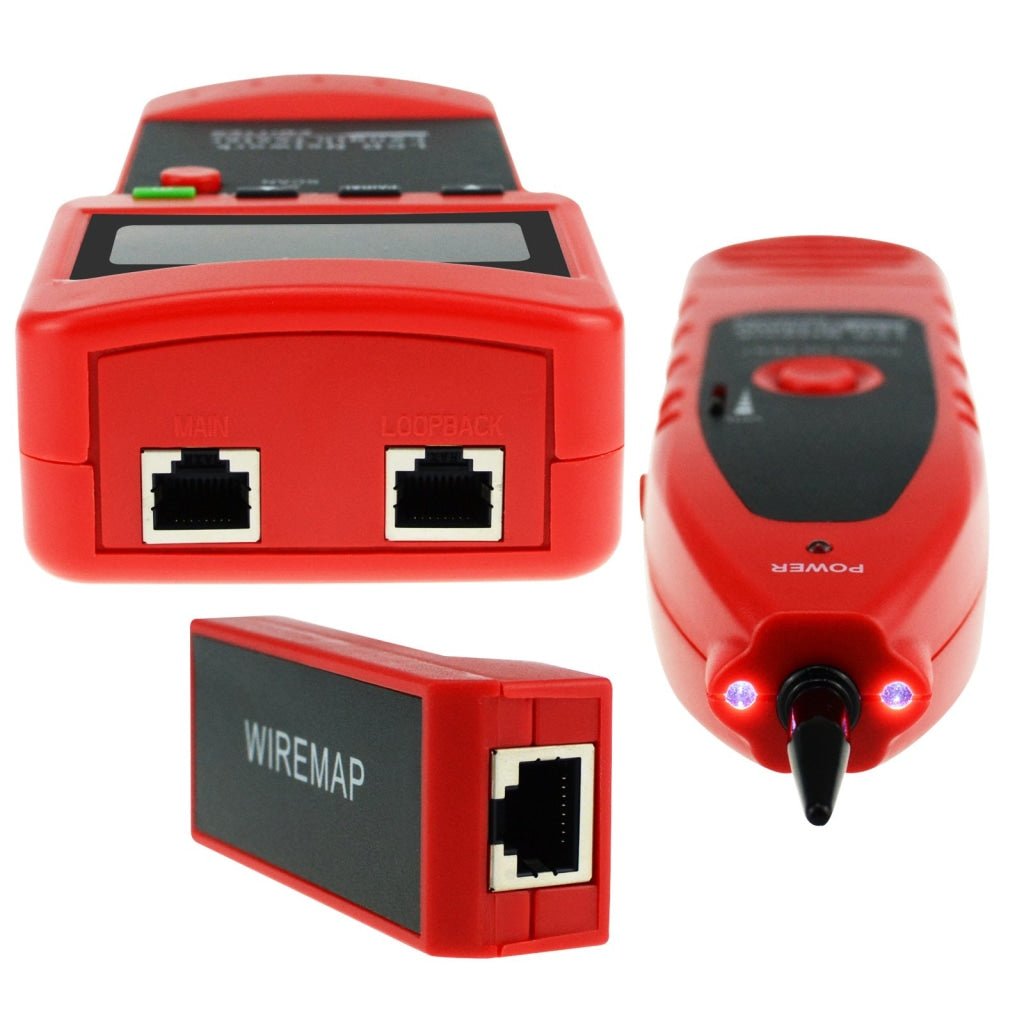

    • Tester RJ45 master port (L), tester LOOPBACK RJ45 port (R)
  • Length Measurement of Twin Twisted Cable
    • Scope: 1~350M ( 3 ~ 200ft)
    • Calibration accuracy: 3% (±0.5M or ±1.5ft) (calibrating cable > 5M)
    • Shipment accuracy: 5% (±0.5 M or ±1.5 ft) (AMP, AT&T Class 5 cable)
    • Display: M (meter) or ft. (feet)
  • Length Calibration
    • User can set calibration factor by himself with a given length cable
    • Length of calibrating cable is more than 5M
  • Wire Sequence and Locating Cable Error: Check errors such as
    • Open circuit
    • Short circuit
    • Reverse connection
    • Cross-over or cross-talk interference
  • Locating Cable: 8 Remote identifier test jacks (ID1 to ID8) (Note: only one ID1 is included on set)
  • Automatic Time-delay Shut Off Time: if idle for 30 minutes
  • Power Supply
    • Main Unit: 4 x 1.5V AA batteries (not included in set)
    • Receiver: 1 x 9V battery (included)

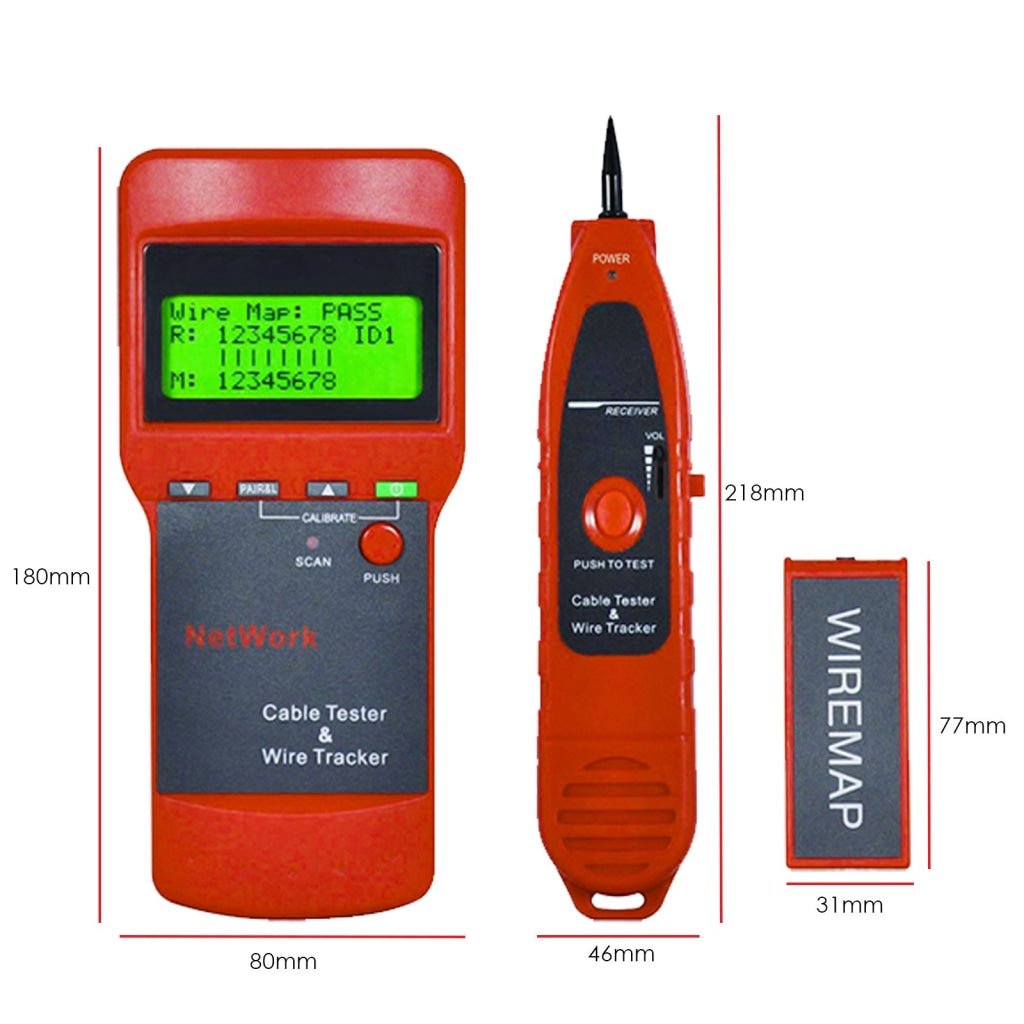

  • Overall dimension

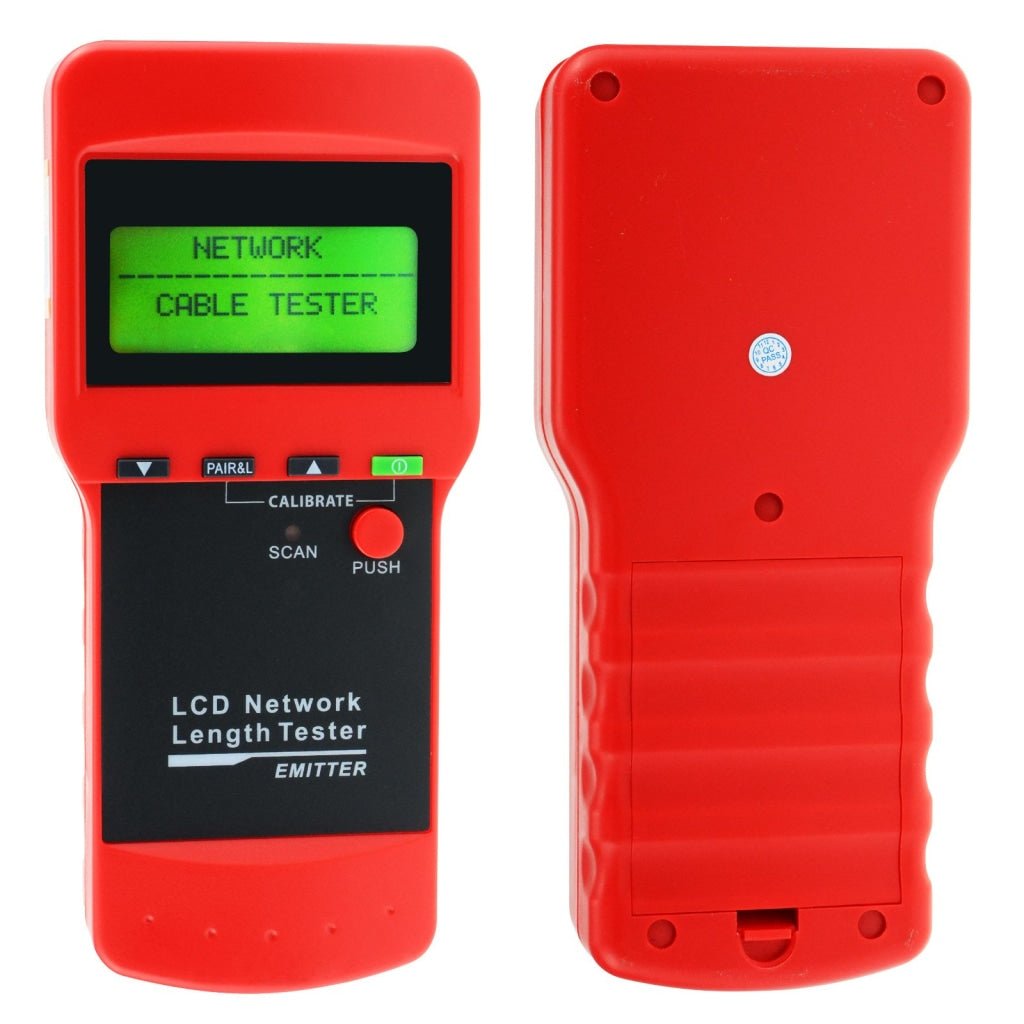

    • Main tester: 180 x 80 x 40mm

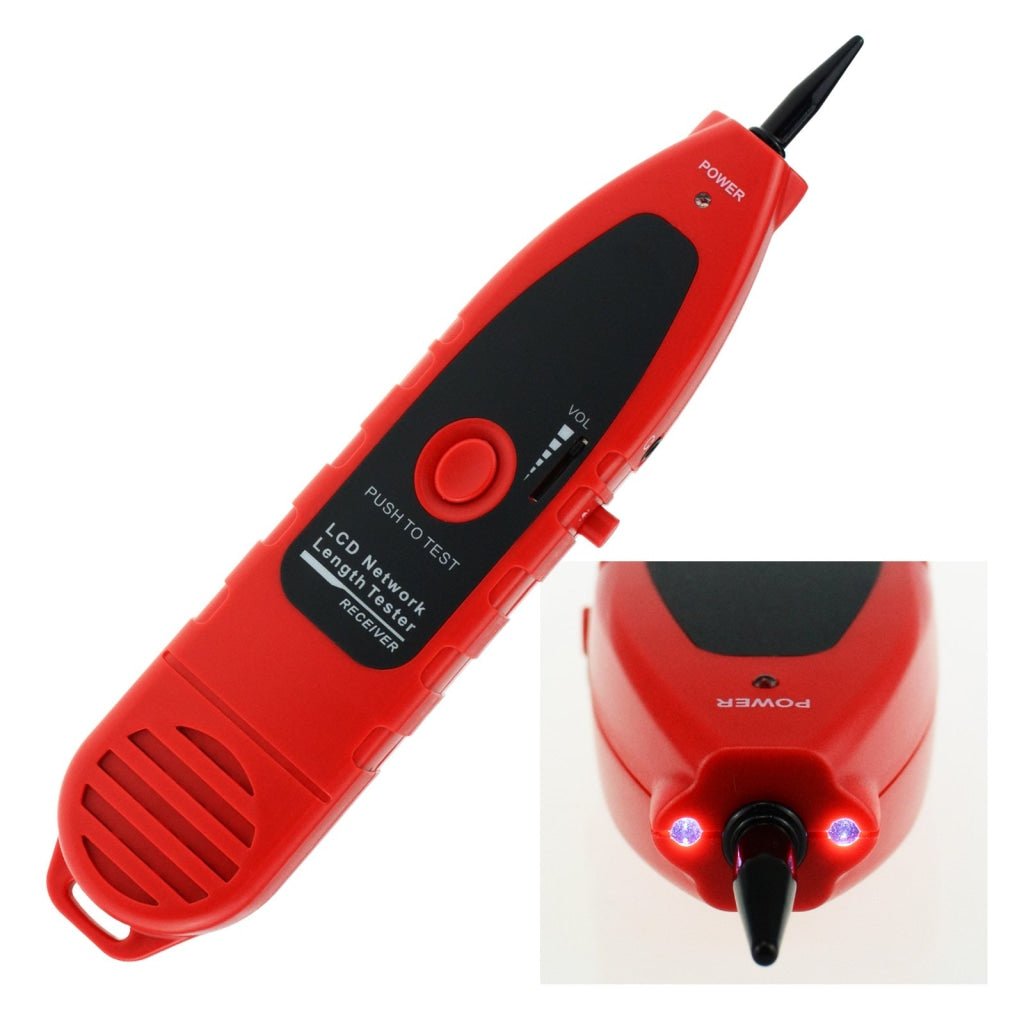

    • Receiver: 218 x 46 x 29mm
    • Remote Identifier: 77 x 31 x 21mm

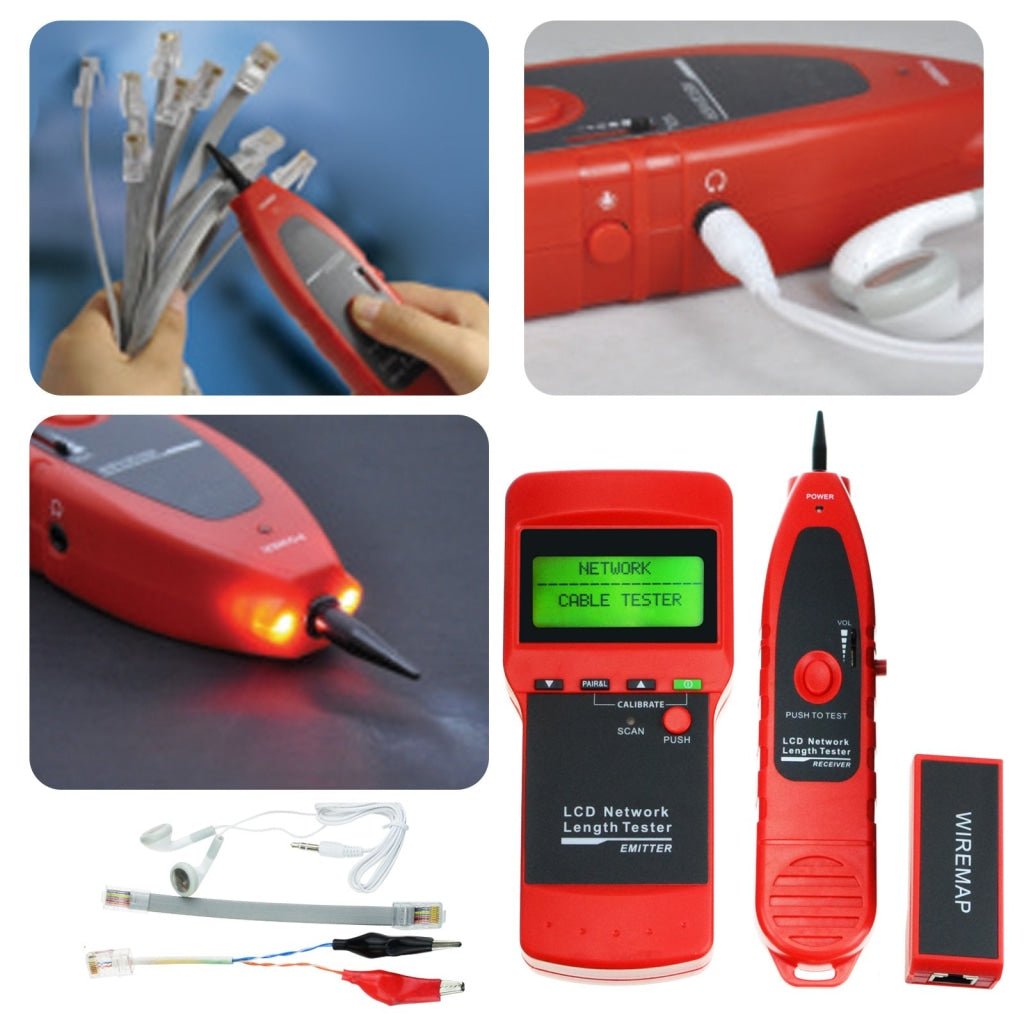

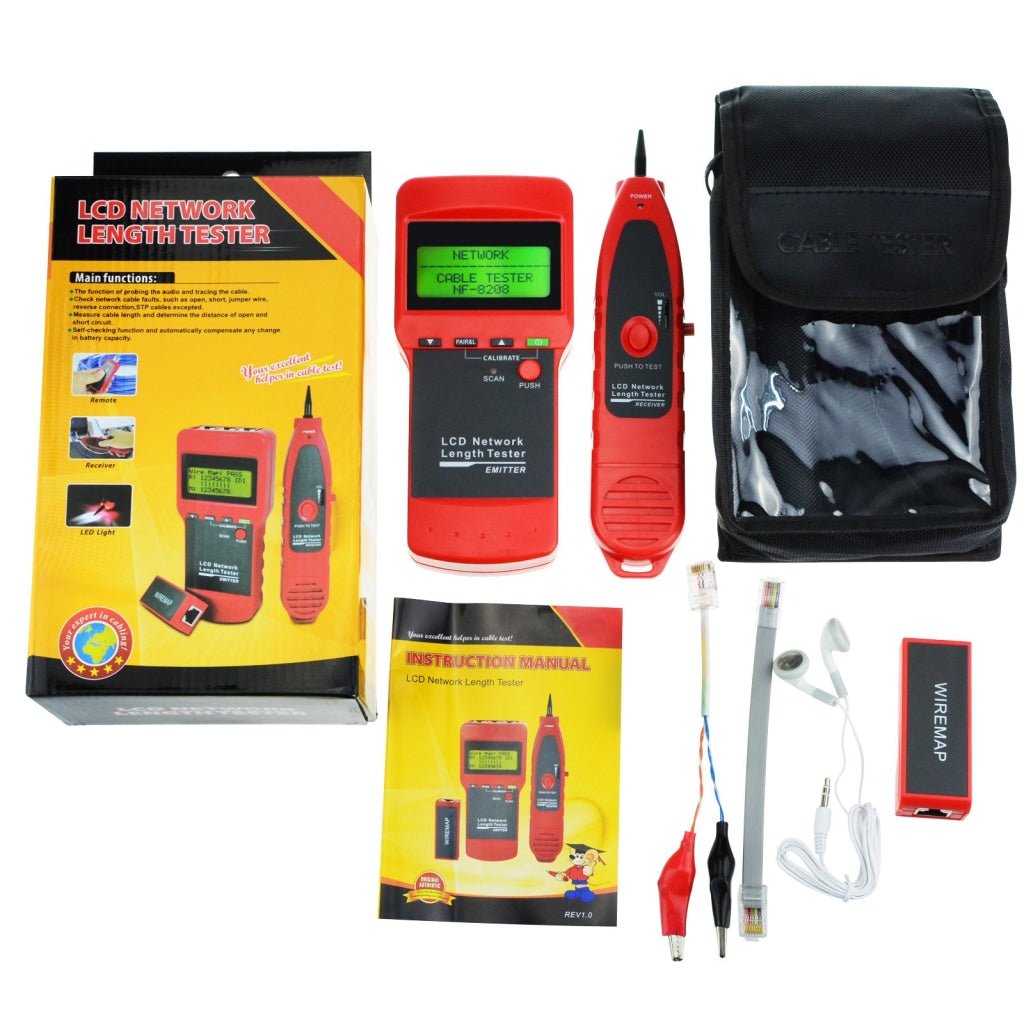

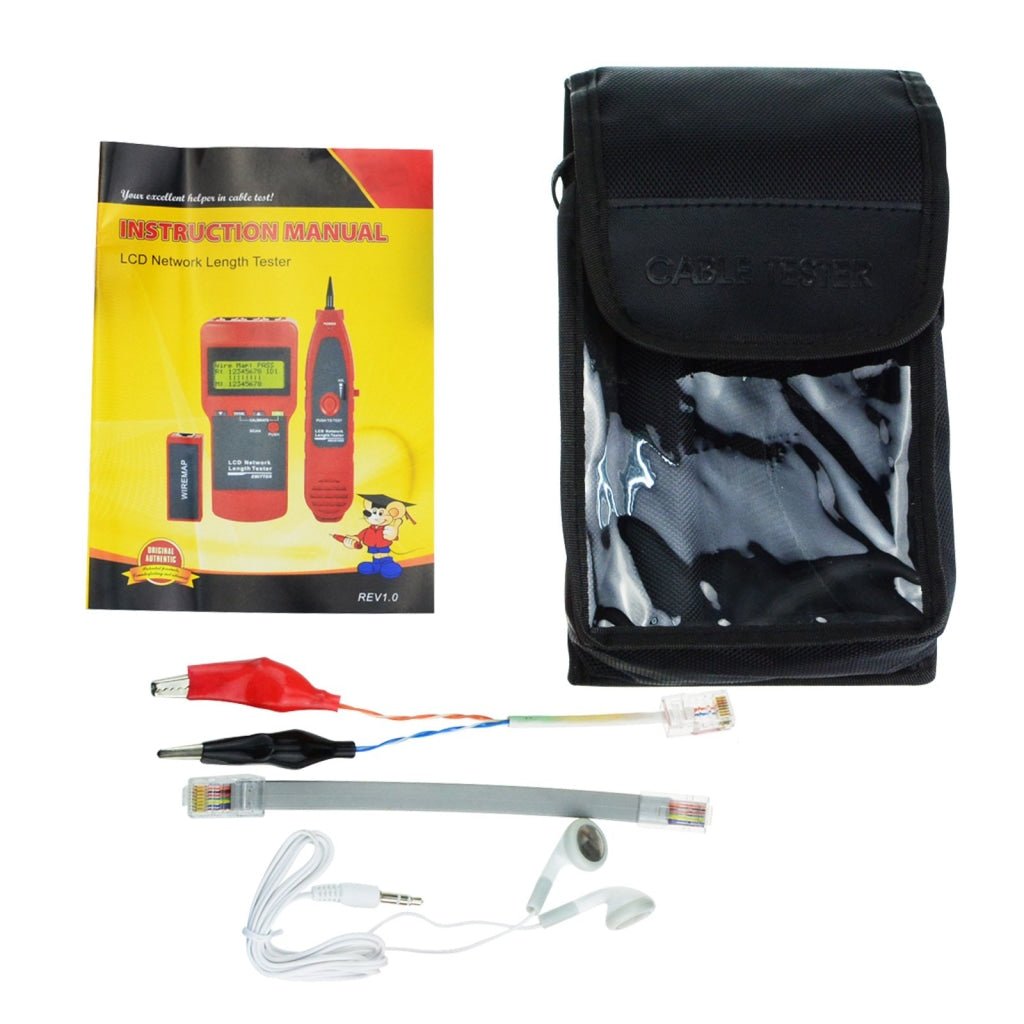

Set includes
  • 1 x Main Tester (Emitter)
  • 1 x Receiver

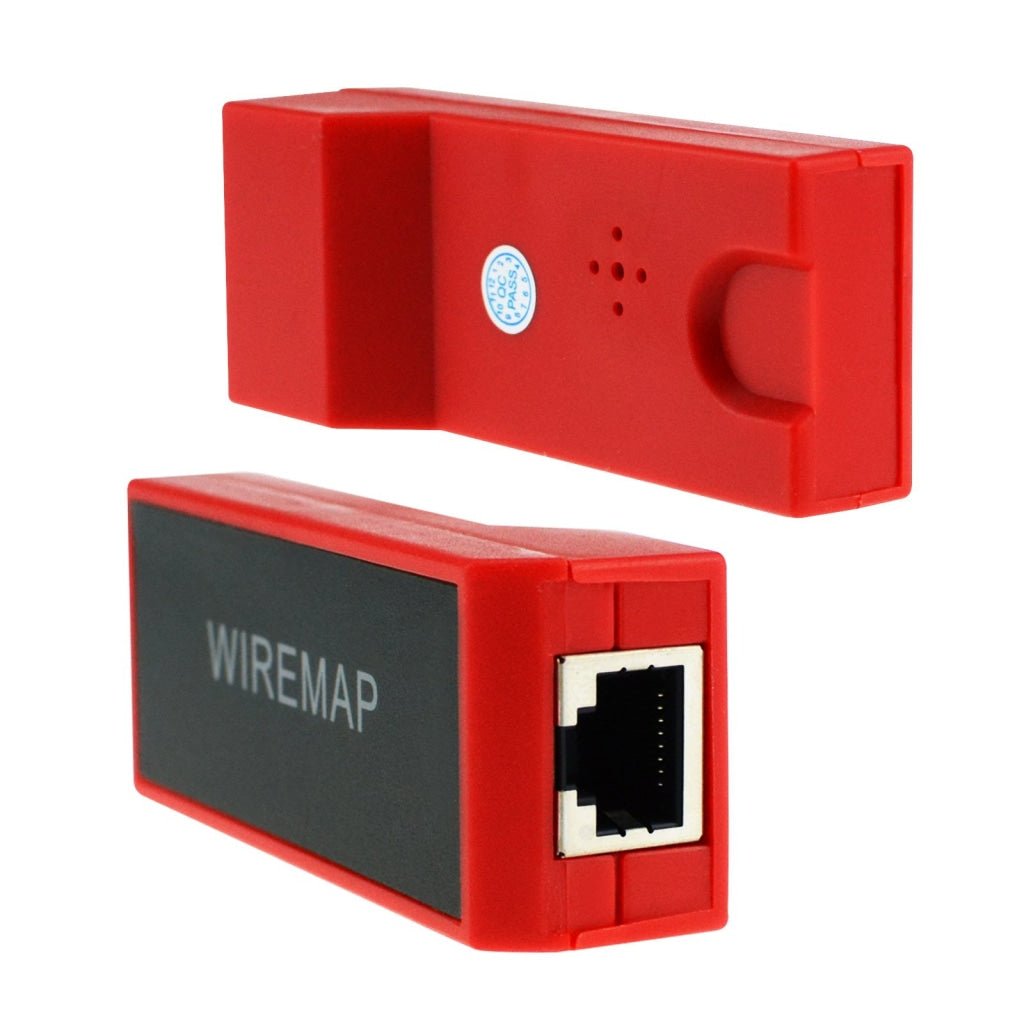

  • 1 x Recognizer (Remote Identifier)

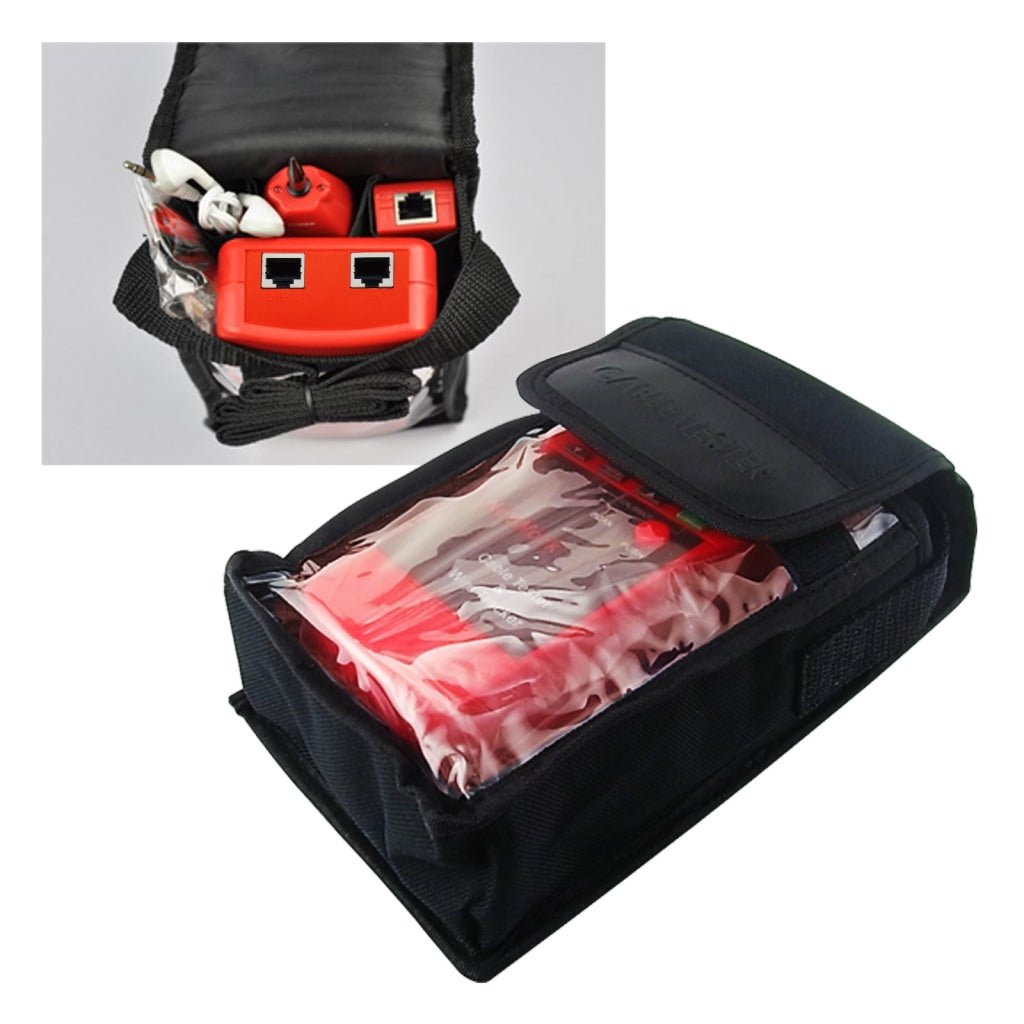

  • 1 x Toolkit Bag
  • 1 x RJ45-to-Alligator Clip
  • 1 x RJ45-to-RJ45 Cable
  • 1 x Earphone
  • 1 x English User Manual
  • 1 x 9V Battery (FREE)
  • Colored Packaging Box

A printed user manual is already included with this item. No digital user manual or software is available.
