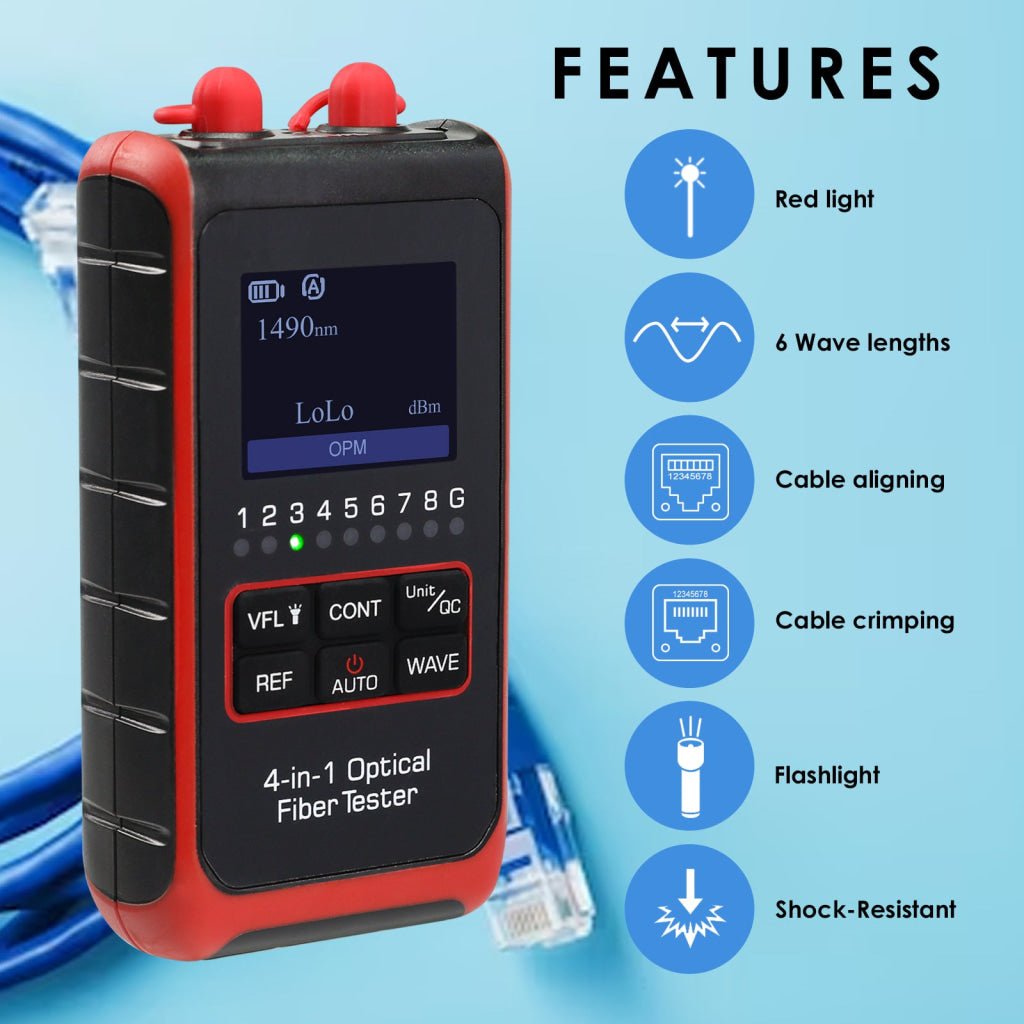

ILCT-430 Fiber Optic Power Meter VFL REF FC SC ST Visual Fault Locator HD Colored LCD Display Fiber Optical Cable Tester Network Tools

Sku: ILCT-430
$43.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This powerful Fiber Optic Power Meter combines multiple essential functions into one compact, user-friendly tool. Designed for professionals and enthusiasts, it delivers unparalleled versatility and performance to tackle a wide range of fiber optic testing and maintenance tasks.

Application:

  • Measures optical power from -60 to +8 dBm with minimal error

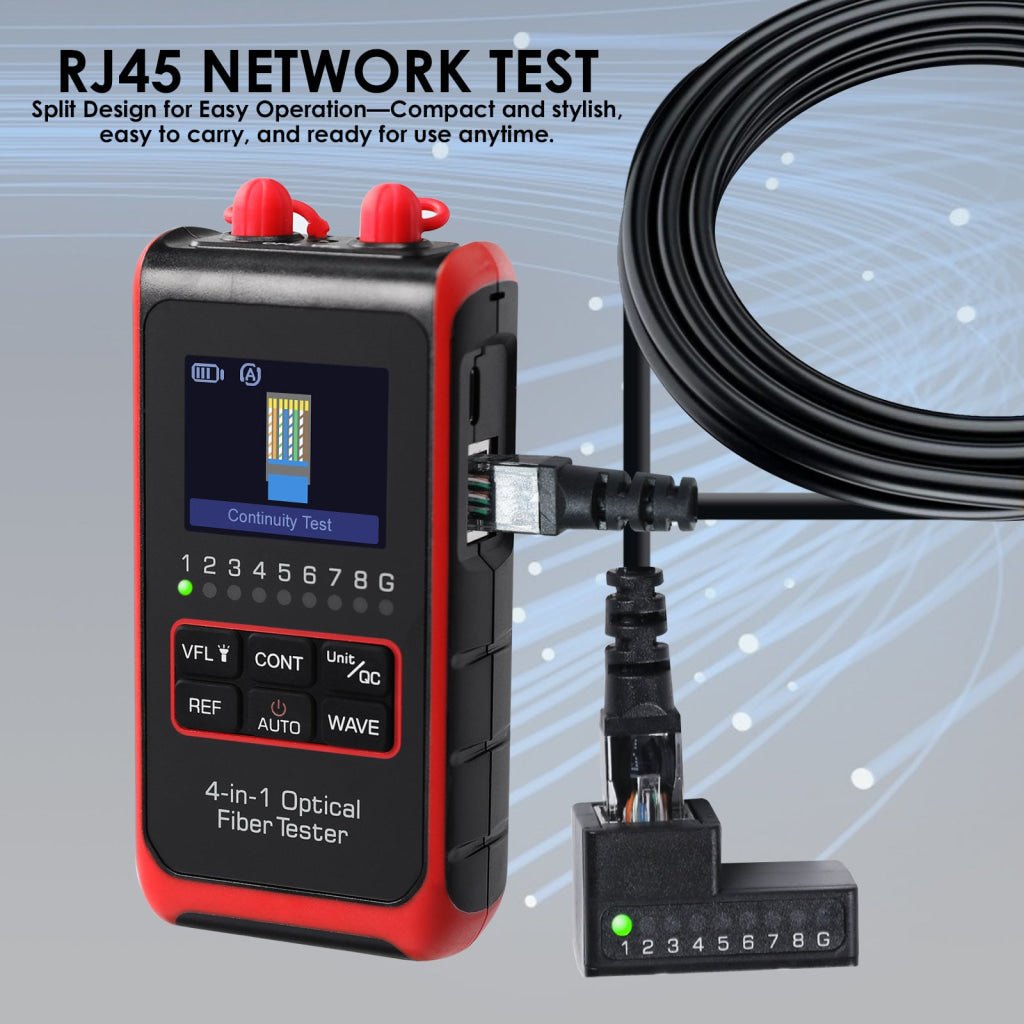

  • Tests optical transceivers, receivers, modules, and RJ45 network connections
  • Crimp tool for fast, precise termination of fiber optic connectors
  • Wiring functions for testing copper network connections

Features:

  • Small and easy-to-carry fiber optic tester

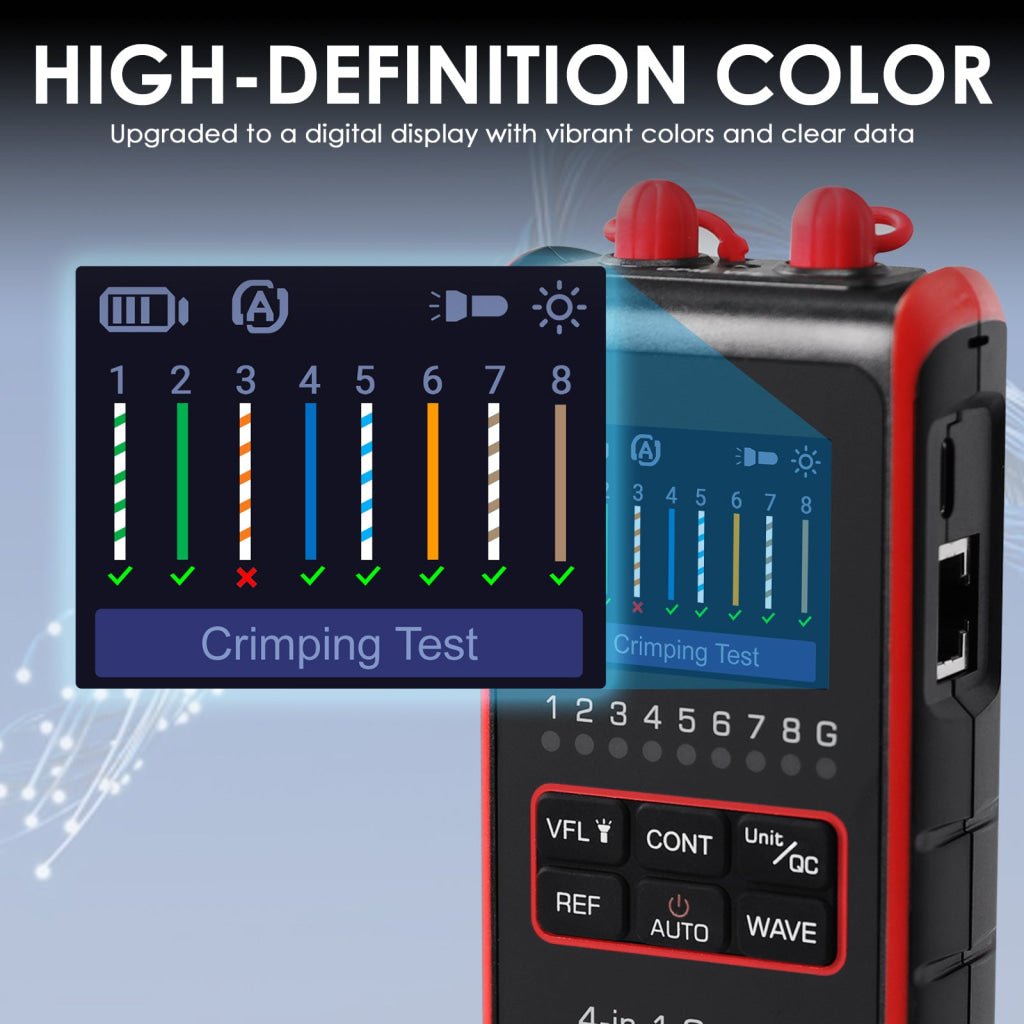

  • HD screen colored screen

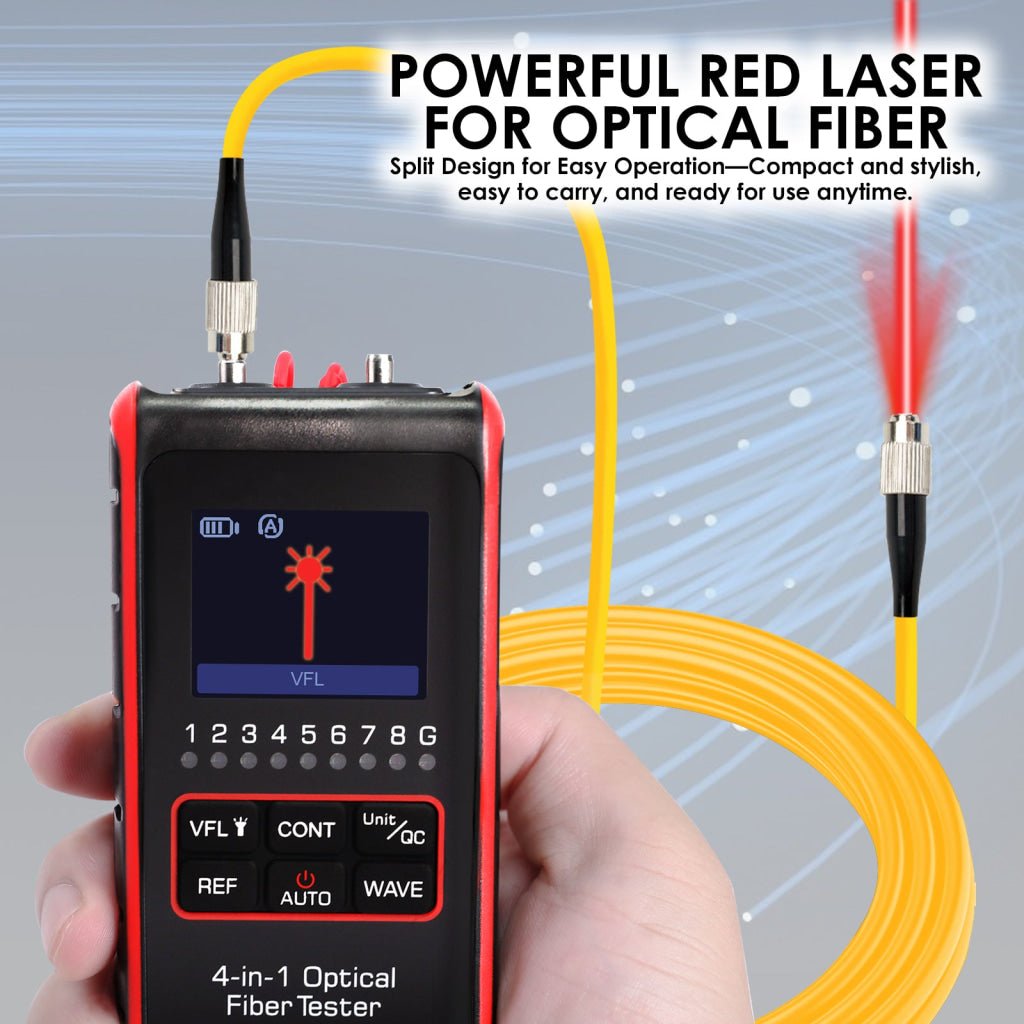

  • Red laser for visual fault identification and tracing
  • Automatic shutdown (after 30min)that can also be disabled
  • Supports 850/980/1310/1490/1550/1625nm wavelength
  • Switchable unit: dBm or mW/uW/nW
  • Works with 270Hz/1KHz/2KHz light source
  • Continuity test (Fast (0.5sec) and Slow (1sec) test mode option)
  • VFL Testing (Steady on, Slow Flashing, and Fast Flashing option)
  • QC test function
  • Lamp function (LED Flashlight)
  • Battery strength indicator
  • Wavelength Memory (save last wavelength setting)

Specifications:

  • Screen: Colored display
  • Power Meter:
    • 850/980/1310/1490/1550/1625nm wavelength
    • dBm or mW/uW/nW Unit
    • REF
    • 270Hz/1KHz/2KHz Frequency
  • Test Function:
    • Continuity Test
    • VFL Test
    • QC Test

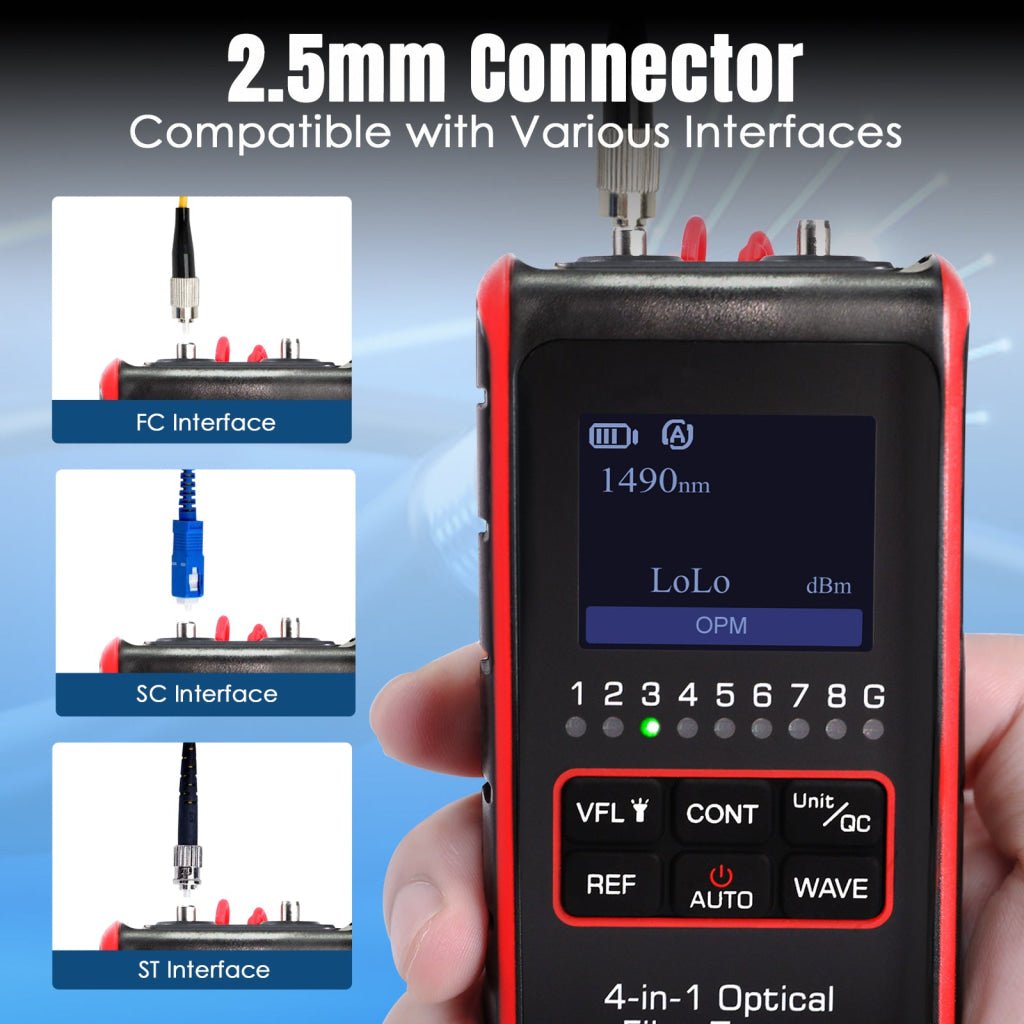

  • Interface: Universal Compatibility, Fits FC, SC, and ST fiber interfaces
  • Body: Tough ABS Build with impact-resistant silicon edge protection
  • Power supply: 3.7V Lithium Battery
  • Dimension: 128 x 61 x 32mm

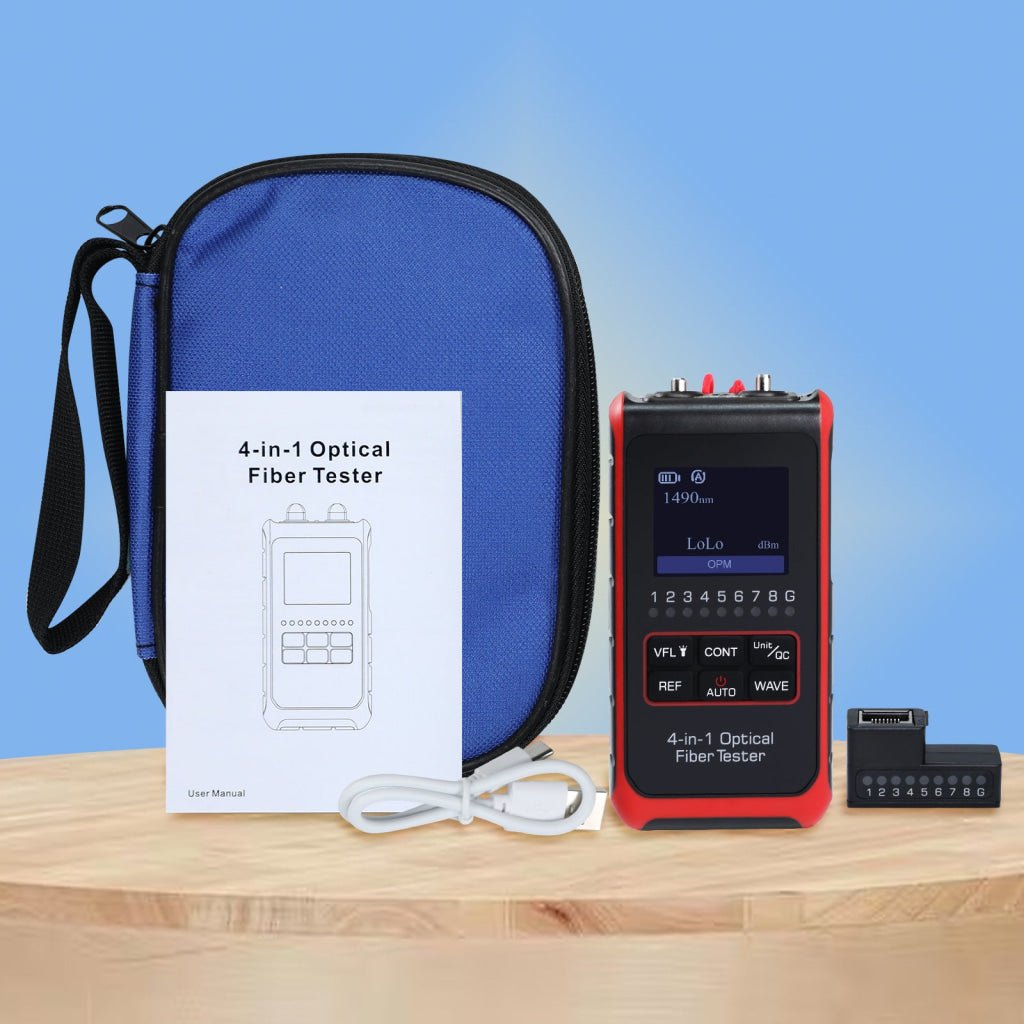

Set Includes:

  • 1 x Optical Fiber Tester

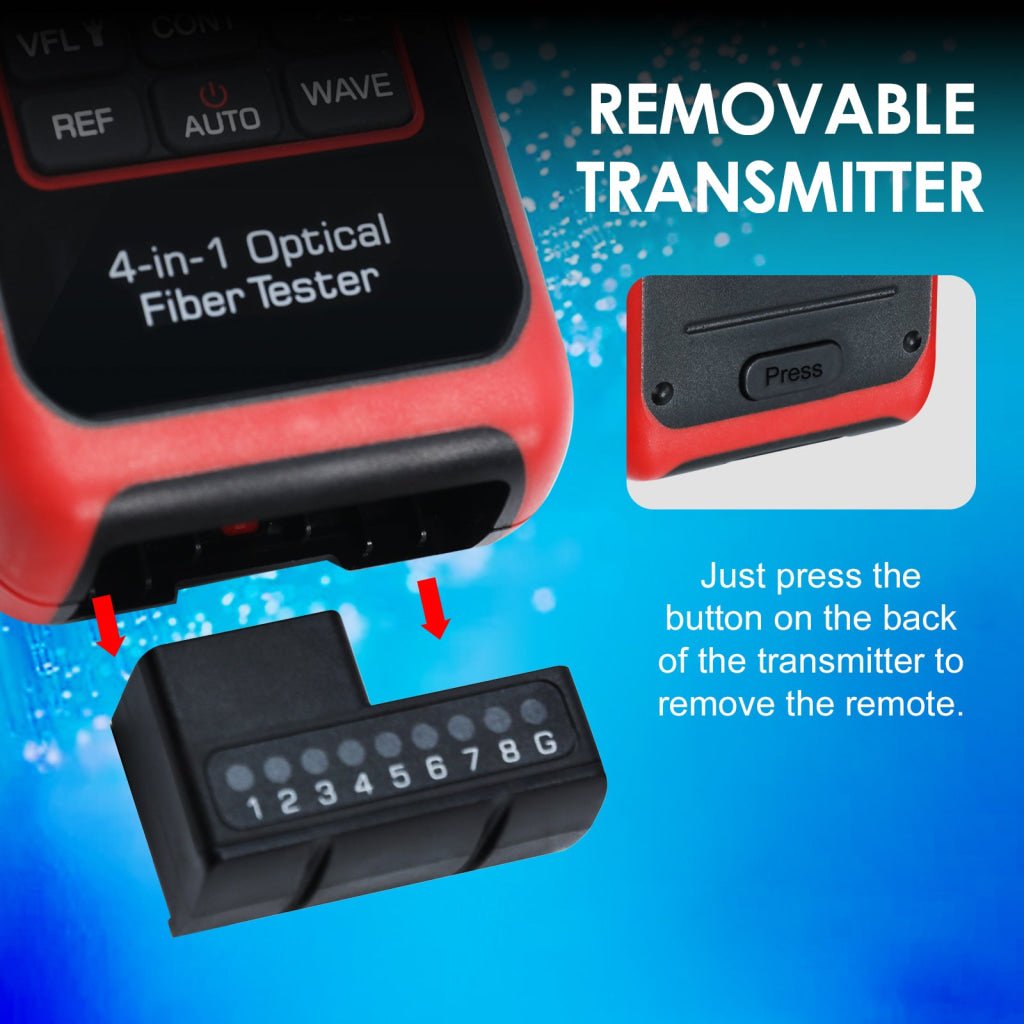

  • 1 x Transmitter
  • 1 x USB Type-C Cable
  • English Instruction Manual
  • Carrying bag
  • Standard factory packaging

A printed user manual is already included with this item. No digital user manual or software is available.
