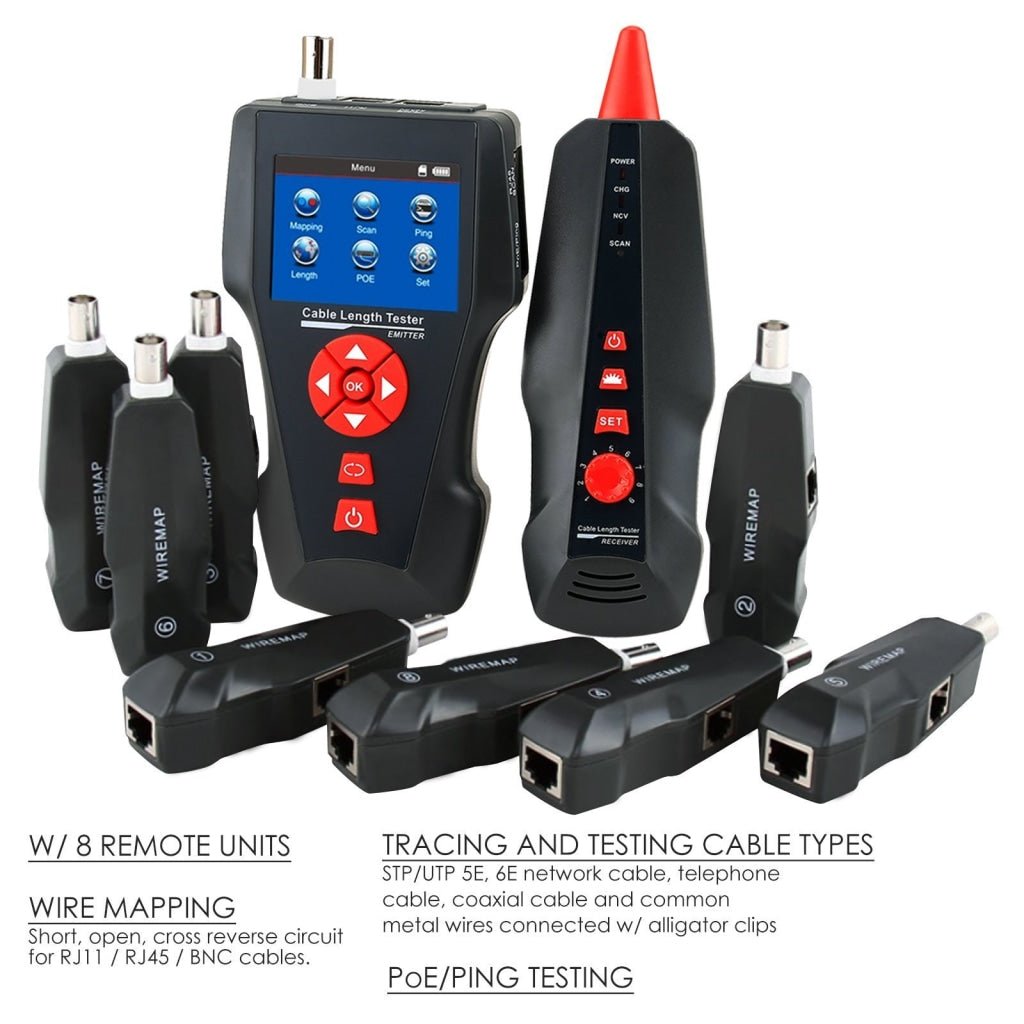

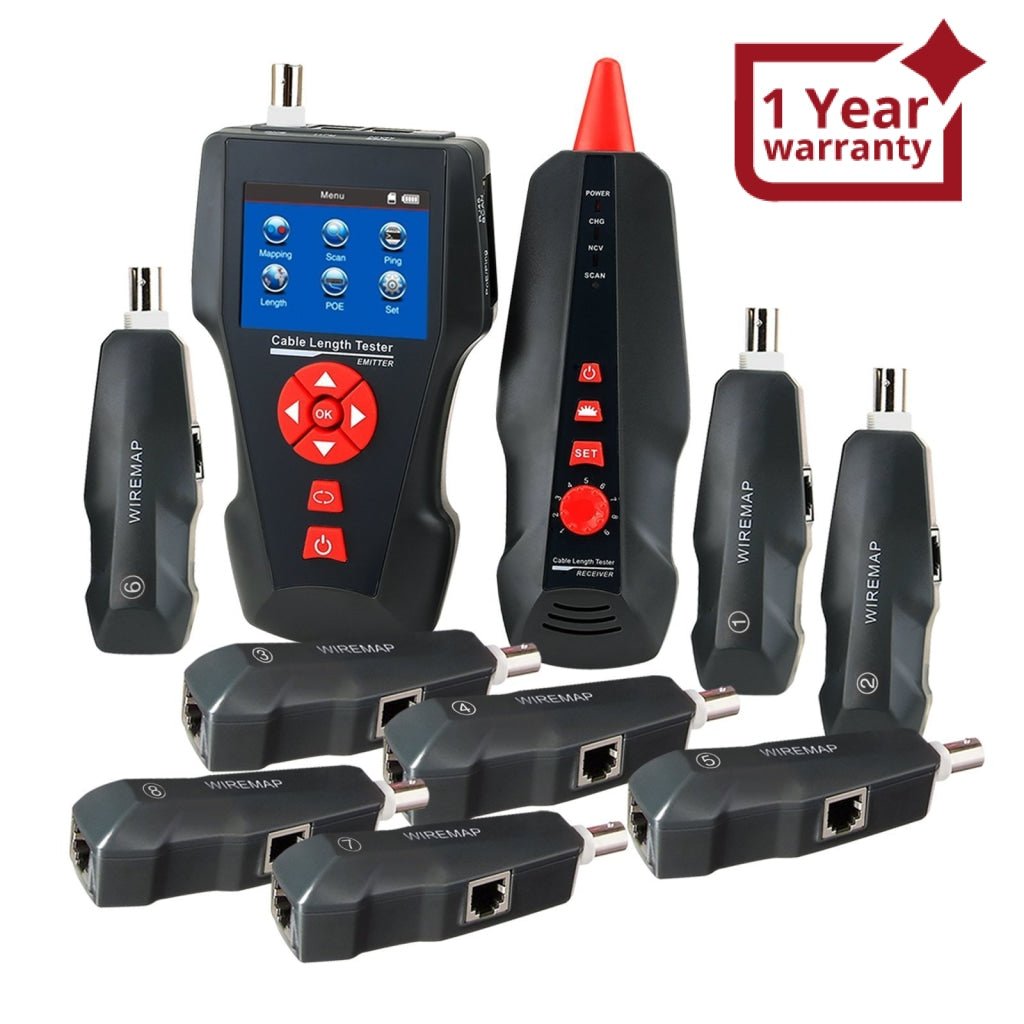

ILCT-182 Digital Cable Tester Wire Tracker RJ45 RJ11 BNC Cable Length, with FREE TF Card, Handheld Tester with 8 Remote Identifier PoE PING Data Storage Function and Port Flash

Sku: ILCT-182
$210.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This cable length tester is CE approval do mapping that test cable continuity, such as if the cable is good, open, short, cross, reverse connection, etc. It can do port flash that helps you locate the target network cable more easily while connect with the router/switch. It can scan cable that trace RJ45/RJ11 cable and coax cable. It can do PING that test network signals and if the network cable is connected or not. It can verify cable length, open circuit distance and pairing, crosstalk. It can do PoE that test if the network cable is connected with PoE switcher or router, and then detect the power of every cable. It has a setting that set up backlight/backlight time/auto-power-off time/theme color/data export/system information, etc.

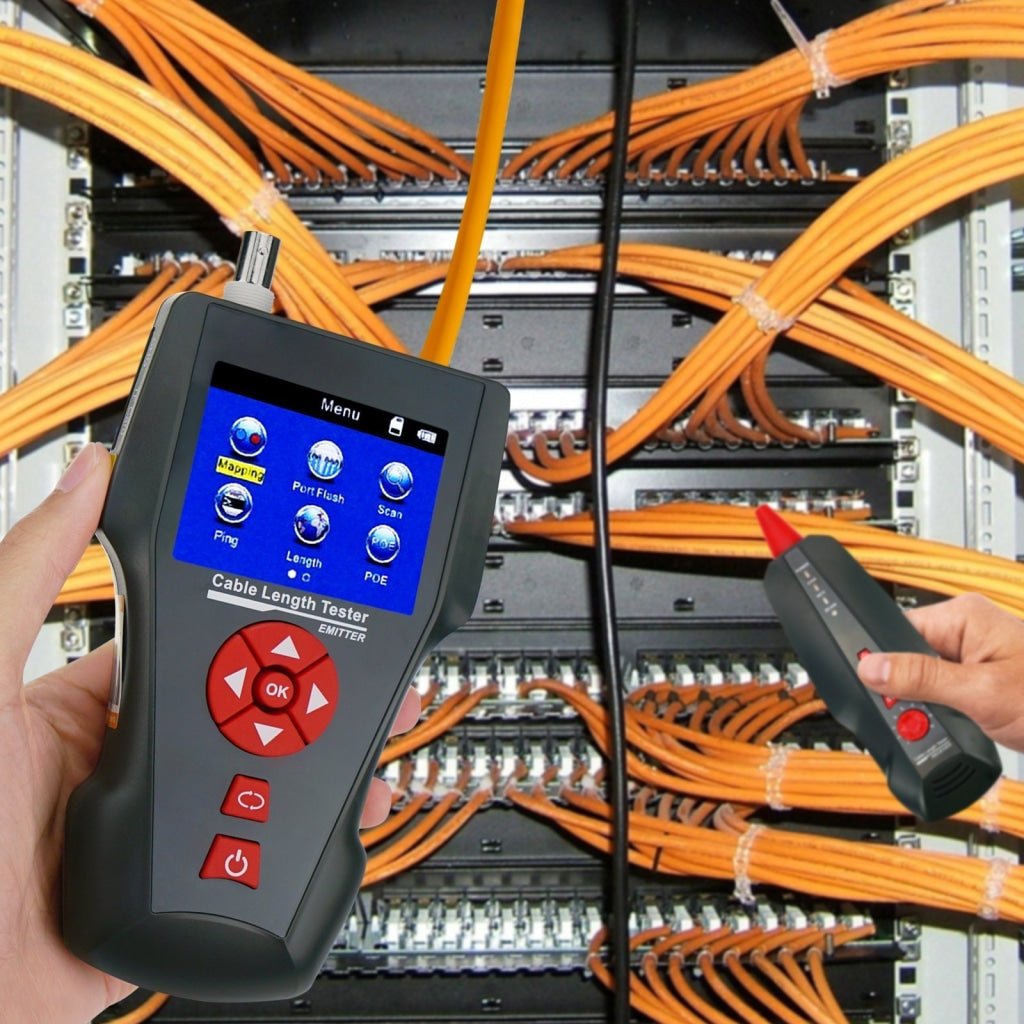

It is a practical tool for low voltage system installation and maintenance technicians of communication circuits and comprehensive wiring circuits.


FEATURES:

  • PoE function identifies which pins are providing power and detect how much voltage and PING function tests data packet and its loss) and voltage detection(90-1000V, included in receiver)
  • Trace targeted cable among lots of unknown cables, port flash function help trace lan cable connected to swticher or router visually, no need of receiver
  • Capable of scanning cable on PoE switch without damaging the device, locate faults for RJ11/RJ45/BNC Cable, measure cable length accurately; Tracing (with AC Interference Rejection)/Measure length of network cable, coaxial cable, and telephone cable up to 2000m, no connection of remote unit needed
  • Voltage detecting function, comes with 8 remote identifiers which enable to test 8 cables at one time, improving work effiency; capable to test open, short, cross connection, reverse, and broken wire positioning with M-S and M-R method
  • Memory and storage function: import and export data from computer(160 sets, txt format) and colored screen with built-in Lithium battery


SPECIFICATIONS:

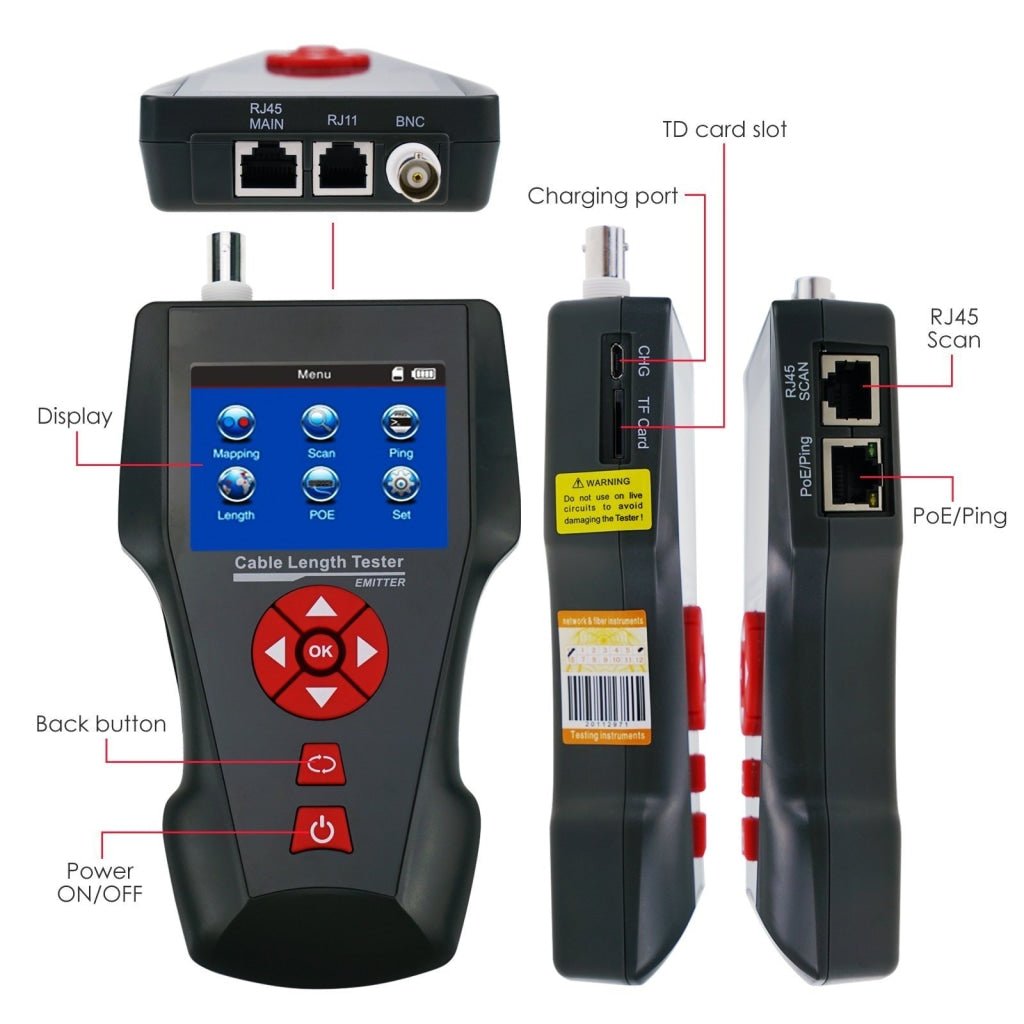

  • Emitter/Transmitter:
    • Display: 2.8 inch LCD 320x240 mm, colored screen with backlight
    • Cable testing types: STP/UTP 5E, 6E network cable, telephone cable, coaxial cable, and common metal wires connected with alligator clip
    • Max. distance of wiremap: 2000m
    • Max. distance of tracing cable: 1000m
    • Max distance of cable length measurement: 2000m
    • Min. distance of calibration: 10m
    • Accuracy: 98% (after calibration)

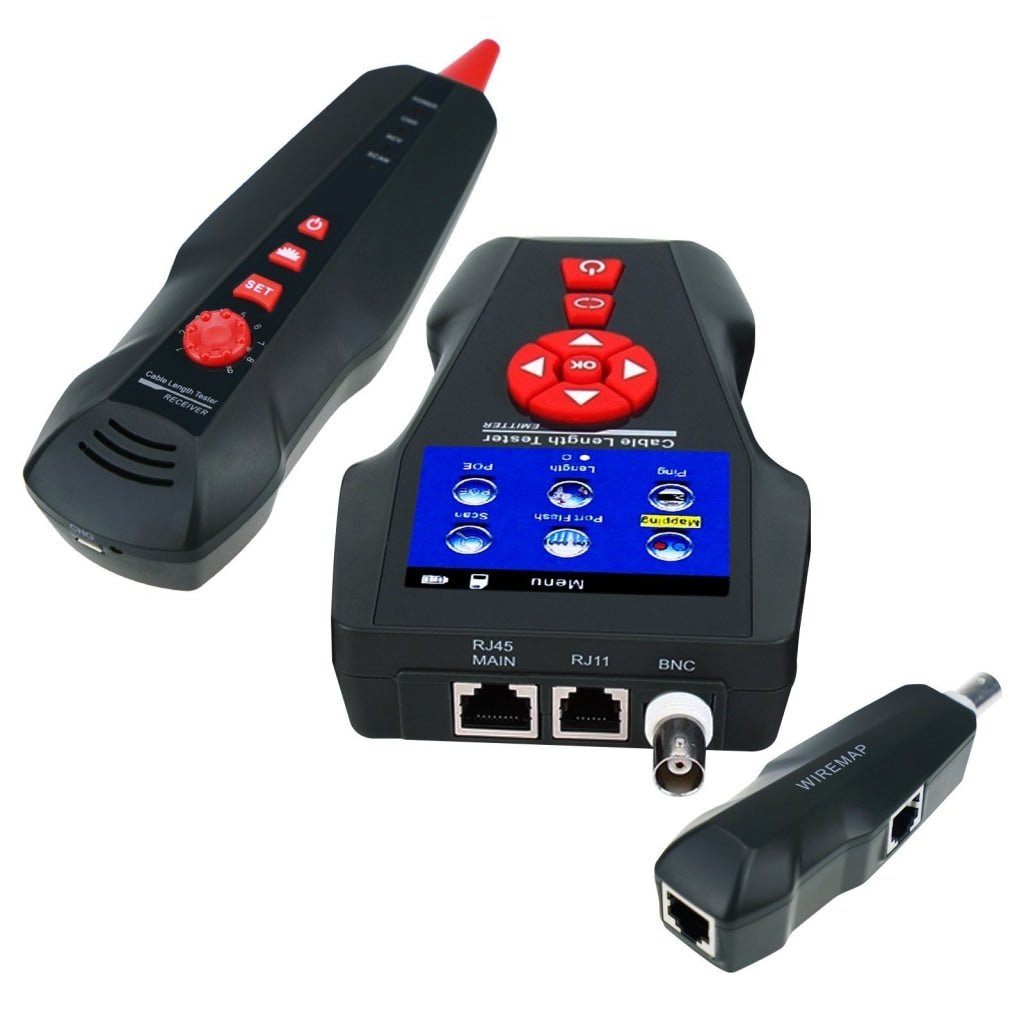

    • Compatible connectors: RJ11, RJ45, BNC, PING/PoE
    • Cable map indication: LCD (Pin#1 – Pin#8 & G)
    • Power Supply: 3.7V rechargeable lithium battery 1800mAh (installed)
    • Work temperature/ humidity: 10°C-60°C/ 0%RH-70%RH

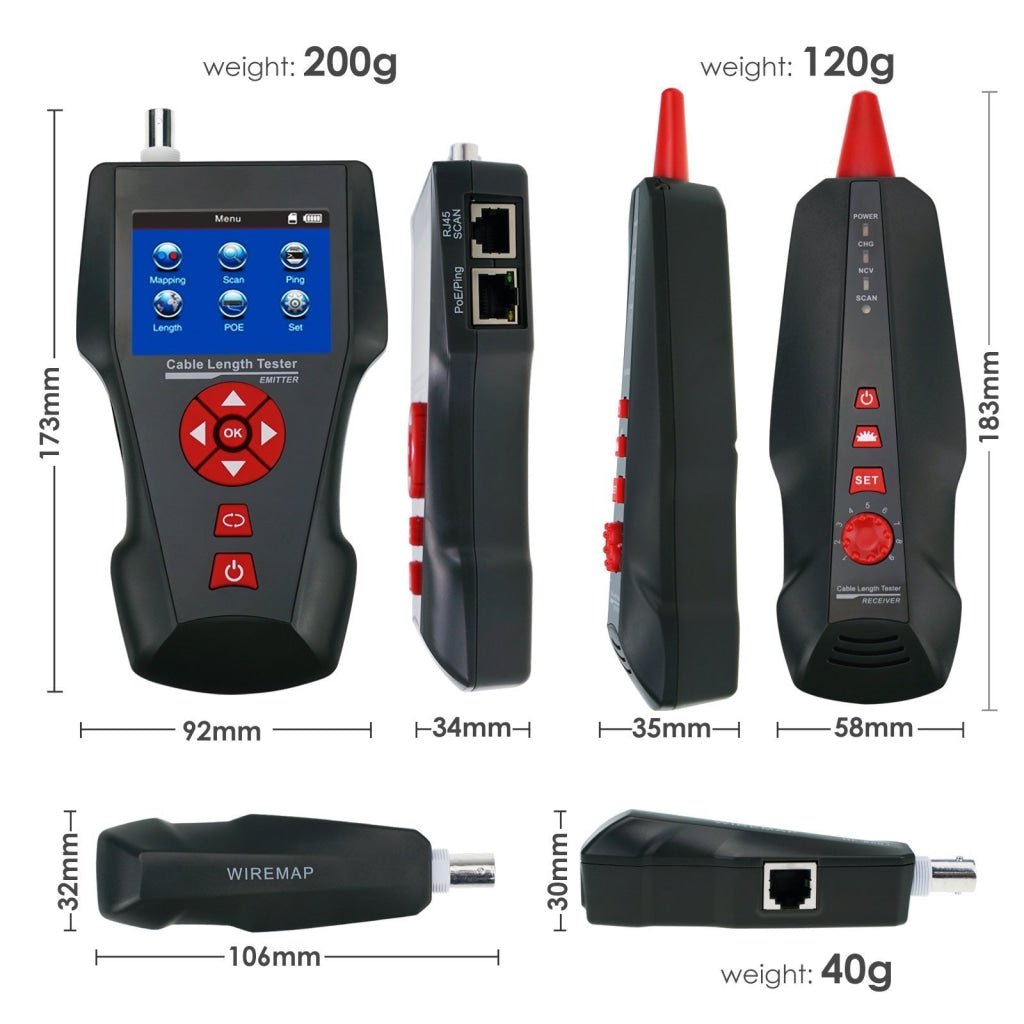

    • Dimension: 173 x 92 x 34mm

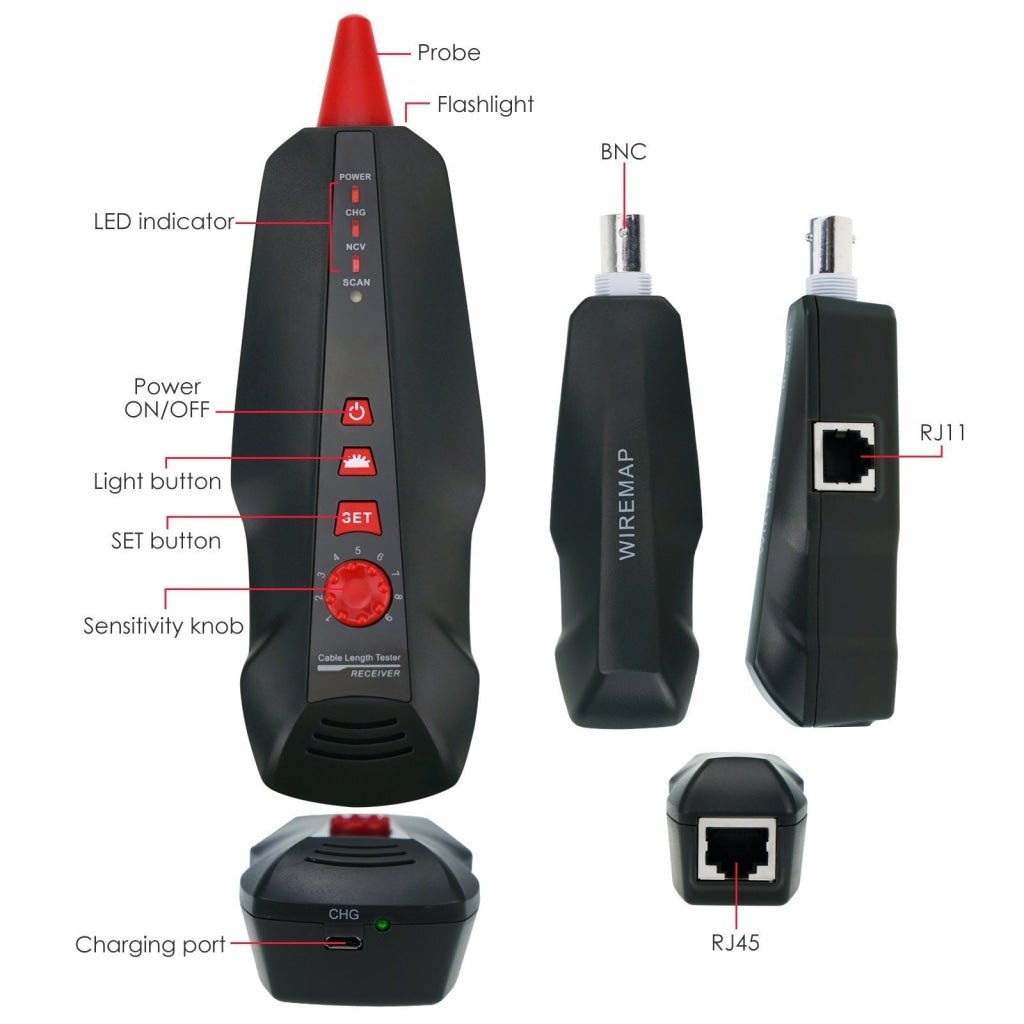

  • Receiver:
    • Cable hunting: RJ45, RJ11, BNC cable
    • Types of cable: ≥2 cores
    • Power supply: 3.7V rechargeable li-battery 1800mAh
    • Dimension: 106 x 32 x 30mm

  • Remote identifier
    • Compatible connectors: RJ11, RJ45, BNC
    • Remote: 8pcs
    • Dimension: 106 x 32 x 30mm

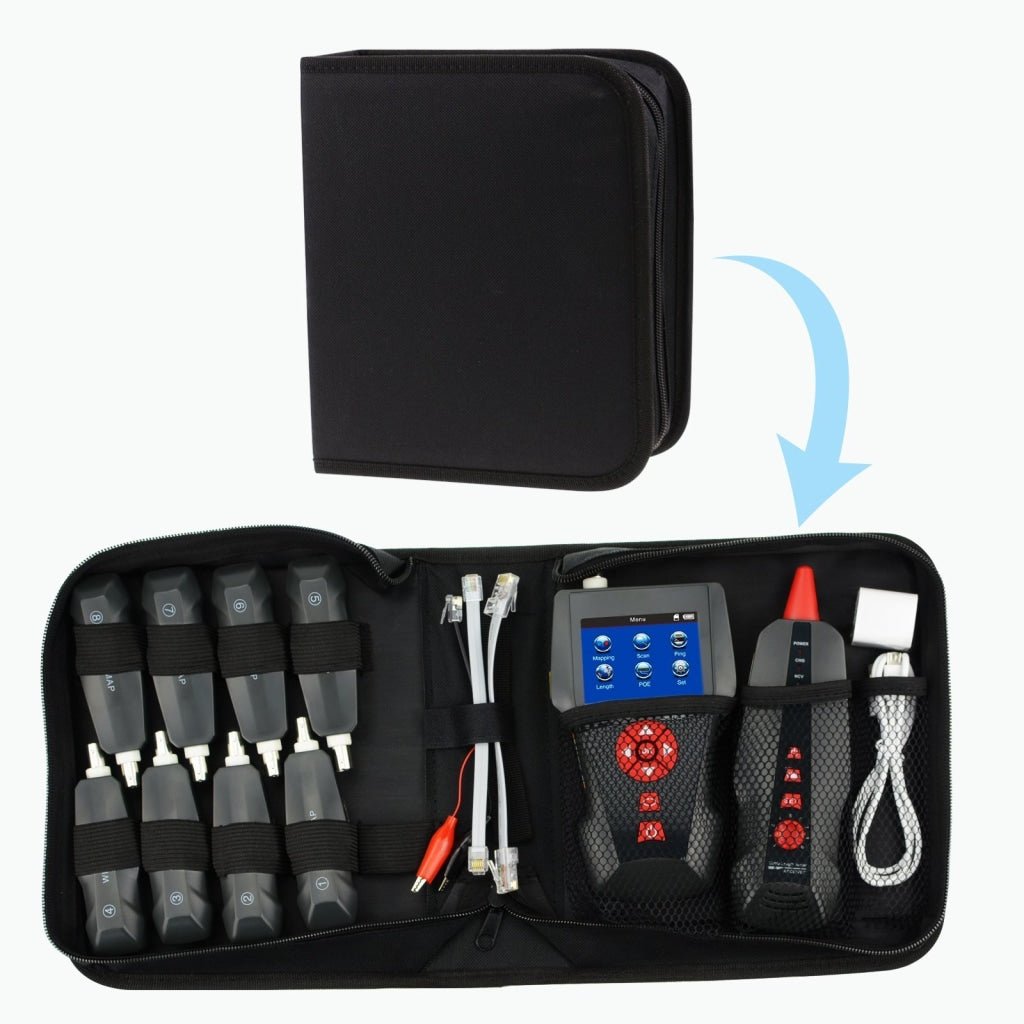

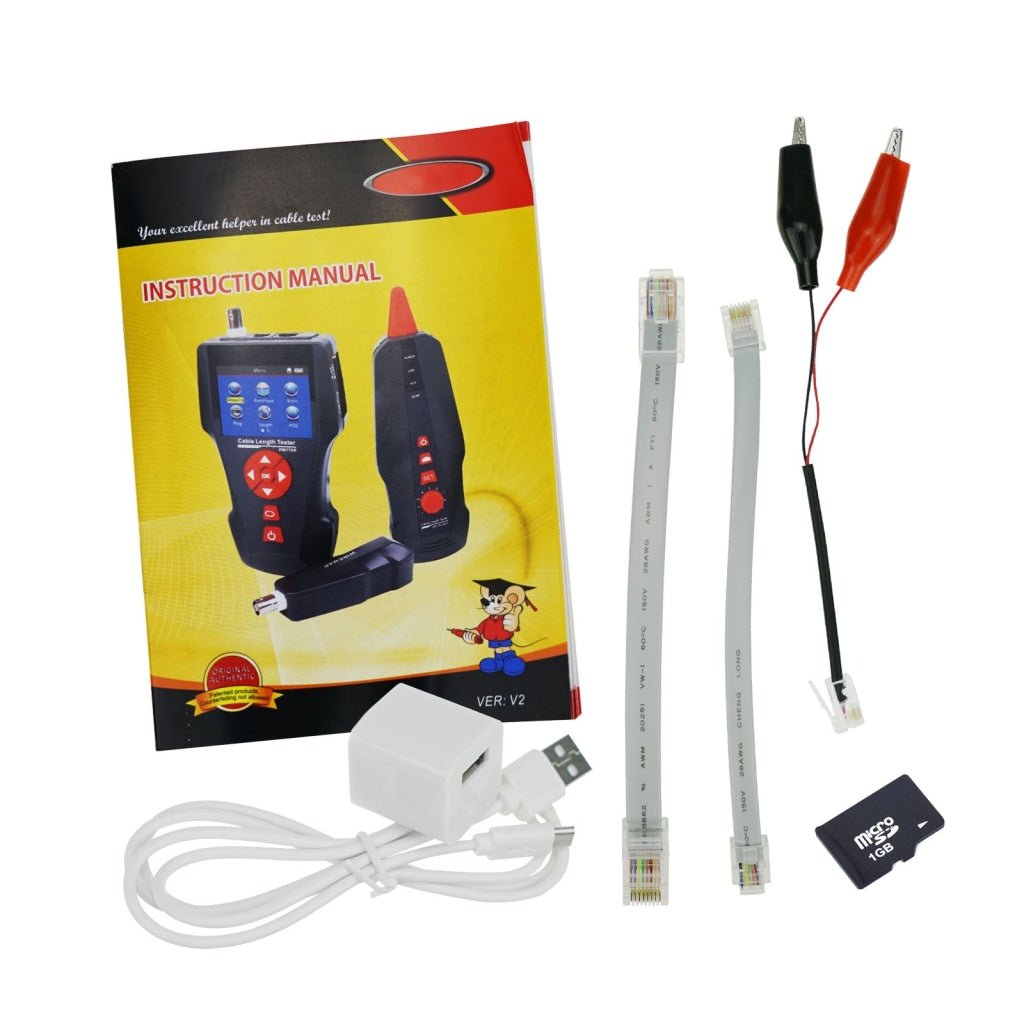

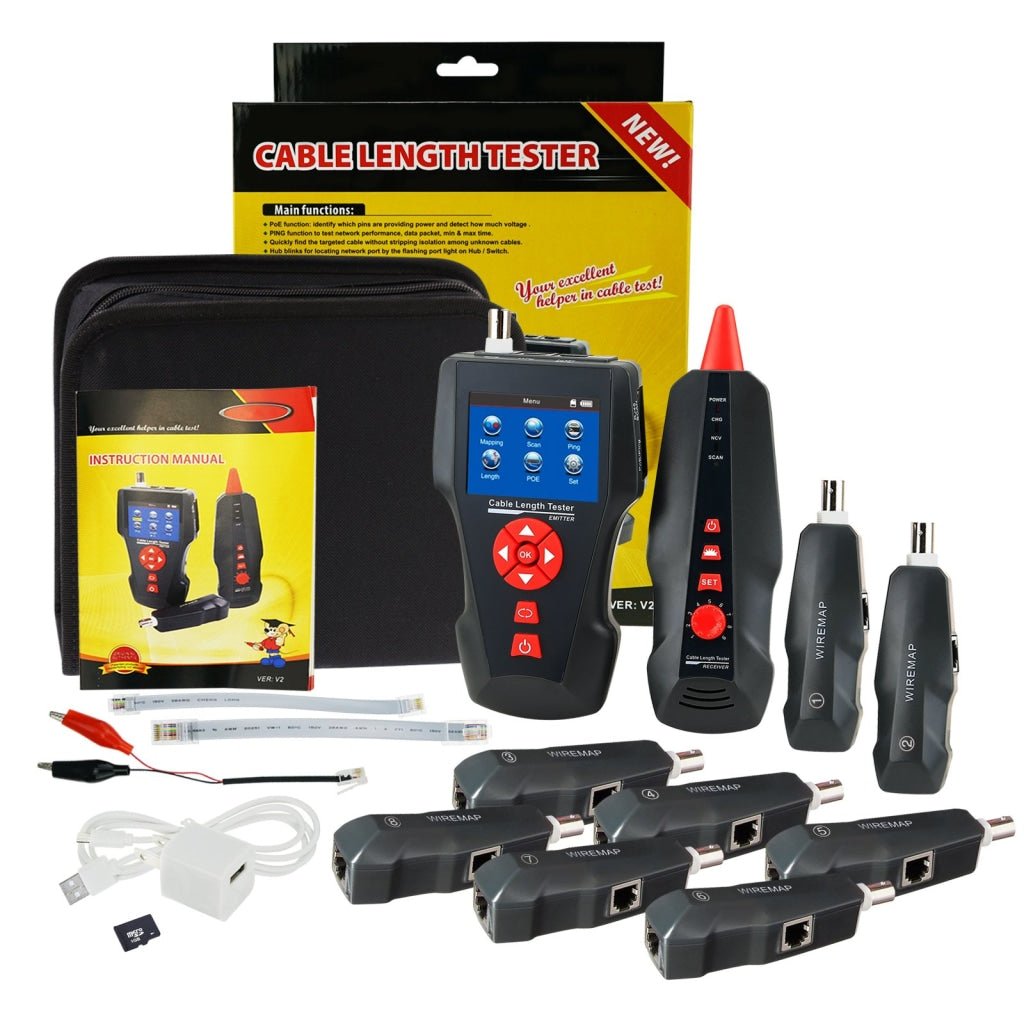

SET INCLUDES:

  • 1 x Emitter
  • 1 x Receiver
  • 8 x Remote identifier
  • 1 x RJ11 cable adaptor
  • 1 x RJ45 cable adaptor
  • 1 x Alligator clip
  • 1 x 1GB TF Card
  • 1 x English Manual
  • 1 x USB Cable
  • 1 x Power adaptor
  • 1 x Carry pouch

    A printed user manual is already included with this item. No digital user manual or software is available.
