ILCT-1031 Transmitter & Receiver Cable Tester Identifier Alligator Clip Test DC Voltage Continuity Overload Protection

Sku: ILCT-1031
$54.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

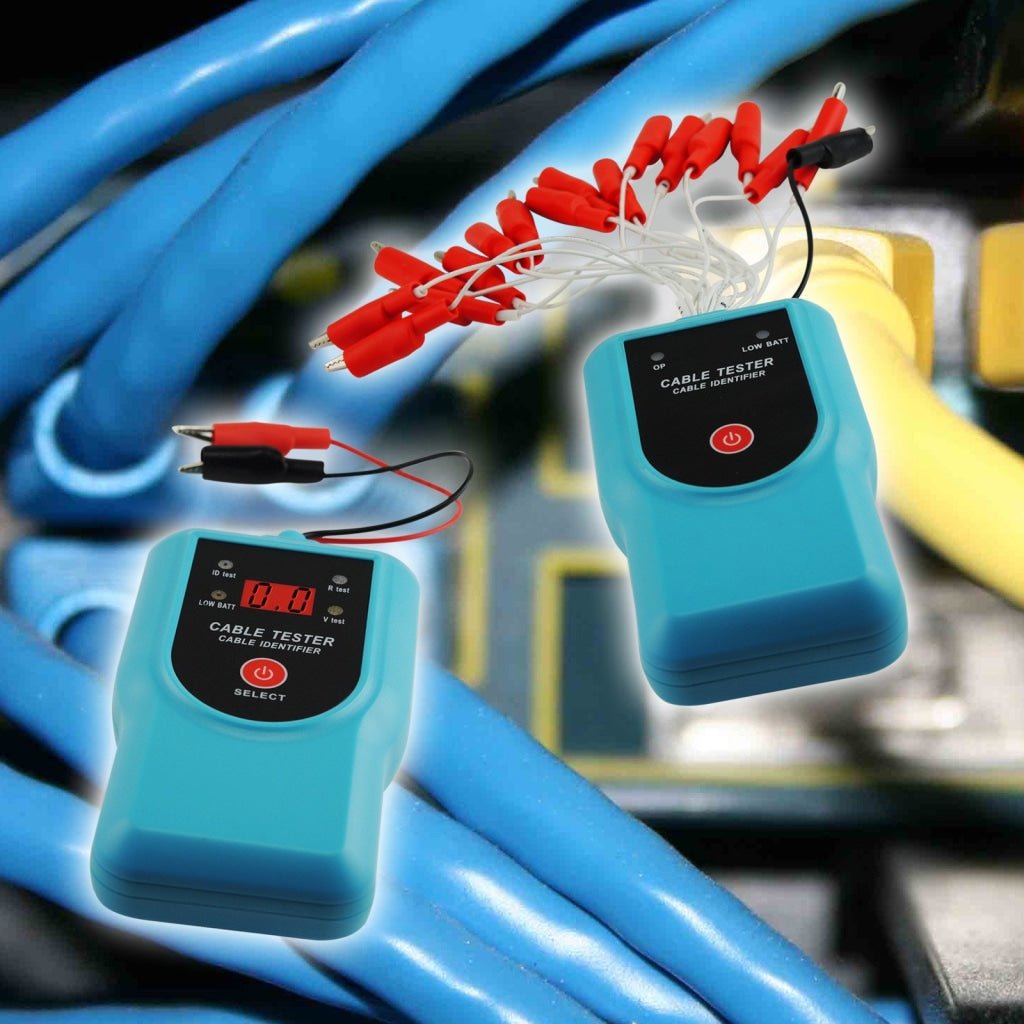

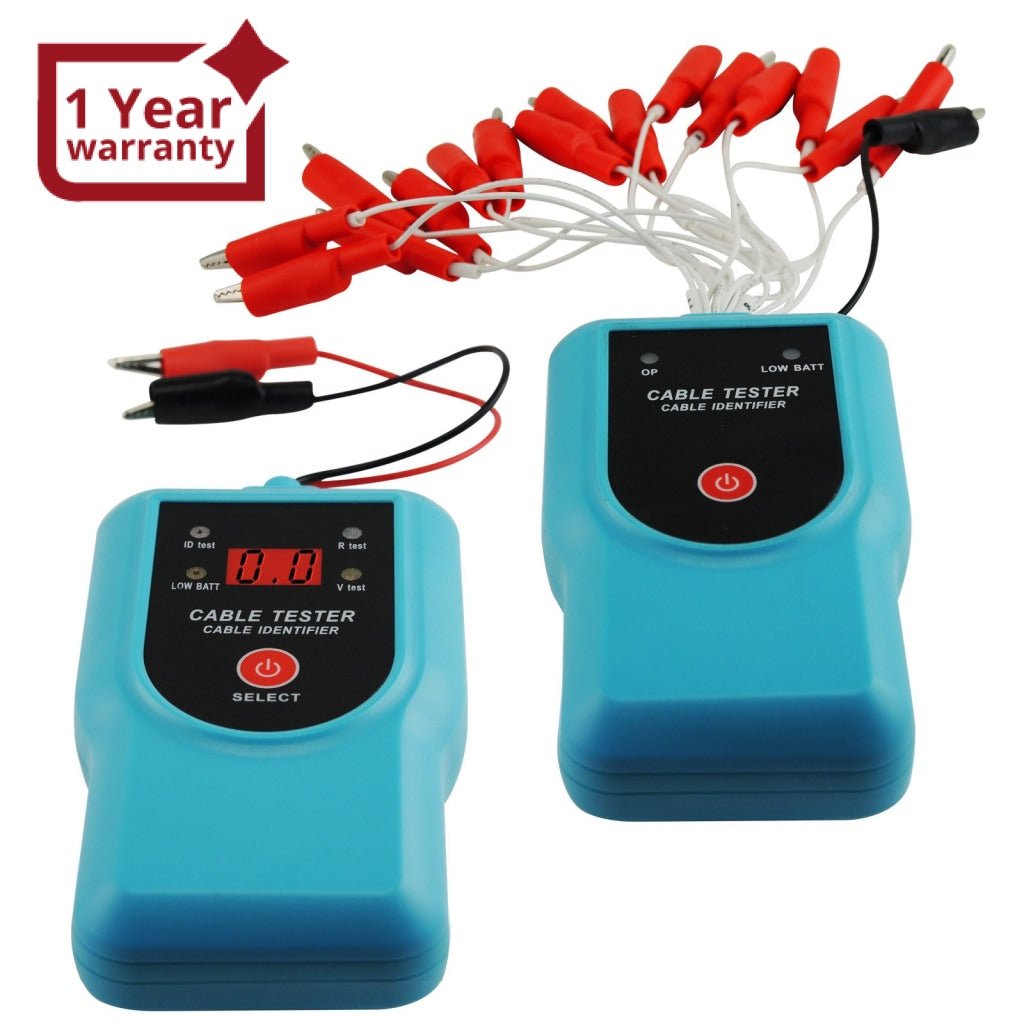

This instrument consists of a Transmitter and a Receiver, they can be connected to the two ends of a core of a multi-core cable to identify or test this core. In addition, the Receiver can also be used to test DC voltage and continuity.

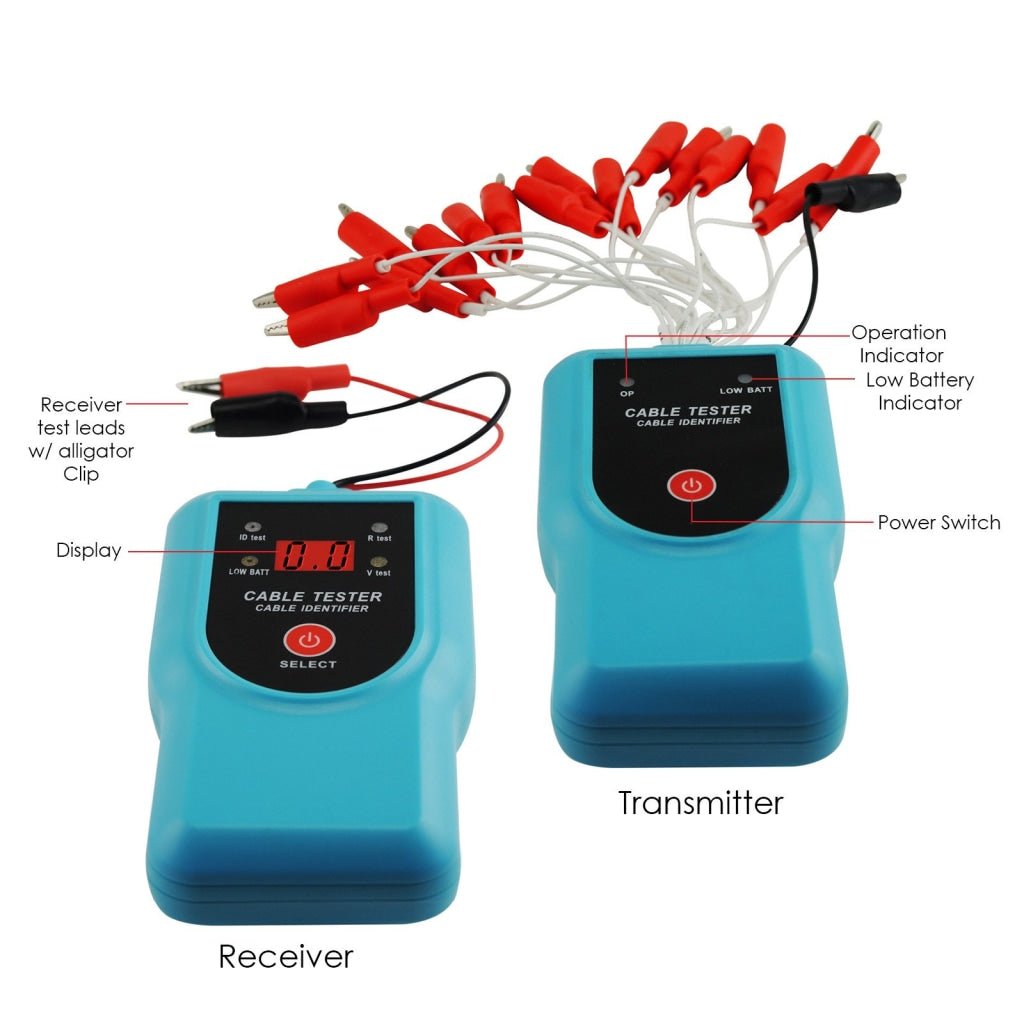

Features:

  • Transmitter :

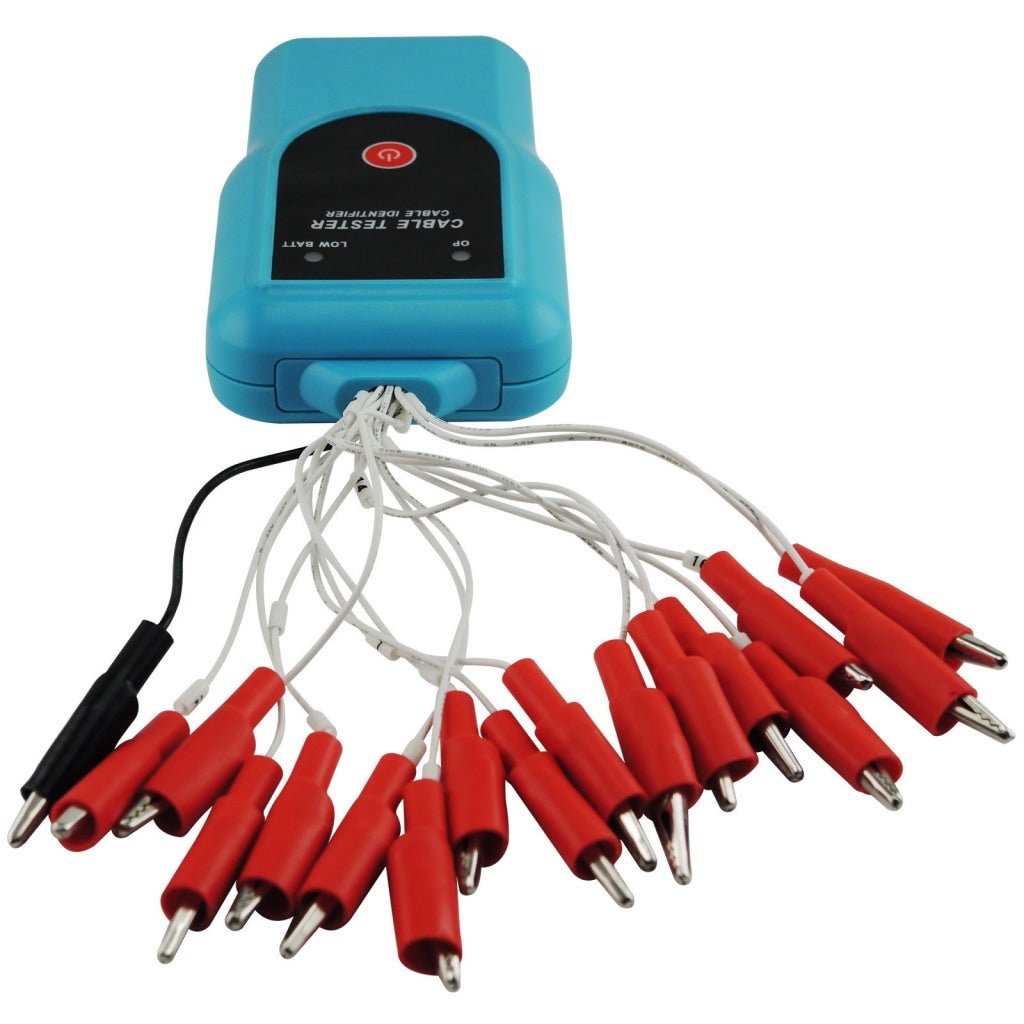

    • Test leads with alligator clips
    • Operation indicator
    • Power switch
    • Low battery indicator

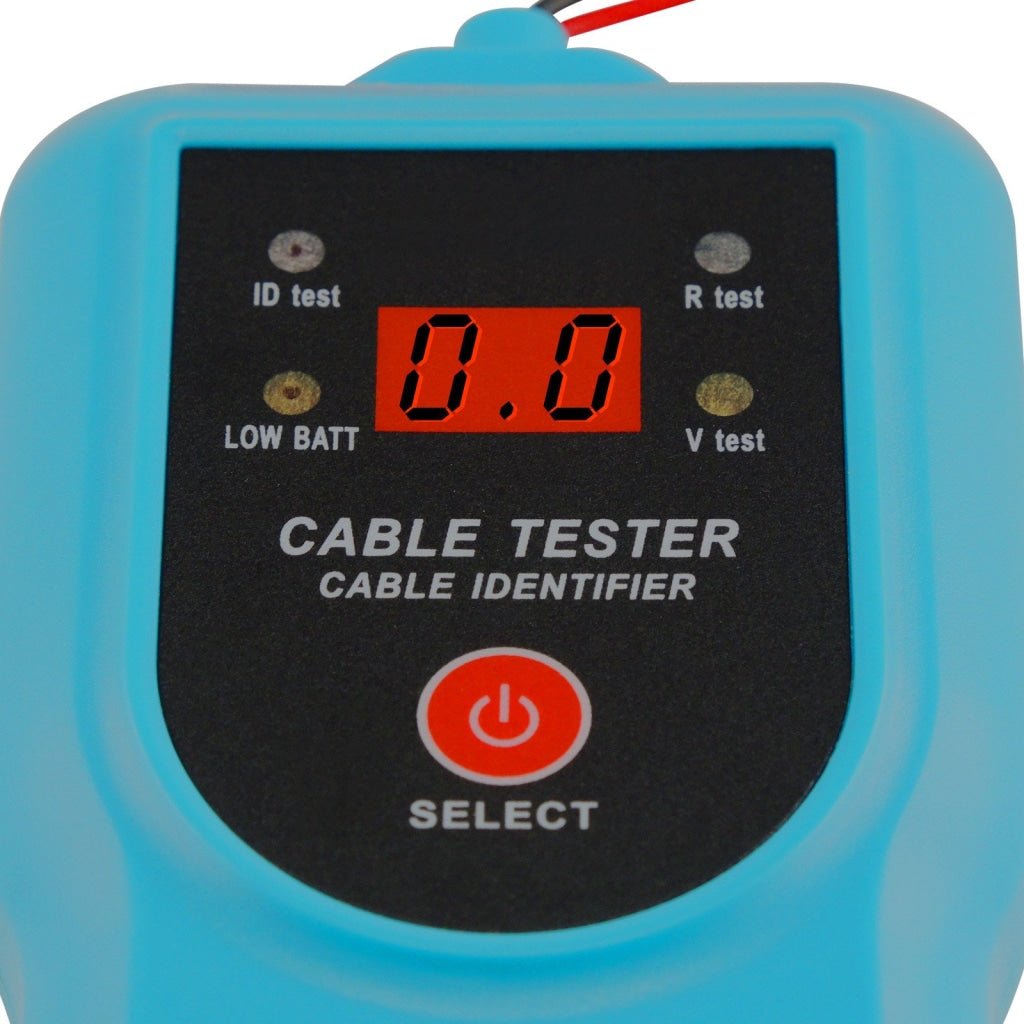

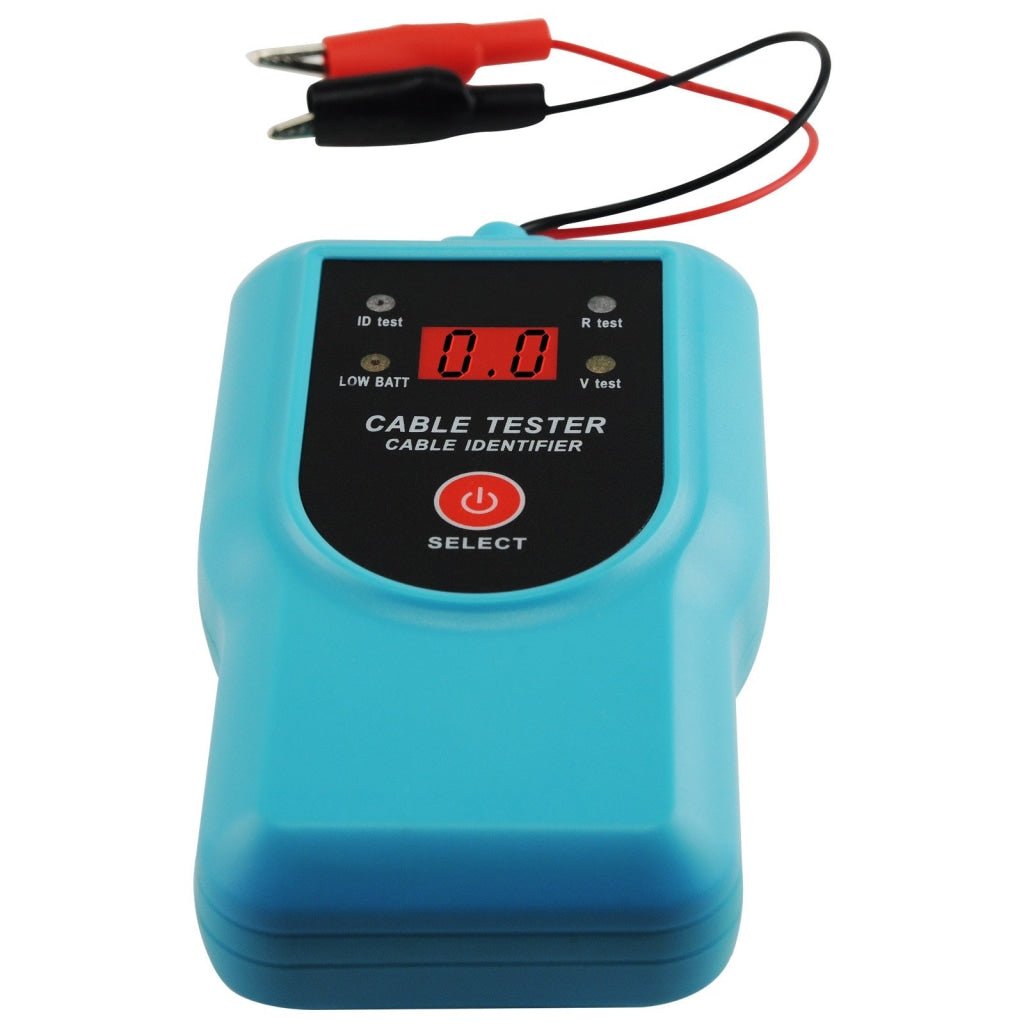

  • Receiver :
    • ID test indicator
    • Low battery indicator
    • Digital Display
    • Power Switch/function selector switch
    • Voltage test indicator
    • Continuity test indicator

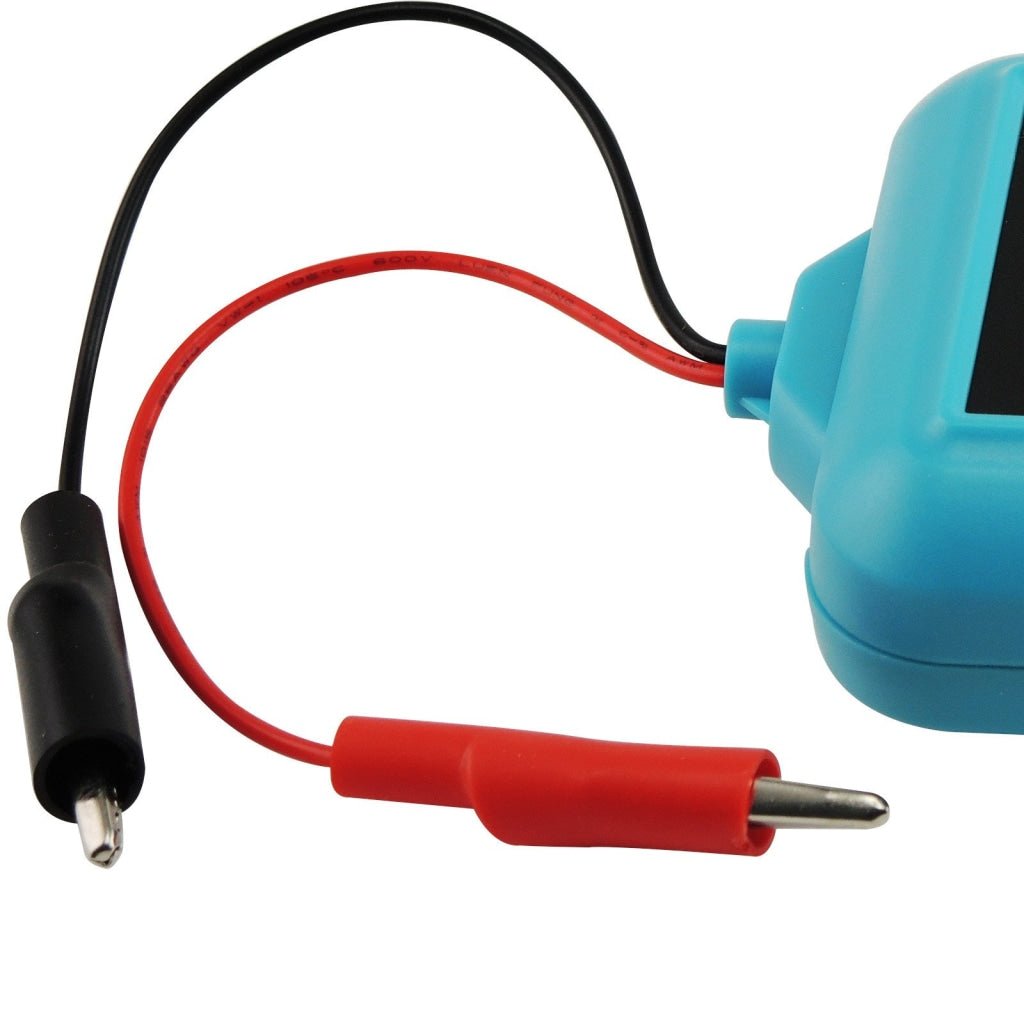

    • Receiver test leads with alligator clips



Specifications:

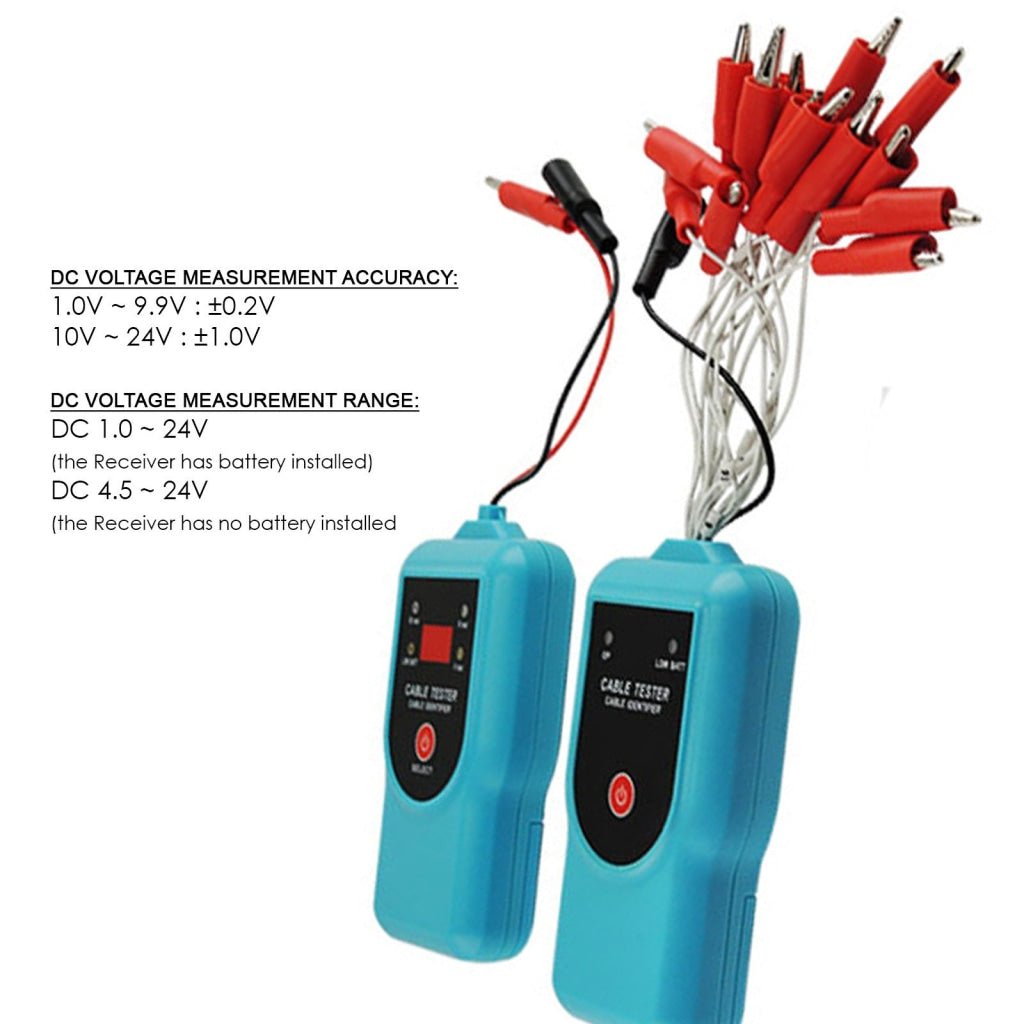

  • DC Voltage Measurement Range:
    • DC 1.0 ~ 24V (the Receiver has battery installed)
    • DC 4.5 ~ 24V (the Receiver has no battery installed)
  • DC Voltage Measurement Accuracy:
    • 1.0V ~ 9.9V : ±0.2V
    • 10V ~ 24V : ±1.0V
  • Continuity Test: When the resitance is less than about 100Ω ,the display will show"- -" and the built-in buzzer will sound.
  • Overload Protection: Max DC 50V

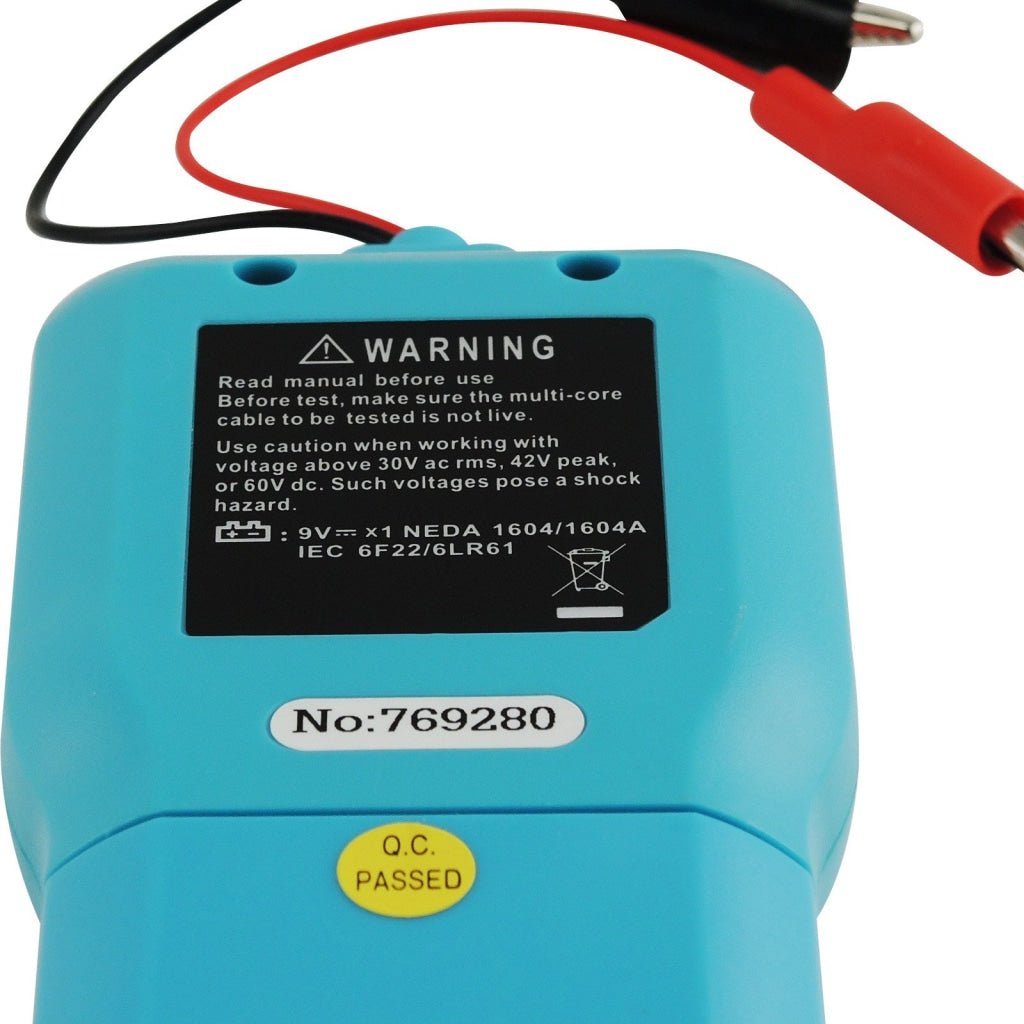

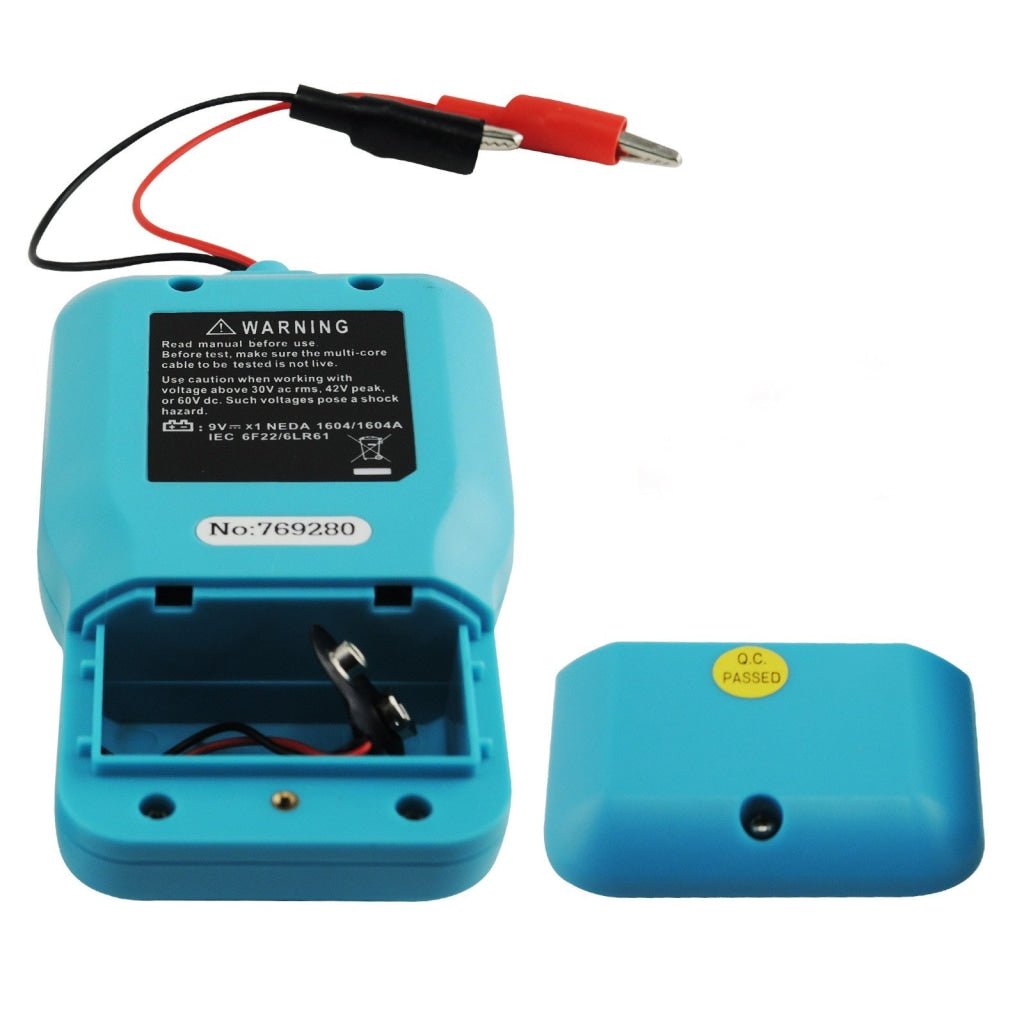

  • Battery : 2 x 9V Batteries (both for Transmitter and Receiver)
  • Operating Temperature : 0°C ~ 40°C, ≤80% RH
  • Storage Temperature : -10°C - 50°C

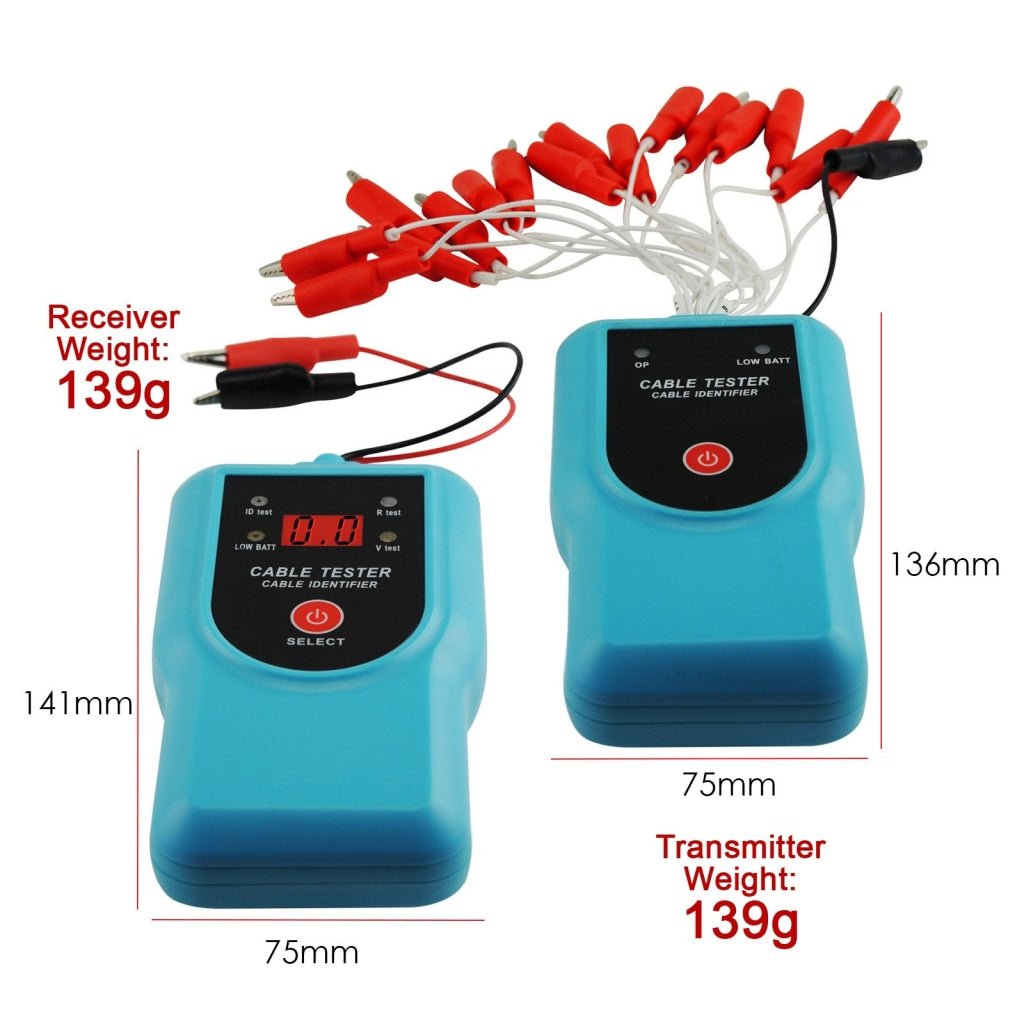

  • Size
    • Transmitter : 136 x 75 x 32mm (for main body only)
    • Receiver : 141 x 75 x 32mm (for main body only)
  • Weight:
    • Transmitter : About 171g (including battery)
    • Receiver : about 139g (including battery)

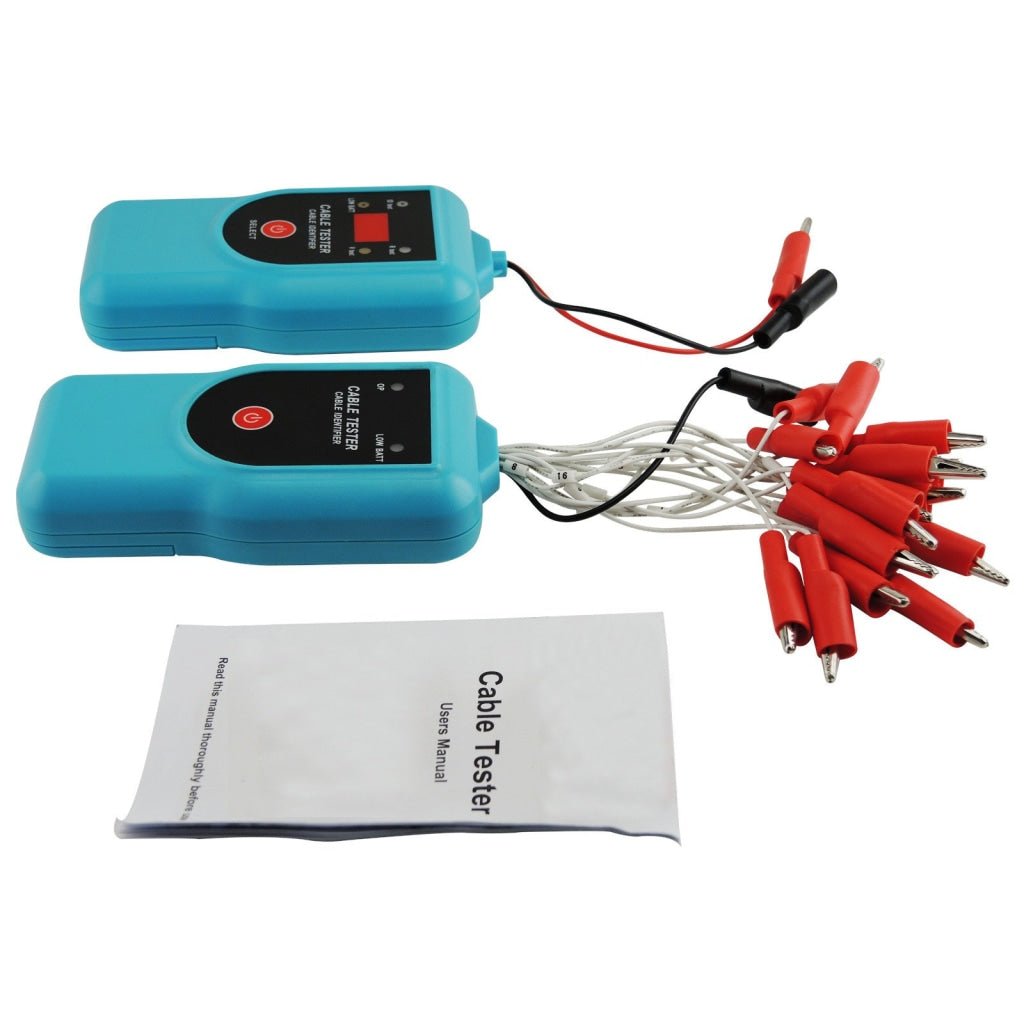

Set Includes:

  • 1 x Receiver
  • 1 x Transmitter
  • 2 x 9V Battery
  • 1 x English Manual
  • Standard Packaging Box


A printed user manual is already included with this item. No digital user manual or software is available.
