Battery Tester is designed for measuring the internal impedance and open circuit voltage of the secondary battery including Nickel-metal hydride battery (NiMH), Nickel-cadmium battery(NiCd), Lithium-ion battery(Li-ion), Alkaline battery and lead-Acid battery.

Application: Ideal tester for automotive, UPS maintenance and telecommunication applications.

Features:

  • Low battery indicator
  • Auto power off function
  • Clock function

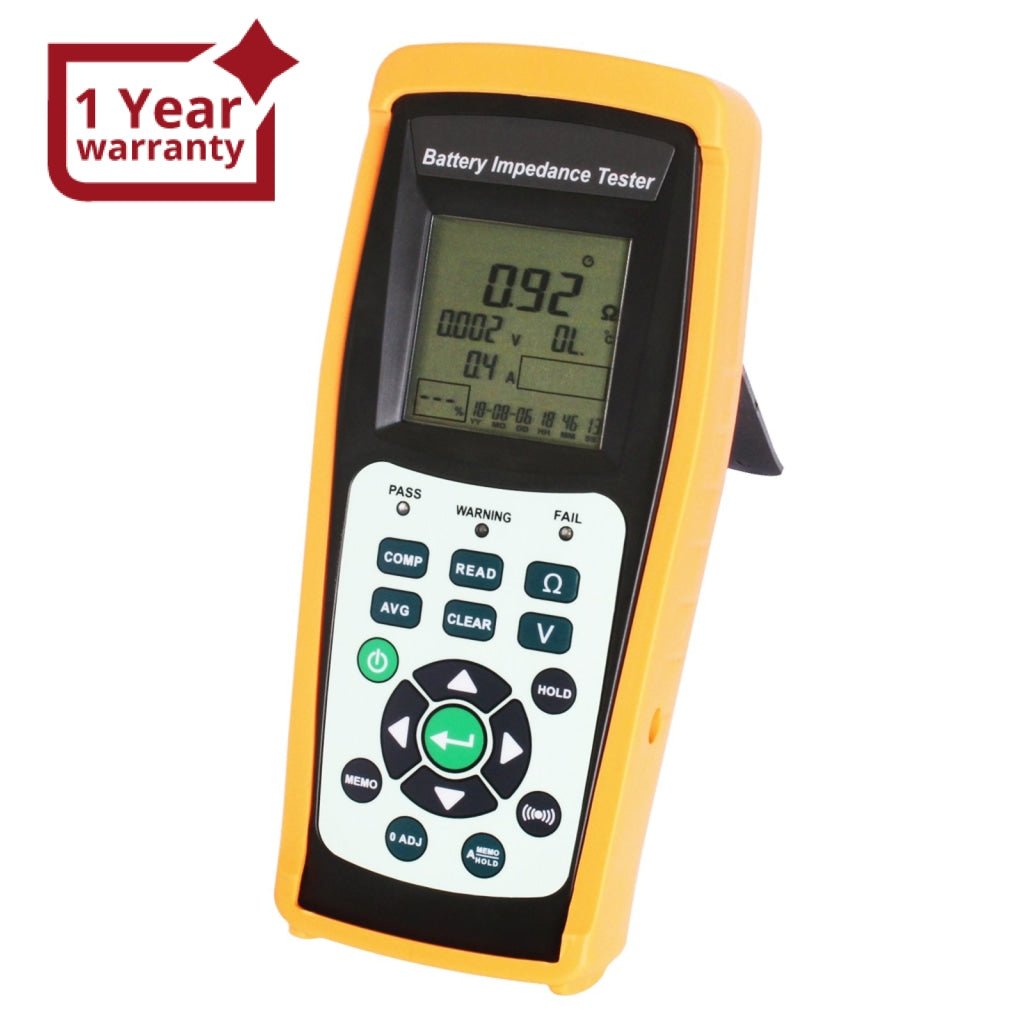

  • Multi-display to show the internal impedance, voltage and clock of the battery simultaneously.
  • Has 99 sets of composite comparator function, which can be set at impedance and voltage values to get the reliable detection of battery deterioration

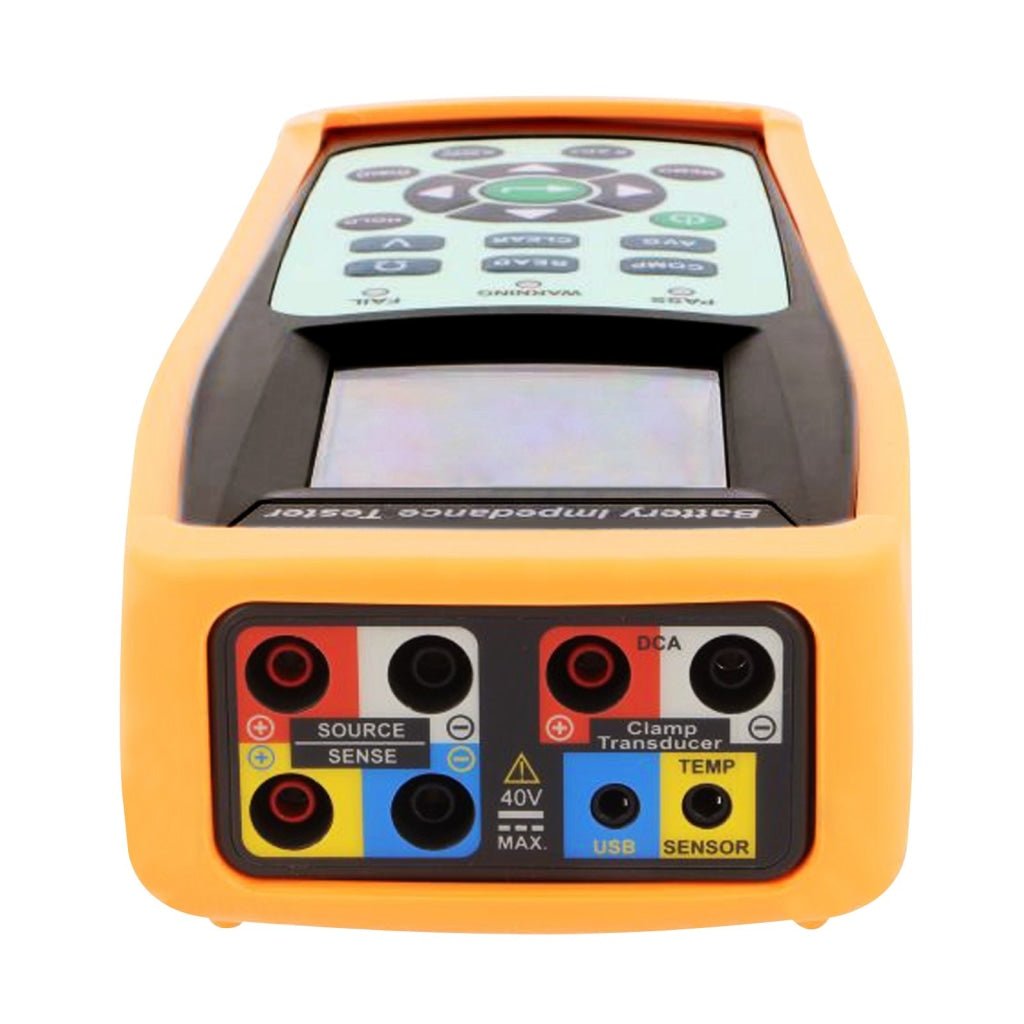

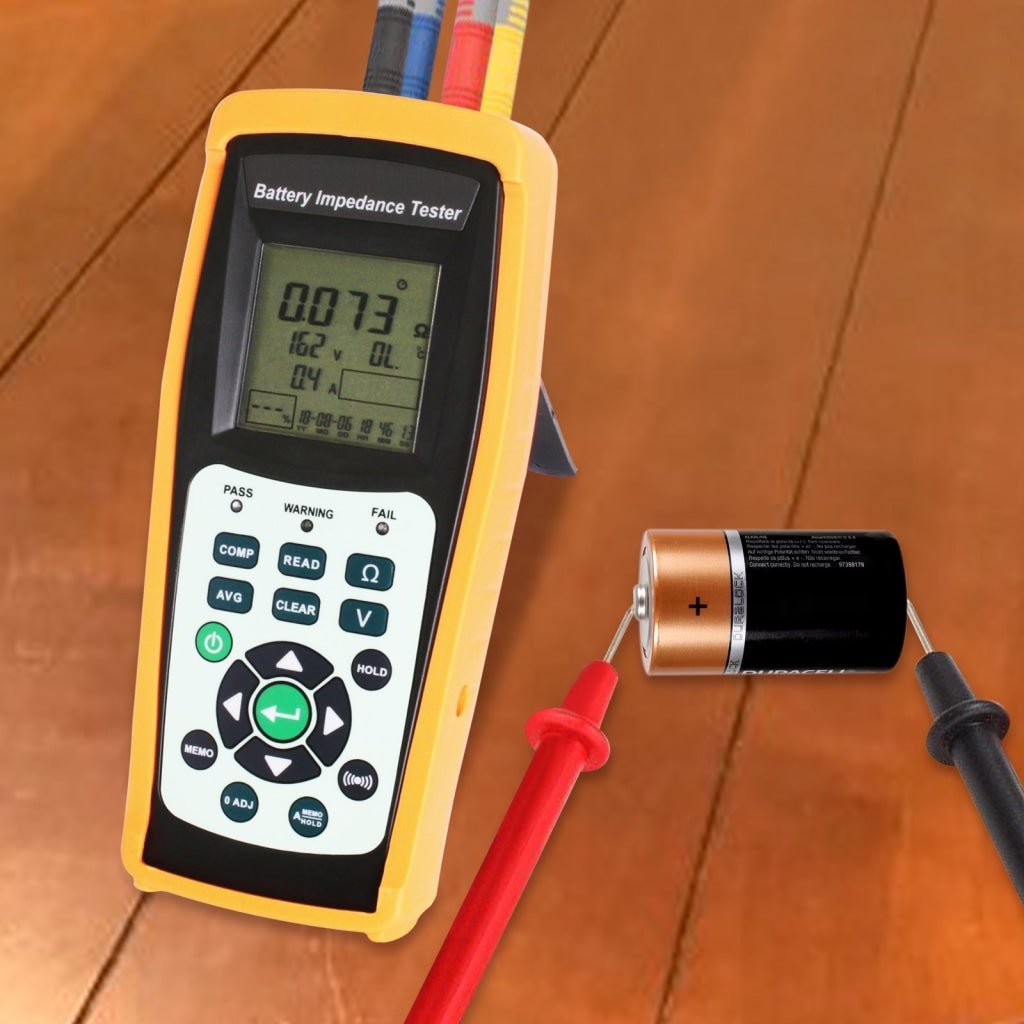

  • Pin type leads, which can easily contact the battery electrodes supplied as standard to get more accurate 4-terminal measurement

Specifications:

  • Measuring method: Impedance (AC four-terminal method)
  • A/D conversion: Dual slope method
  • Display: LCD display and LEDs (comparator output)
  • Sampling rate: 2 Second
  • Open-Circuit terminal voltage: 7.0Vp-p max
  • Input over range: the screen displays“OL”
  • Comparator settings: High and Low limits of the comparators impedance and voltage
  • Number of comparator settings: 99 set
  • Manual and auto continuous Data logging: 9999 set
  • Operating temperature and R.H. value: 5~40°C, 80%RH or less (non-condensation)
  • Storage temperature and R.H. value: -10~60°C, 70%RH or less (non-condensation)
  • Operating ambience: In-door use, under environmental pollution grades two
  • Operating attitude: Max 2000 meters above level

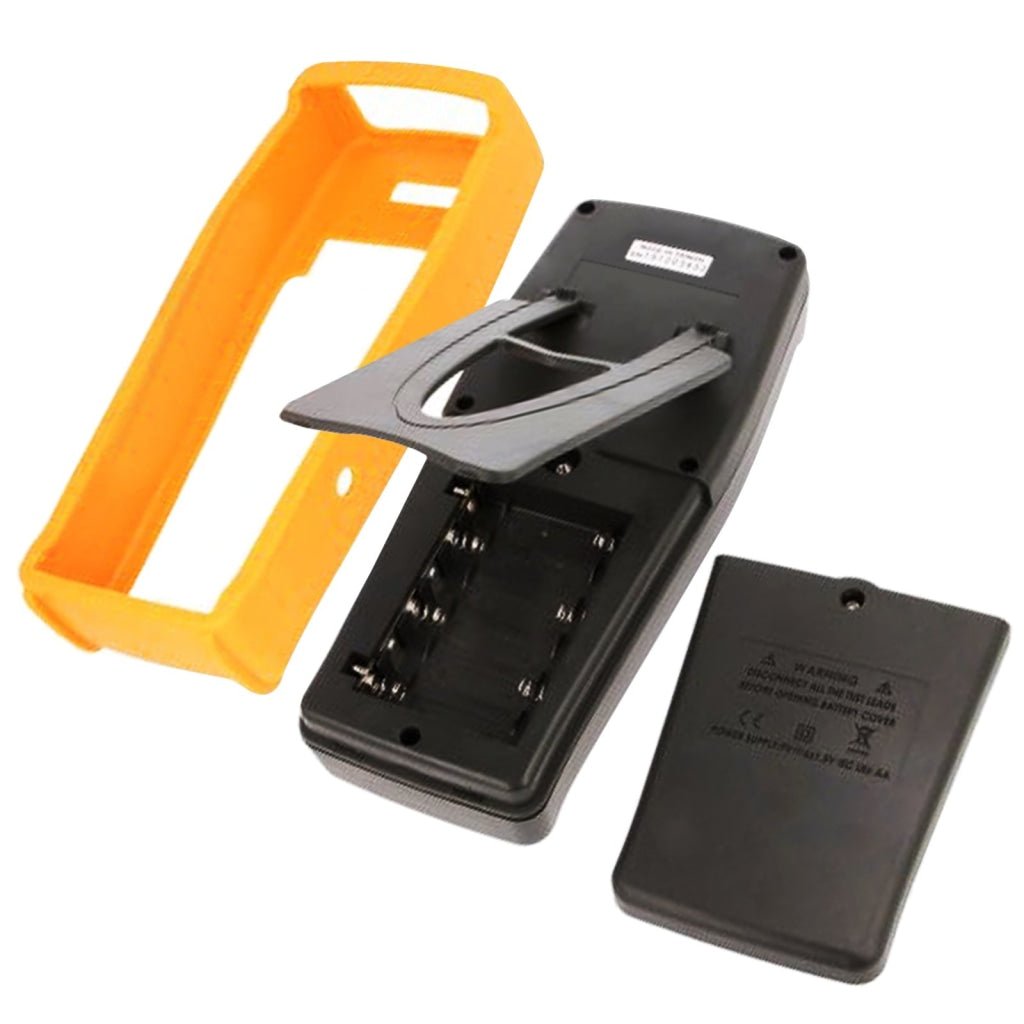

  • Power supply: 1.5V × 6 NEDA 15F IEC R6 JIS SUM-3(ALKALINE)
  • AC adapter: AC input Voltage is 100~240Vac 1.0A with input frequency of 60 HZ or 50HZ, Free Voltage DC output is 9VDC(8~12VDCMax)
  • Supply current: >1.0ADC
  • Socket: pin Ground Casing Positive External Diameter 5.5mm internal Diameter 2.1mm
  • Dimension and weight: 240mm(L) x 100mm (W) x 45mm(H) / approximate 700g (including batteries)
  • Fuse specification: 0.5A/250V, 3.6Øx 10mm

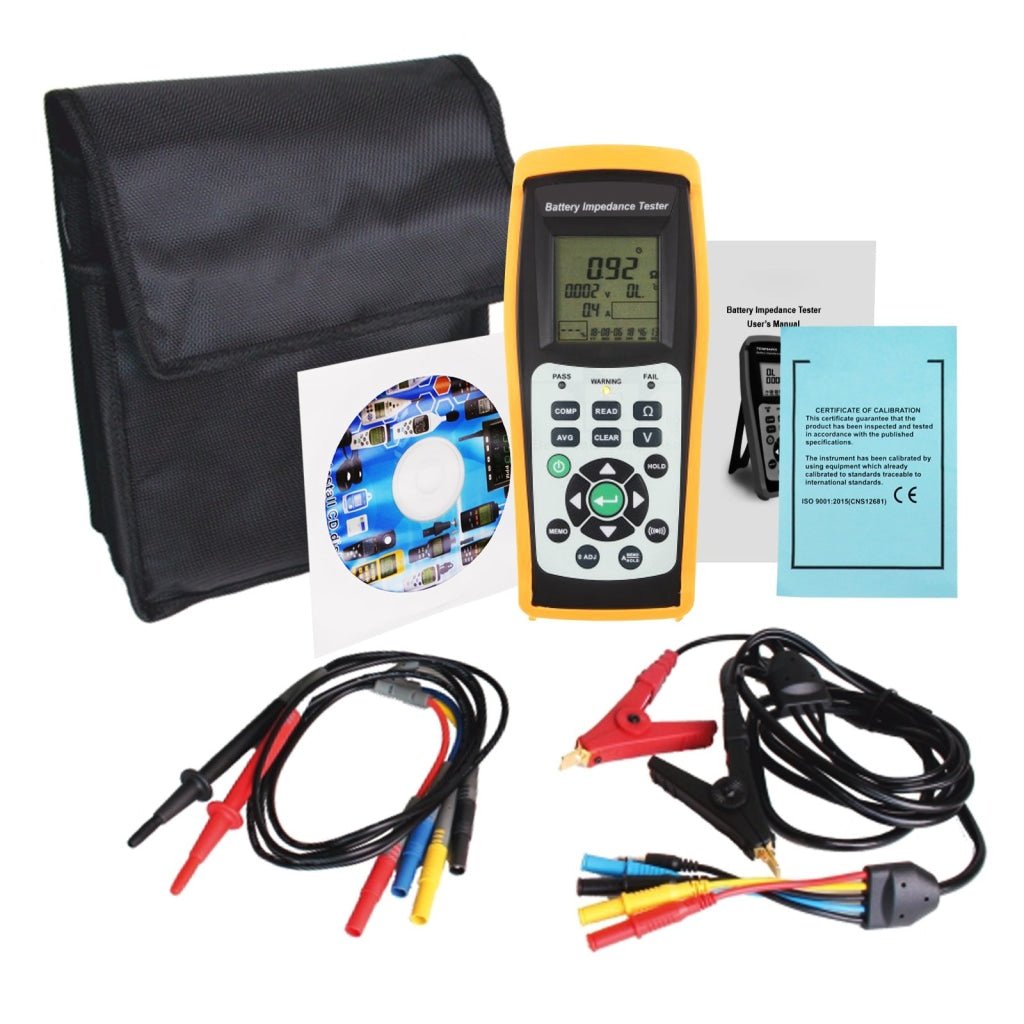

Set Includes

  • 1 x Battery Impedance Tester
  • 1 x Kevin Clip type leads with temperature sensor
  • 1 x Pin type lead
  • 1 x AC100~240V 9V/1A(5.5*2.1*1.0mm) switching transformer
  • 6 x V – LR6 – AA – AM3 – MN 1500
  • 1 x 5-pin USB cable
  • 1 x Installation CD
  • English Instruction Manual
  • Carrying Case

A printed user manual is already included with this item. No digital user manual or software is available.
