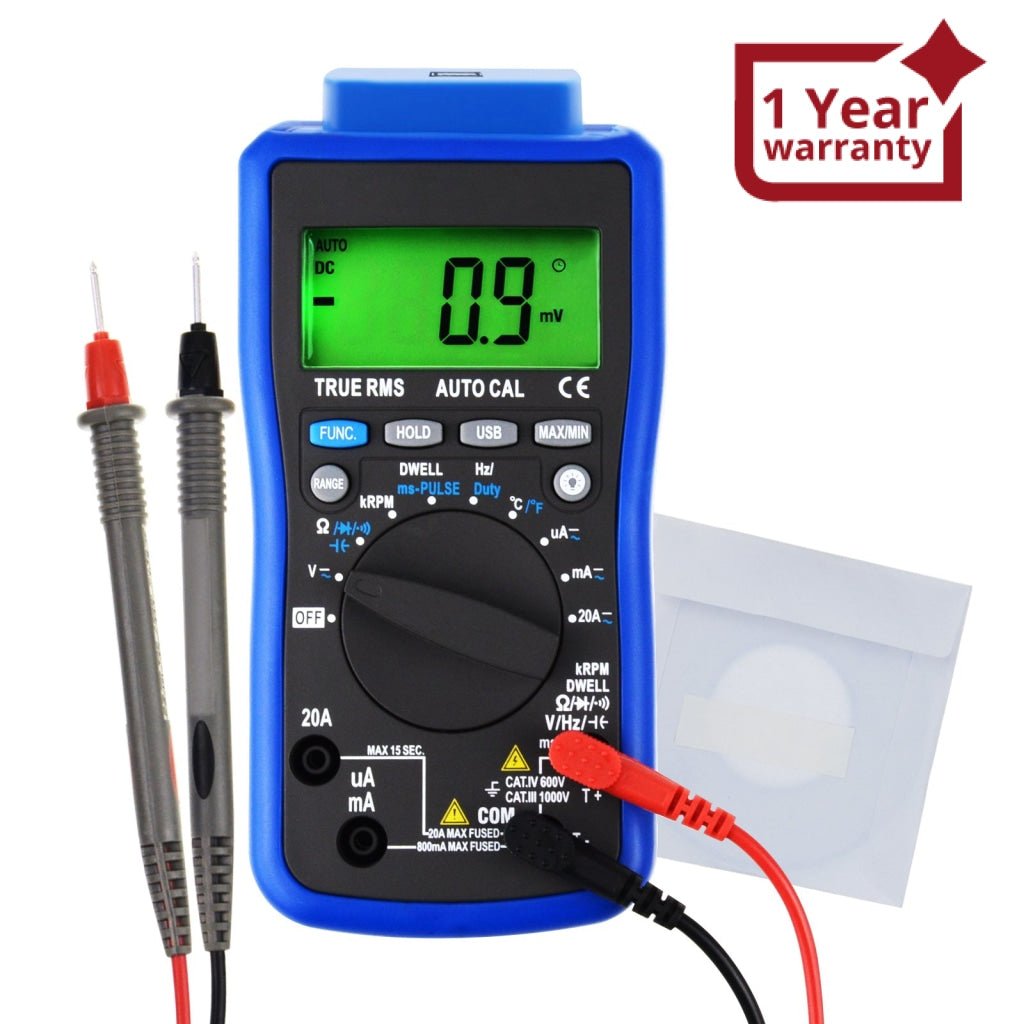

ILAU-216 Digital Engine Automotive Analyzers Diagnostic Multimeter Auto-Ranging with PC Data Transfer

Sku: ILAU-216
$38.90 USD
Translation missing: en.products.product.shipping_policy_html
Title: 1
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

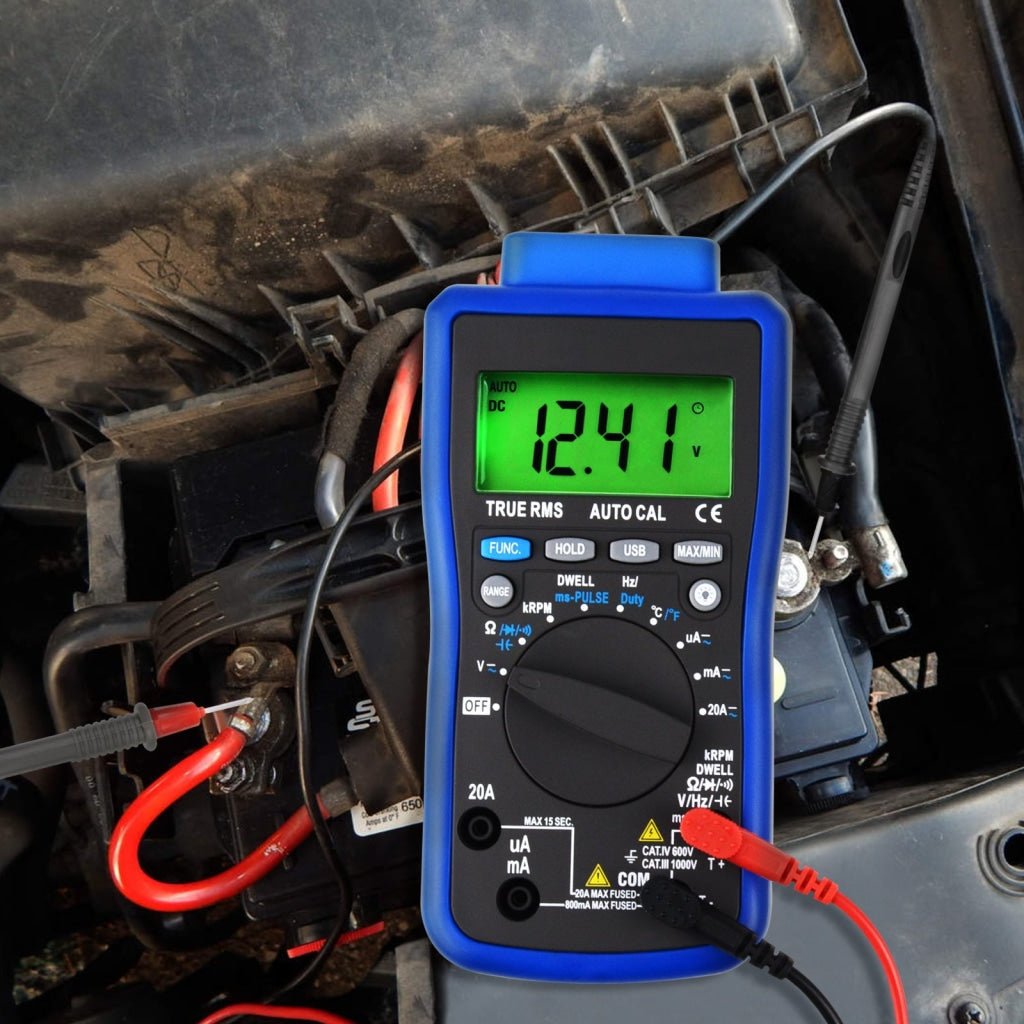

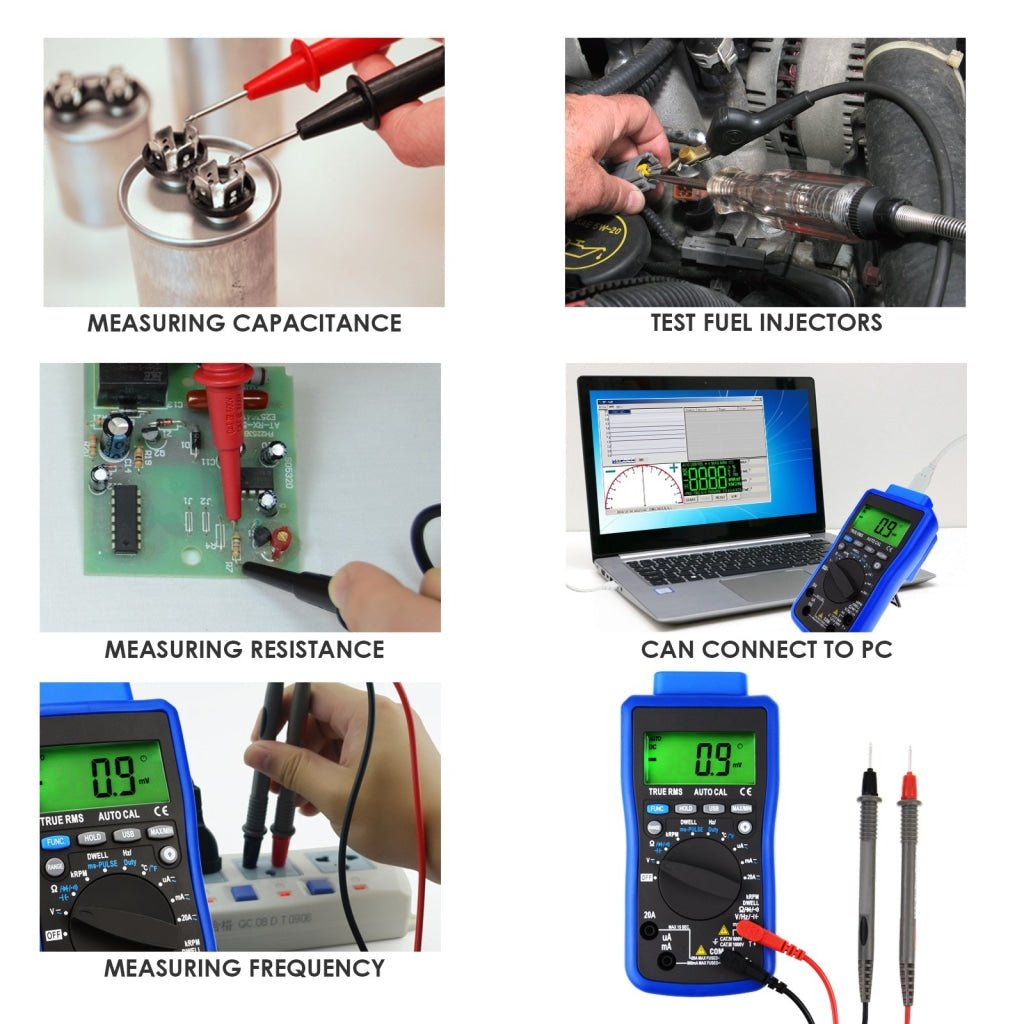

New generation of Auto-ranging Automotive Diagnostic Multimeter with 14-function. Workshop-tough, with high-speed processing circuitry ideal for testing fuel injection systems.


FEATURES:

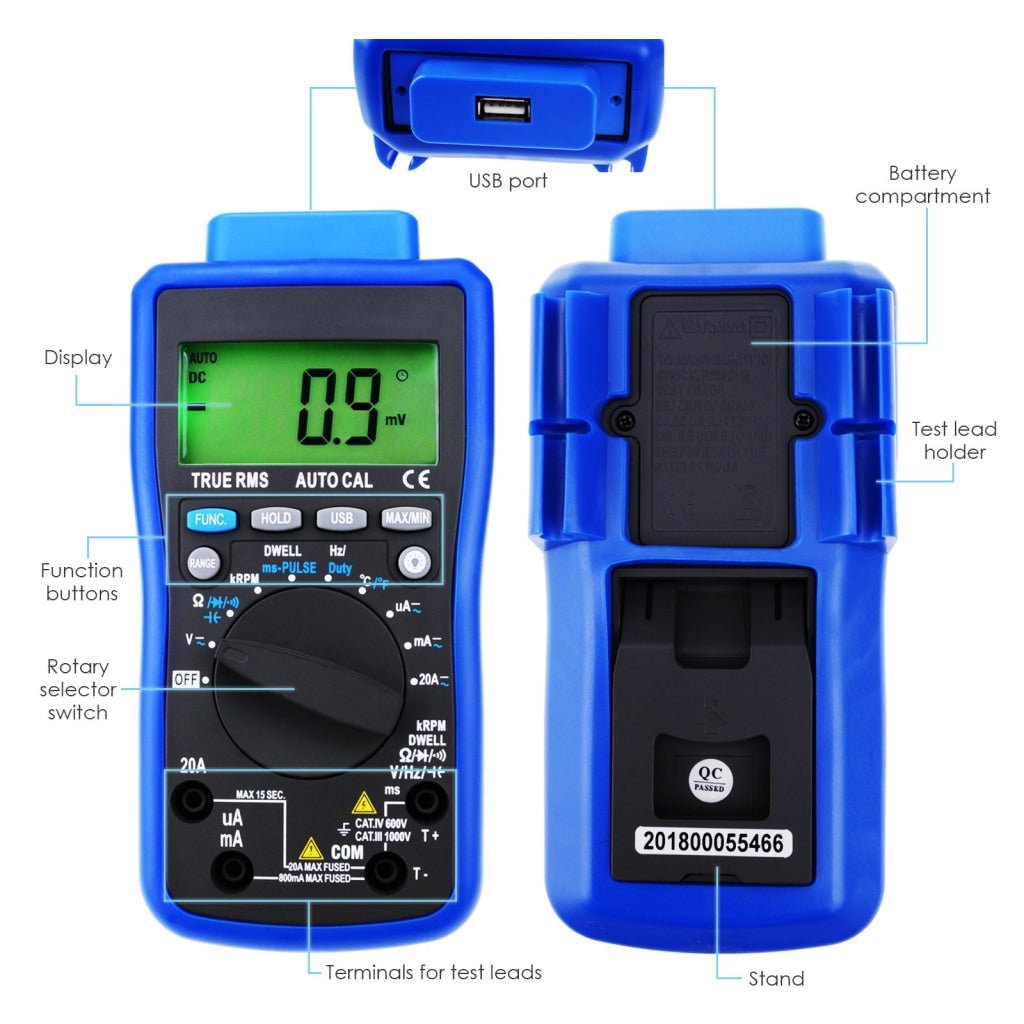

  • Large, easy to read high contrast display with bright, white backlight
  • Durable bi-composite case with integral stand
  • Manual / Auto-ranging
  • Max / Min / Peak Hold and Data Hold Function
  • Overload Protection on all ranges
  • Selectable Temperature Unit (°C/°F)
  • Auto power shut-off
  • Low battery indication
  • Reads standard automotive parameters including duty cycle and pulse width

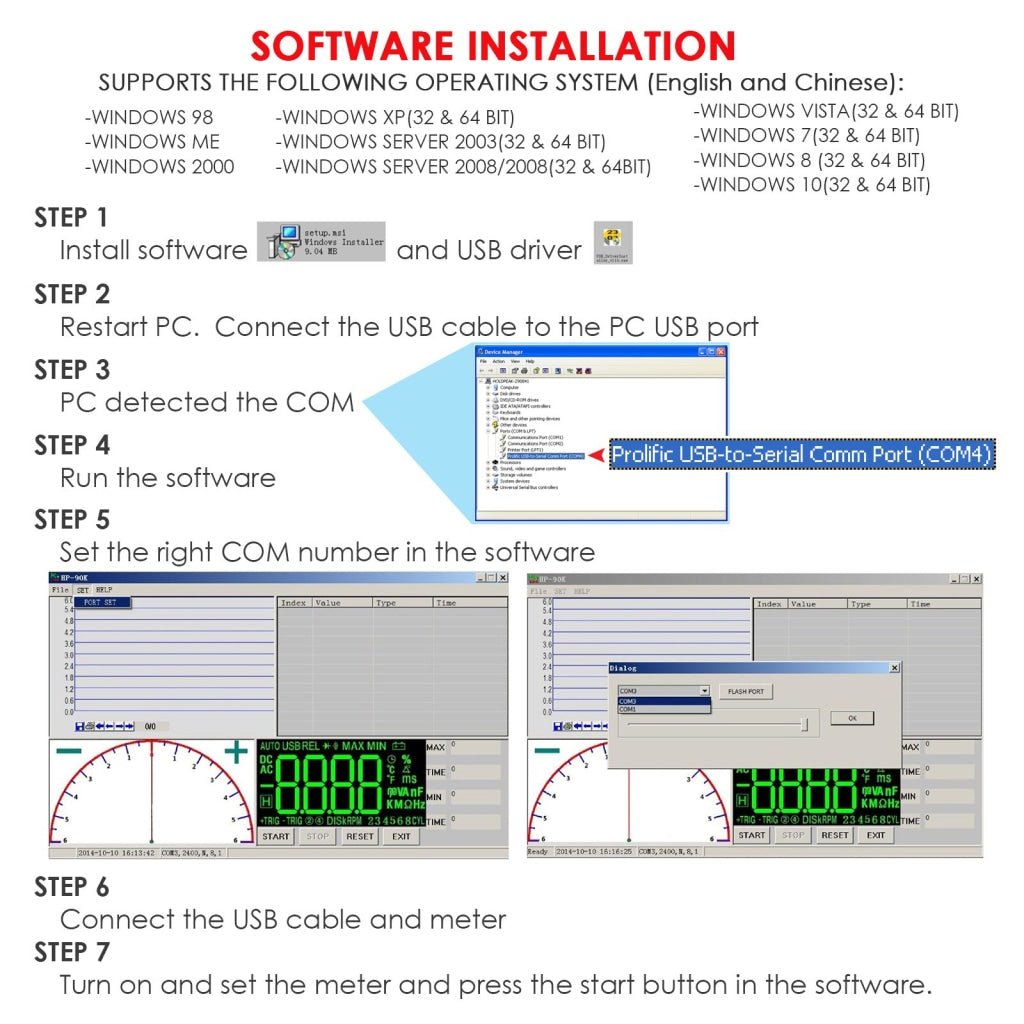

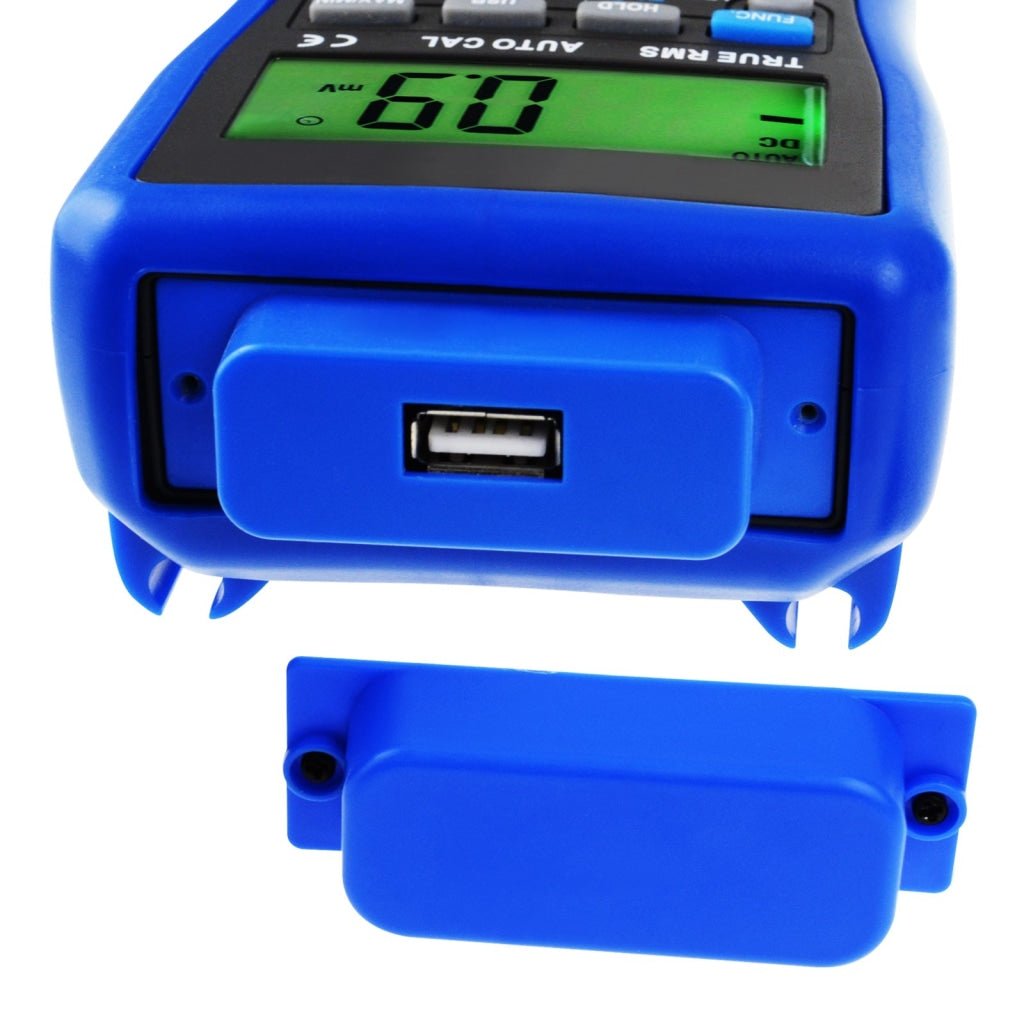

  • USB Function allows the meter serial data output to PC by the USB Transmission



SPECIFICATIONS:

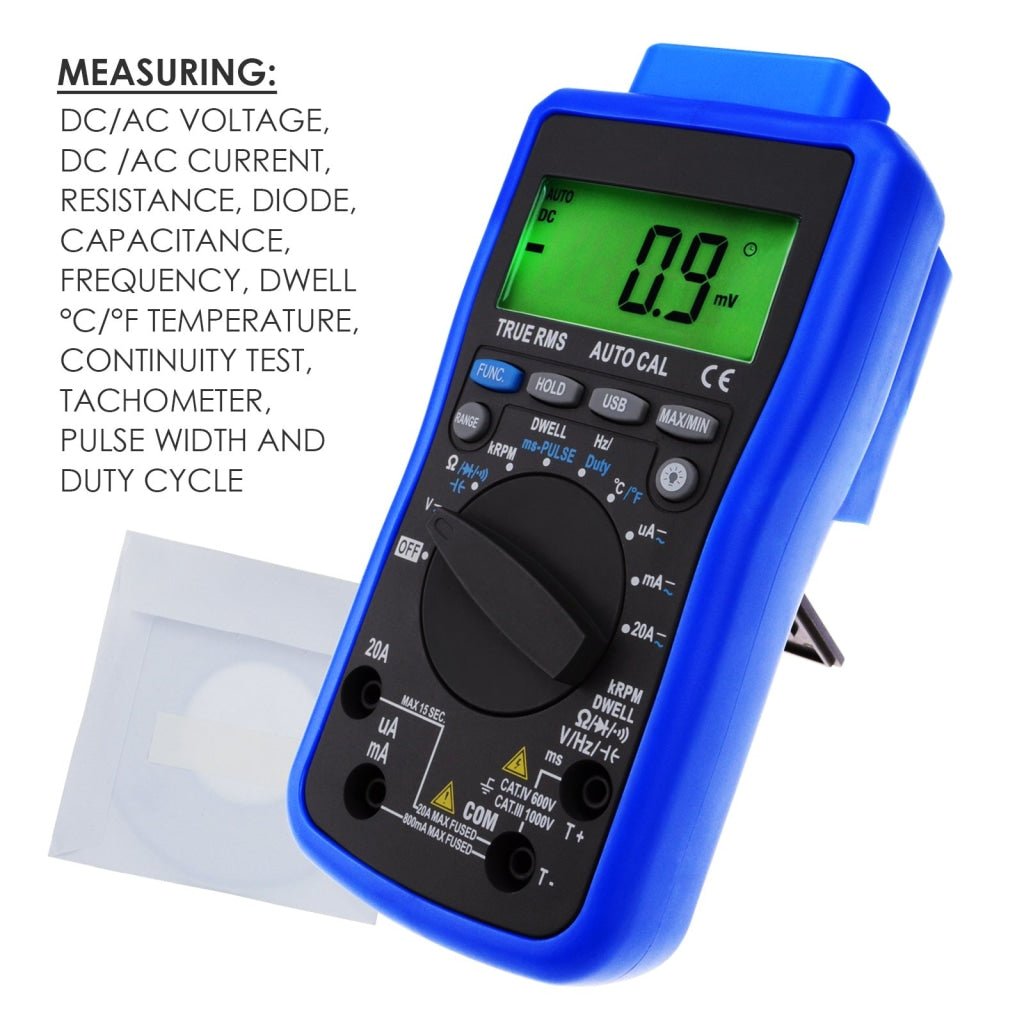

  • Measurement: DC & AC Voltage, DC & AC Current, Capacitance, Resistance, Diode Check, Temperature, Frequency, Dwell Angle, Duty Cycle, Pulse Width, RPM (Tach) , and Audible Continuity Test

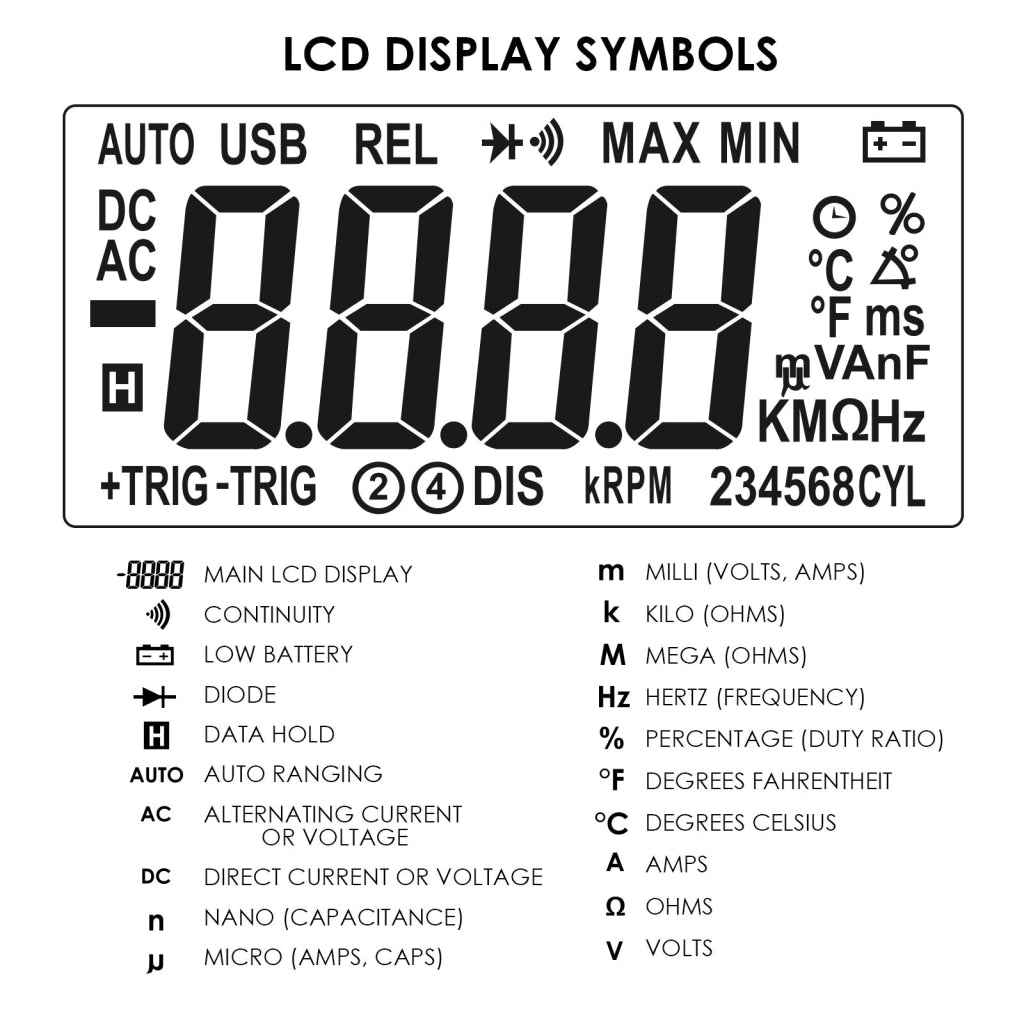

  • Display: 6000 counts LCD Display with function Indication
  • Insulation: Class 2, Double Insulation
  • Overvoltage Category: CAT III1000V/CATIV600V
  • Measurement rate: 3 times per second, nominal
  • Polarity: Autimatic, (-) negative polarity indication
  • OS Compatibility: Windows 98SE, ME, 2000, XP, 2003, 2008, Vista, 7, 8 & 10

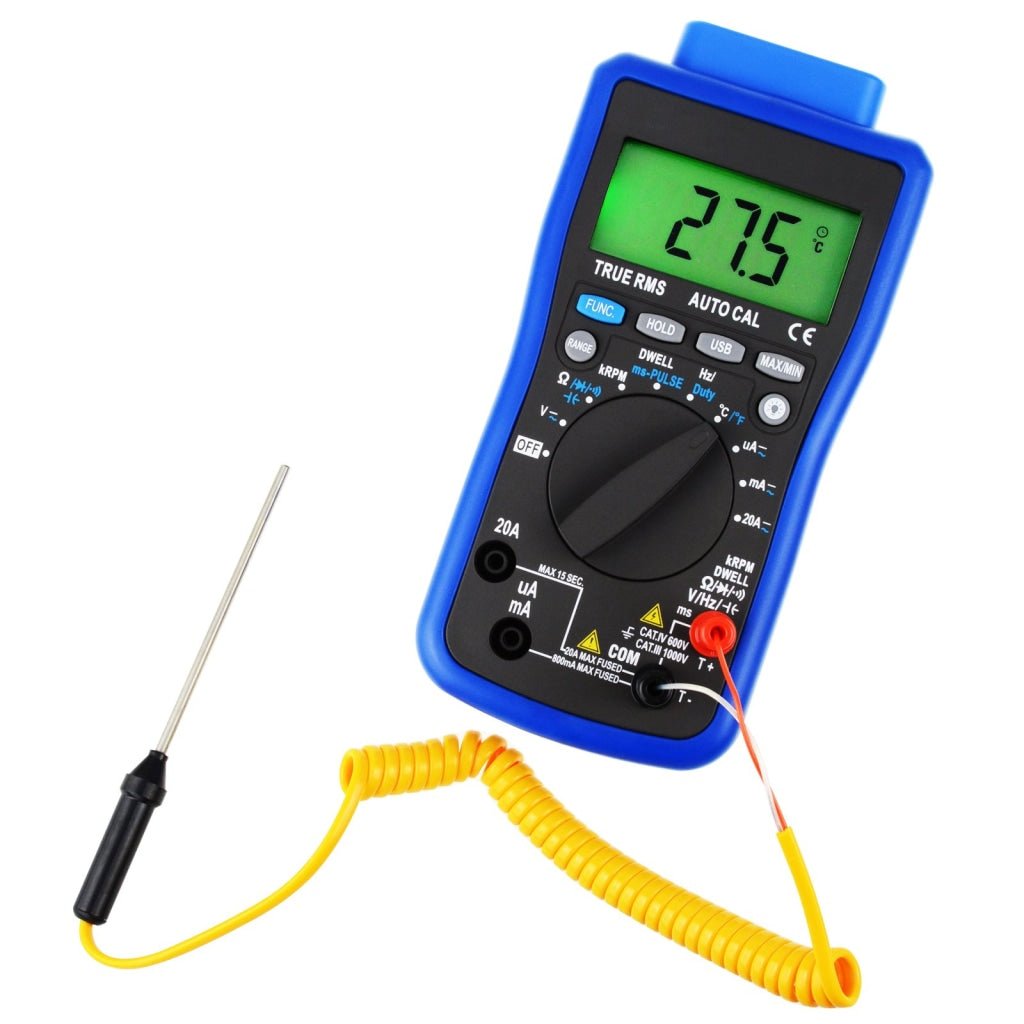

  • Probe Operating range: -50~250°C (-58~482°F)
  • Operating environment: 0~50°C (32~122°F) at <70% relative humidity
  • Storage environment: -20~60°C (-4~140°F) at <80% relative humidiy

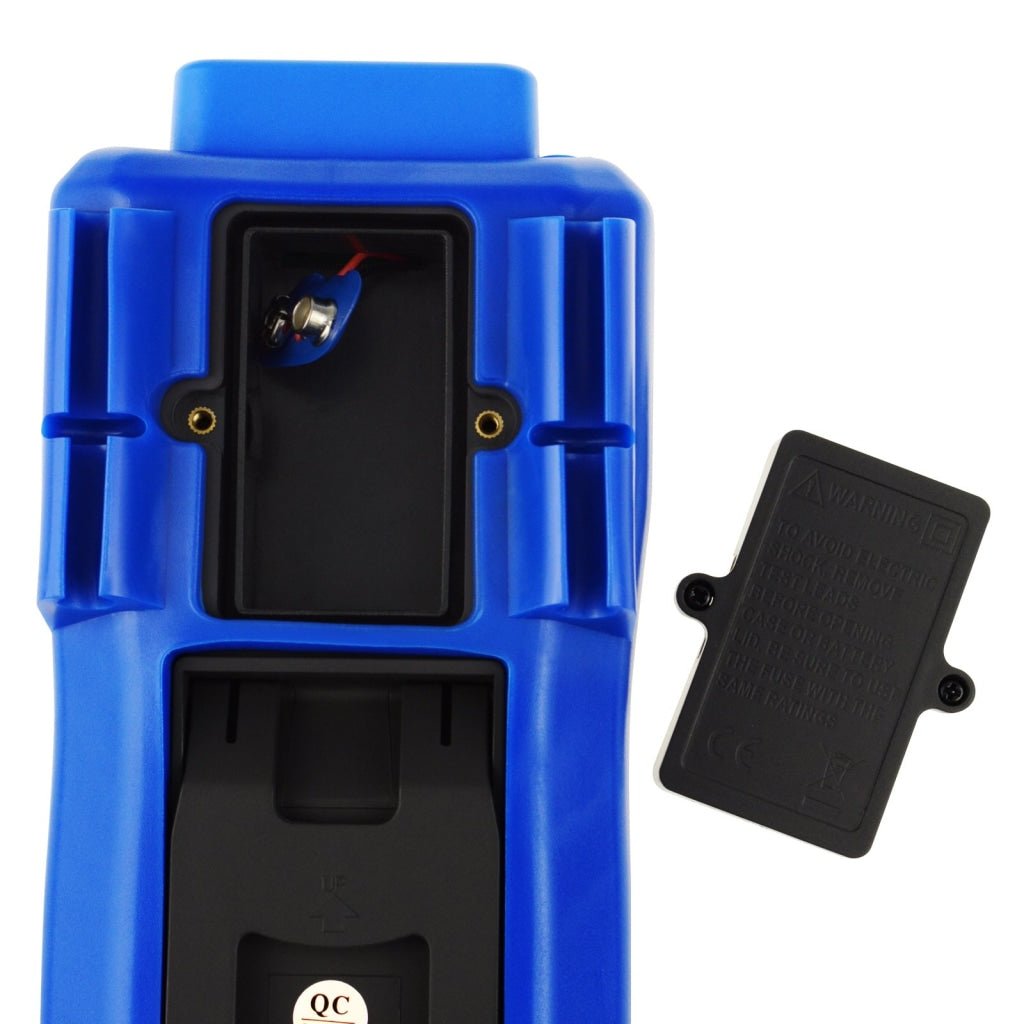

  • Power: One 9V battery (PP9)
  • Safety Standards: IEC1010-1EN61010-1

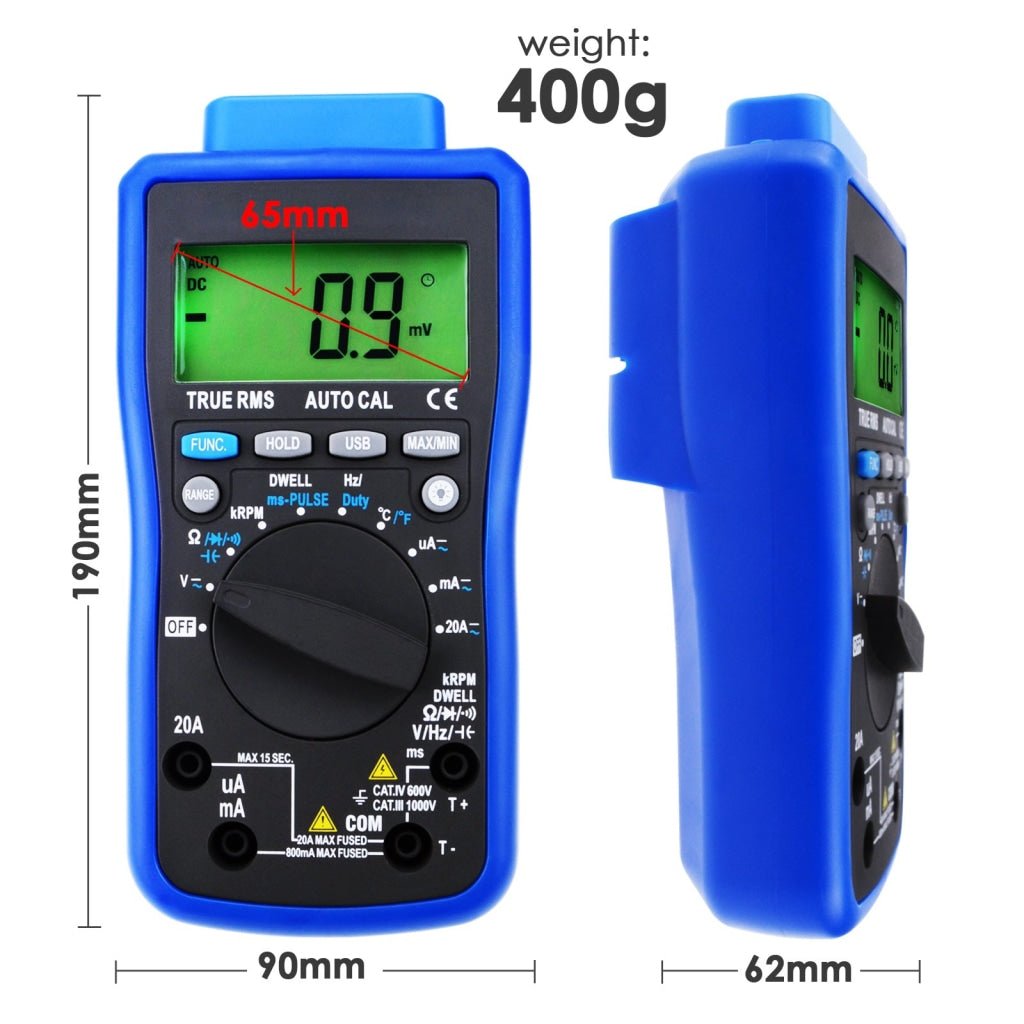

  • Dimension: 166 x 88 x 51mm
  • Weight: approx. 320g (include battery)

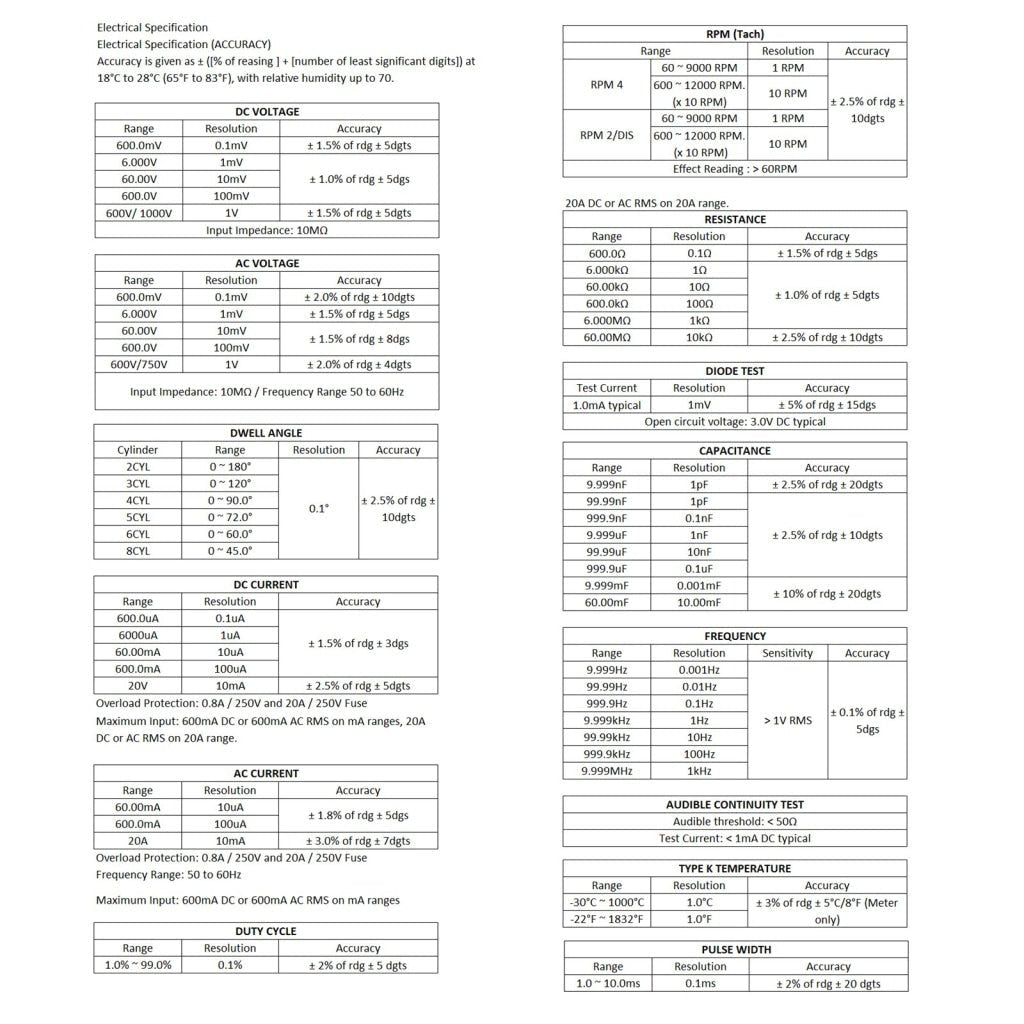

(see pictures for Technical Index Specifications)

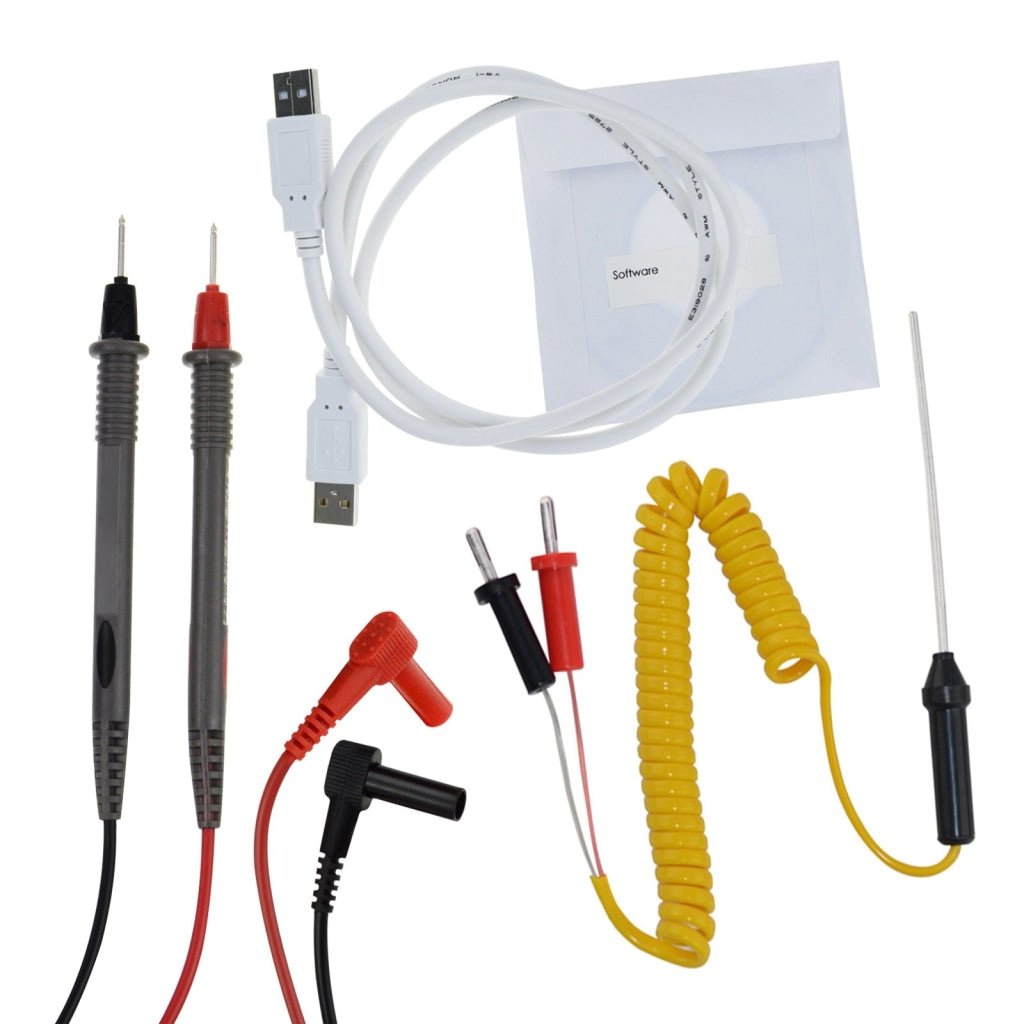

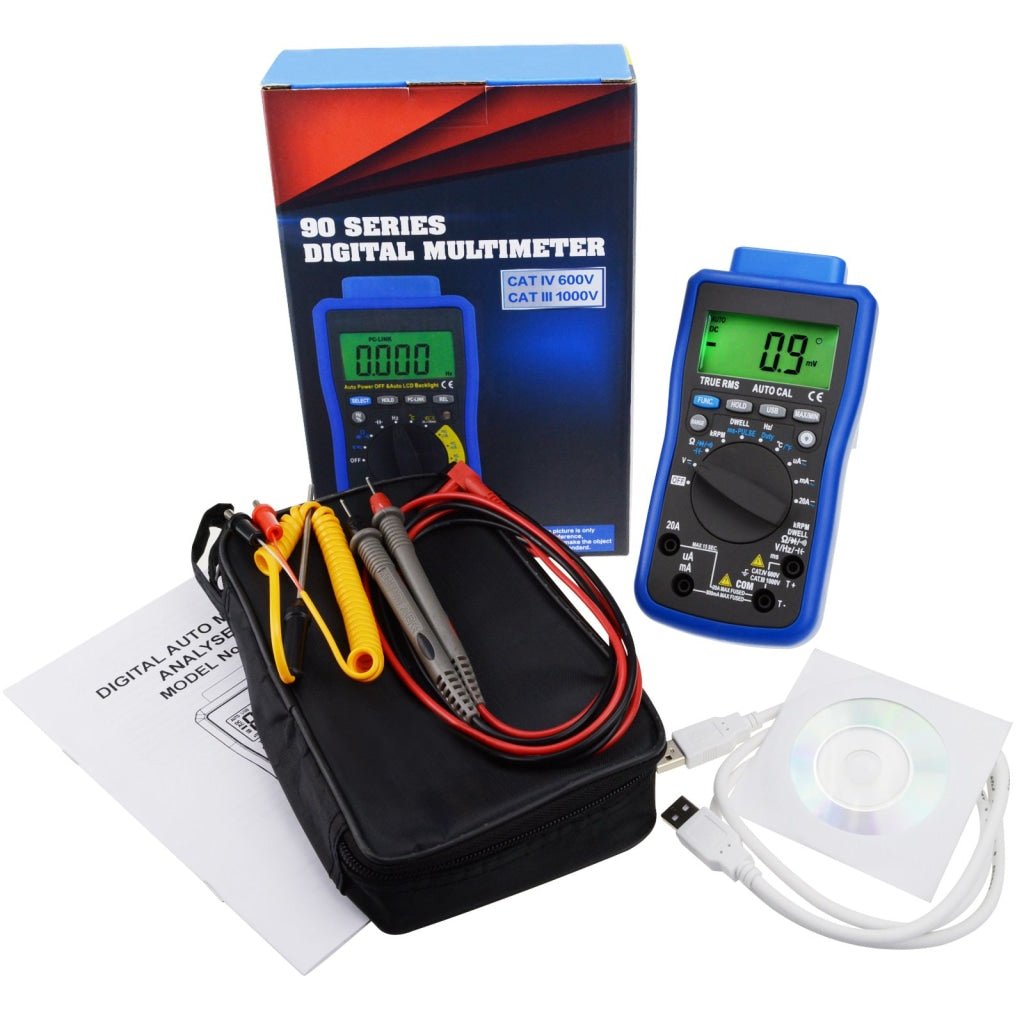

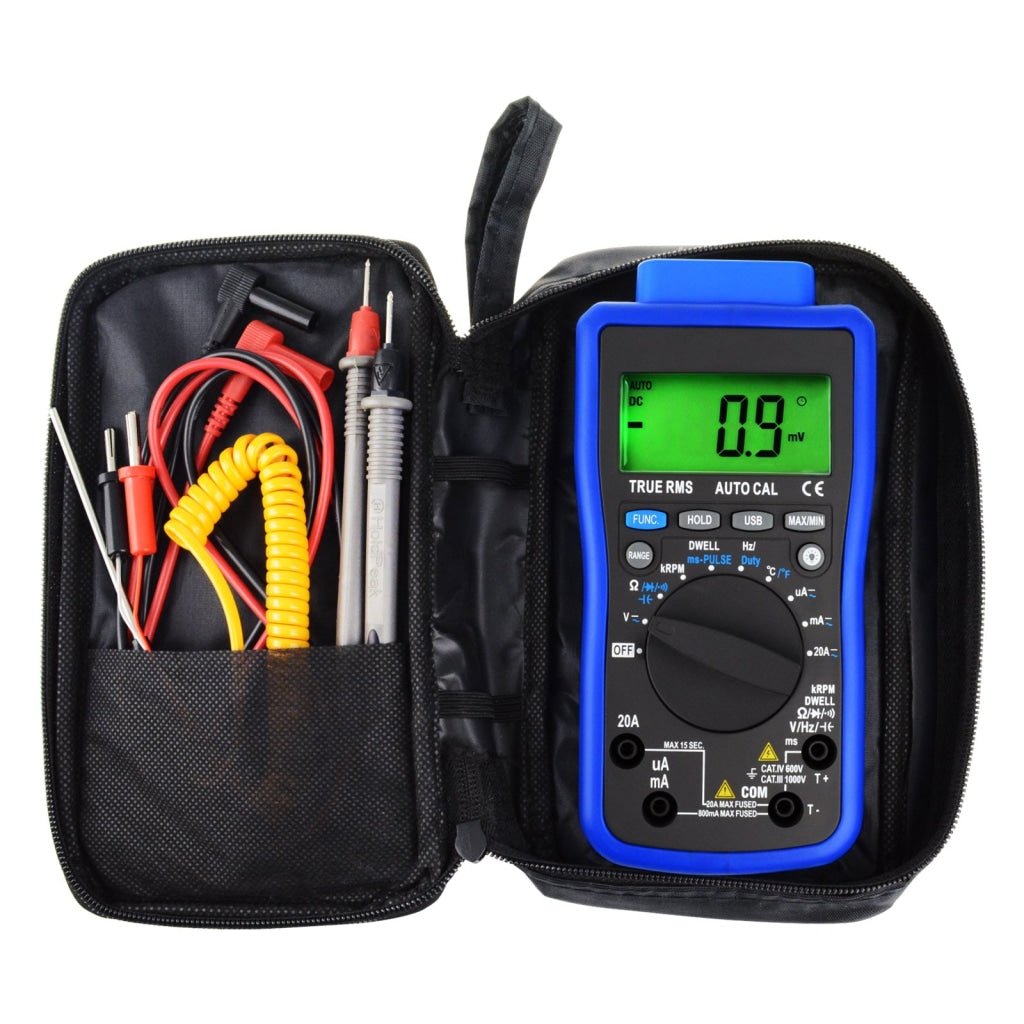

SET INCLUDES:

  • 1 x Main Unit Multimeter
  • 1 x pair of Test lead
  • 1 x Temperature Probe
  • 1 x CD Software and Cable
  • 1 x Carrying pouch
  • 1 x 9V Battery
  • Standard factory packaging

A printed user manual is already included with this item. No digital user manual or software is available.
