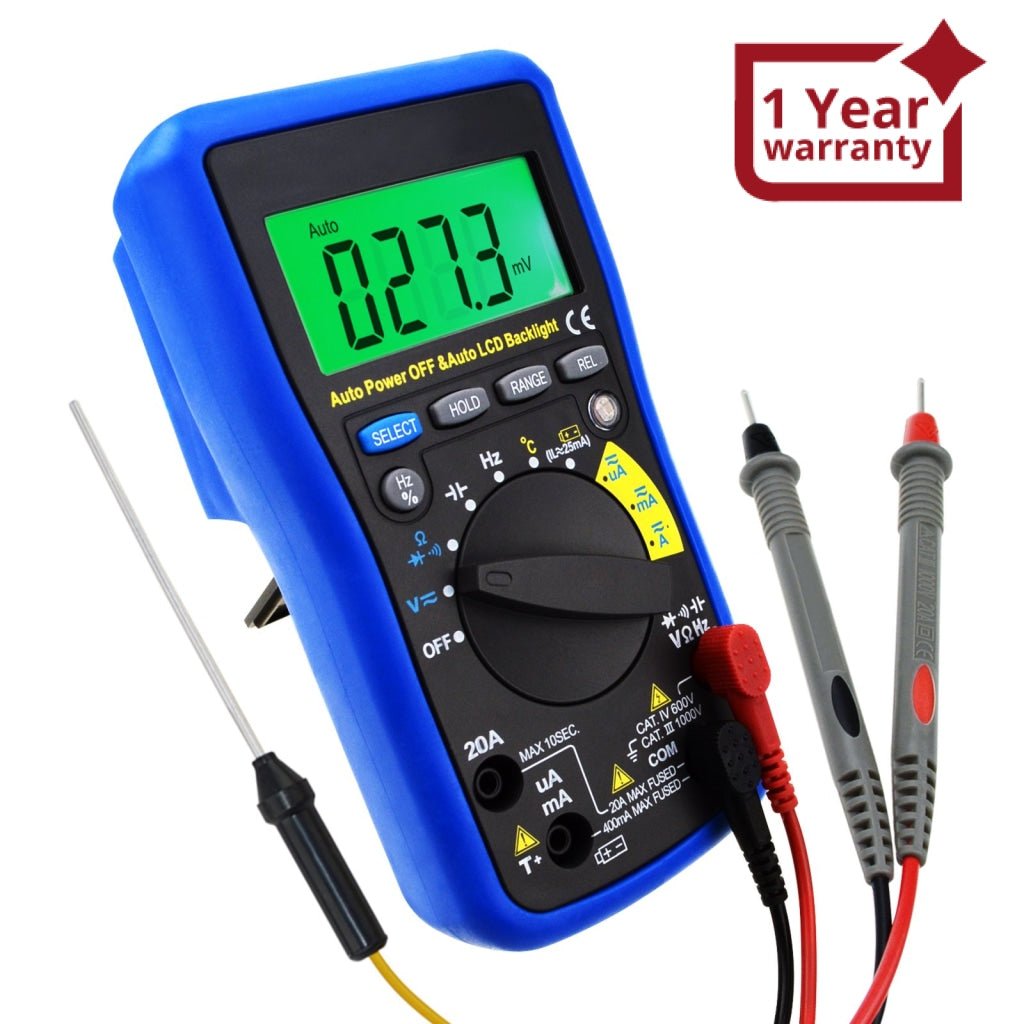

ILAU-210 Digital Auto Range Autoranging DMM Multimeter - DC AC Amp Volt Ohm Frequency Capaitance Temperature Meter Battery Tester, with Auto LCD Backlight, Overload Protection

Sku: ILAU-210
$30.90 USD
Translation missing: en.products.product.shipping_policy_html
Title: 1
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

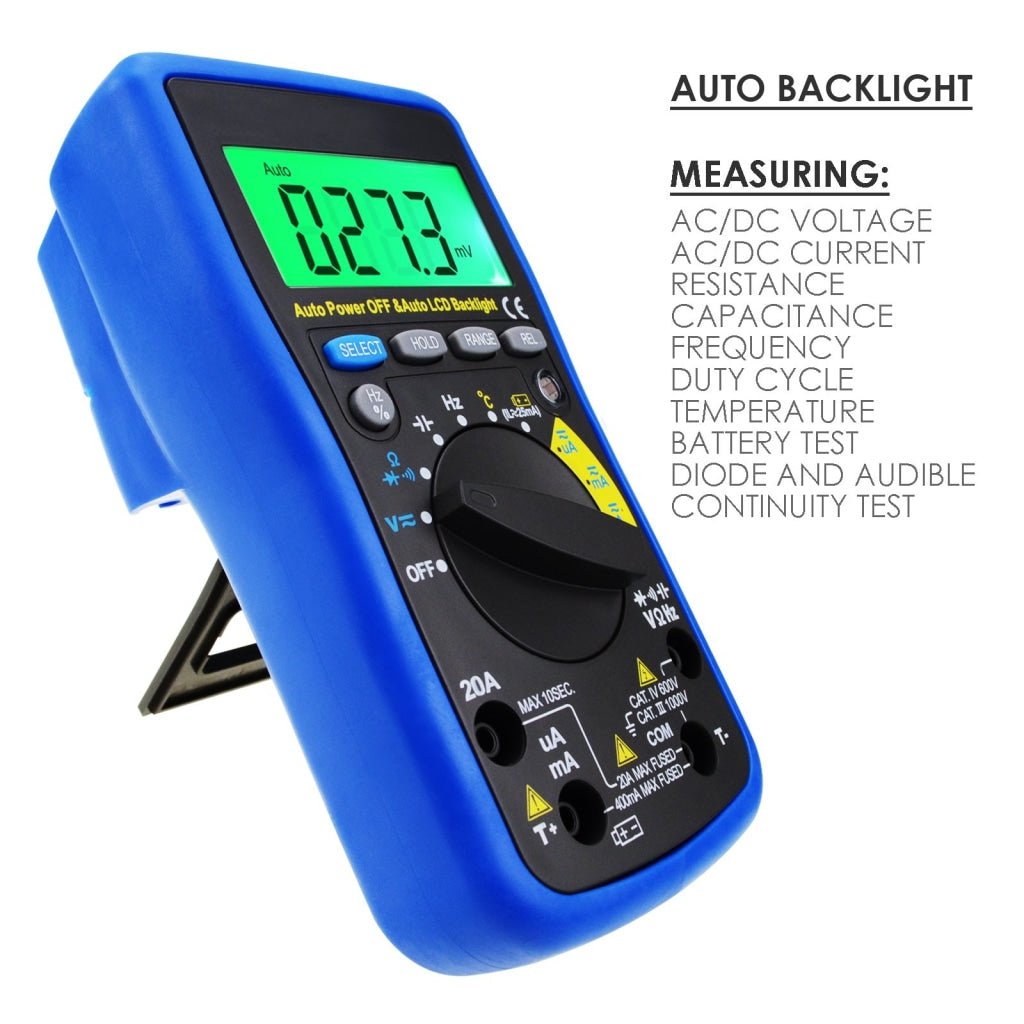

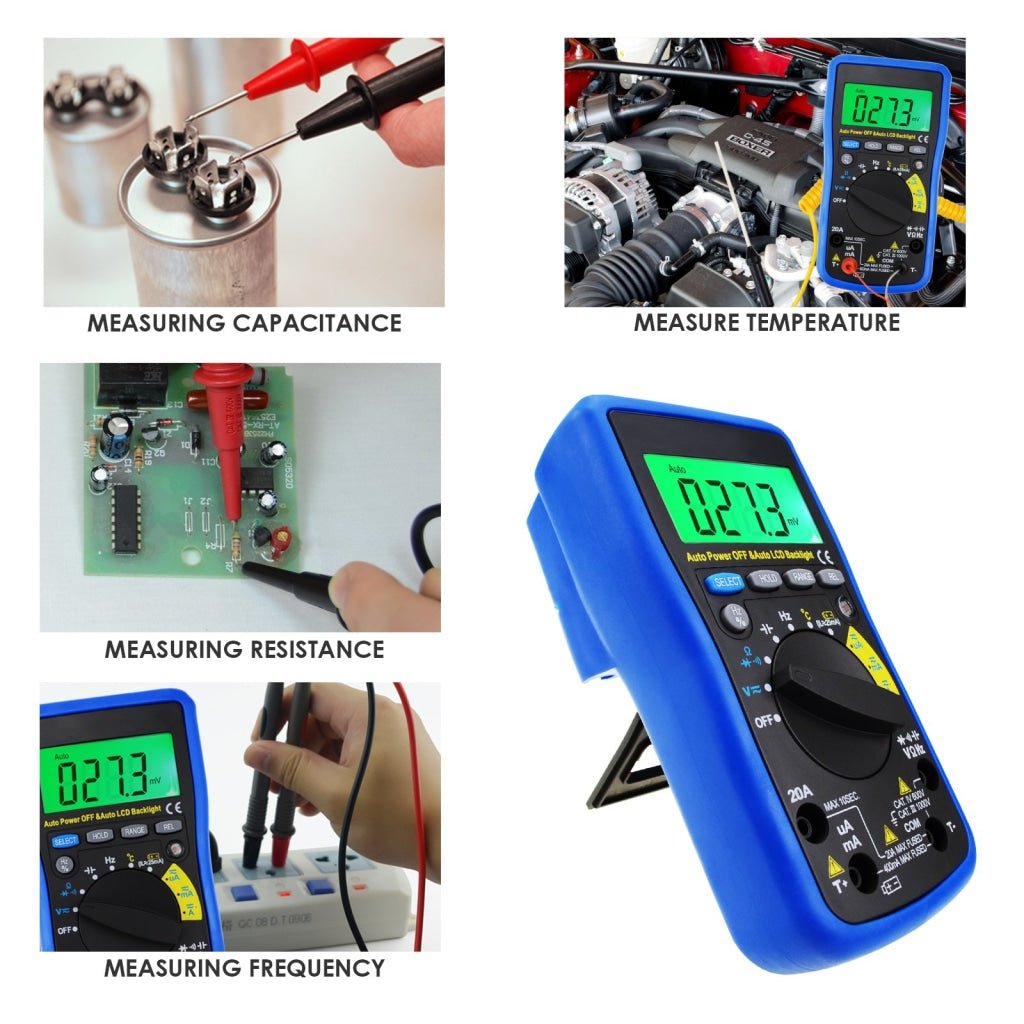

Measure AC & DC voltage, AC & DC current, resistance, frequency, capacitance, temperature, battery test, duty cycle, audible continuity and positive diode voltage fall. Stable performance and anti-dropping capacity. Using 4000 counts digit LCD monitor with 22mm character height.  With overall circuitry design centering on large-scale IC A/D converters in conjunction and over-load protection circuit, gives excellent performance making it a handy utility tool.

FEATURES:

  • CAT III 1000V, CAT IV 600V
  • 400mA/250V PPTC Resettable Fuse

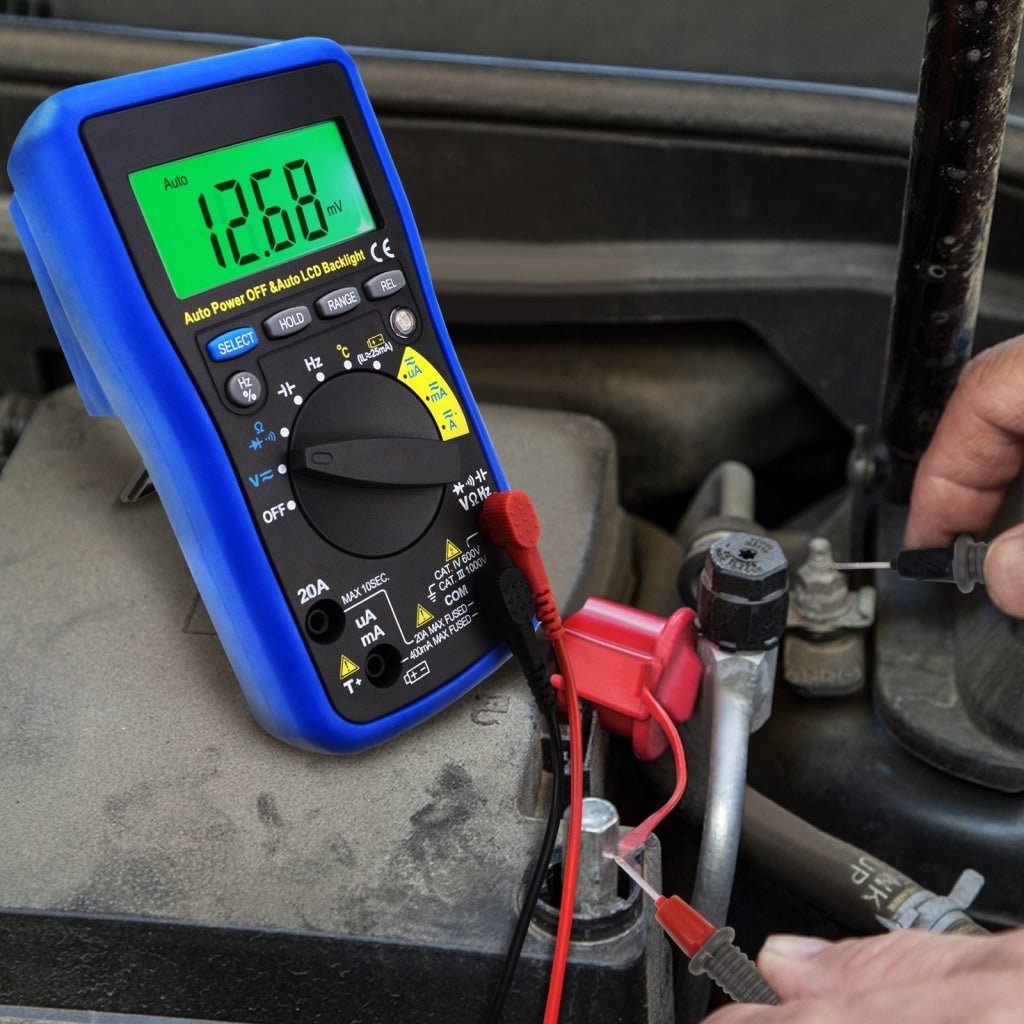

  • Battery Test
  • Continuity buzzer and Diode Test
  • Auto/manual range
  • Relative Value
  • 3.5" digits LCD display, with max reading of 4000 counts
  • Auto LCD backlight
  • Overload protection: full range protection
  • Data hold function
  • Low battery display
  • Over range display ("OL")
  • Automatic power off
  • Light sensor, auto control of backlight to lighten, brighten or turn-off



SPECIFICATIONS:

  • Display: 3999
  • DC Voltage: 400mV~1000V
  • AC Voltage400mV~750V
  • DC Current400μA~20A
  • AC Current400μA~20A
  • Resistance400Ω~40MΩ
  • Capacitance40nF~100μF
  • Temperature-20~1000℃
  • Frequency5.12Hz~5.12MHz
  • Duty Cycle0.1%~99.9%
  • Battery Power TestApprox. 25mA ±1.5%

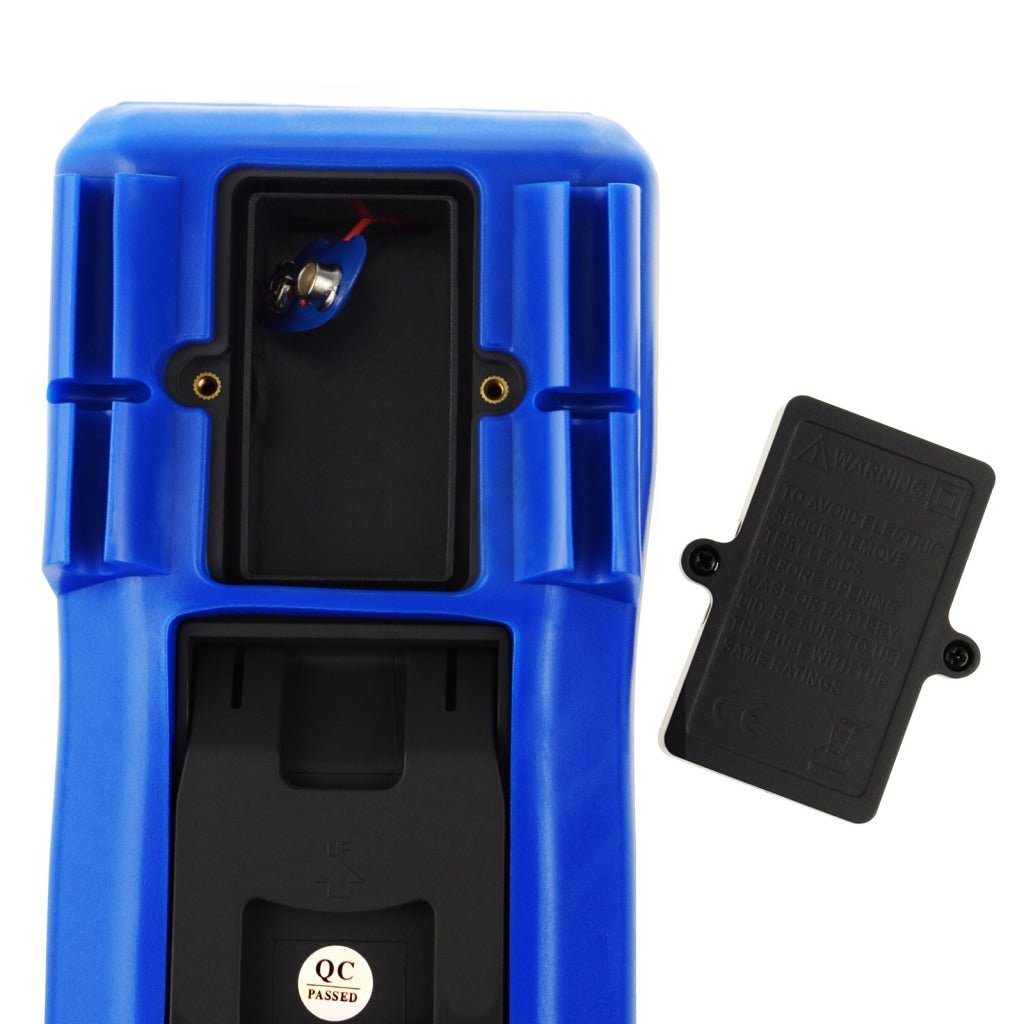

  • Power Supply: 1 x 9V battery

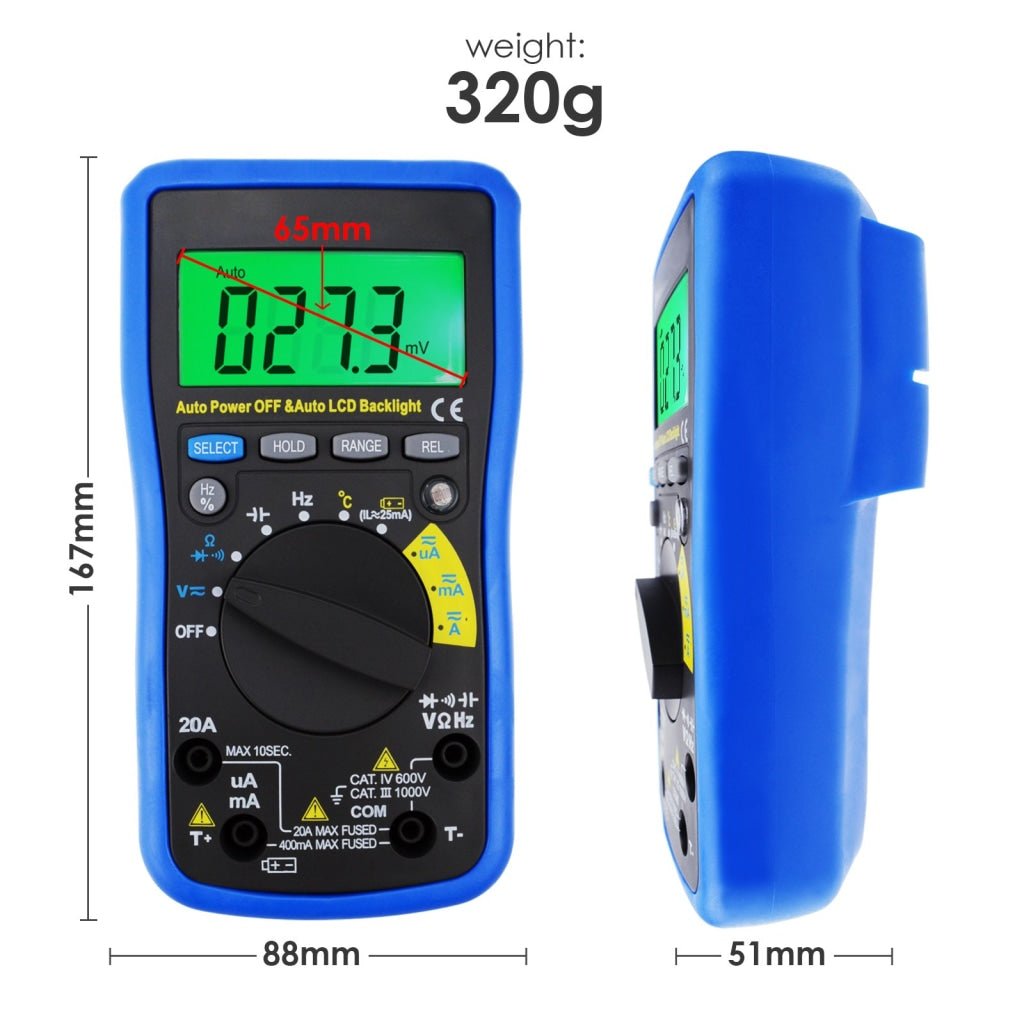

  • Size: 163 x 88.5 x 50mm
  • Weight: 320g

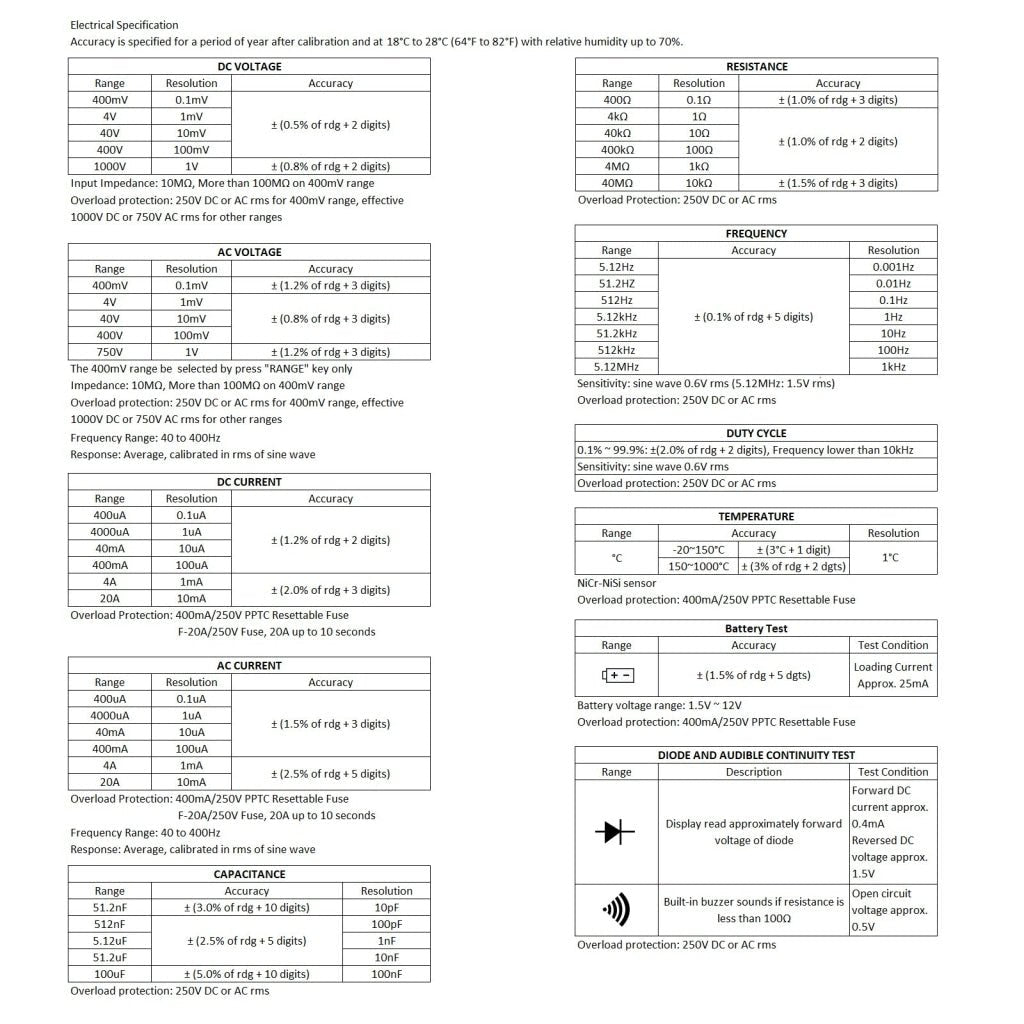

(see pictures for Detailed Technical Index Specifications)

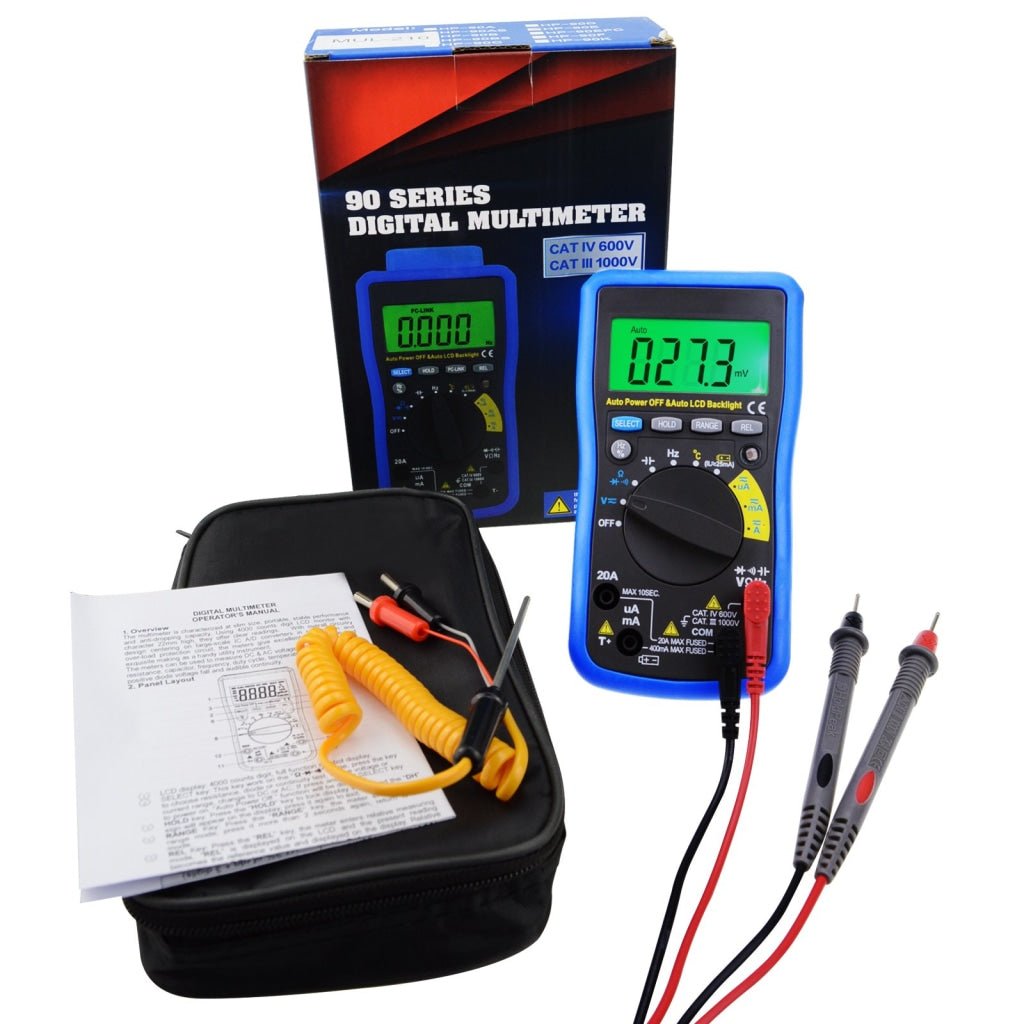

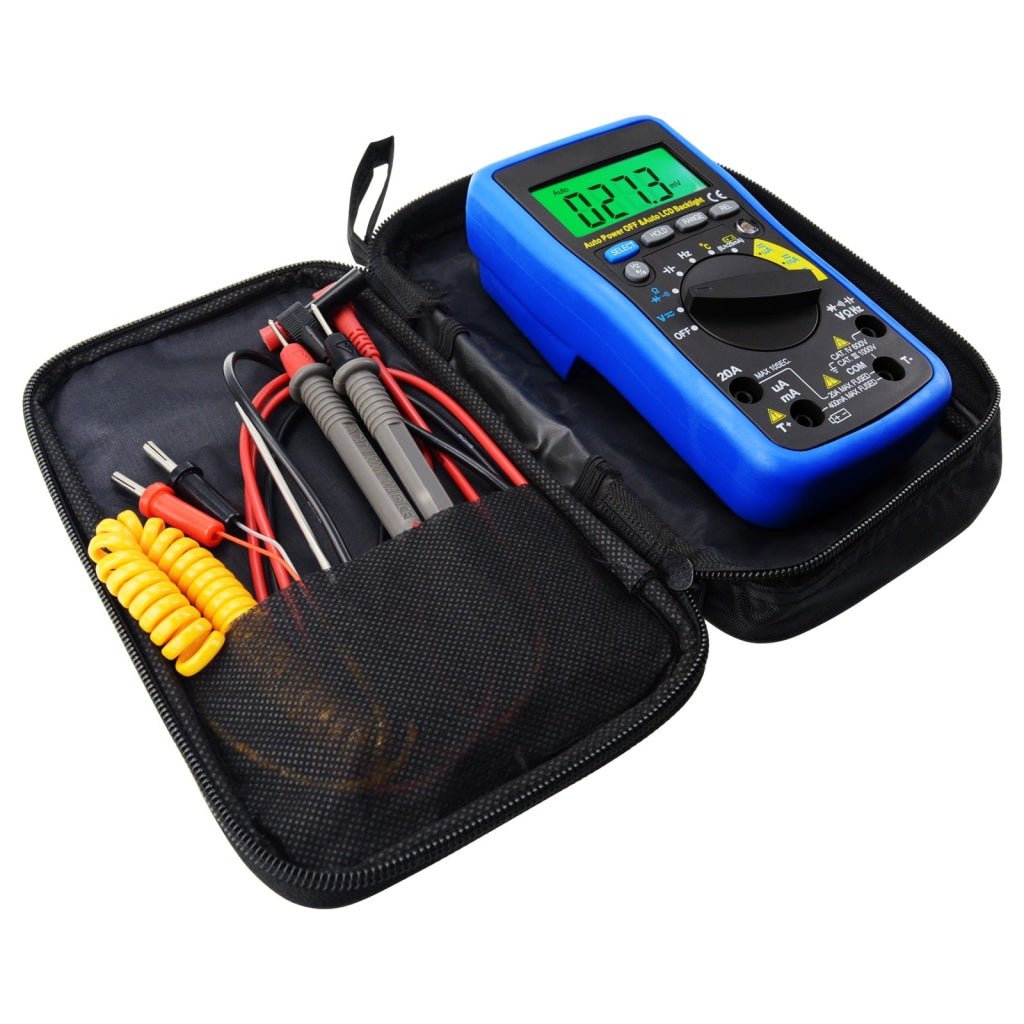

SET INCLUDES:

  • 1 x Digital Multimeter

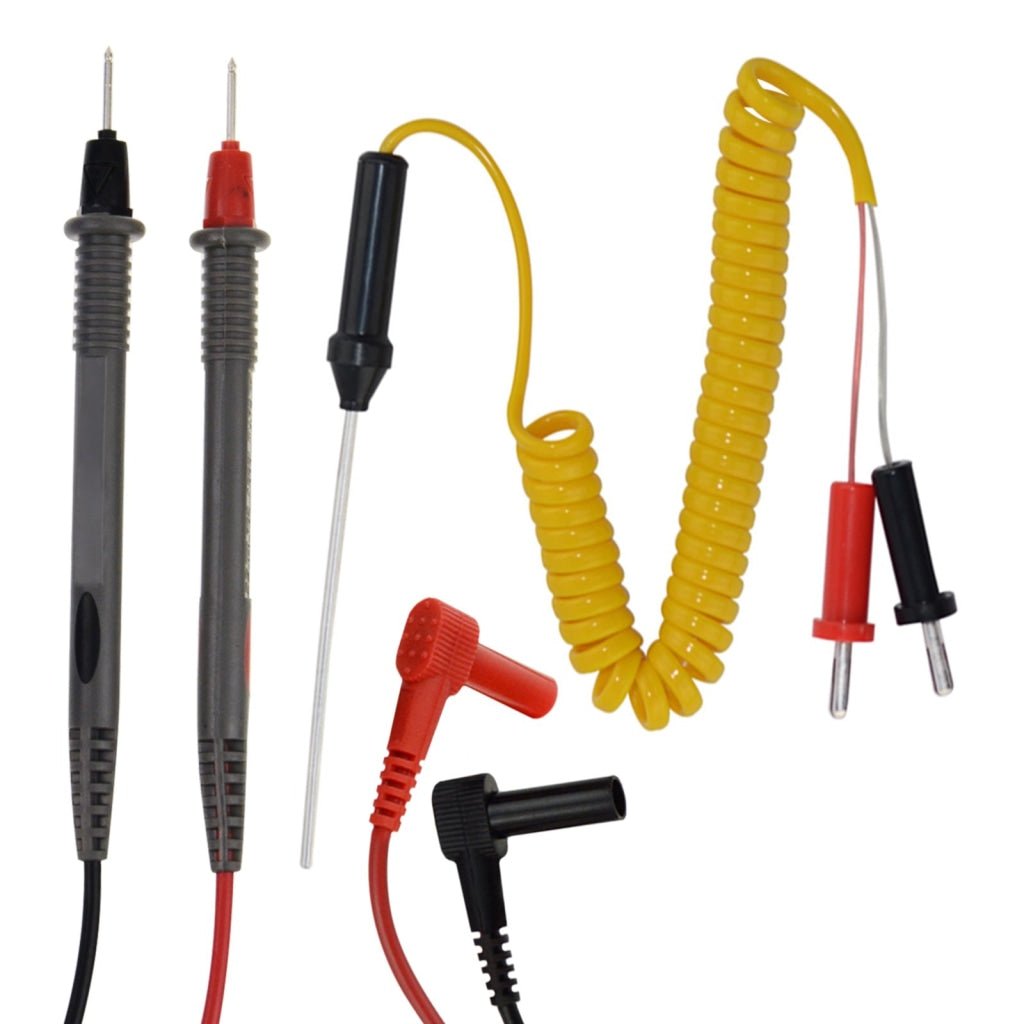

  • 1 x Pair Test Lead
  • 1 x Temperature Probe
  • 1 x English Manual
  • 1 x 9V battery
  • 1 x Carrying Bag

A printed user manual is already included with this item. No digital user manual or software is available.
