ILAQ-551 Portable CO₂ Detector Carbon Dioxide Gas Monitor

Sku: ILAQ-551
$92.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

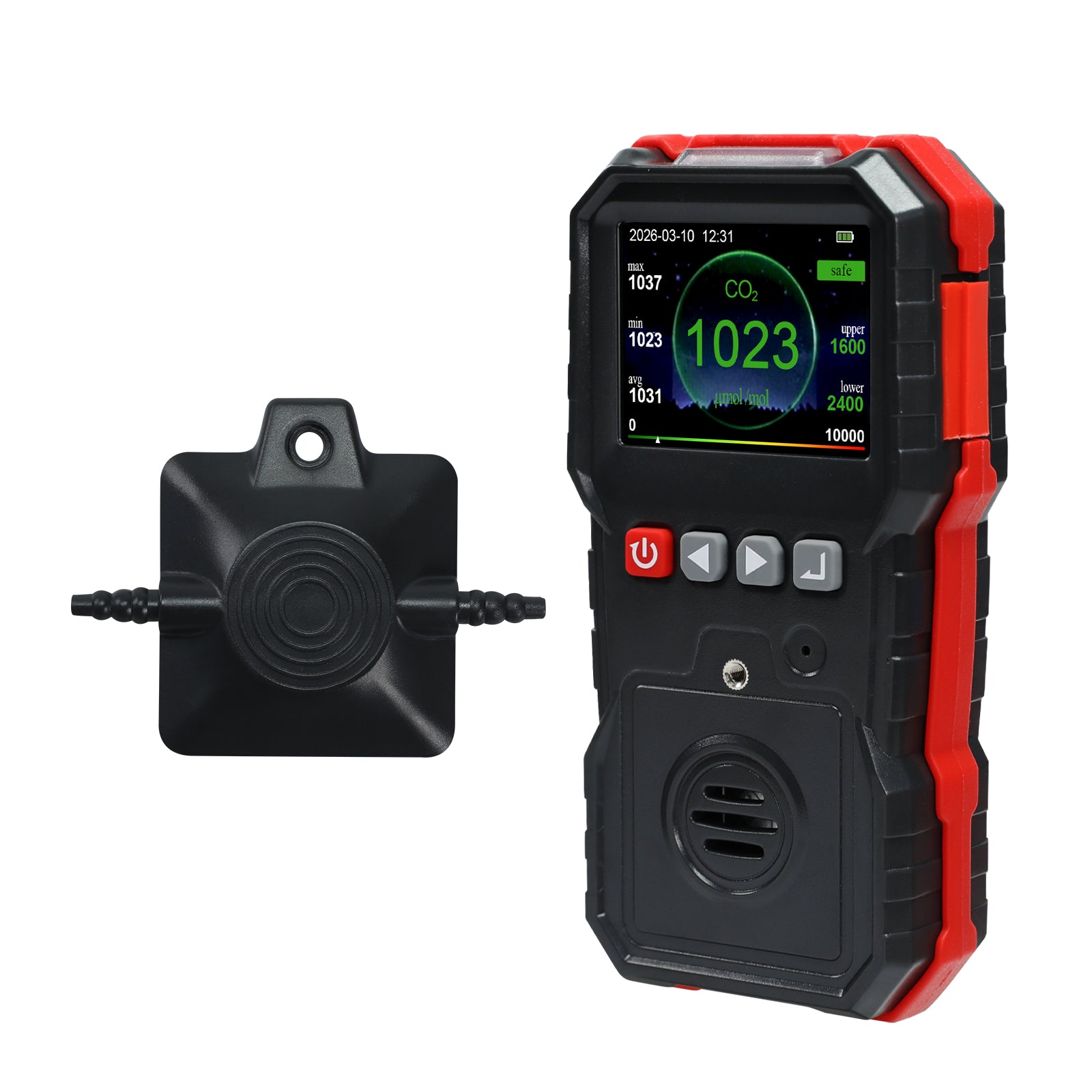

Monitor carbon dioxide levels quickly and accurately with this Portable CO₂ Detector, designed for industrial, laboratory, environmental, and professional applications. With a measuring range of up to 10,000 ppm, a clear color display, audible and visual alarms, rechargeable battery, and built-in data logging, this compact monitor provides reliable real-time CO₂ monitoring wherever it is needed.

Its durable, dust-resistant and explosion-proof housing makes it suitable for demanding work environments such as petroleum facilities, chemical plants, metallurgy operations, laboratories, environmental monitoring, gas transmission, biochemical research, and agricultural applications.

Key Features

  • Wide CO₂ Measurement Range – Measures carbon dioxide concentrations from 0 to 10,000 ppm.
  • Color Display – Bright, easy-to-read screen clearly shows real-time measurements and device status.

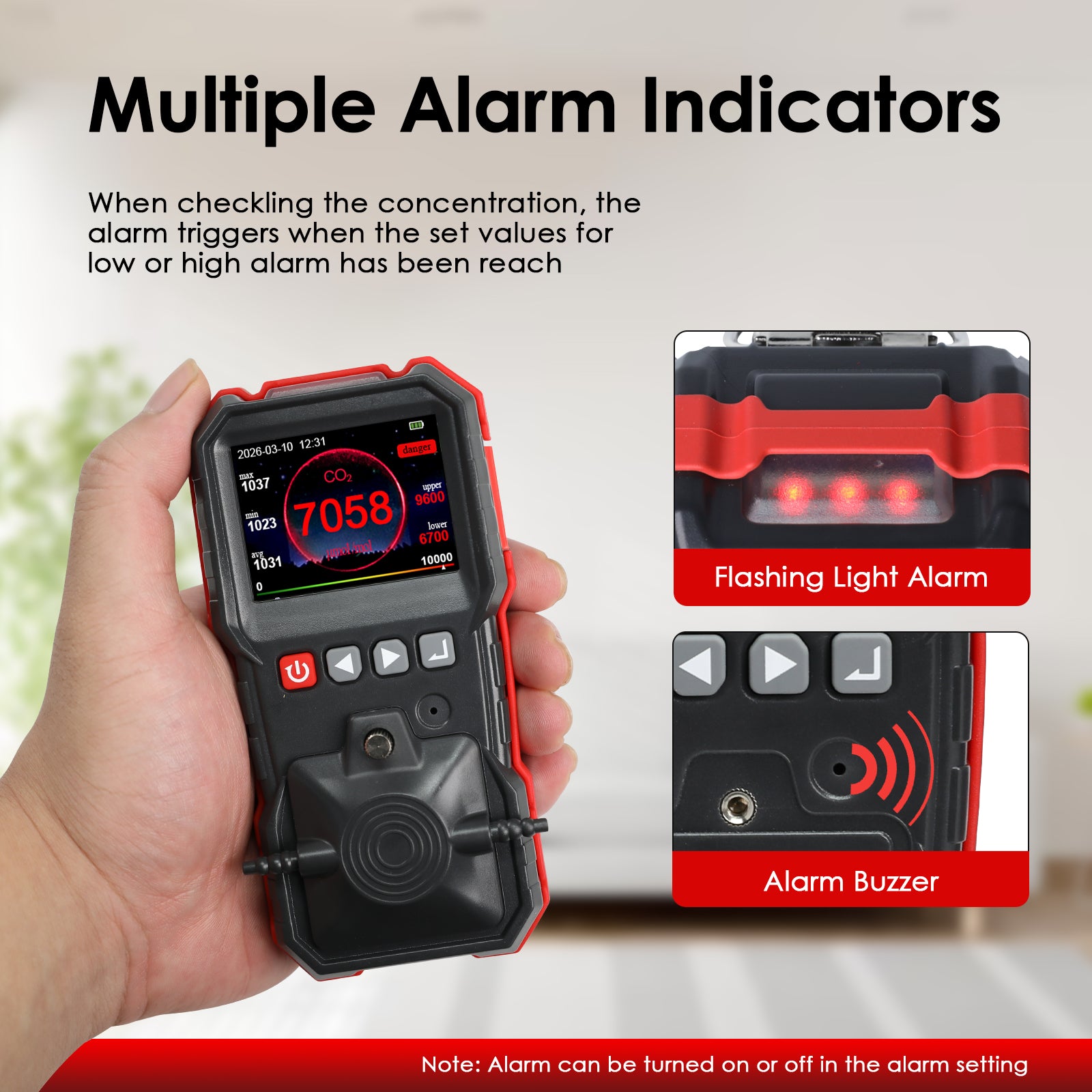

  • Audible and Visual Alarm – Sound and LED indicators alert users when CO₂ concentration reaches unsafe levels.

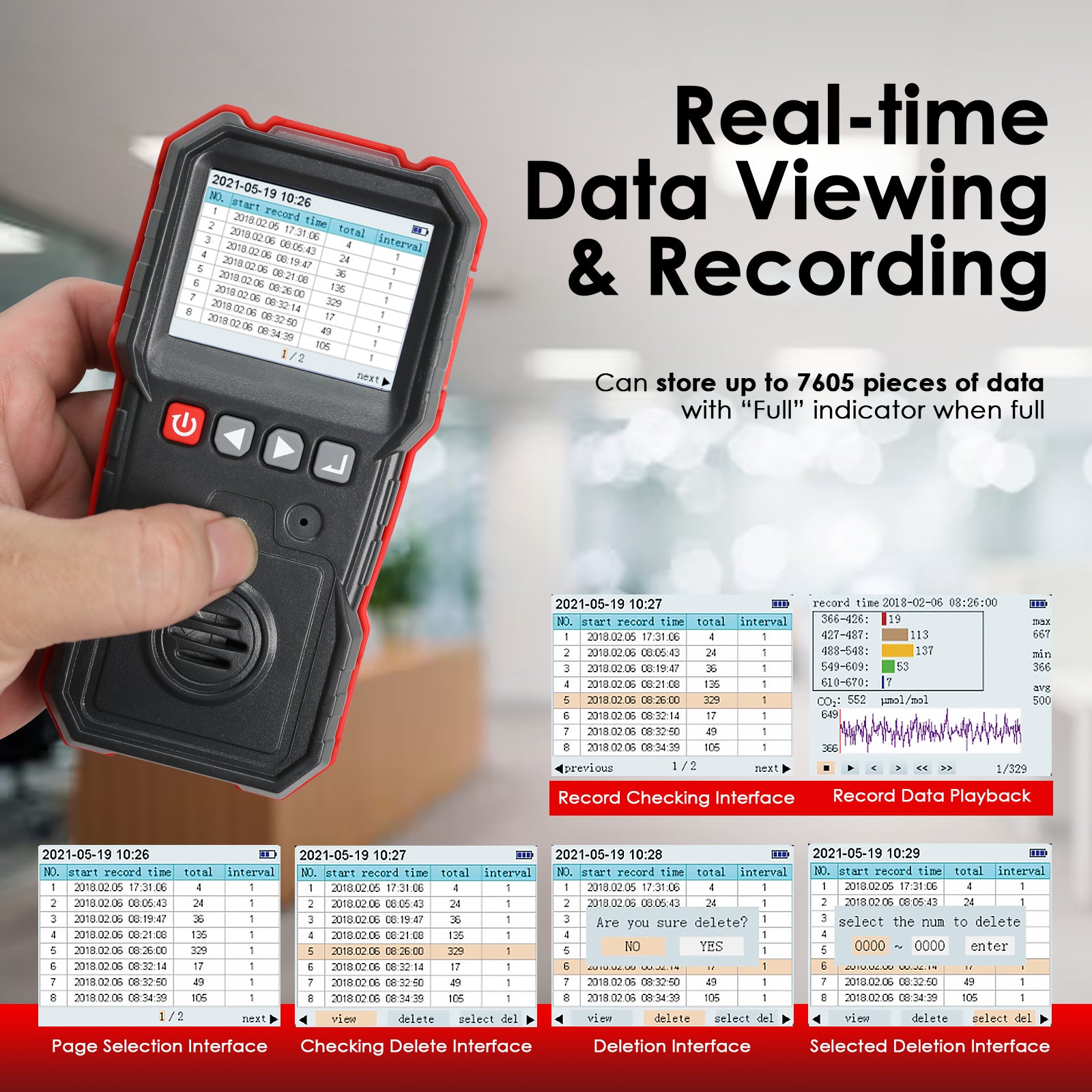

  • Data Logging Function – Stores up to 7,605 measurement records for convenient review and analysis.

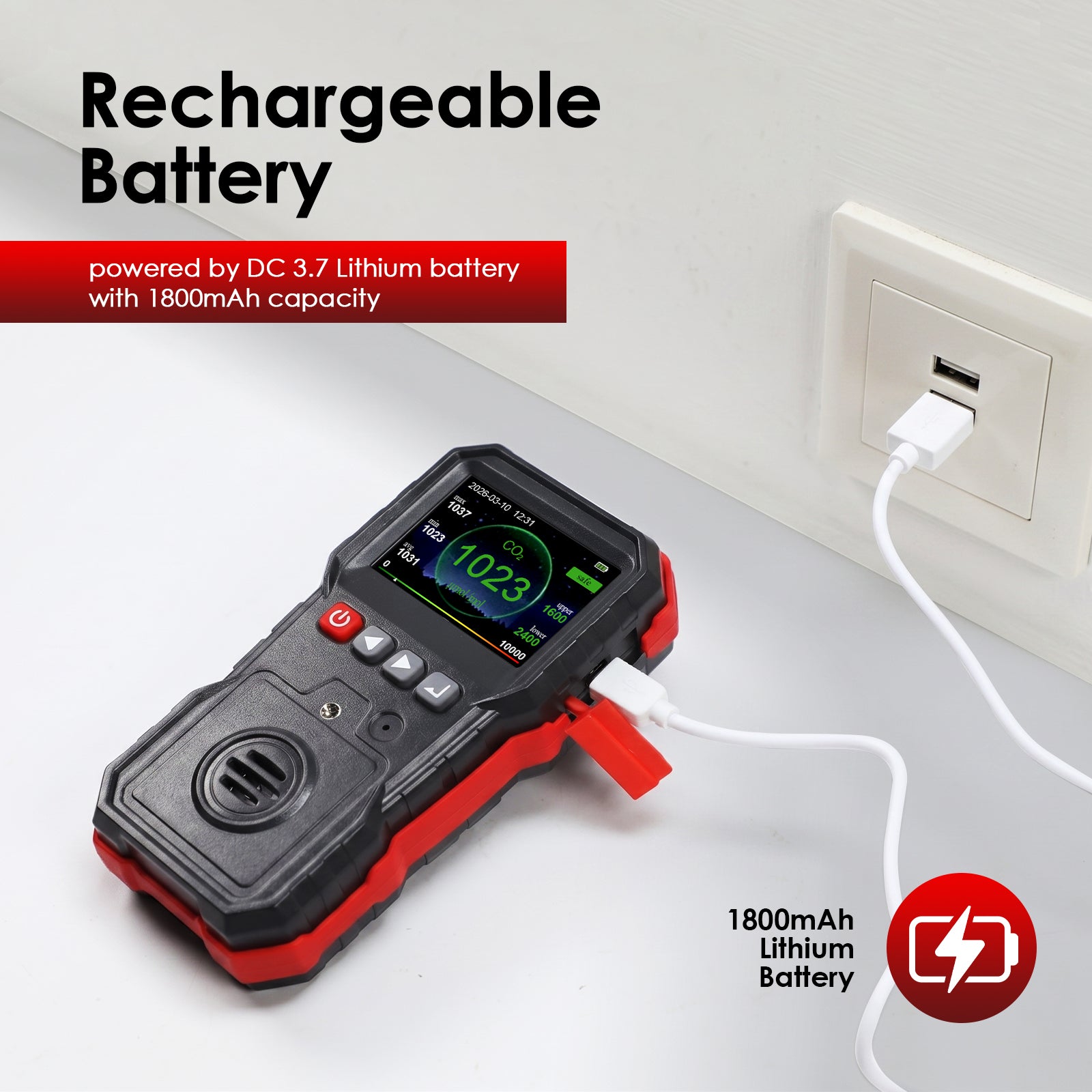

  • Rechargeable Battery – Built-in 1800 mAh lithium battery provides portable operation without constant external power.
  • Durable Construction – Dust-resistant and explosion-proof design for demanding industrial environments.

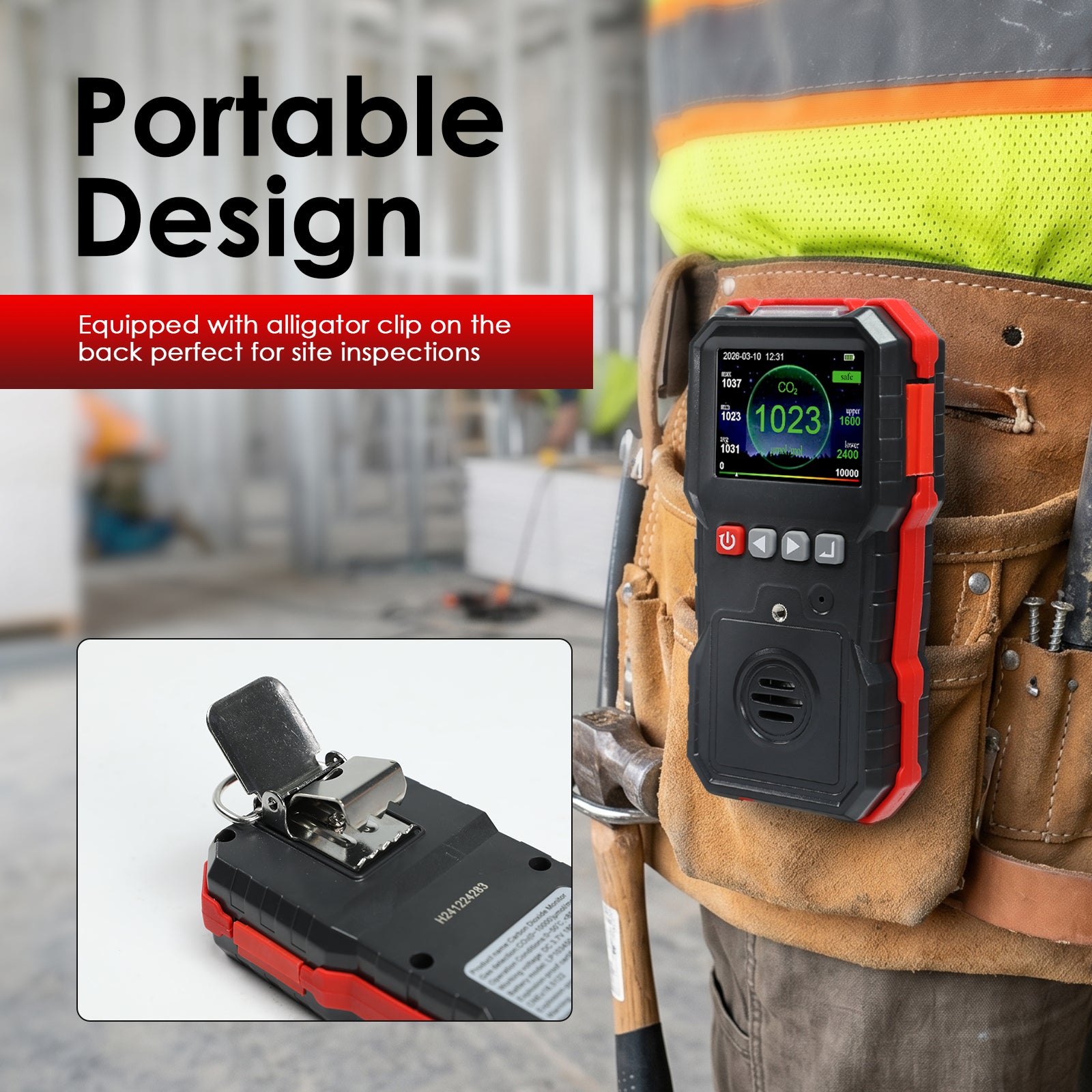

  • Portable and Lightweight – Compact handheld design for convenient on-site measurement and inspection.

CO₂ Concentration Guide

  • 350–450 ppm: Typical outdoor air level
  • 350–1,000 ppm: Generally fresh and comfortable indoor air
  • 1,000–2,000 ppm: Air may feel stuffy; drowsiness may occur
  • 2,000–5,000 ppm: May cause headache, sleepiness, increased heart rate, mild nausea, and difficulty concentrating
  • Above 5,000 ppm: Potentially hazardous concentration requiring immediate attention

Specifications

CO₂ Measurement

  • Measuring Range: 0–10,000 μmol/mol
  • Resolution: 1 μmol/mol
  • Accuracy: ±40 μmol/mol ±3%
  • Response Time (90%): Approximately 2 minutes

Accuracy Conditions

  • Accuracy is specified at an ambient temperature of 25°C and atmospheric pressure of 101.3 kPa.
  • Within the range of 400–2,000 μmol/mol, accuracy is ±40 μmol/mol ±3%.
  • Accuracy may decrease when measurements are outside this range.

Display & Alarm

  • Display: Color LCD
  • Indication: Real-time measurement and system status
  • Alarm: LED visual indicator and audible alarm

Operating Environment

  • Temperature: 0–50°C
  • Humidity: <85% RH, non-condensing

Storage Environment

  • Temperature: -10–55°C
  • Humidity: <85% RH, non-condensing

Power

  • Working Voltage: DC 3.7V
  • Battery: Rechargeable 1800 mAh lithium battery
  • Battery Model: LP103450-1800mAh
  • Charging Time: Approximately 4 hours
  • Continuous Operating Time: More than 8 hours, depending on operating conditions

Dimensions & Weight

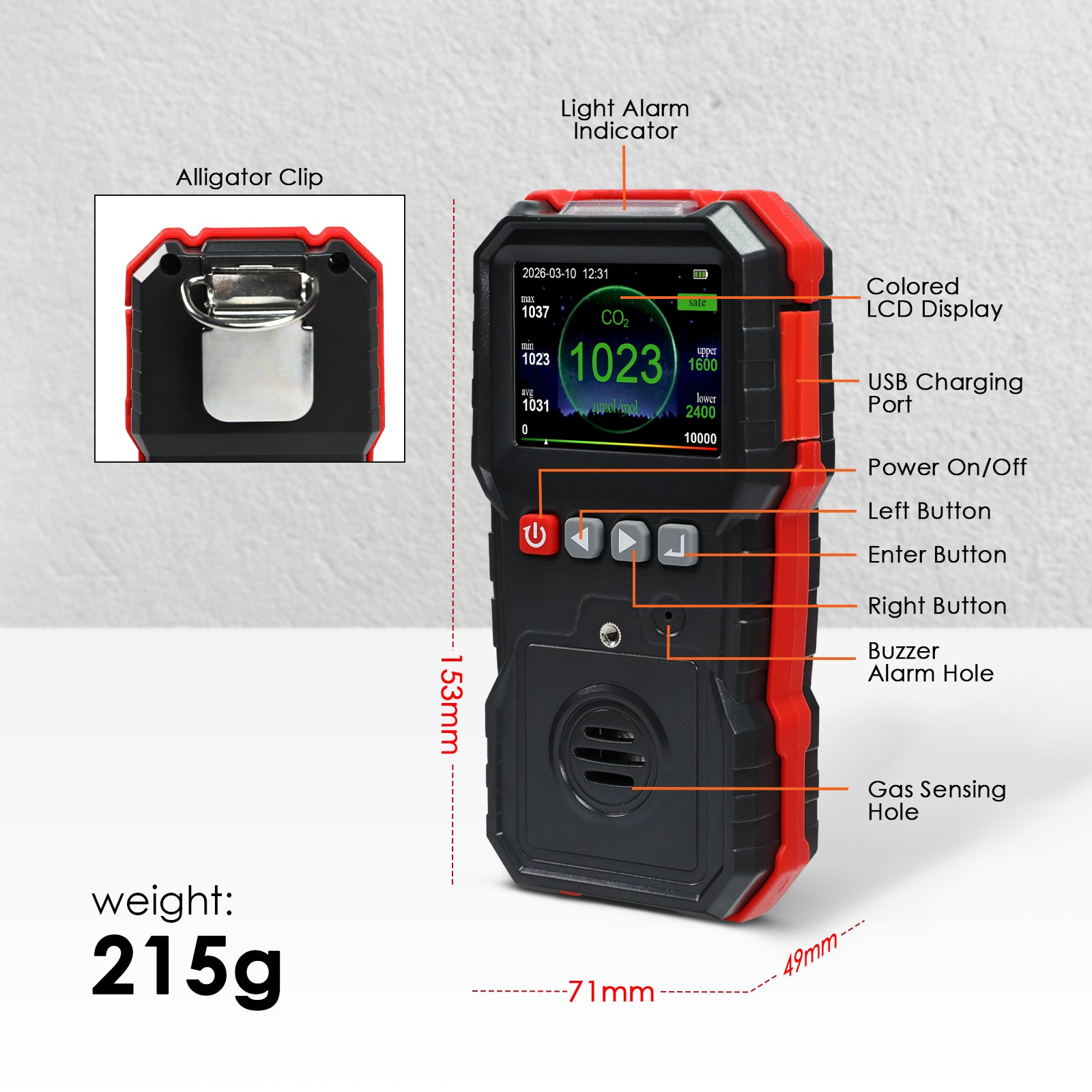

  • Dimensions: 71 × 153 × 49 mm
  • Weight: Approximately 215.4 g

Applications

Suitable for use in:

  • Petroleum and chemical industries
  • Metallurgy and refining
  • Environmental monitoring
  • Gas transmission and distribution
  • Laboratories and scientific research
  • Biochemical and medical research
  • Agricultural research
  • Industrial safety monitoring
  • Indoor air quality assessment

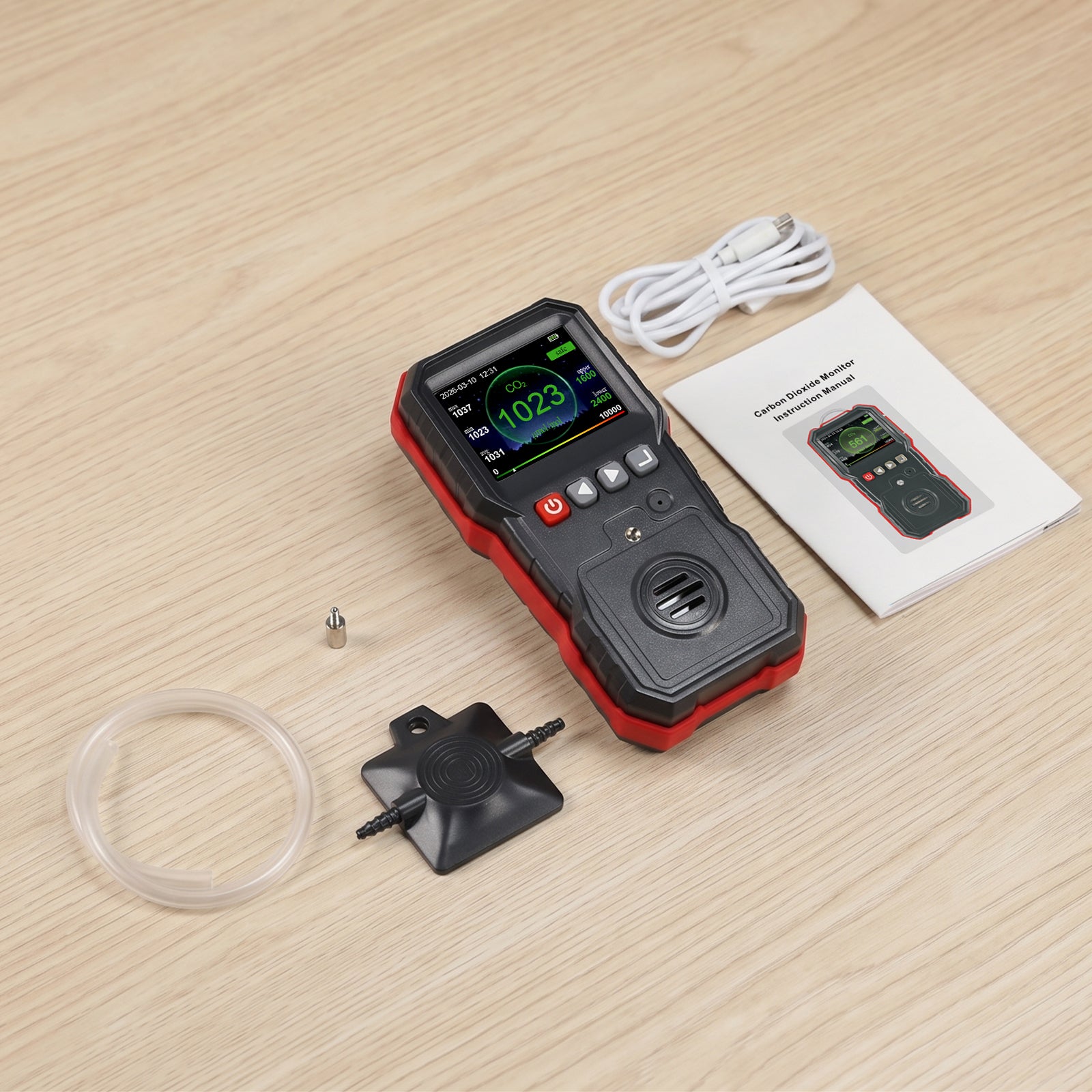

Package Includes

  • 1 × CO₂ Monitor
  • 1 × USB Charging Cable
  • 1 × Instruction Manual

A printed user manual is already included with this item. No digital user manual or software is available.
