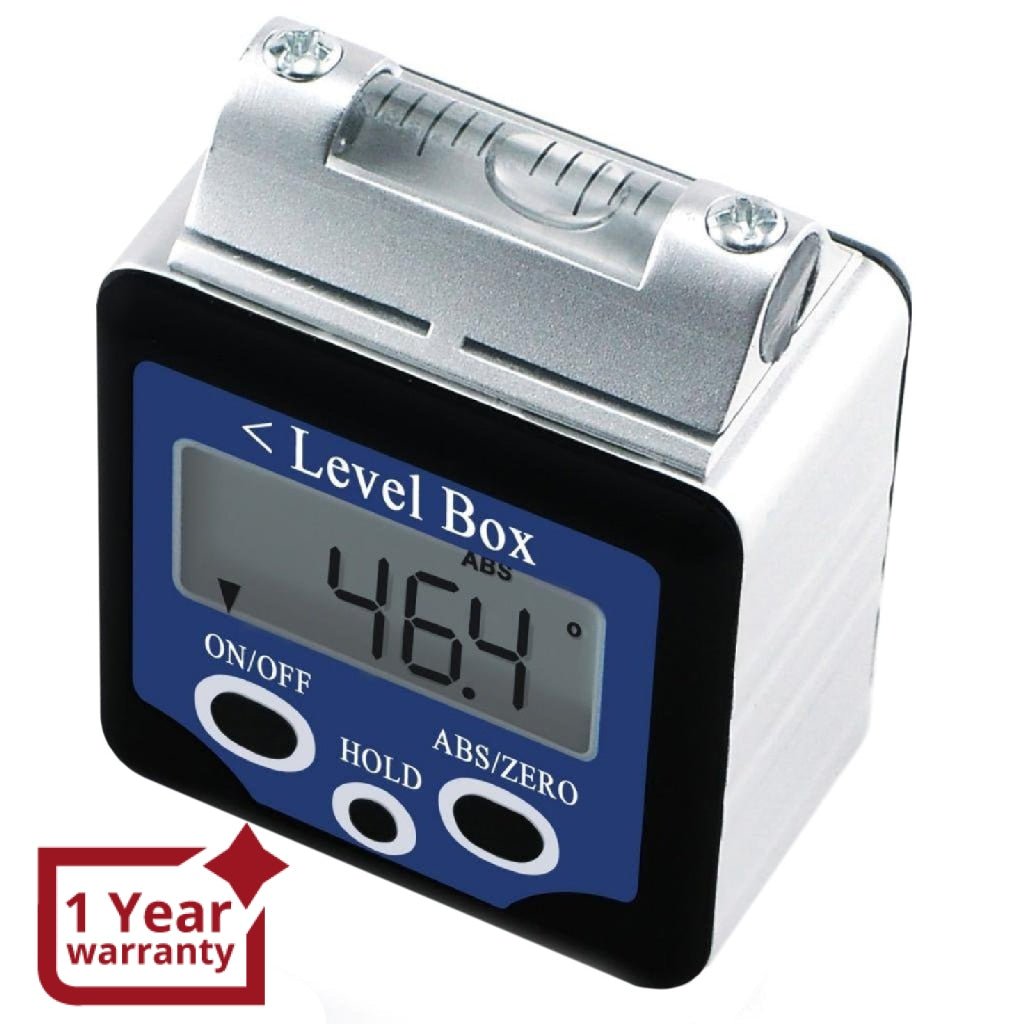

ILAF-39 Digital 360° Spirit Level Angle Gauge Inclinometer w/ Magnets Box Type +/-180 degree Accuracy 0.1 degree Bevel Box Level Angle Finder Large LCD Display

Sku: ILAF-39
$51.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

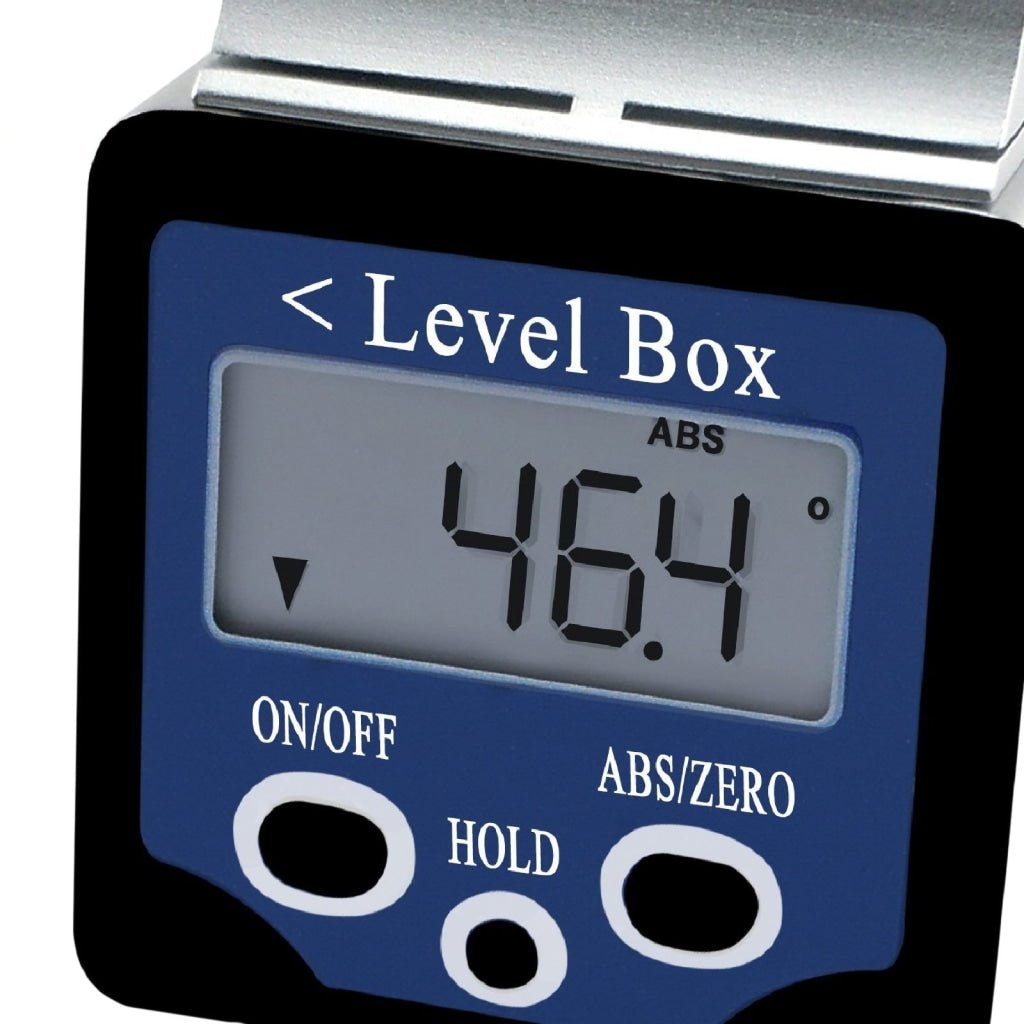

This Digital Bevel Box with Spirit Level provides relative and absolute measurements as well as zero setting to any position. It provides reading between ±180.0° (0~360°) on table saws and other shop equipment instantly. Placing it to reference surface zero gives measured results within 0.1° accuracy. With built-in spirit level finding horizontal level of the surface can now be achieved quickly and precisely.

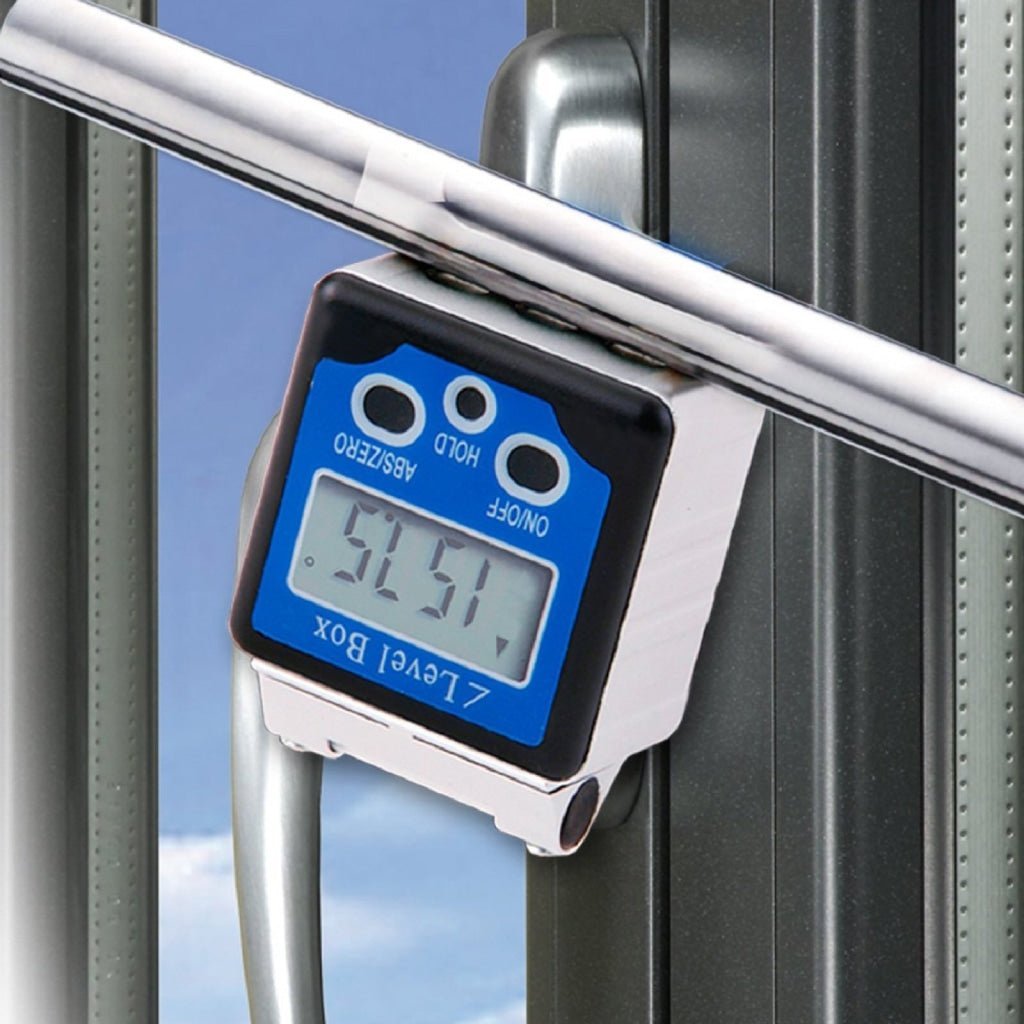

Easily measure bevel angle of miter saw, examine and repair the automobile, etc. with the 3 built-in magnets stick securely to metal surface such as steel tables, fences, plane, bits, saw/band saw blades, machine tops and other shop equipment. With care you can also use it on aluminum or wood.


Applications:

  • Setting blade angle of Miter Saws
  • Setting blade angle of Circular Saws
  • Tool setting on Lathes
  • Setting workpiece angle for milling
  • Drainage angles and run off slopes
  • Grader and tractor work alignment
  • Platform monitoring
  • Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table


Features

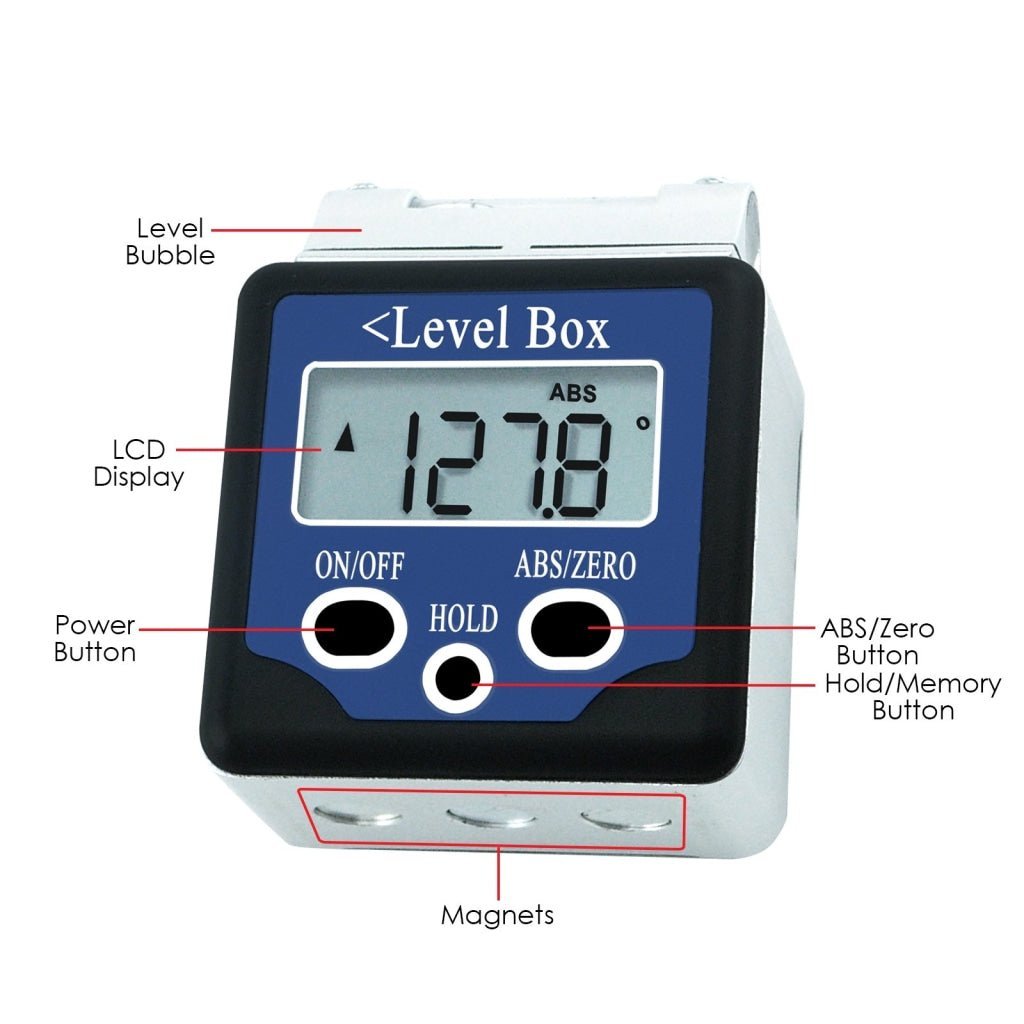

  • Absolute and Relative measurements
  • 3 button setup with wide measuring range of ±180° (0 ~ 360°) with ± 0.1 Repeatability

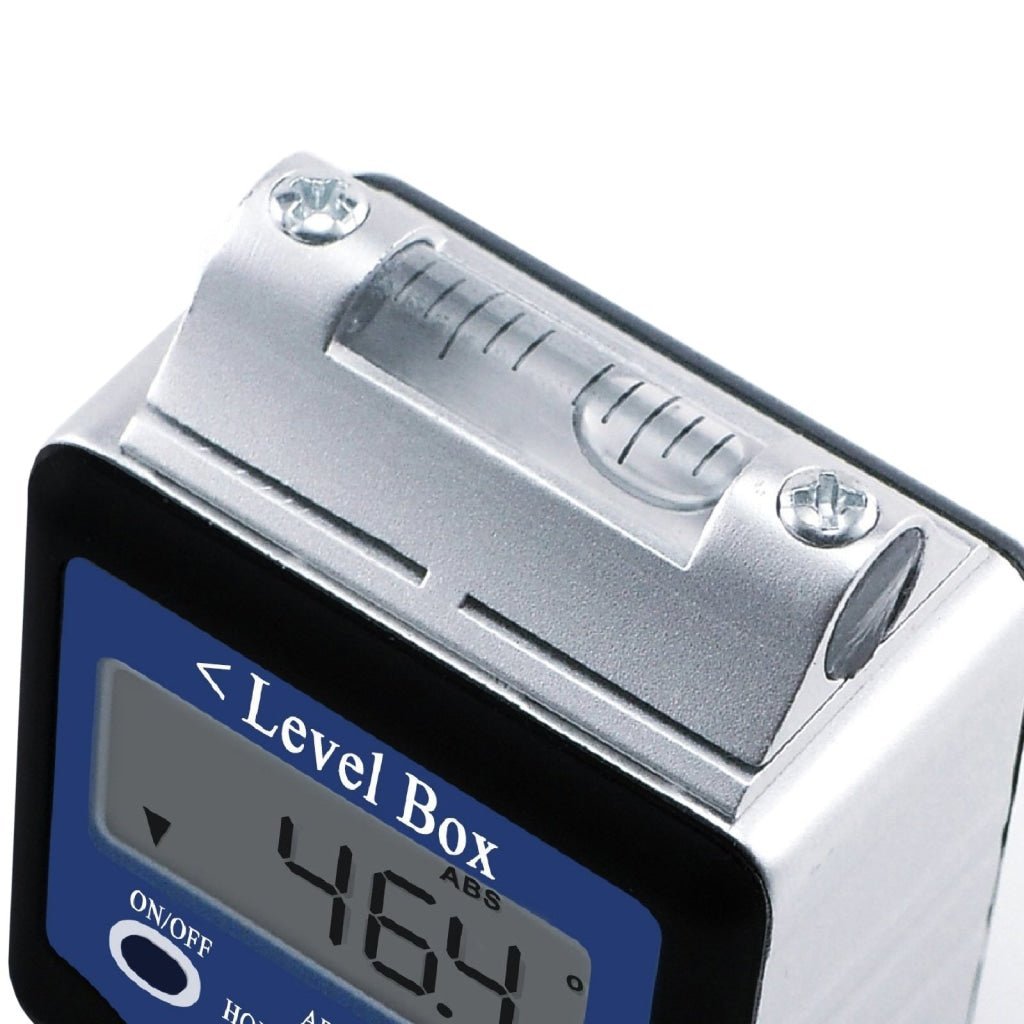

  • Bigger, sharper and high accuracy spirit level
  • Data HOLD function

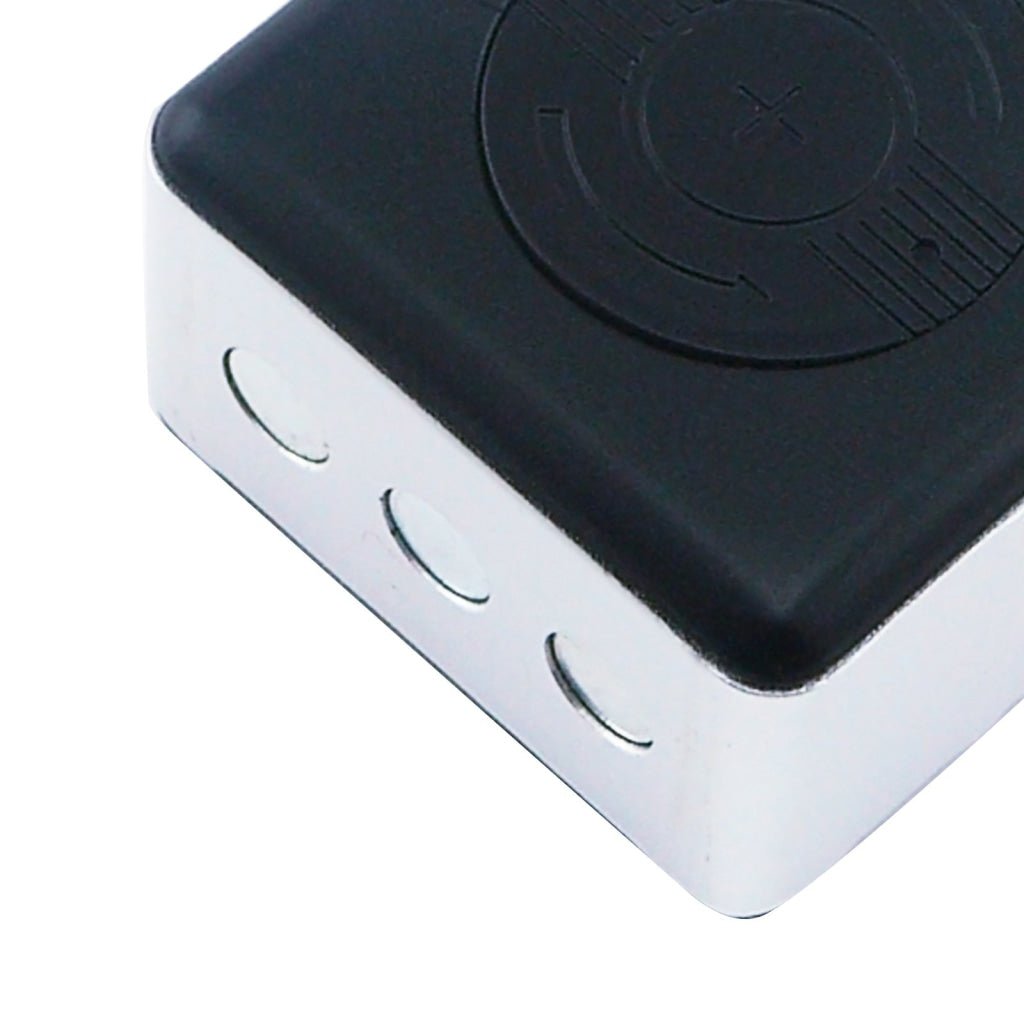

  • 3 Powerful built-in magnets on the base secures the attachment to any metal surface
  • Easy-to-read large readout LCD display
  • Light weight with compact design
  • Fast and accurate measurements are guaranteed
  • Zero button easily calibrates to any reference surface
  • Auto power off
  • Housed with tough aluminum frame & plastic on both face

Specifications

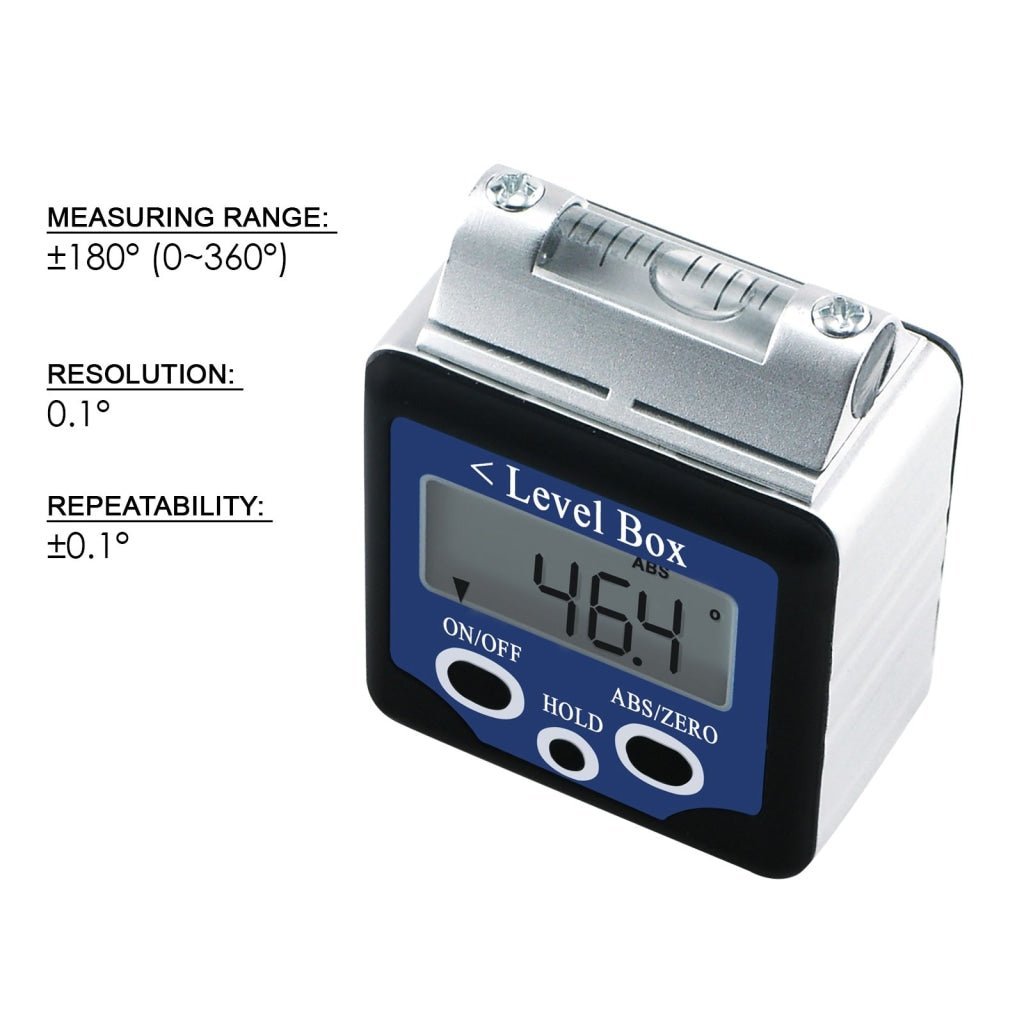

  • Measuring Range: ±180° (0~360°)
  • Resolution/Accuracy: 0.1°
  • Repeatability: ±0.1°
  • Spirit Level Accuracy: 2'
  • Working Current: < 100 µA
  • Power: 1 x 3V CR2032 Lithium Battery (Included)

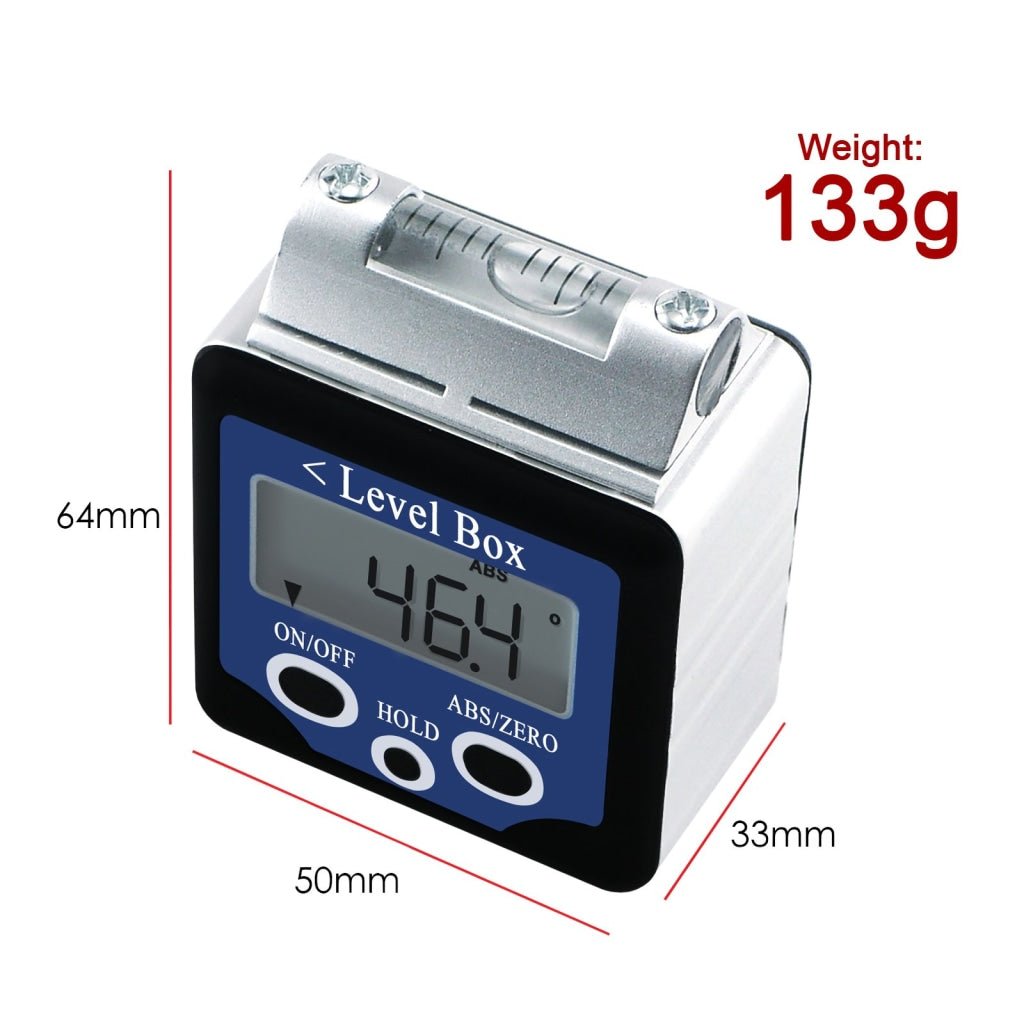

  • Size: approx. 64 x 50 x 33mm
  • Weight: approx. 133g

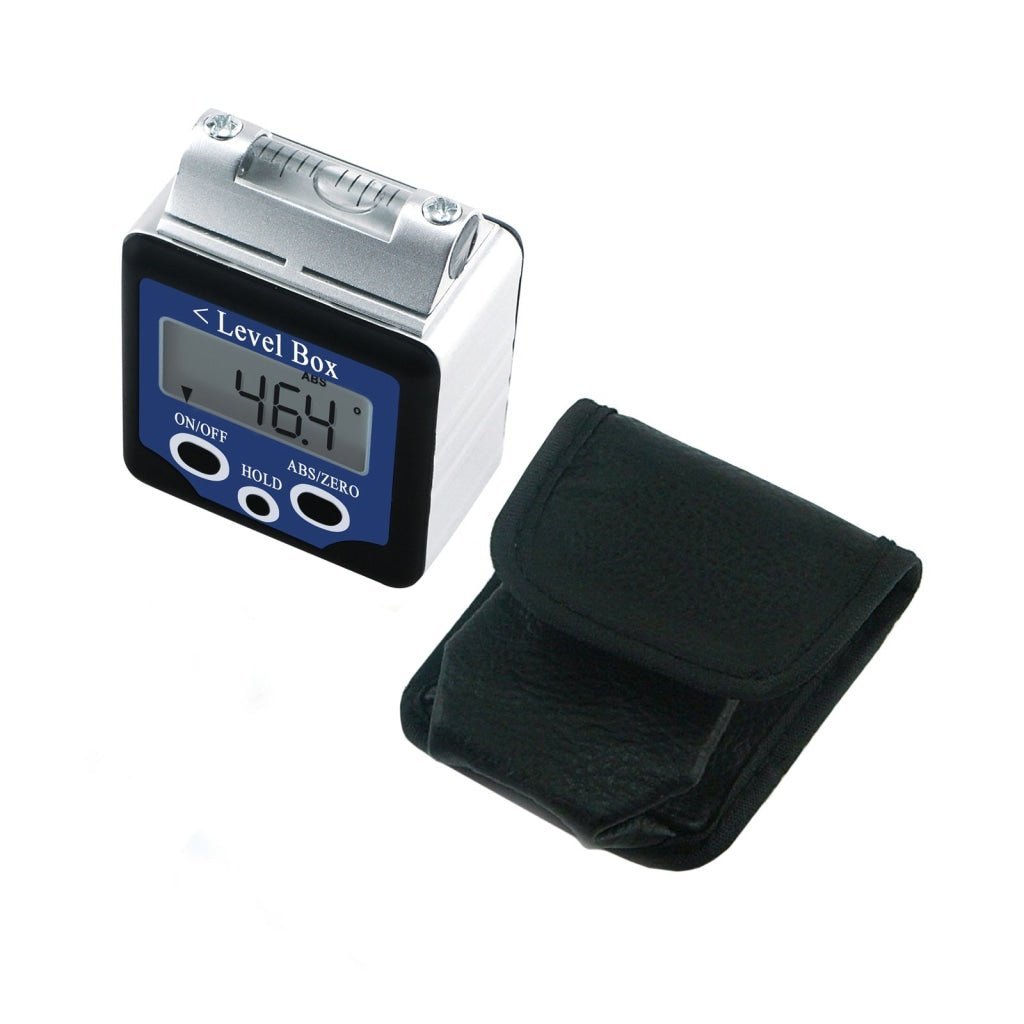

Set Includes
  • 1 x Bevel Box with Spirit Level
  • 2 x 3V CR2032 Lithium Battery (FREE)

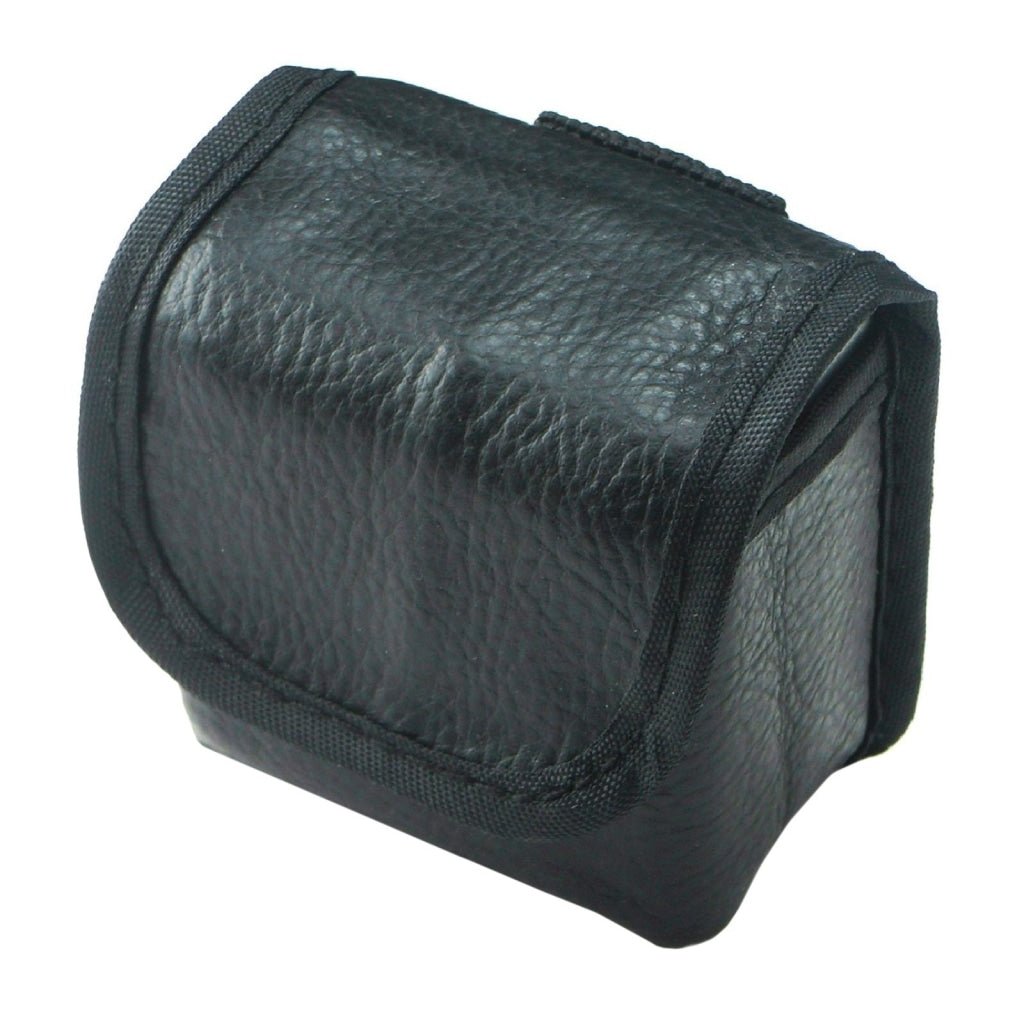

  • 1 x Carrying Pouch (FREE)
  • English Quick Start Guide
  • Standard Factory Package

A printed user manual is already included with this item. No digital user manual or software is available.
