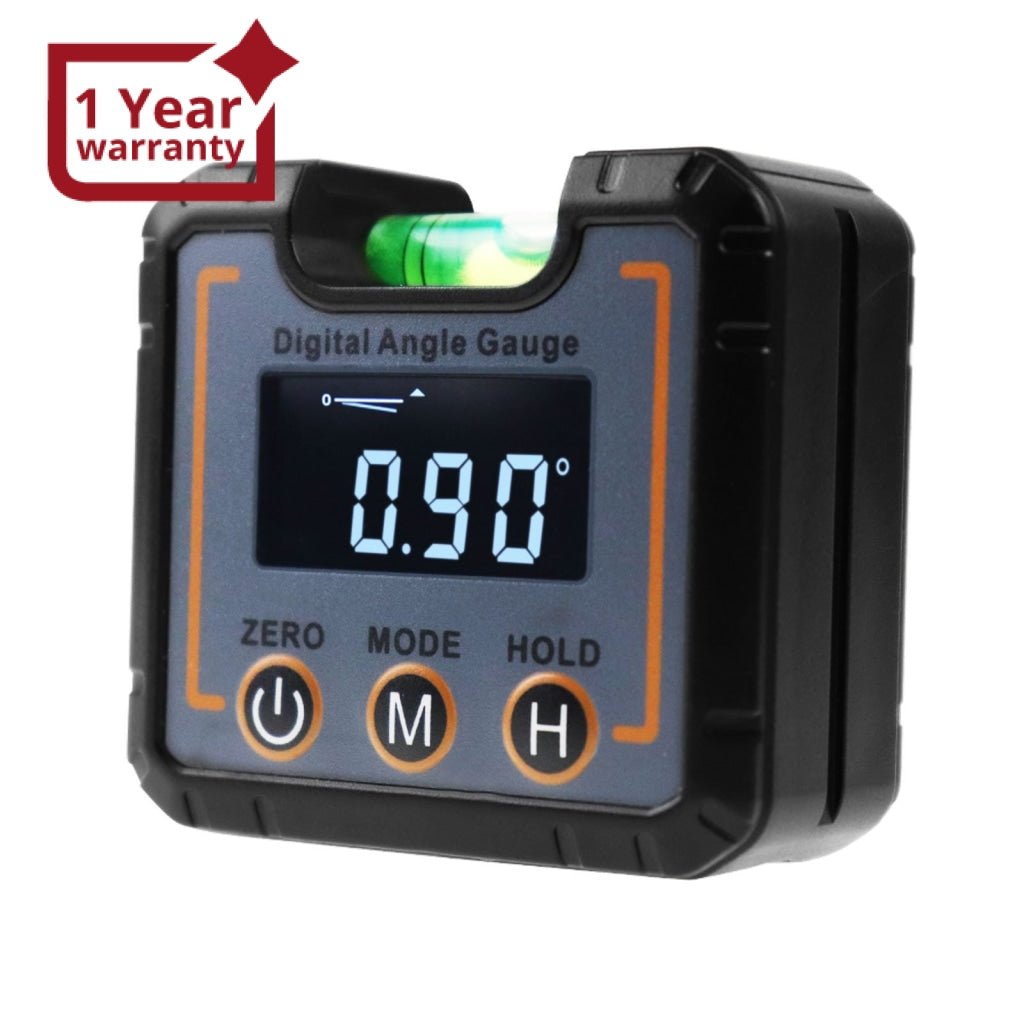

ILAF-321 Digital Angle Gauge Electronic Protractor Highly Precise Level Box with Bubble Level Magnetic Base Angle Measurement Tool LCD Technology Bright Display

Sku: ILAF-321
$38.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This Digital Angle Finder Gauge Level Box is a high precision measuring tool that measures accuracy of surfaces in a slope and for laying out angles.  With its compact and portable design, it is a sturdy and reliable best friend for any woodworker, craftsman, or builder.

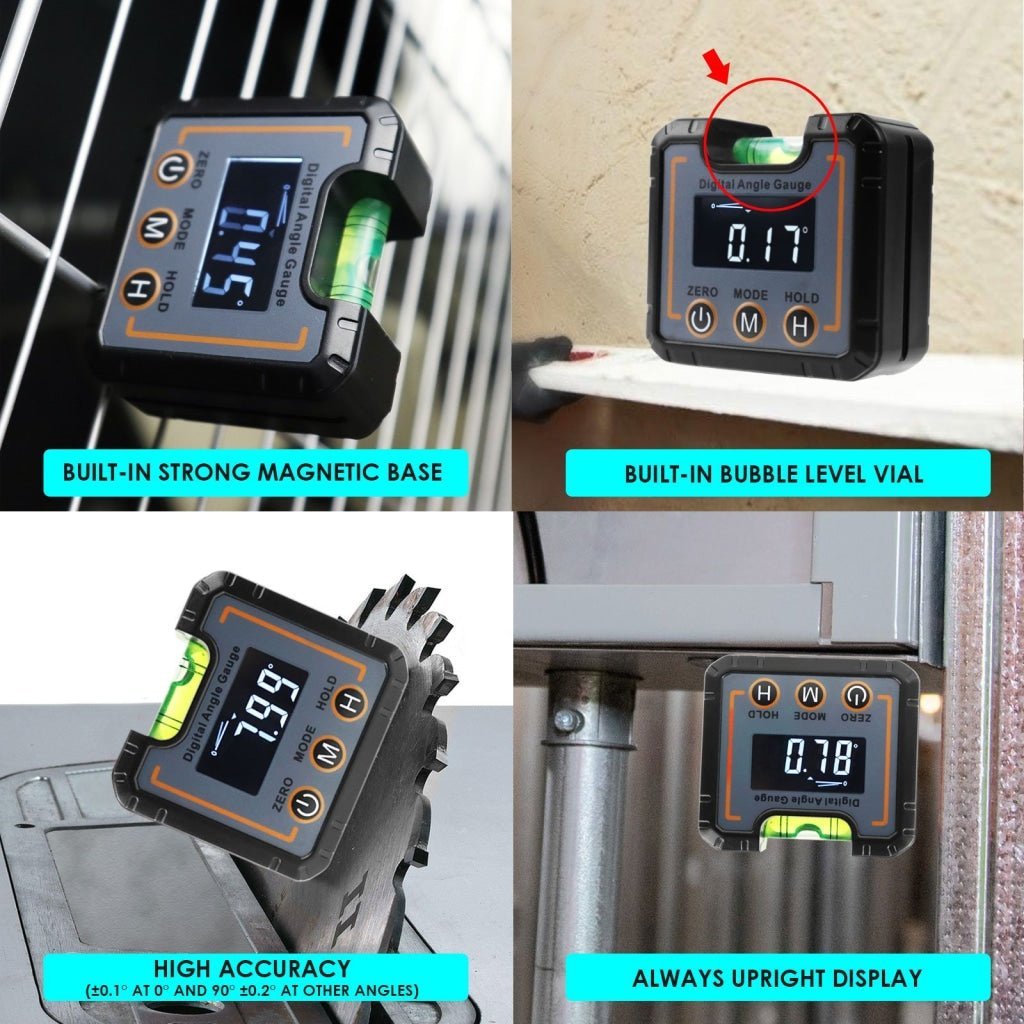

Work hassle-free with its powerful magnetic V-groove base that provides secure and firm attachments to any round pipes, miter saw, table saw blades and other metal surfaces. The built -in bubble vial doubles as a go-to levelling option without the use of any batteries. Freeze current measurements by simply short pressing the hold button. This user-friendly digital inclinometer is, indeed, the best choice for any craftsman who wants to make work safer and easier.



Features:

  • Angle and Level measurements
  • VA screen, black color backlight, white characters LCD display
  • Hold Function
  • 0° calibration
  • High accuracy level bubble vial on the top (for levelling work without battery)
  • V-groove on the measurement base (can easily be attached to round pipes)
  • Groove on the 2-side housing (can easily do the mark down)
  • Powerful built-in magnets on the base to secure attachment
  • Manual and auto power-off function
  • Low battery indicator

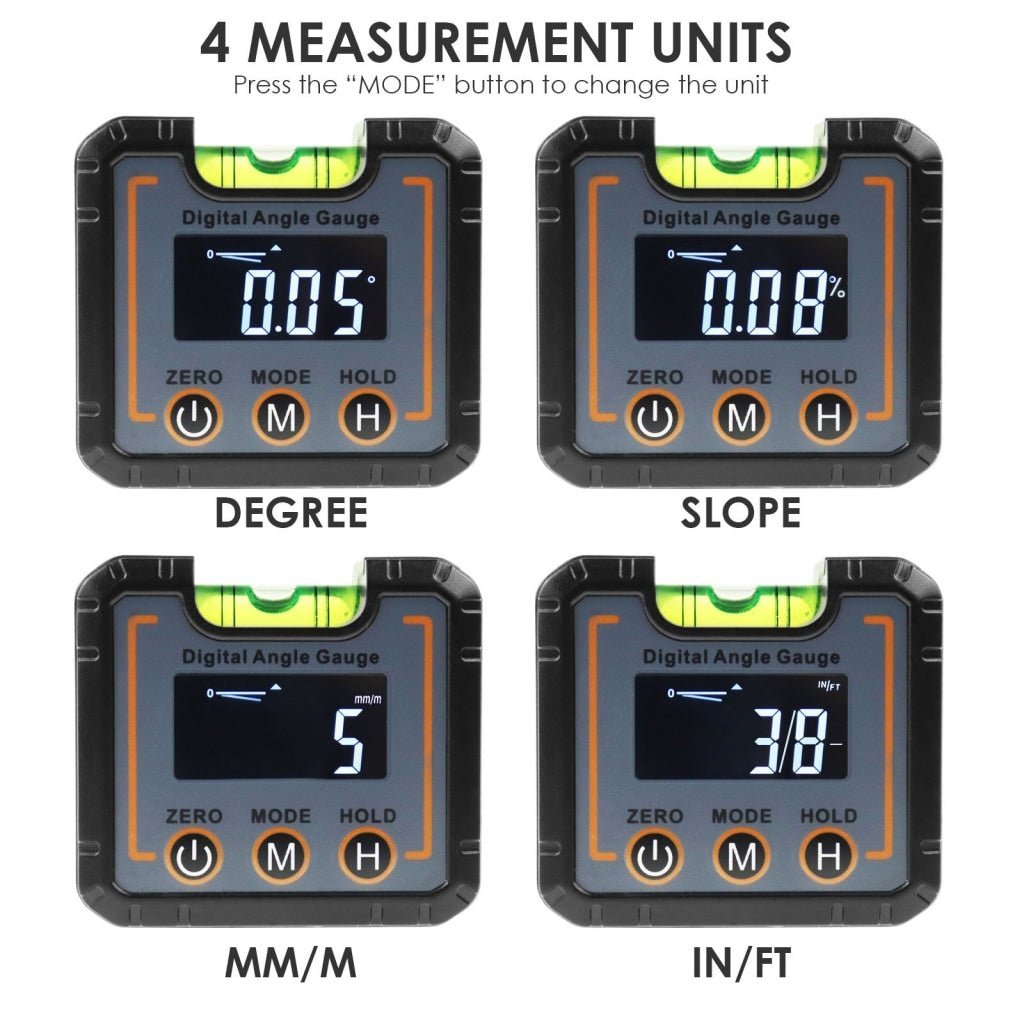

  • 4 Units of Measurement: degrees°, %, mm/m, in/ft

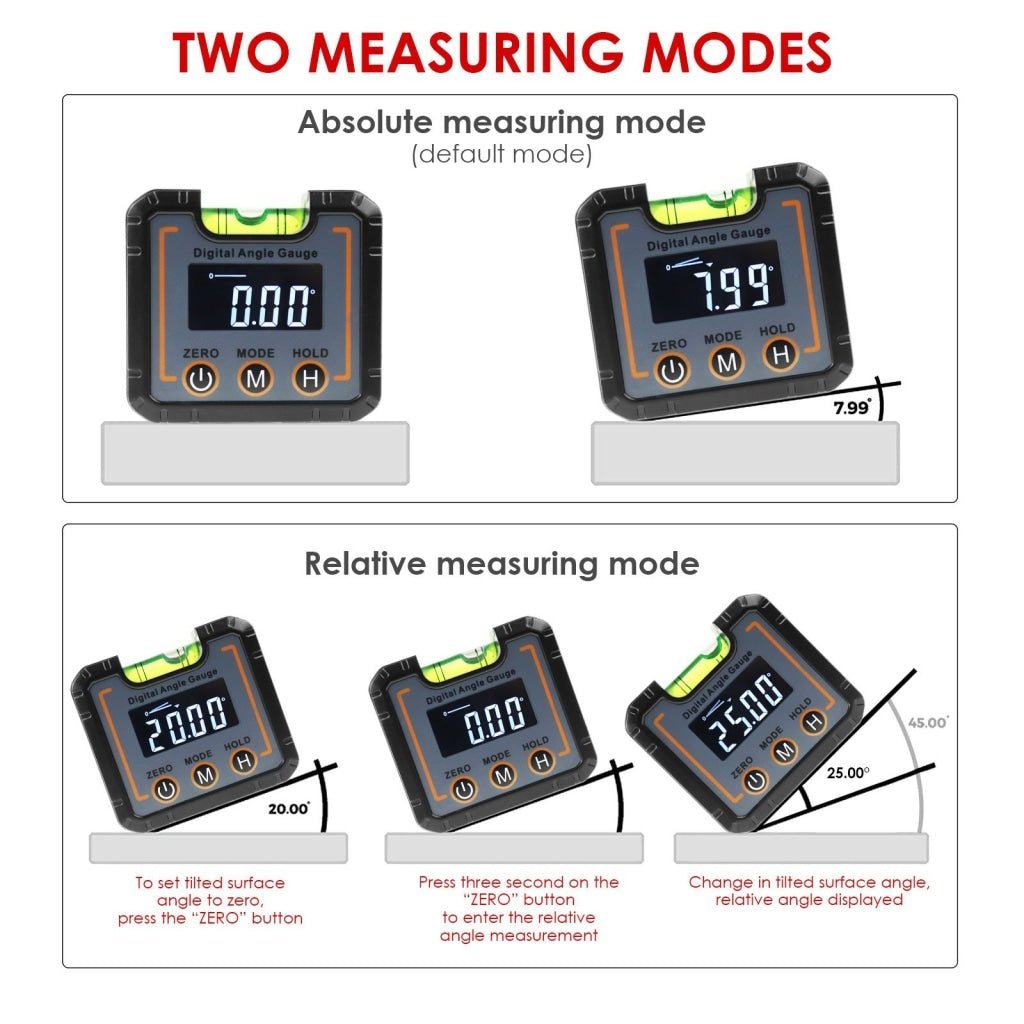

  • With absolute and relative angle measurement



Specification:

  • Measuring range of digital display: 4 x 90°
  • Accuracy: ±0.1° at 0° & 90° / ±0.2° at other angles
  • Resolution: 0.05°

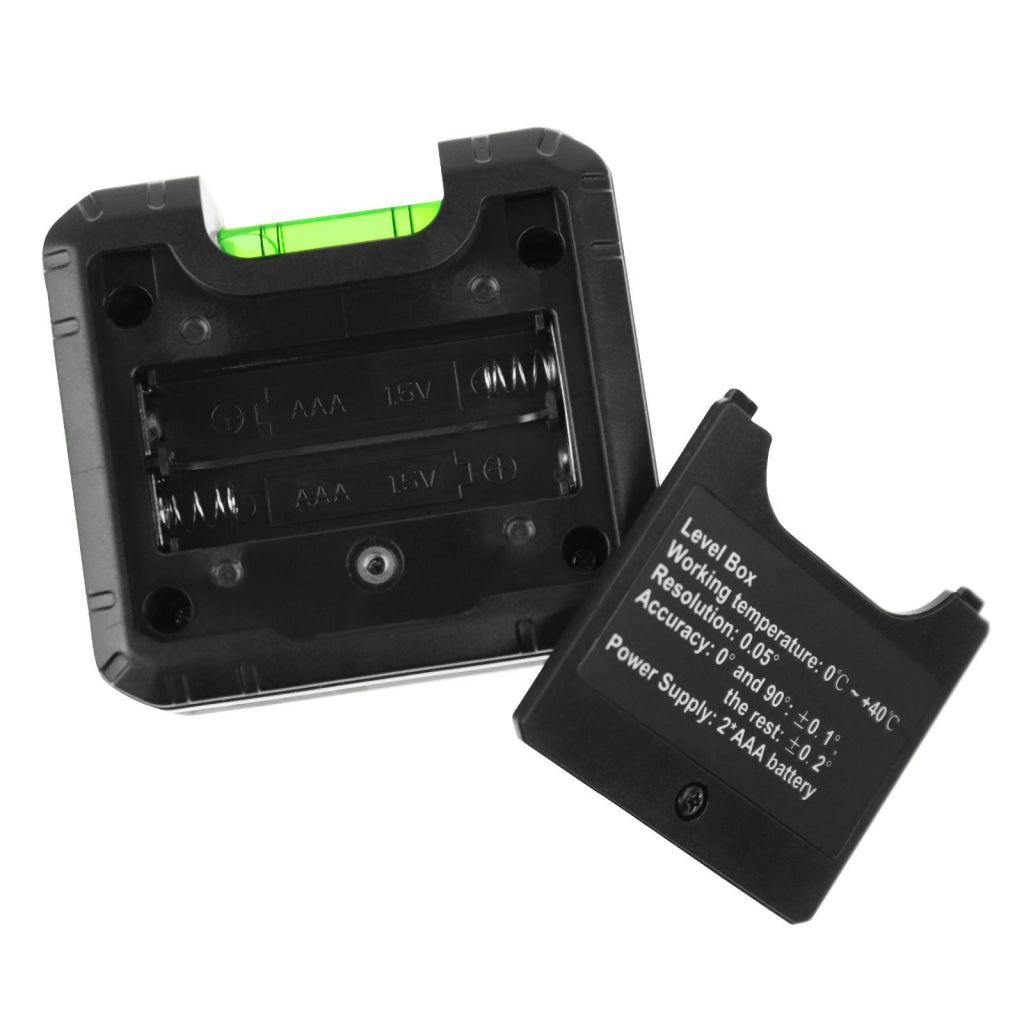

  • Battery type:  2 x 1.5V AAA Batteries
  • Working Temperature: 0~40°C
  • Storage Temperature: -10~50°C

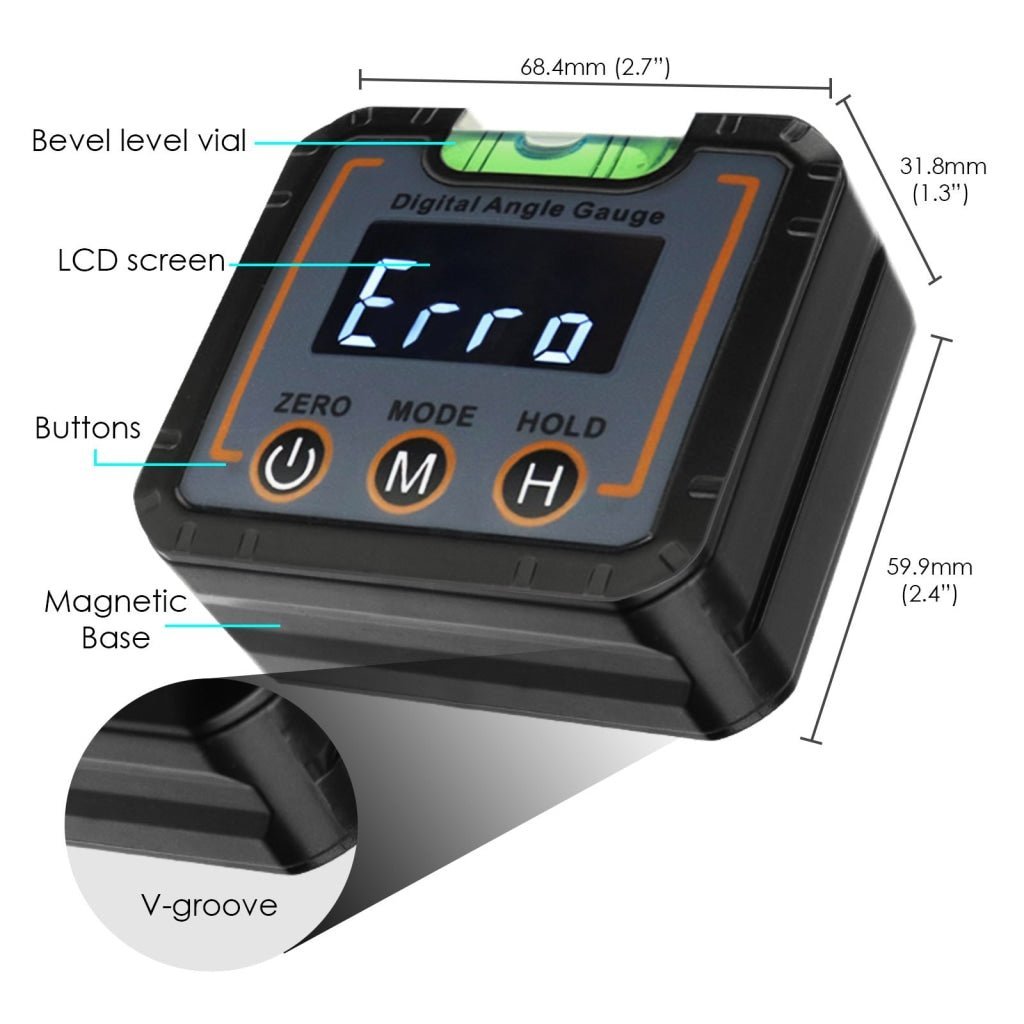

  • Dimension: approx. 68 x 32 x 62mm (L x W x H)
  • Weight: approx. 100gms (not including batteries)

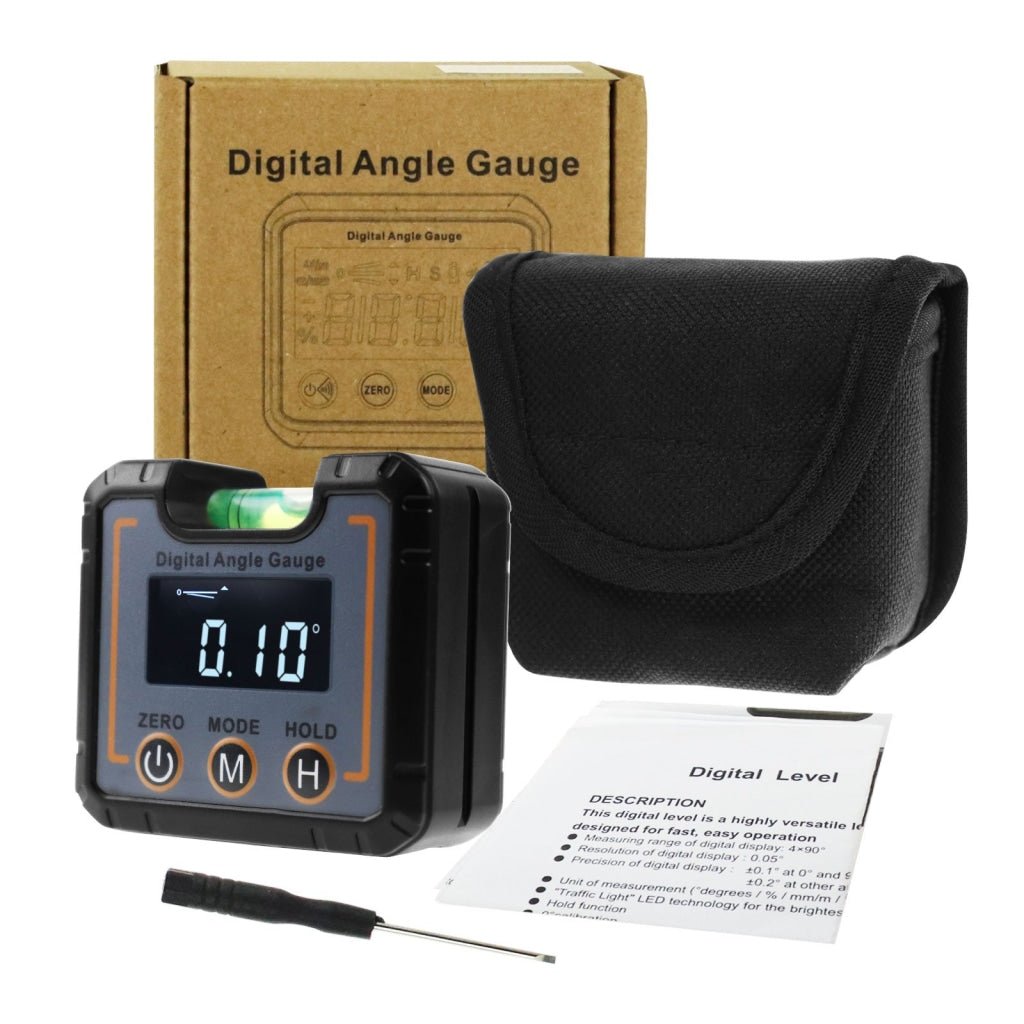

Set Includes:

  • 1 x Digital Level Box
  • 2 x 1.5V AAA Batteries
  • 1 x Screw driver
  • English User Manual

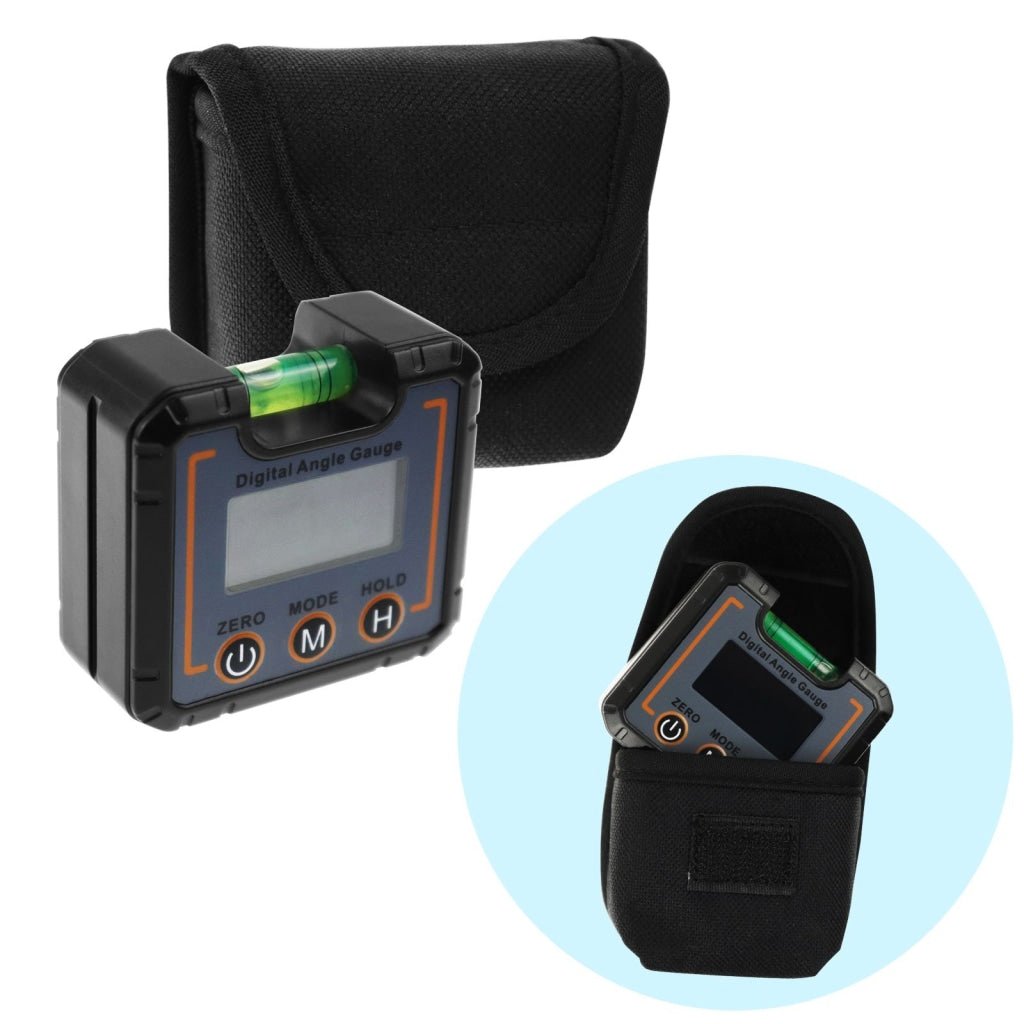

  • Carrying Pouch
  • Standard Factory Packaging

A printed user manual is already included with this item. No digital user manual or software is available.
