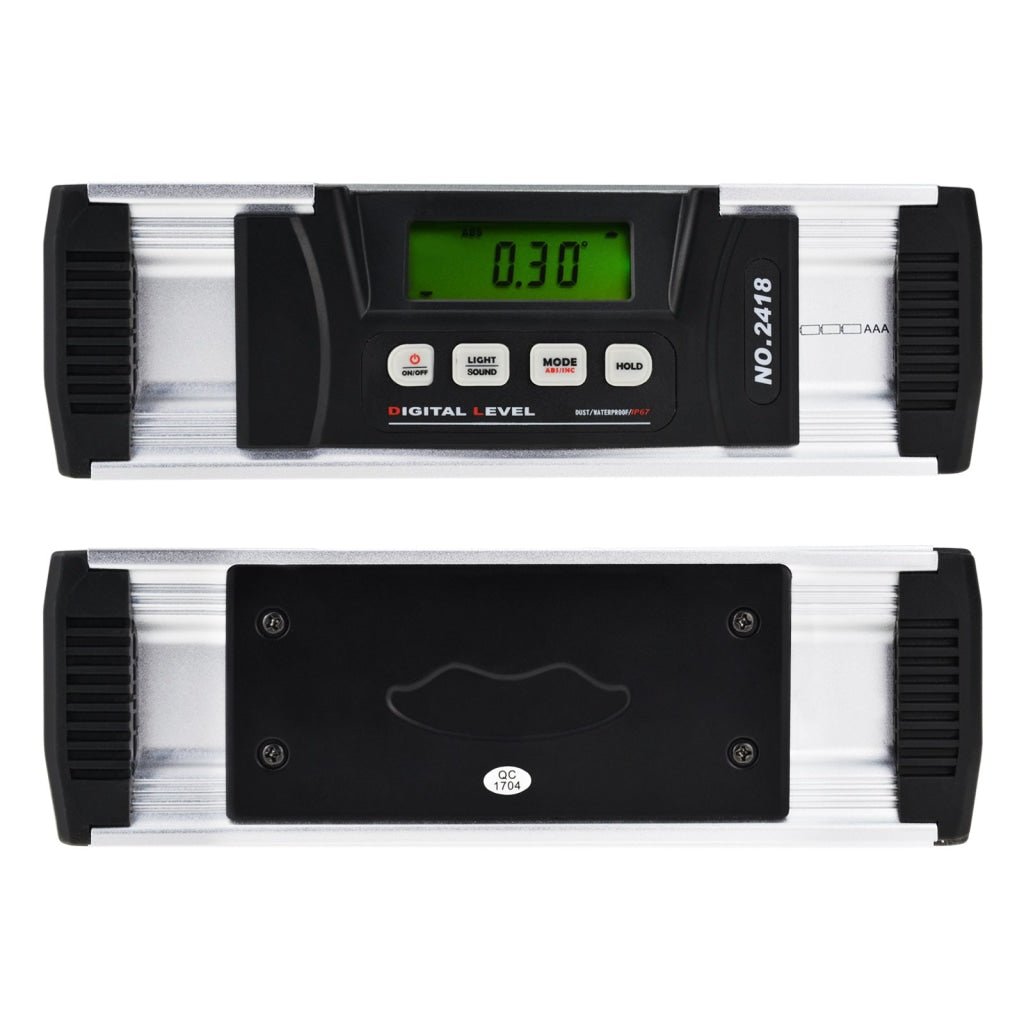

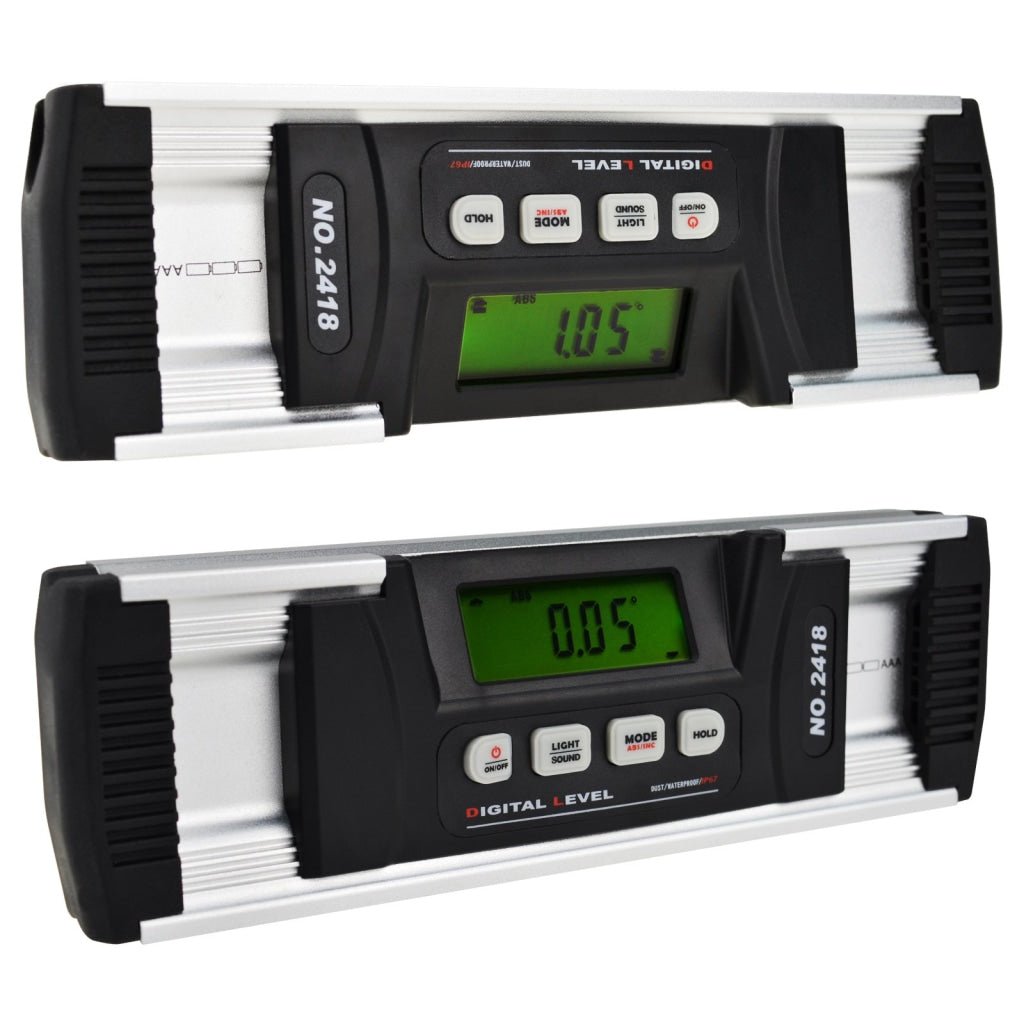

ILAF-202 Digital Angle Finder Inclinometer IP67 with Magnetic V-Groove Base

Sku: ILAF-202
$64.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

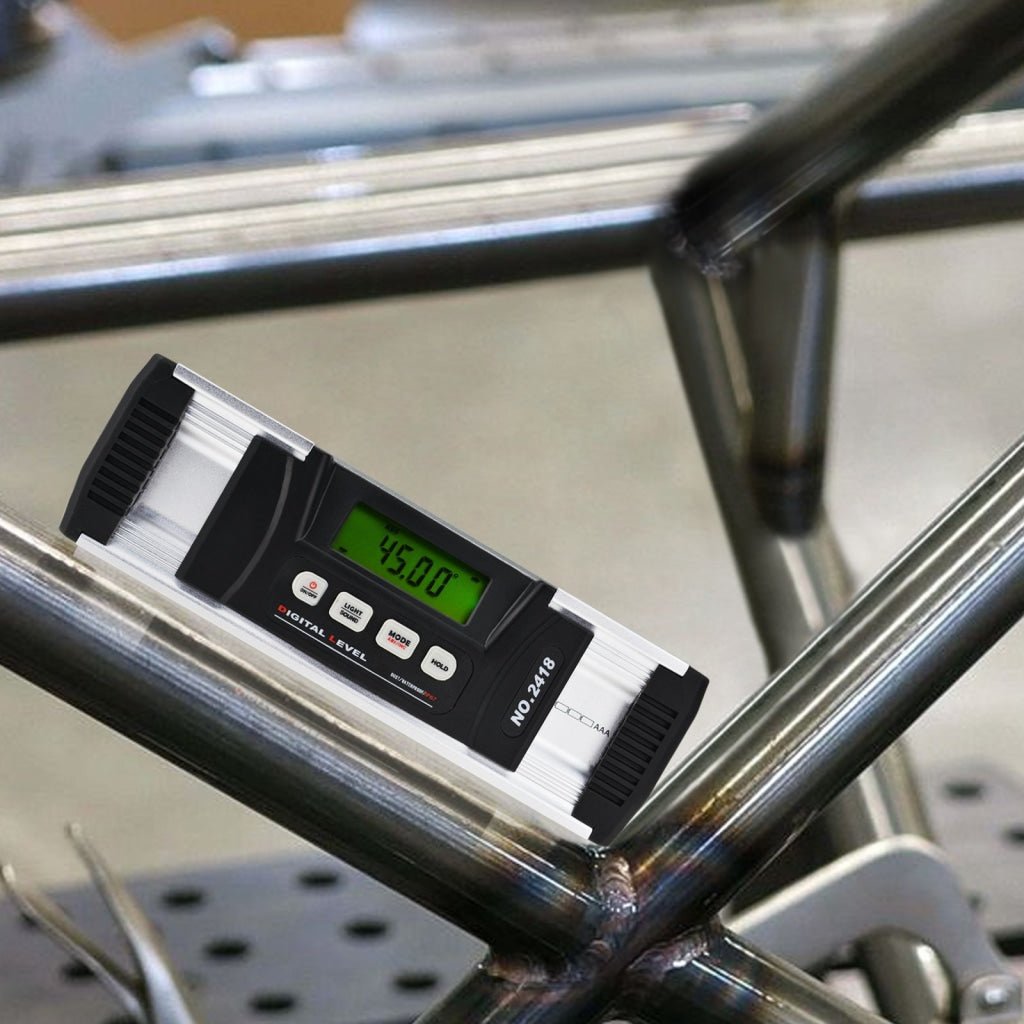

This Digital Angle Finder can measure within 4 x 90° (0~360°) range with audio beeper sounds at 0° and 90°and has an IP level of IP67. This is a great tool for those who are in the field of plumbing, construction, checking wheelchair ramps and for anyone inspecting those kinds of projects.



FEATURES:

  • Waterproof 100%
  • Audio notification (beeps at 0° and 90°)
  • HOLD function
  • Relative and absolute measure
  • Auto shut down
  • Reminds ERROR when wrong direction over 30°
  • With backlight function
  • Invert reading result for overhead working

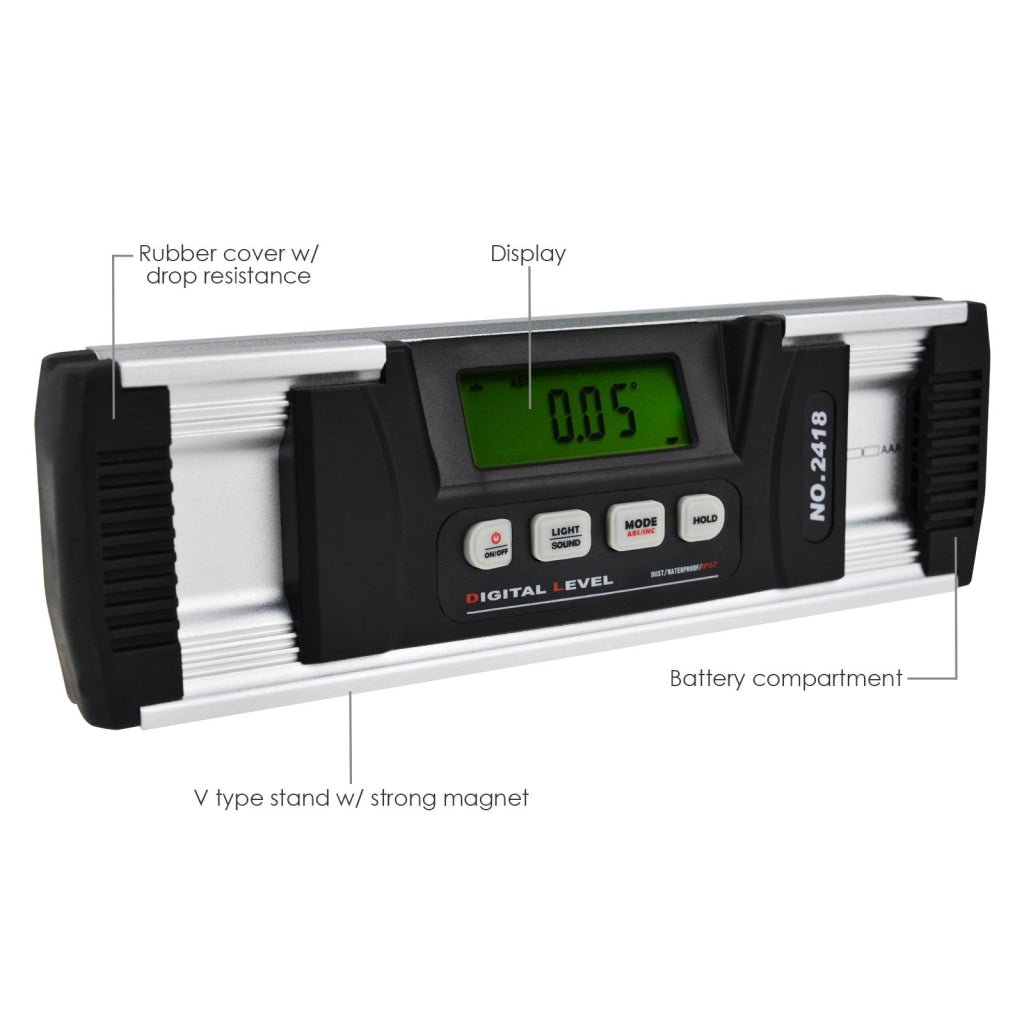

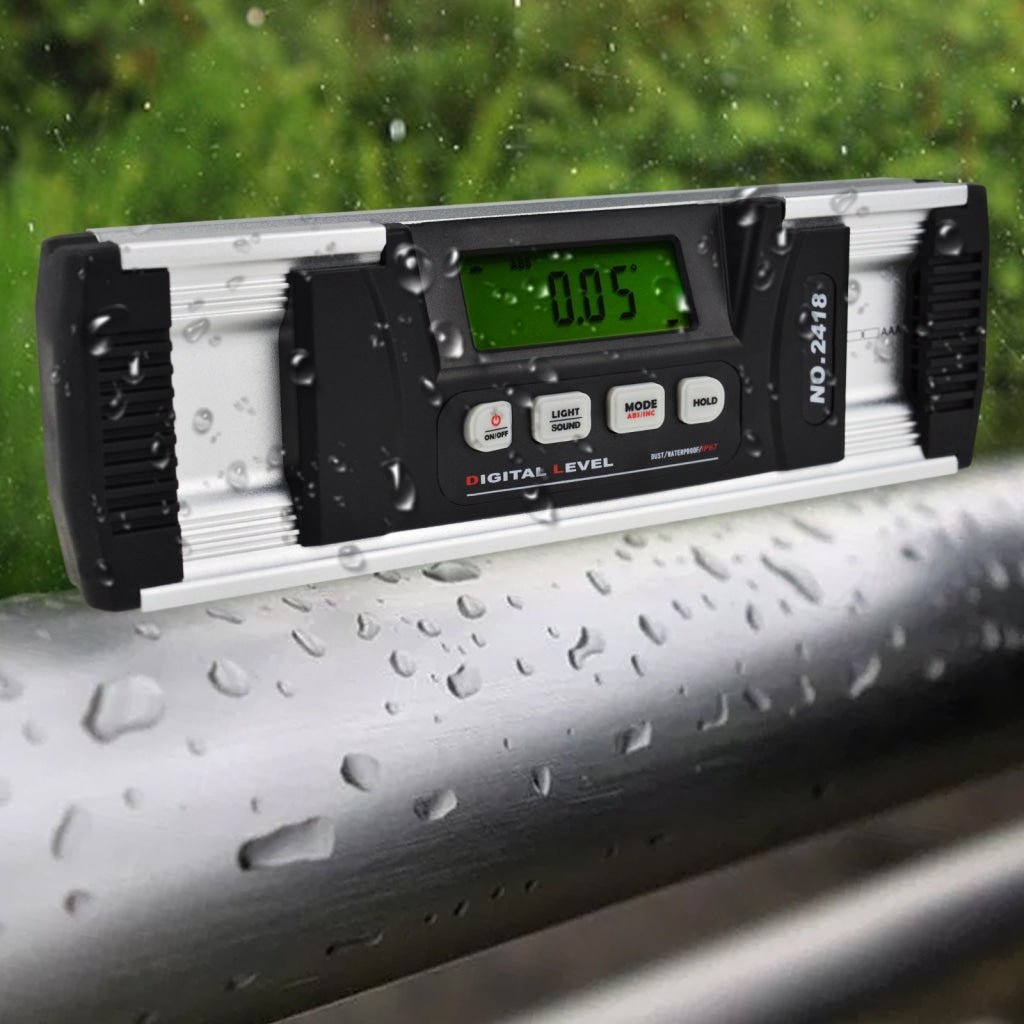

  • V-groove stand with strong magnet
  • Unit selection (°), (mm/m) and (%)
  • Drop resistance rubber cover on both sides
  • Self-calibration
  • Handy and easy to carry



SPECIFICATIONS:

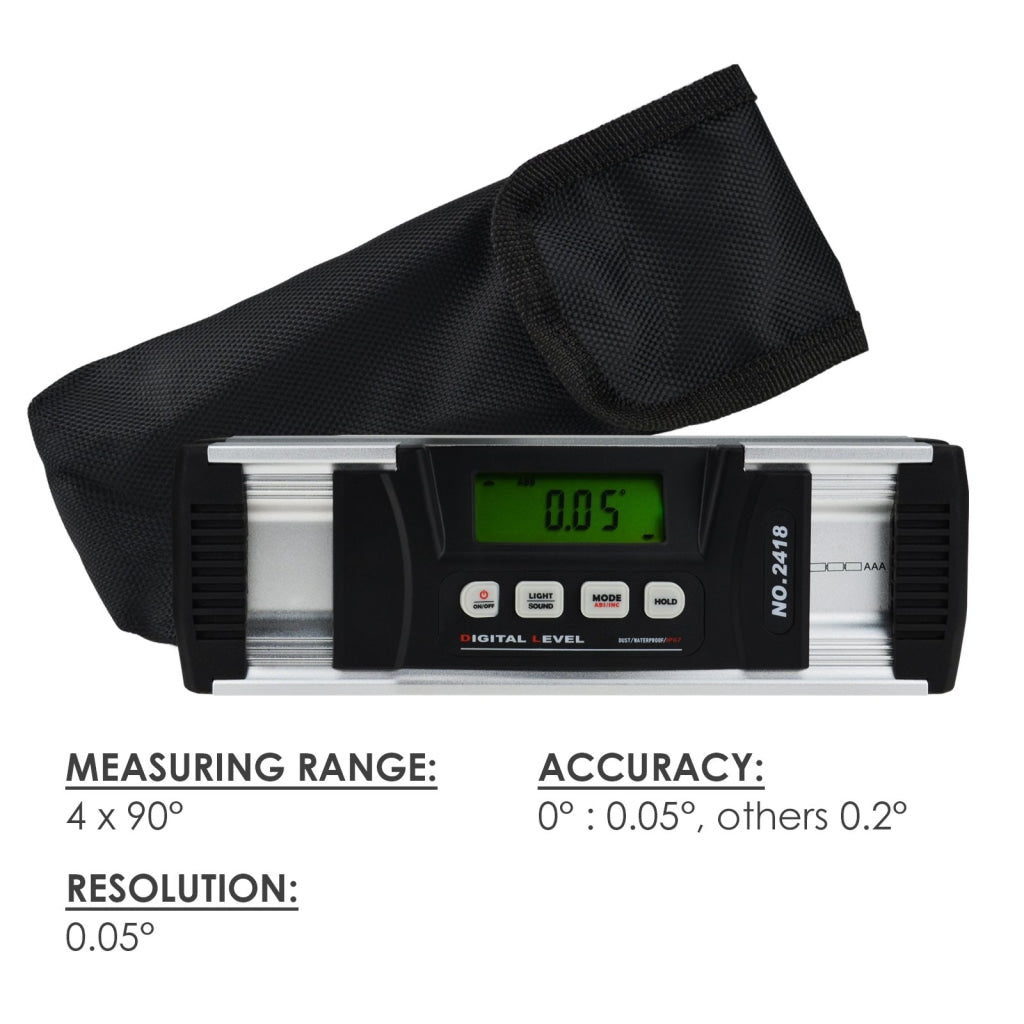

  • Measuring range: 4 x 90°
  • Resolution: 0.05°
  • Accuracy: 0°; 0.05°, others 0.1°

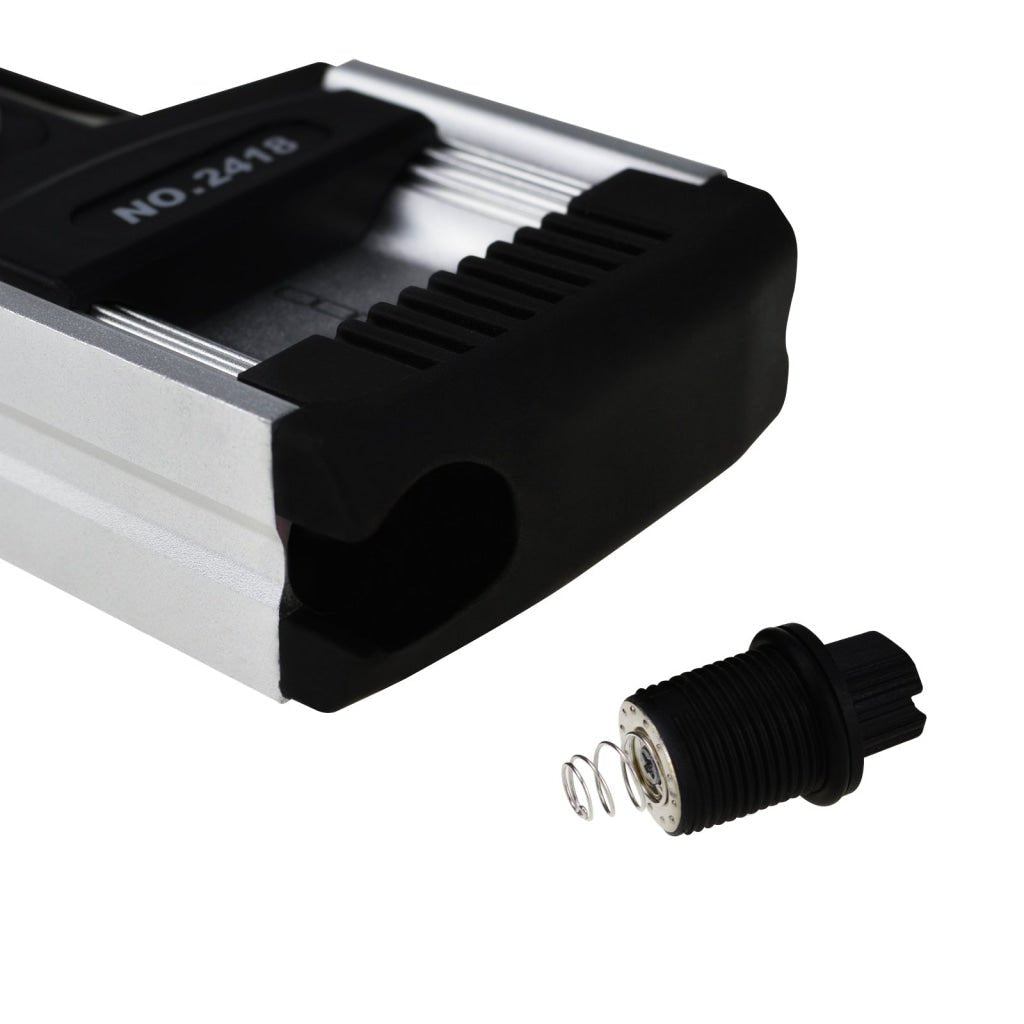

  • Battery: DC4.5V (3 x AAA battery)
  • Backlight: Green
  • Working environment
    • Temperature: -10 ~ 50°C ( 14~122°F)
    • Humidity: ≤85% RH
  • Storage Temperature: -20~ 70°C (-4~158°F)
  • EMC: Class II
  • IP Level: IP67
  • Item color: Silver
  • Battery life: more than 100 hours when no backlight and no sound
  • Weight: approx. 465 gms
  • Dimension: approx. 26.5 x 8.2 x 4.7cm

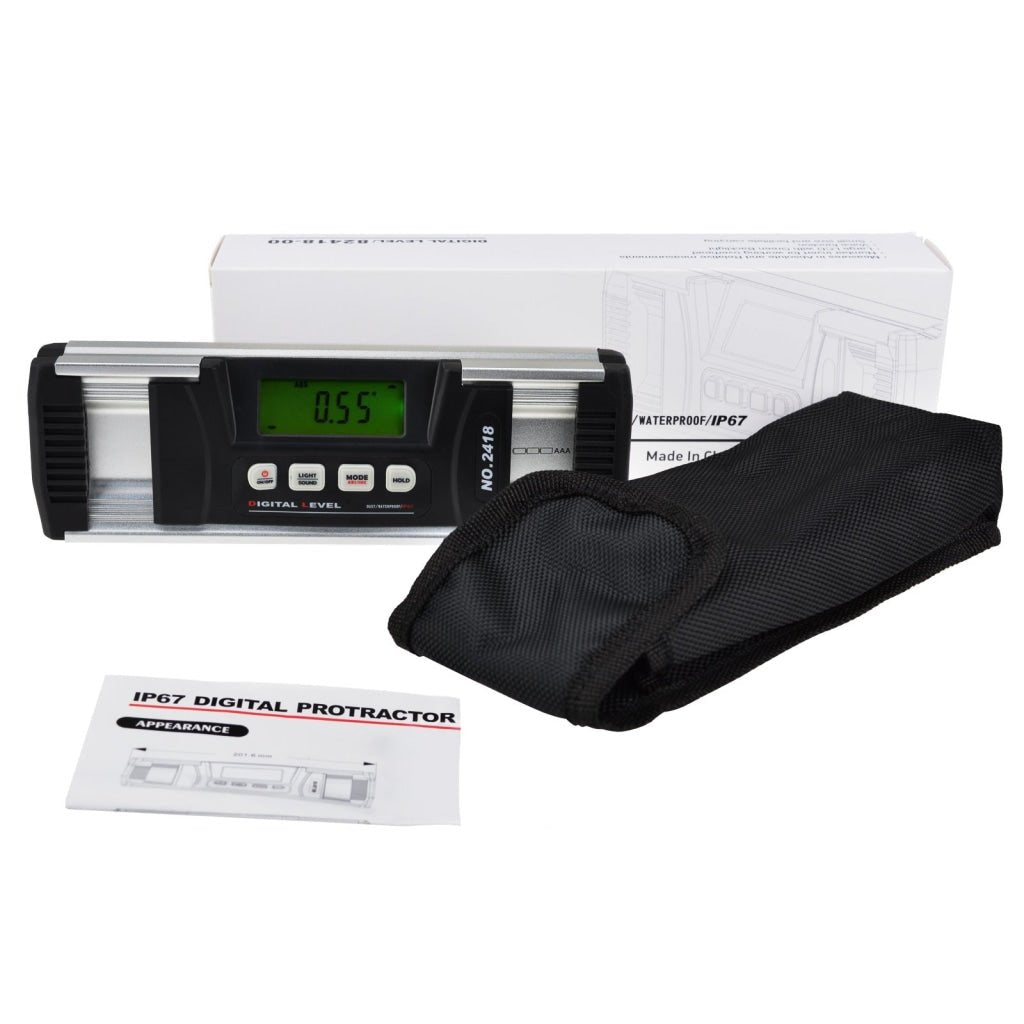

SET INCLUDES:

  • 1 x Digital Level Meter
  • 3 x AAA battery
  • 1 x Carrying pouch
  • English Instruction Manual
  • Standard Factory Package

    A printed user manual is already included with this item. No digital user manual or software is available.

    RETURN AND REFUND

    Most new, unopened items can be returned within thirty (30) days of delivery for a full refund. If the return is due to our error—such as receiving an incorrect or defective item—we will also cover the return shipping costs.

    If you request a refund, it will be issued using the original payment method within four (4) weeks after you hand the package over to the return carrier. This timeframe includes shipping transit to our facility, processing upon receipt, and the time required for the refund to be posted to your account.

    WARRANTY POLICY

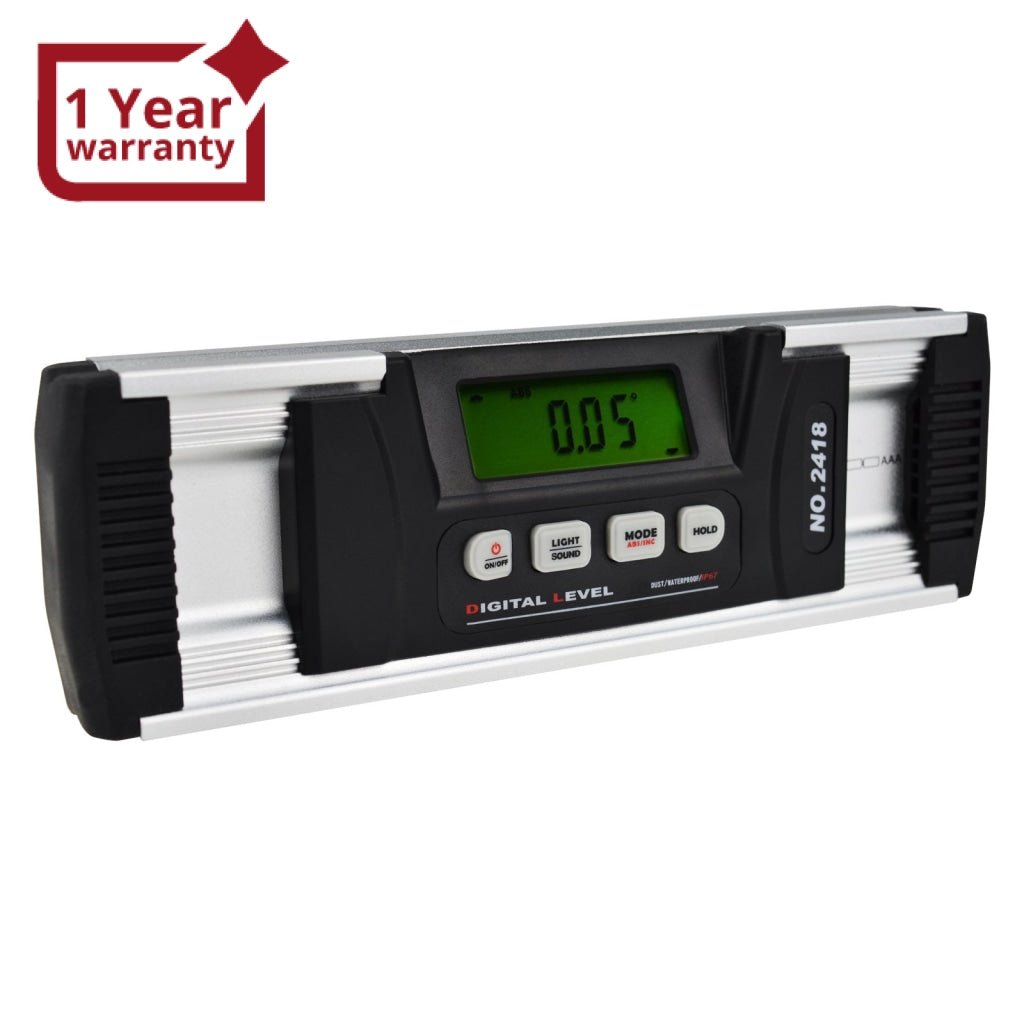

    Most of our items come with one (1) year warranty for manufacturer defects. It does not include damage caused by misuse, accidents, abuse, alterations, neglect or other external causes.
