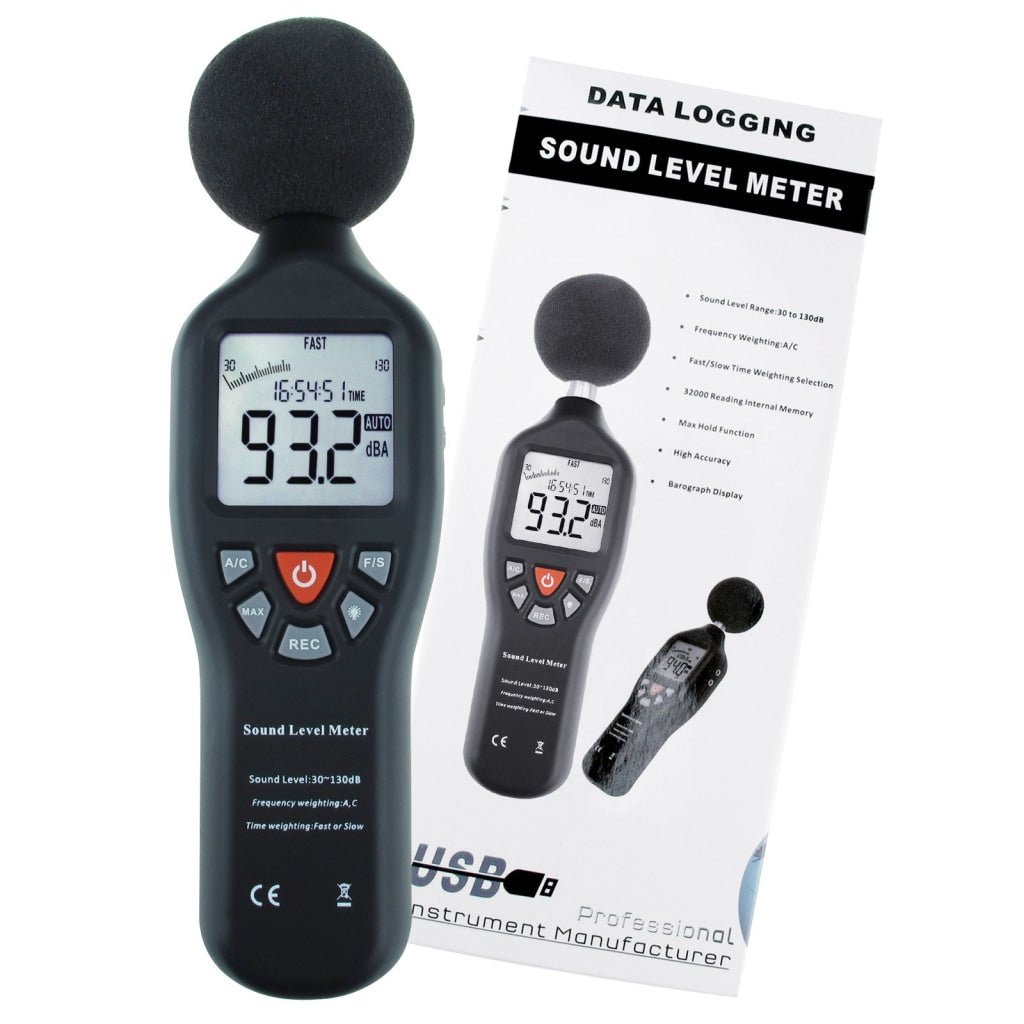

ILSM-25 Sound Level Meter with Backlit Display High Accuracy Measuring 30dB~130dB with Data Logging Function Instrument Compact Professional

Sku: ILSM-25
$65.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Add to Wishlist Remove From Wishlist
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

This Decibel Meter with PC Interface is compact and easy to use while providing you an accurate readings in a greater range than similar inexpensive sound meters on the market.

This sound meter can read between 30dB~130dB, and capture data to a PC using the compatible software (included in the set).

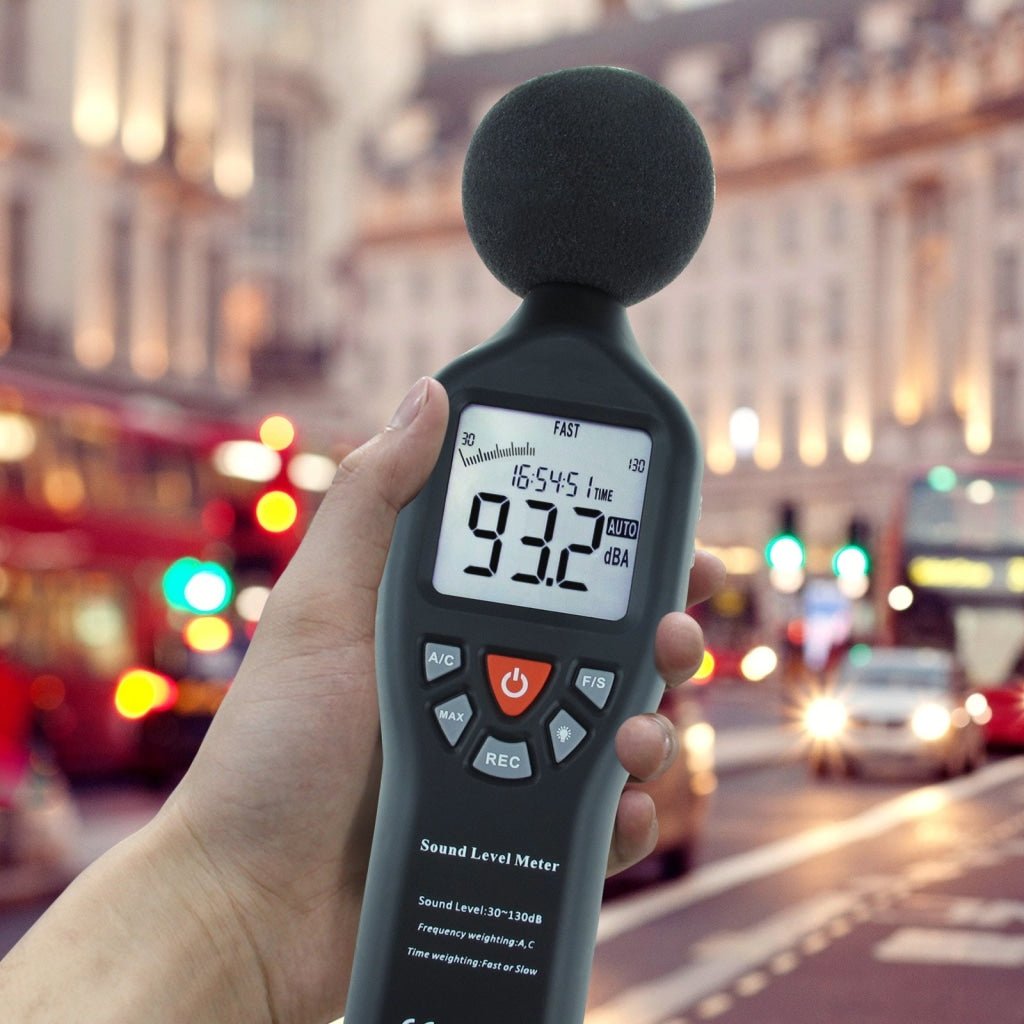

Applications includes: Environmental measurement, law enforcement, work place design, sound level analysis of machinery and engines.

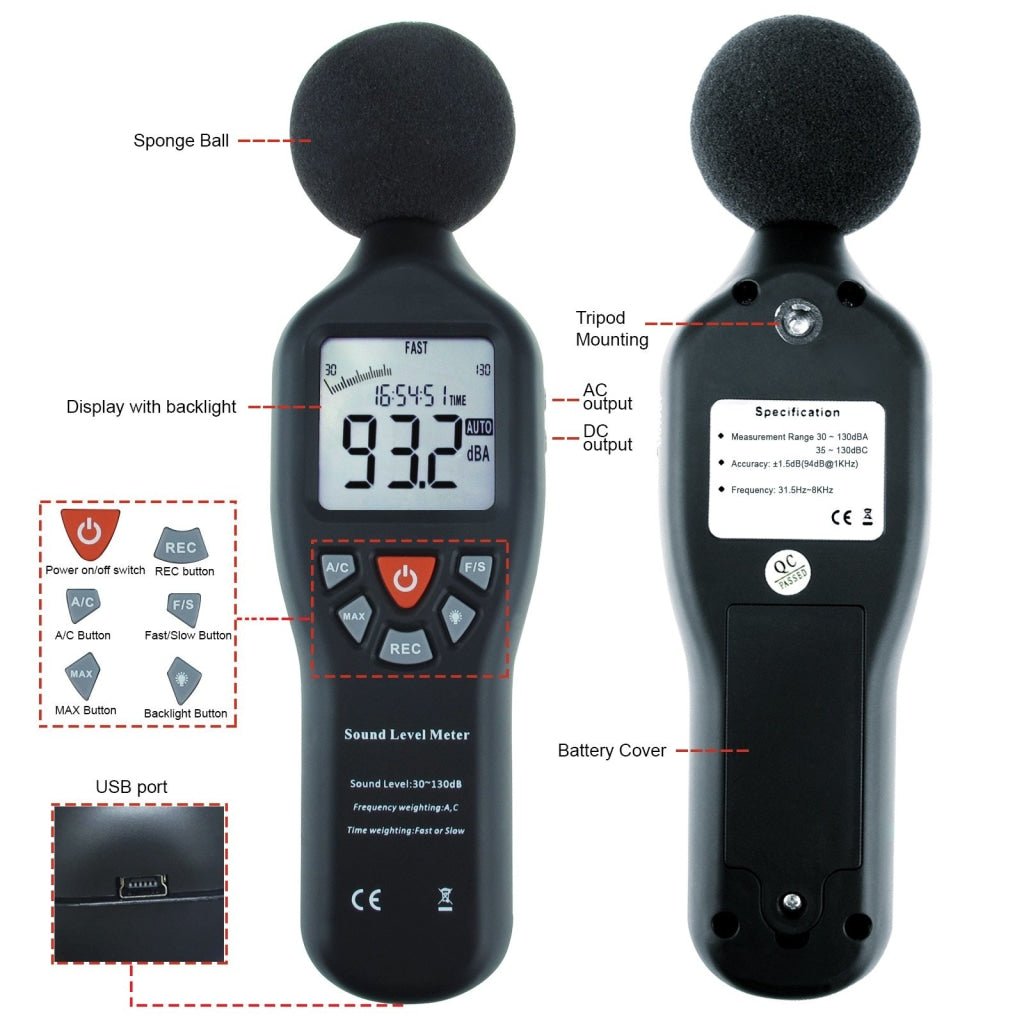

Features

  • Auto Ranging
  • Fast/Slow time weighting selection
  • 32000 Reading Internal Memory (Data record function)
  • Data Logging function
  • Max Hold function
  • Frequency weighting: A/C
  • High Accuracy

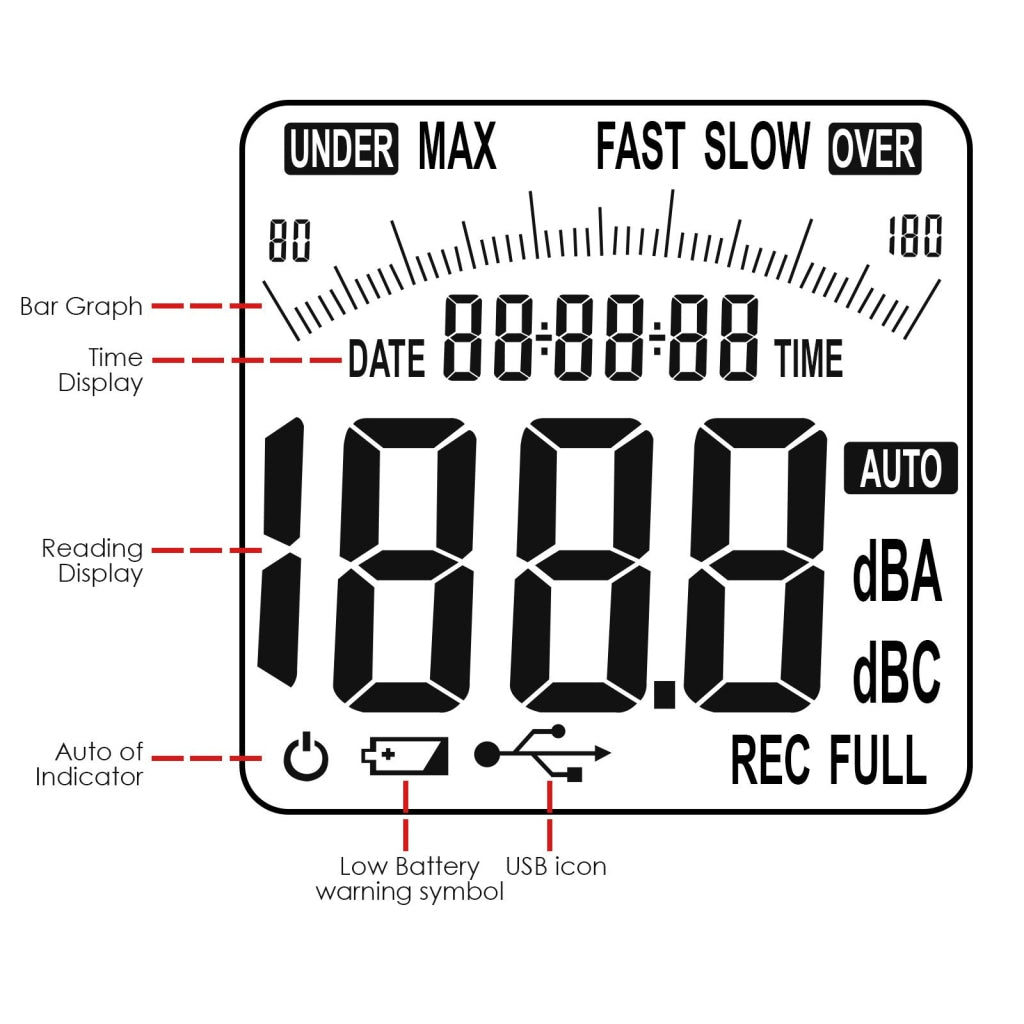

  • Bar graph display
  • AC/DC function

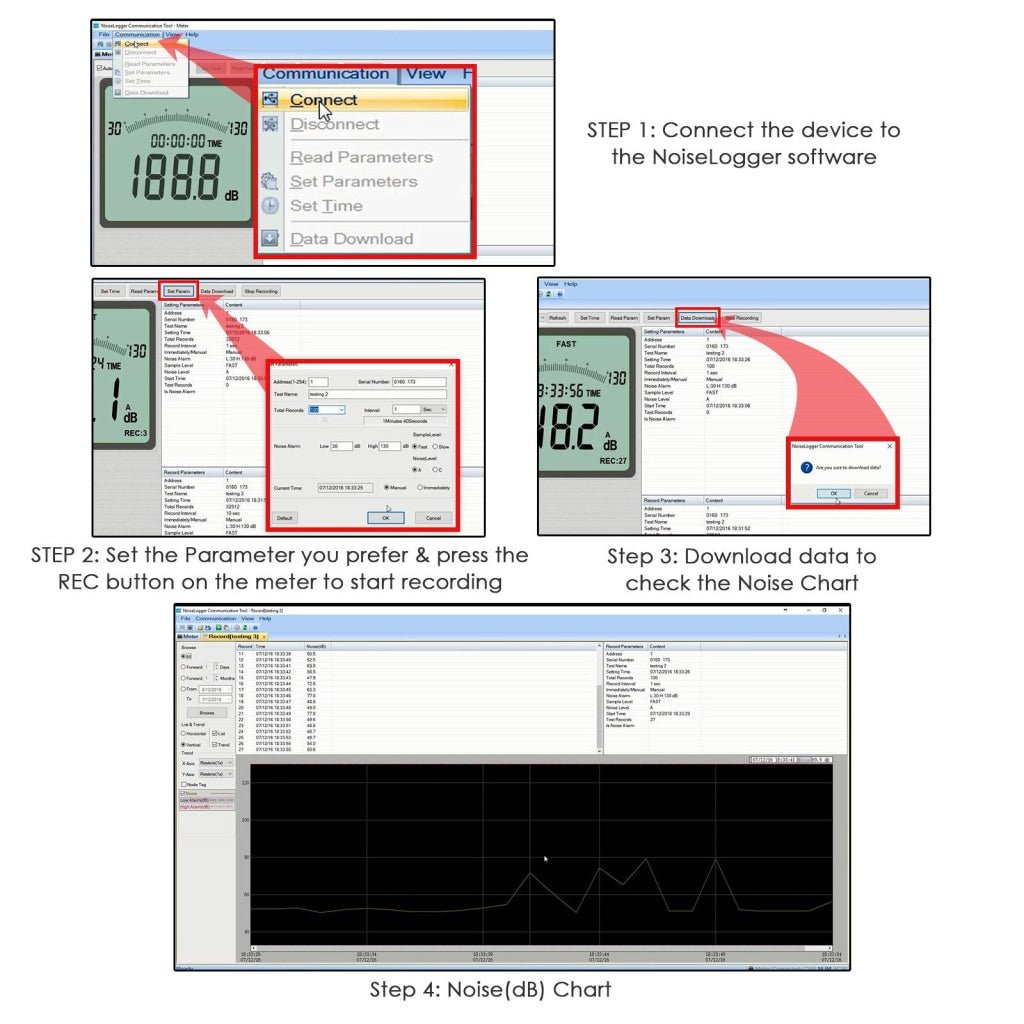

  • PC Interface  (Compatible with Windows 11, 10, 8, 7,  Vista and XP)

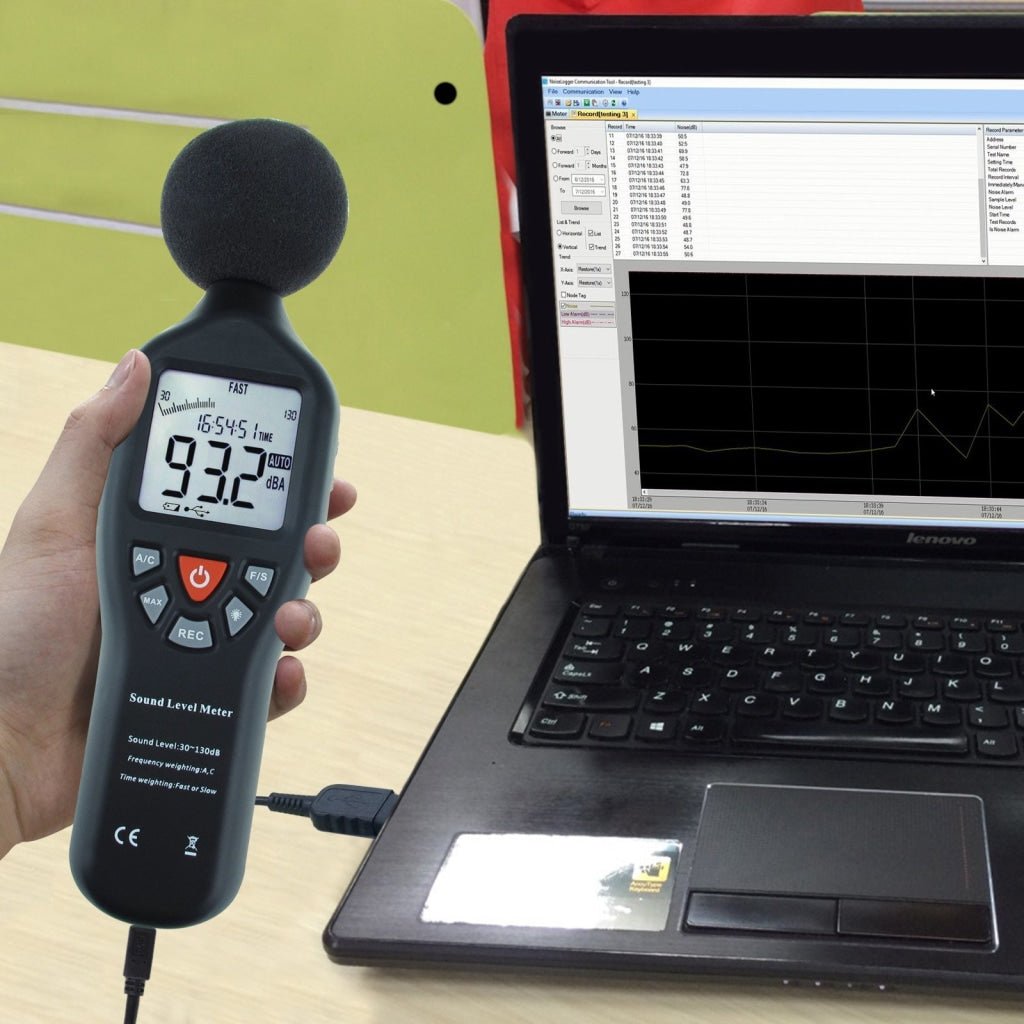

  • When connected to computer, the measurement are live on computer screen too
  • White Backlight

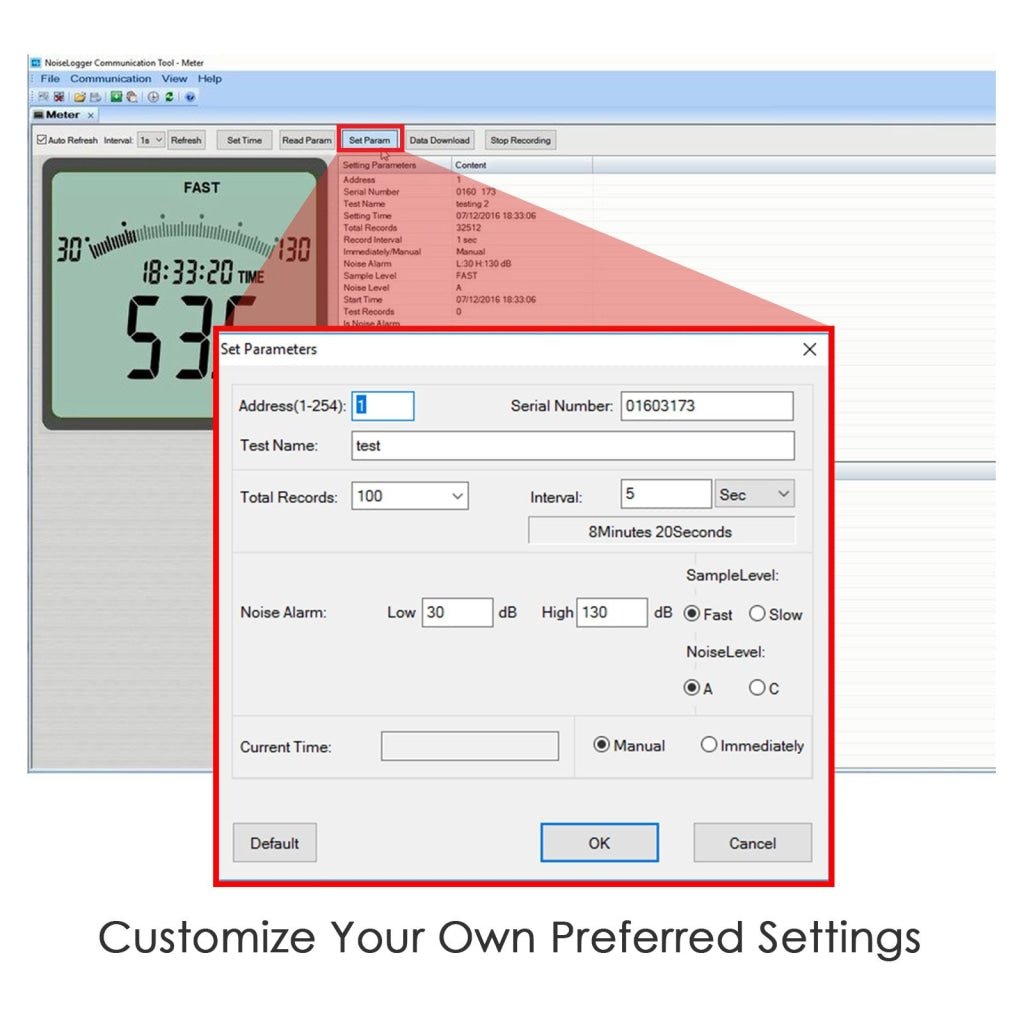

  • Adjustable Over / Under alert threshold via computer interface
  • Maximum data recording limit can be adjusted via the PC interface
  • Time display
  • Auto-off function setup
  • Low Battery Alert
  • Tripod Mount (Tripod not included)
  • Includes CD Software (dual language: English, Chinese), AC/DC wire & batteries
  • CE Certified & RoHS Compliant



Specifications

  • Standard Applied: IEC651 type 2, ANSI SI .4 type 2
  • Calibration sound source: 94dB @ 1kHz
  • Measurement range: 30~130dBA
  • Accuracy: +1.5dB(reference sound pressure standard,94dB@1KHz)
  • Record Interval: 1~60 sec / 1~60 min / 1~24 hrs
  • Frequency response: 31.5~8.5KHz
  • Resolution: 0.1dB
  • Frequency weighting: A/C
  • Analogy bar graph: 2dB/1 Bar graph
  • Measurement Unit: dBA / dBC
  • Sampling rate: 2 times/second (FAST), 1 time/second (SLOW)

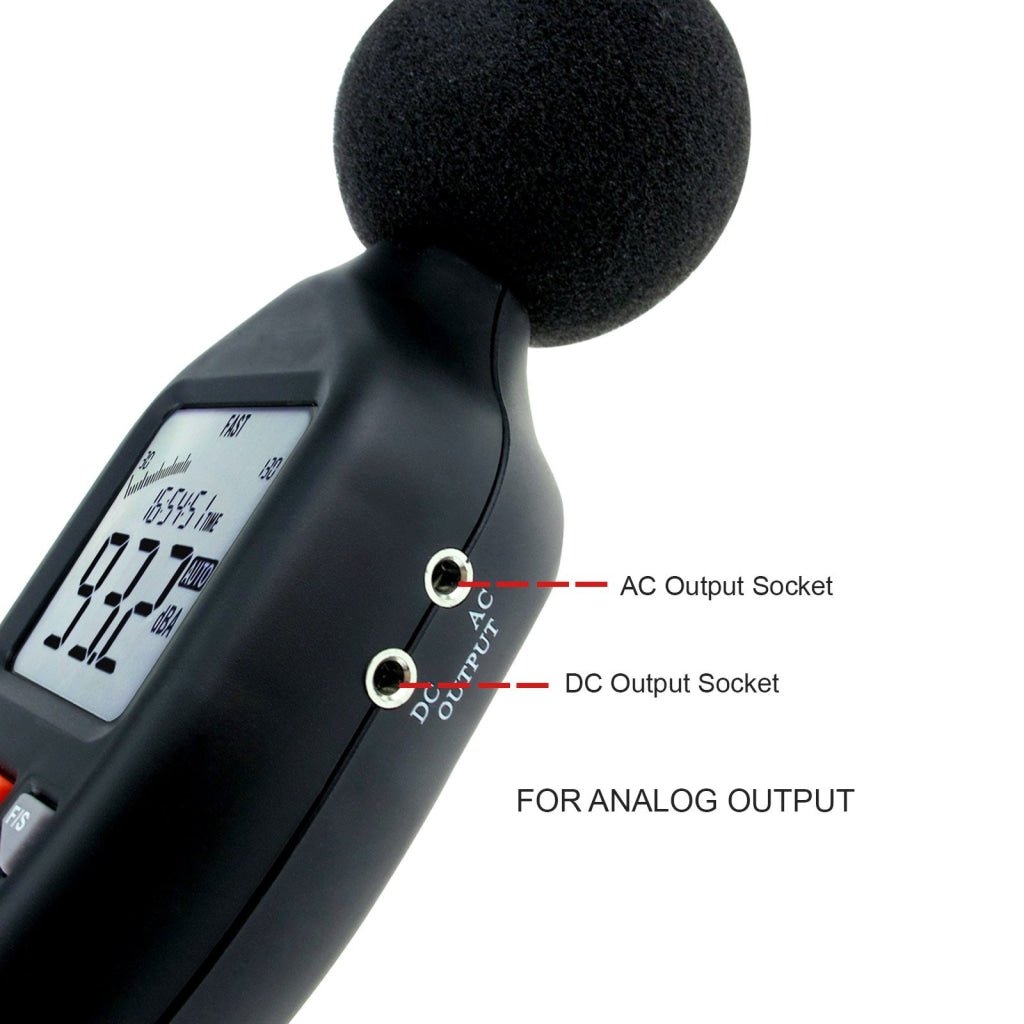

  • AC signal output: 4Vrms/ full barograph, output impedance is approx 600 ohm
  • DC signal output: 33mV/dB
  • Dynamic characteristic: FAST (high speed) / SLOW (low speed)
  • Data storage quantity: 32000 readings
  • Windows Compatibilty: Windows 11, 10, 8, 7,  Vista and XP (Do not run in Mac OS)

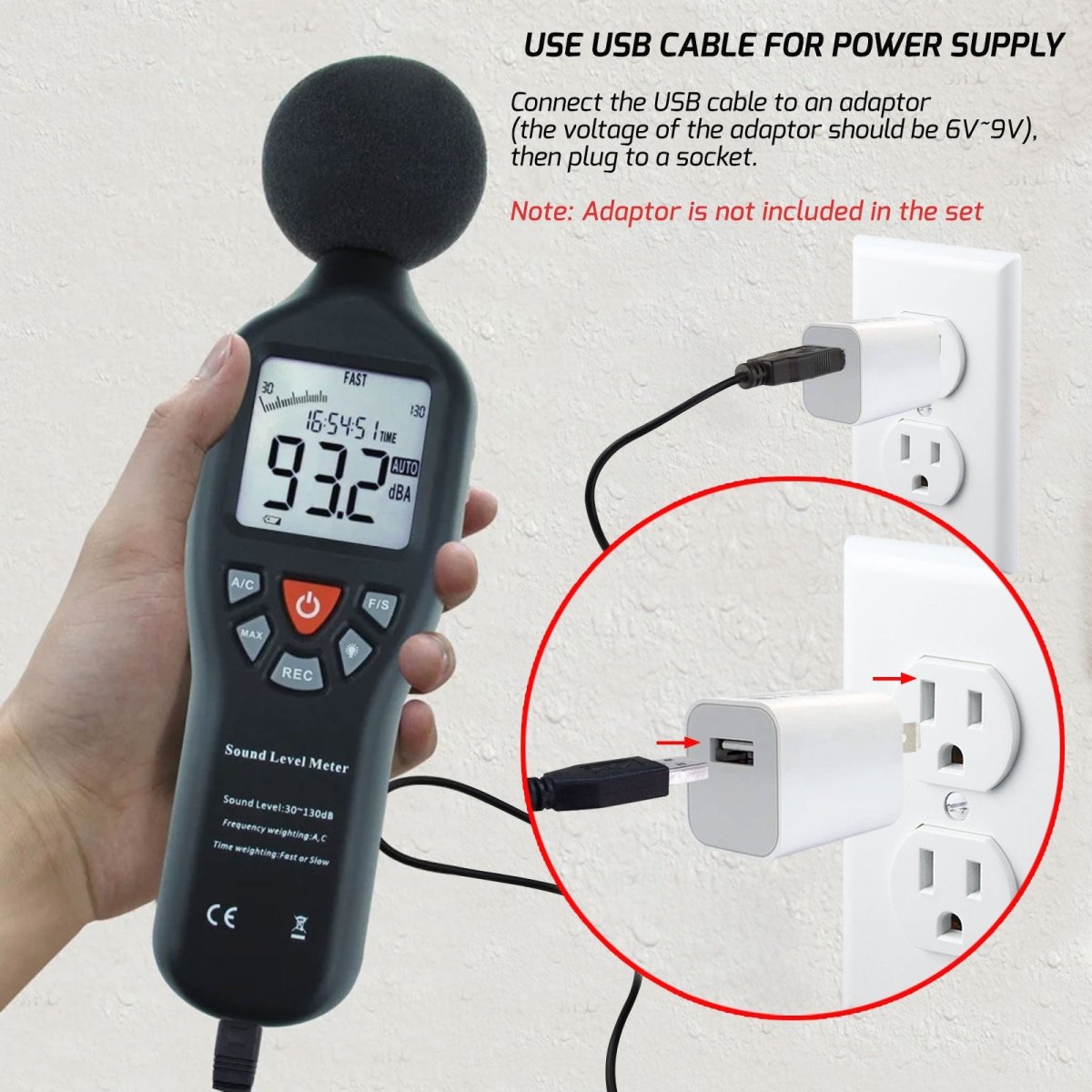

  • Power supply: 4pcs x  AA Size 1.5V battery or the USB Power Cable

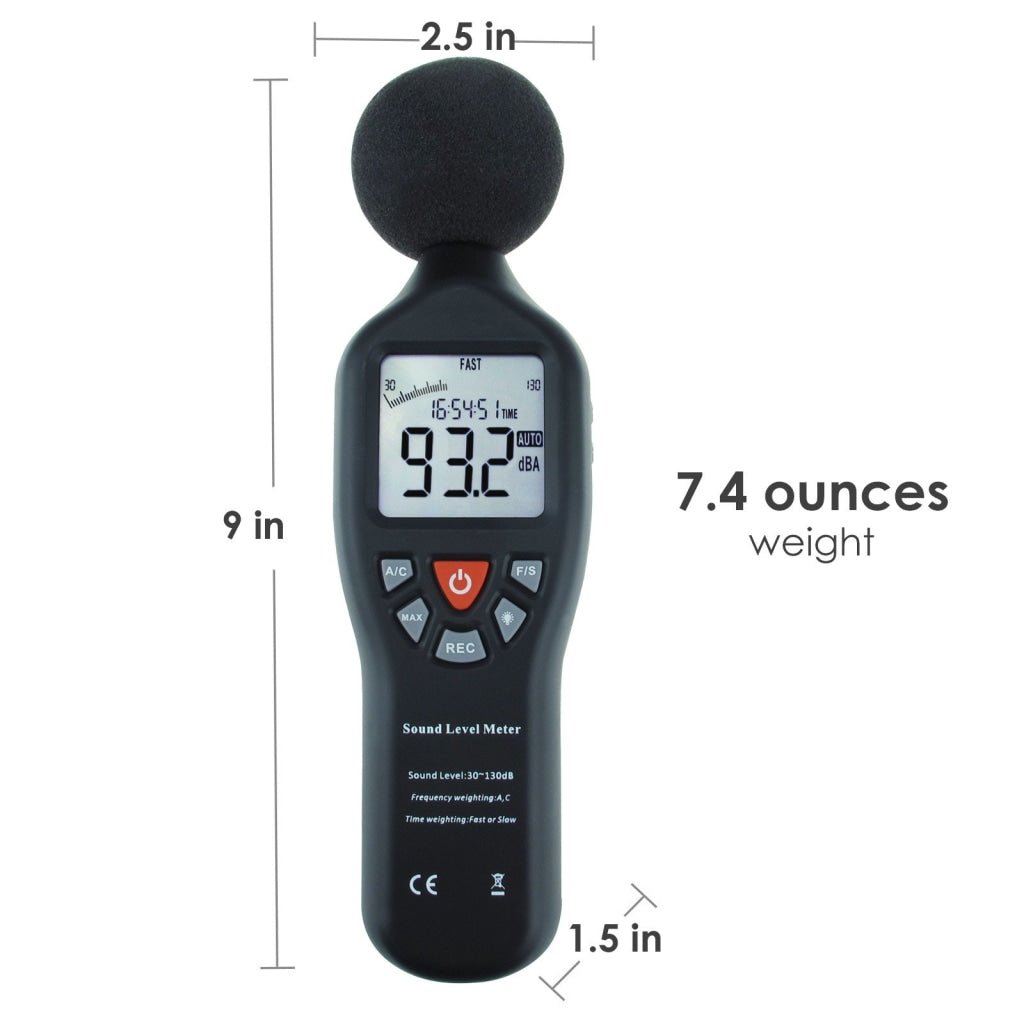

  • Item Weight: 7.4 ounces
  • Product Dimension: 9 x 2.5 x 1.5 inches
  • Shipping Weight: 14.6 ounces
  • Shipping Dimension: 9.6 x 4 x 2 inches

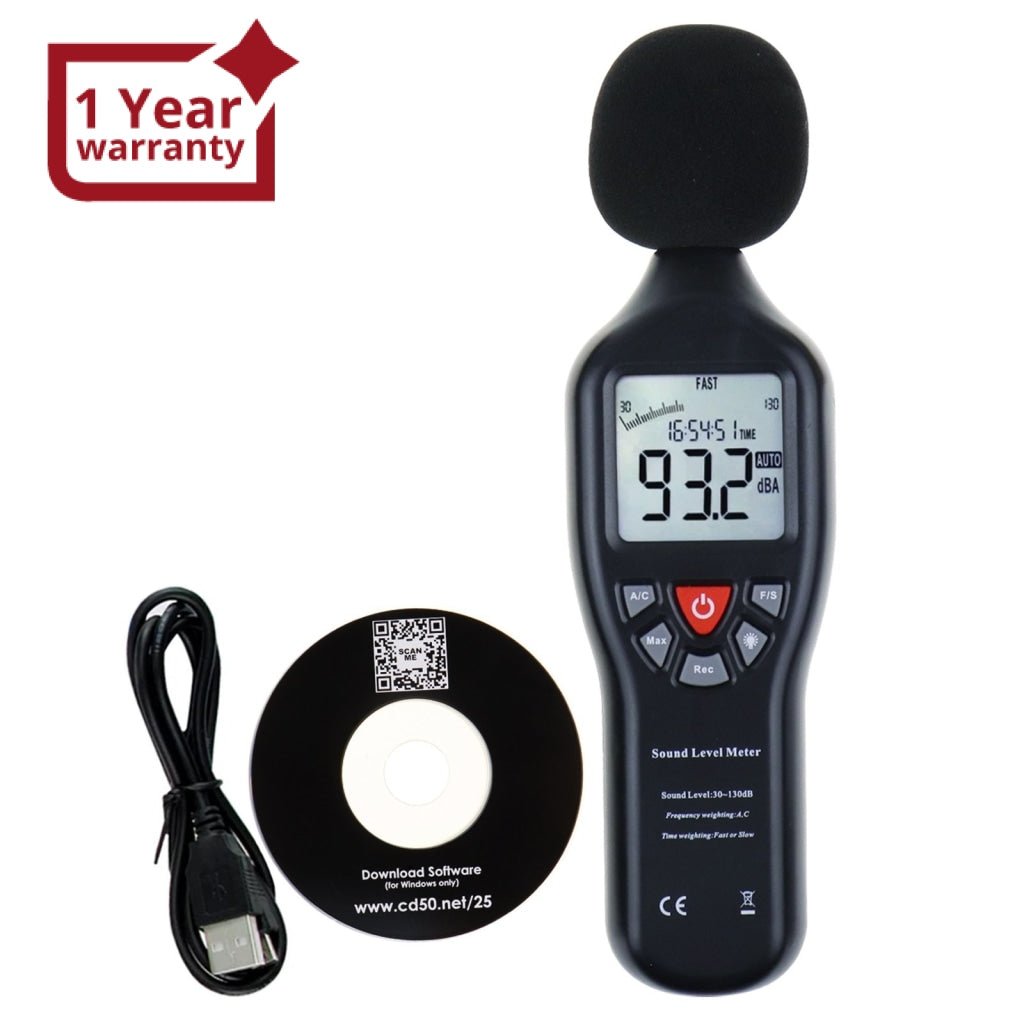

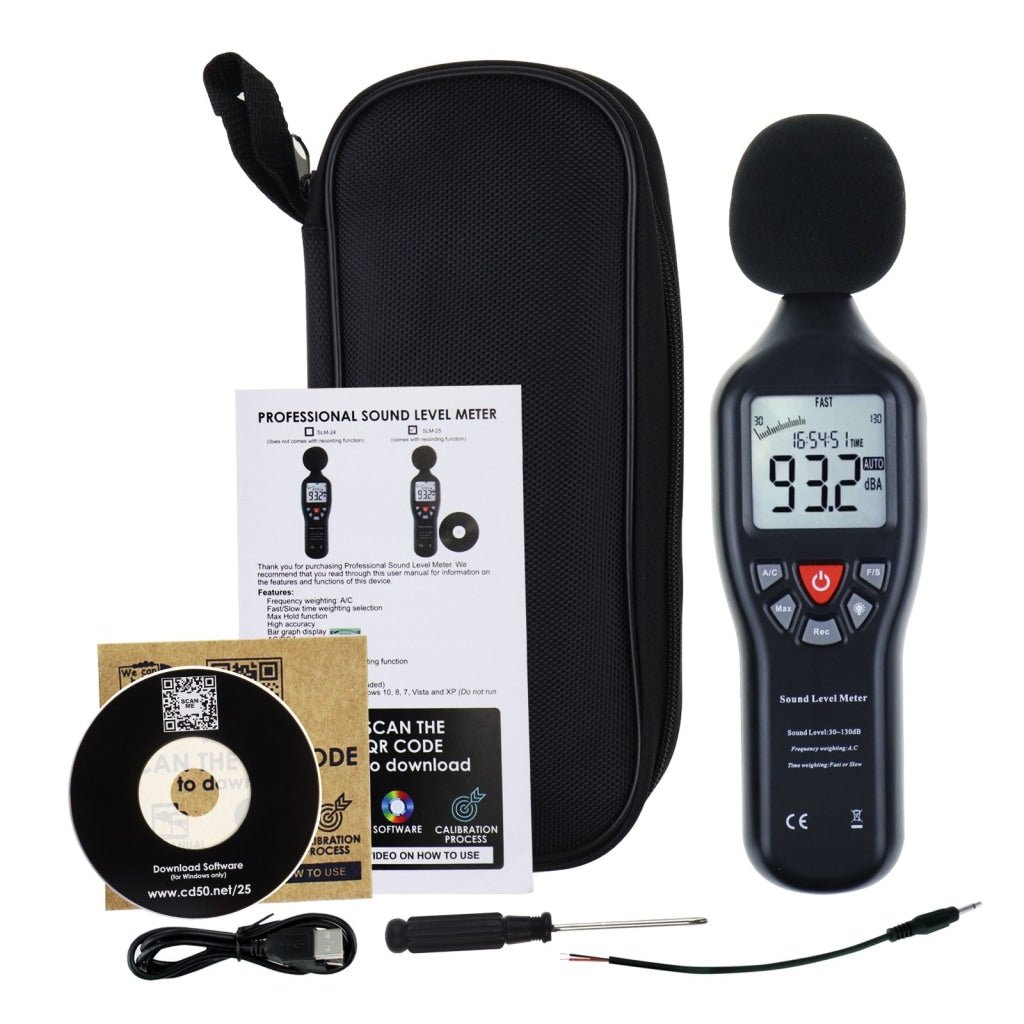

Set Includes

  • 1 x Sound Level Meter
  • 1 x English User Manual

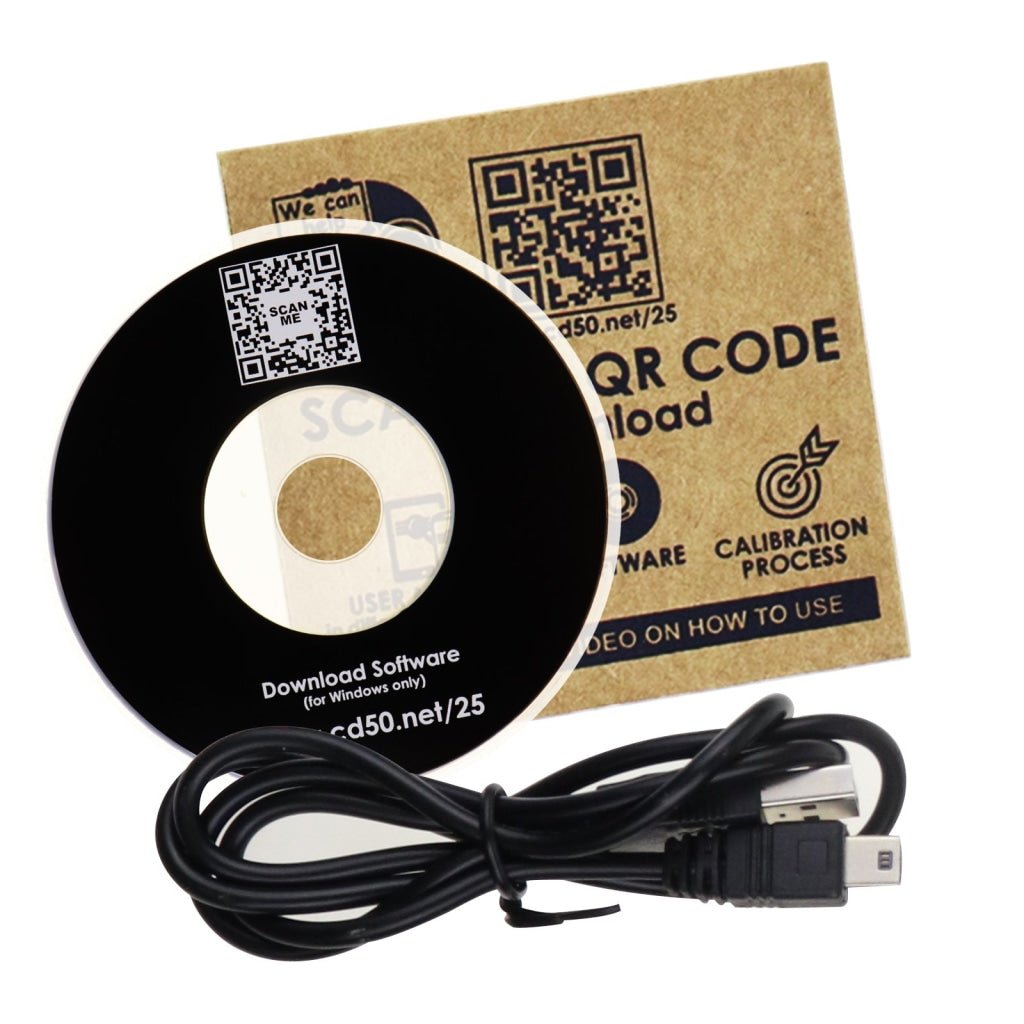

  • 1 x CD Software (English)
  • 1 x USB Cable
  • 1 x AC/DC line
  •  4 x AA Battery

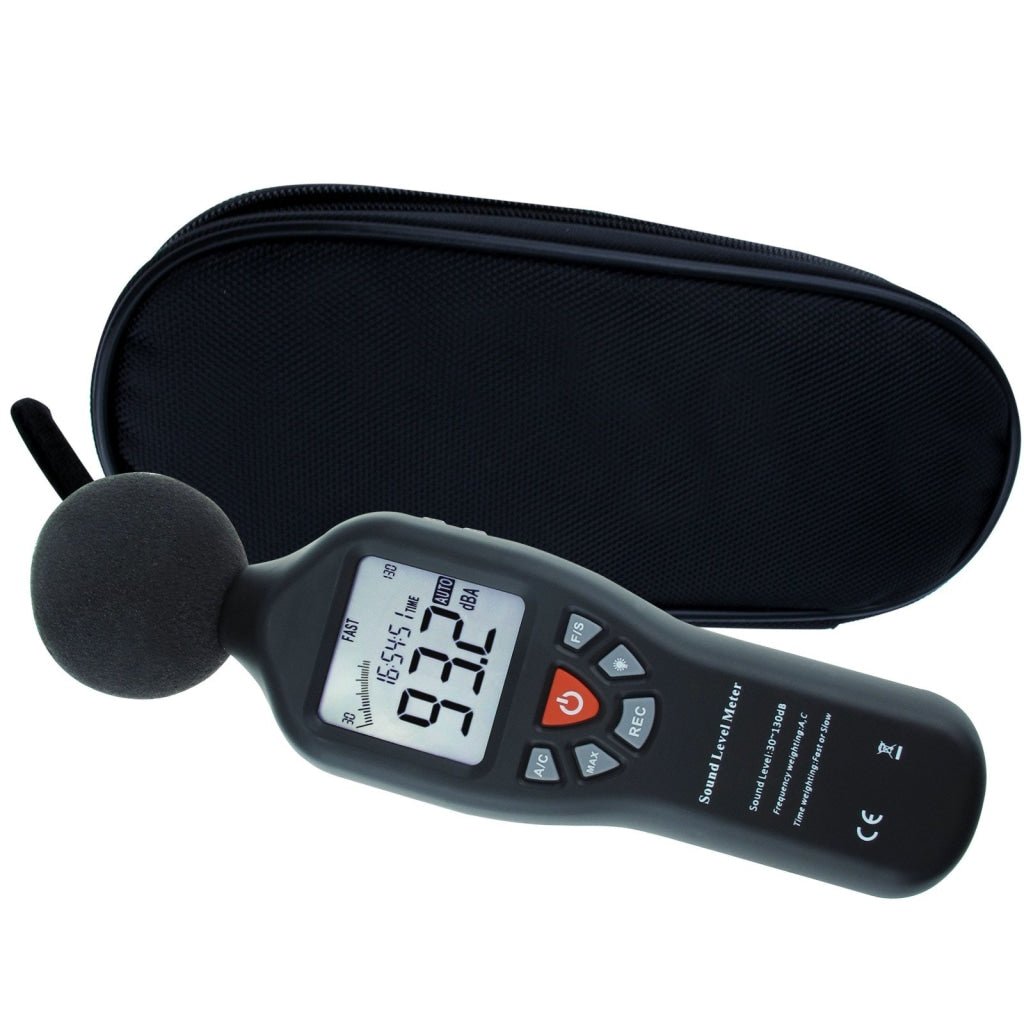

  • 1 x Carrying Pouch
