ILHT-791C Digital Hardness Durometer Tester for Plastic, Middle Hard Rubber Materials Shore C

Sku: ILHT-791C
$231.90 USD
Translation missing: en.products.product.shipping_policy_html
Quantity:
Visa Mastercard PayPal American Express Google Pay Apple Pay Shop Pay

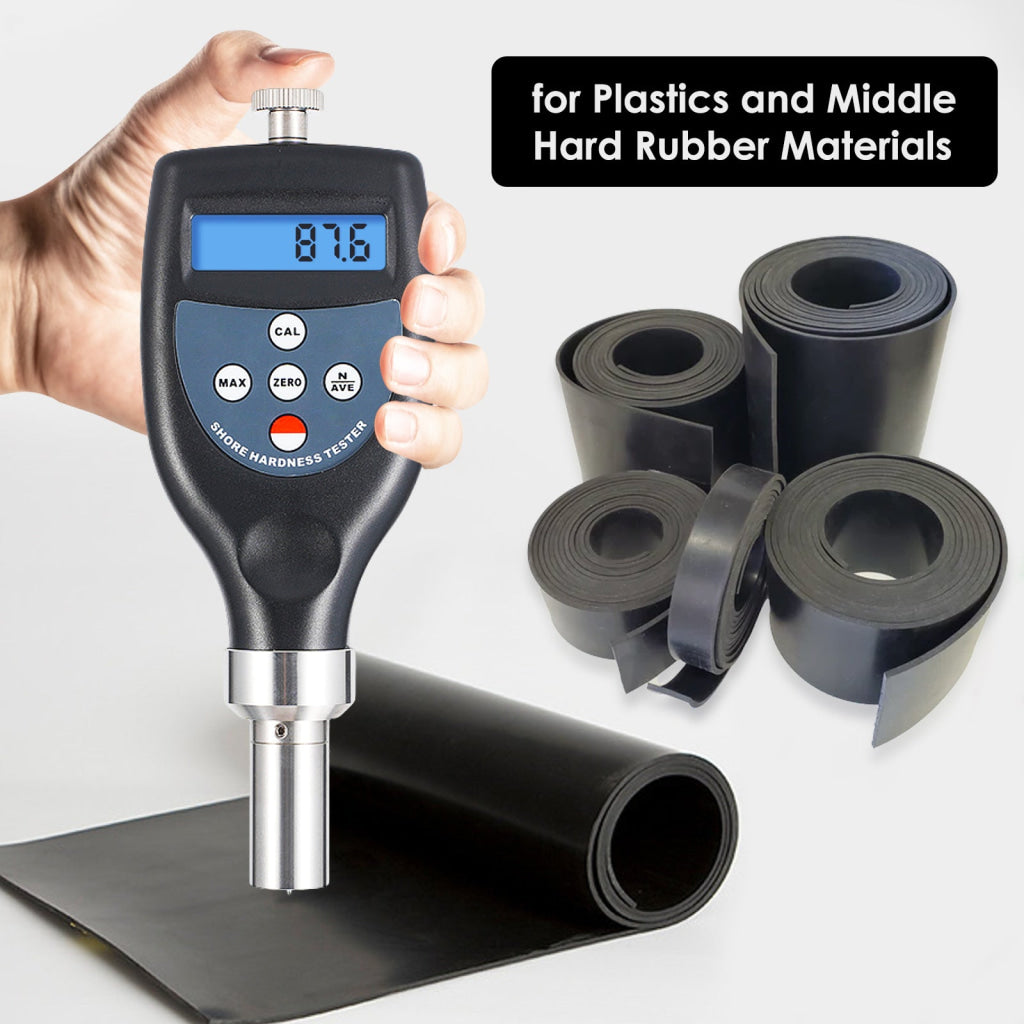

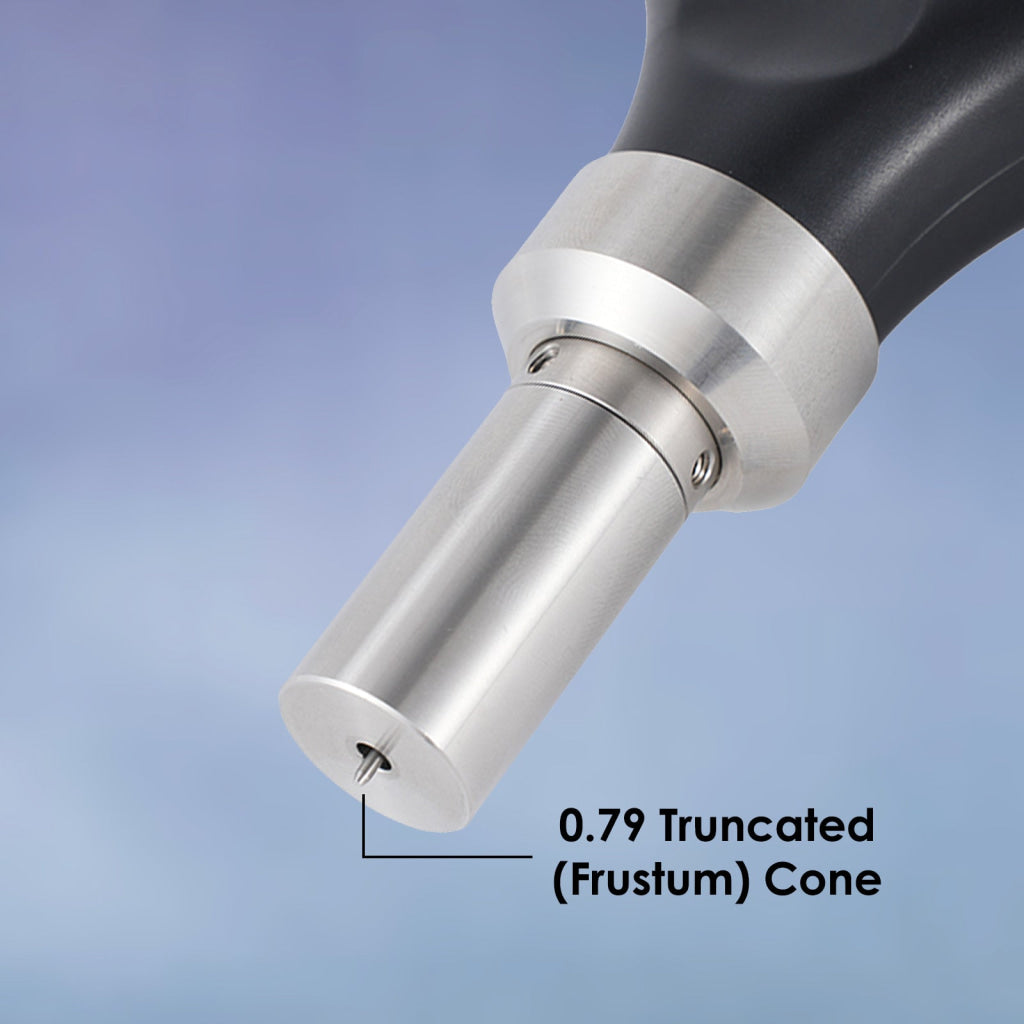

A digital durometer type C designed test a wide variety of plastic and middle hard rubber materials. It has Integrated or Built-in Probe. The resistance toward the indentation of materials are measured quickly with this precision perfect tool. It measures the depth of an indentation in the material created by a given force on a standardized presser foot. Provides a 0~100 value and the LCD digital display features bold, easy to read numbers indicating a specific value.

Features:

  • With CE marking and also conforms with ISO-7619 and ISO-868, DIN53505, ASTM D 2240 and JIS K7215 set standards.
  • Equipped with wide measuring range, high resolution and delivers accurate reading with no guessing errors.
  • Uses Microcomputer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
  • Uses operation stand capable of applying the specimen to the indentor with sufficient recommended force that allows accurate and repeatable hardness tests to increase stability and maximum repeatability.
  • Use anywhere and suitable for use in the laboratories or in field conditions


Specifications:

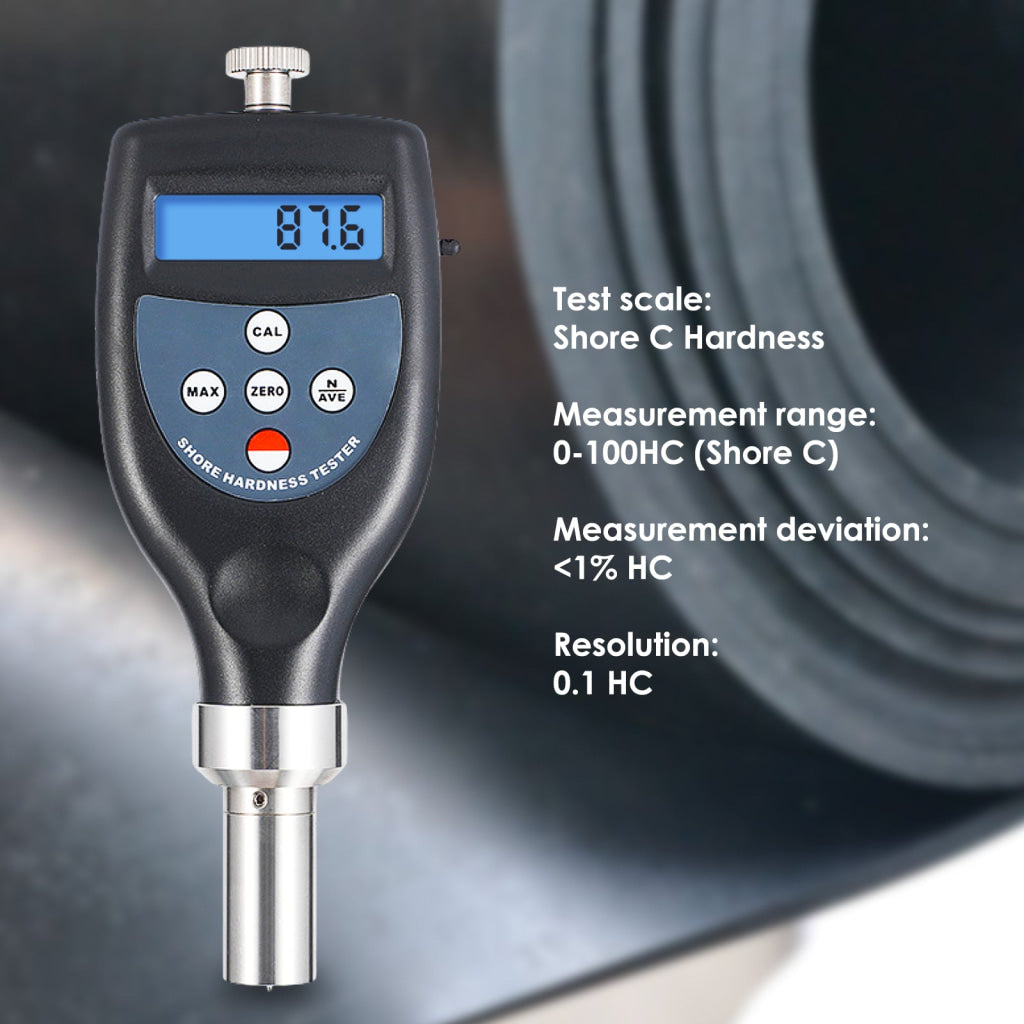

  • Test scale: Shore C Hardness
  • Parameters displayed: hardness result, average value, max. value
  • Measurement range: 0-100HC (Shore C)
  • Microcomputer: Newly developed microcomputer delivers maximum results
  • Measurement deviation: <1% HC
  • Resolution: 0.1 HC
  • Operating conditions:
    ***Temperature: 0°C - 40° (32°F - 104°F)
    ***Humidity: < 90% RH
  • Display: 4 digits,10mm LCD
  • Battery indicator: low battery indicator

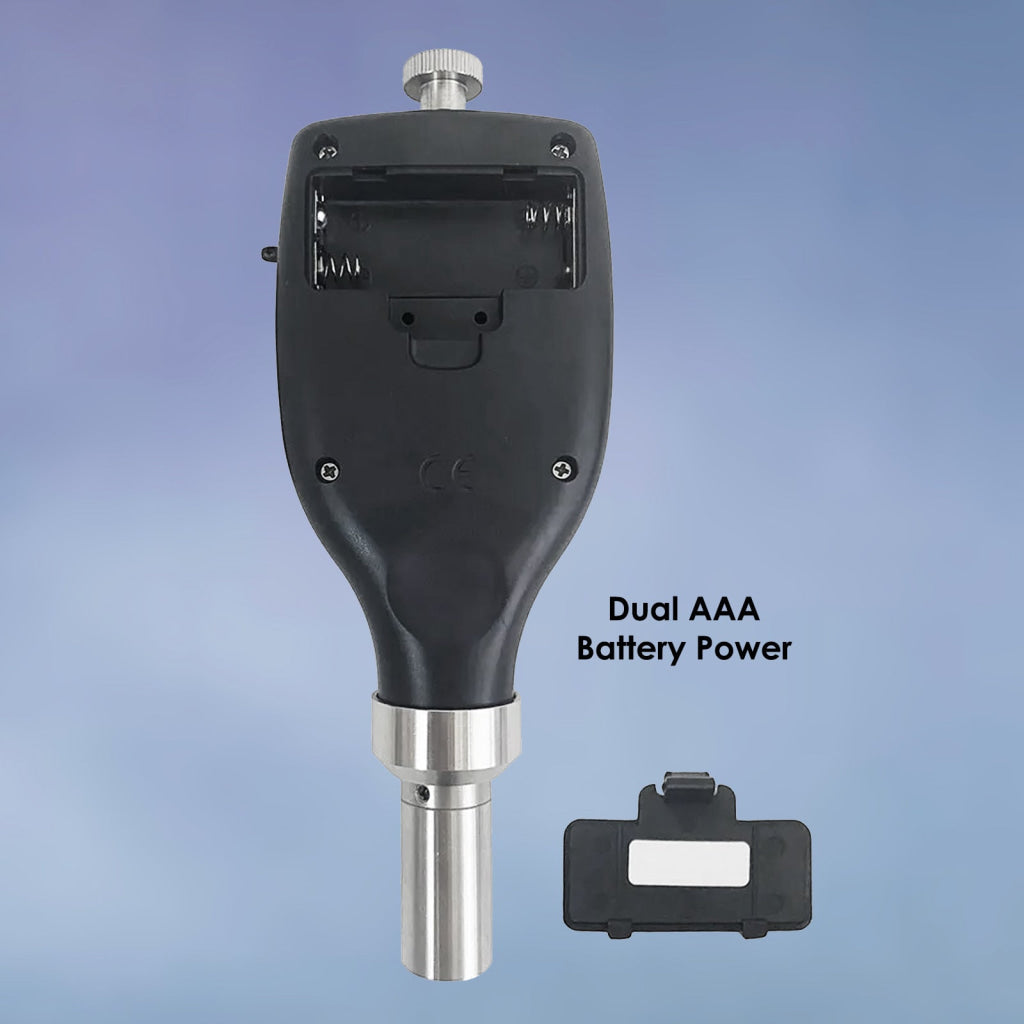

  • Power supply: 2 x 1.5V AAA (UM-4) battery
  • Auto switch off

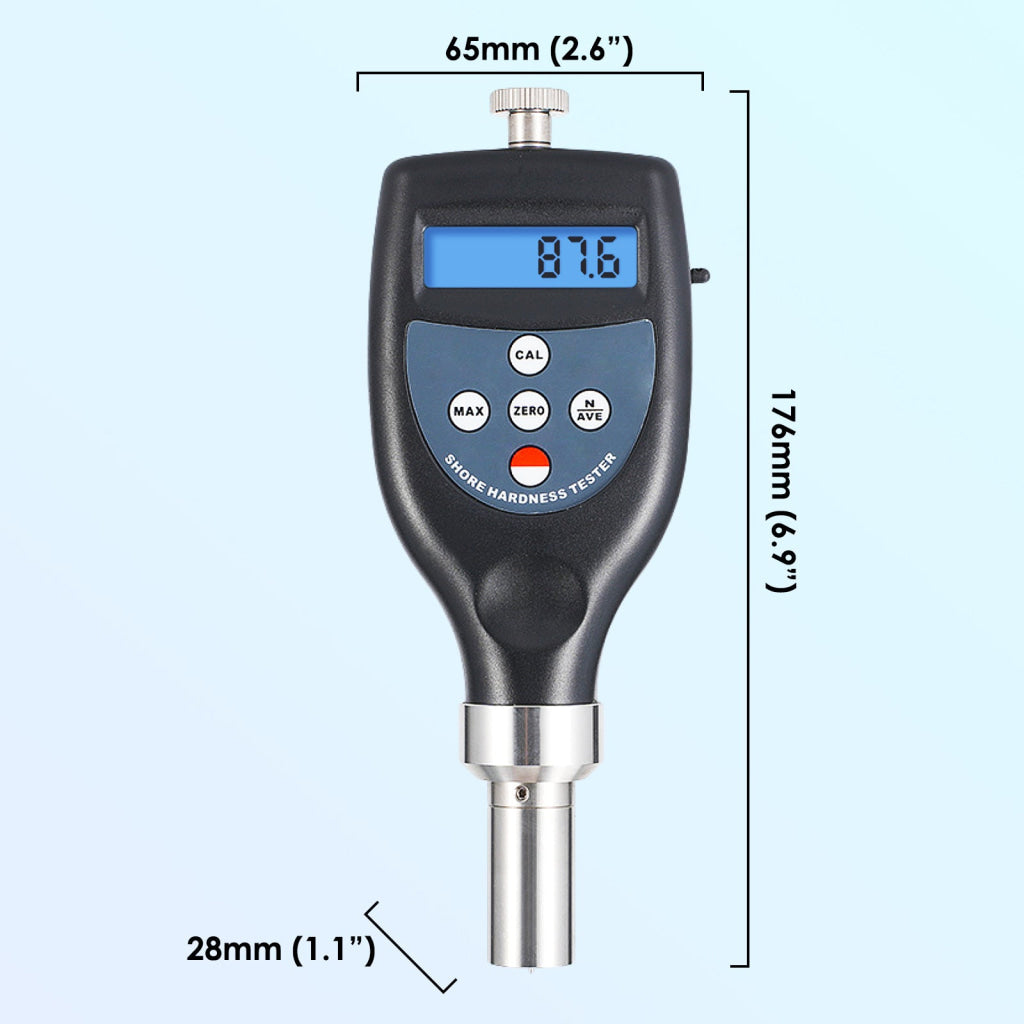

  • Dimensions: 162mm x 65mm x 38mm
  • Weight (w/o batteries): 173g

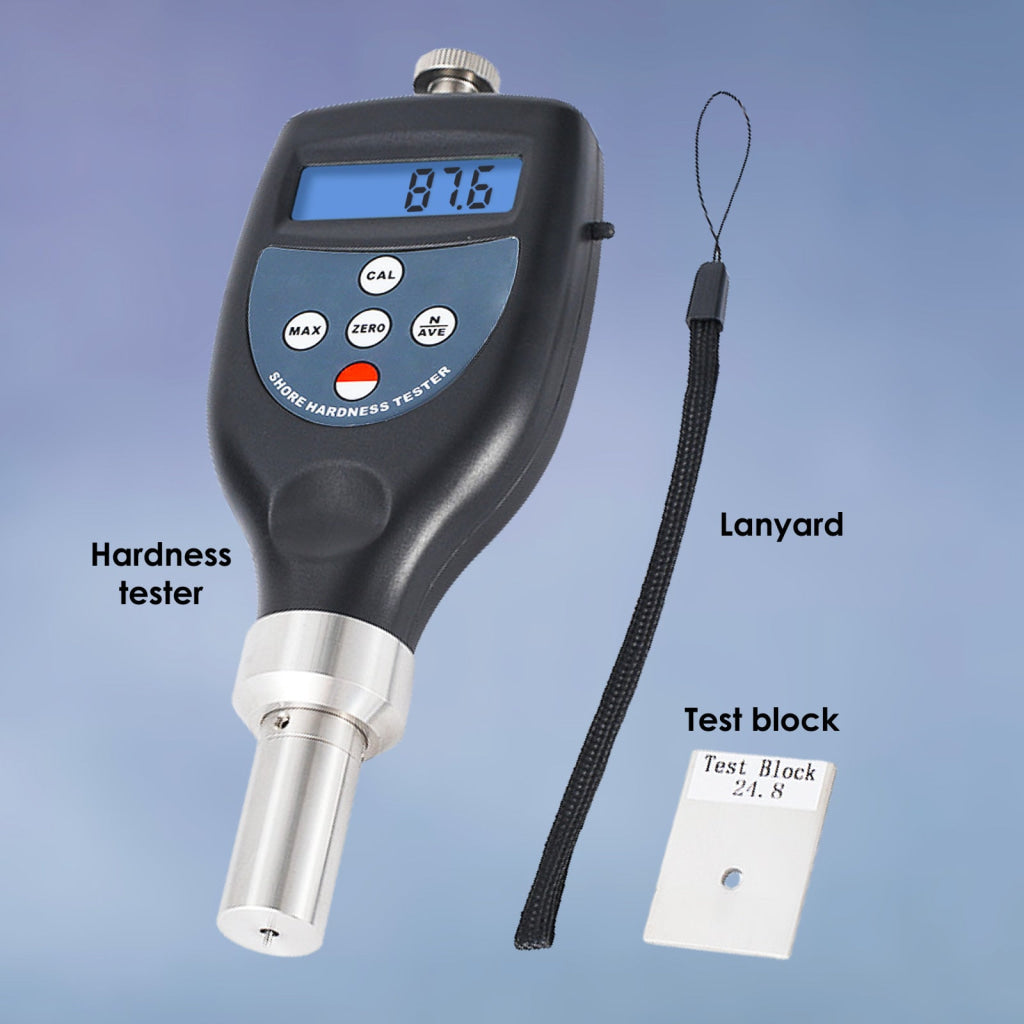

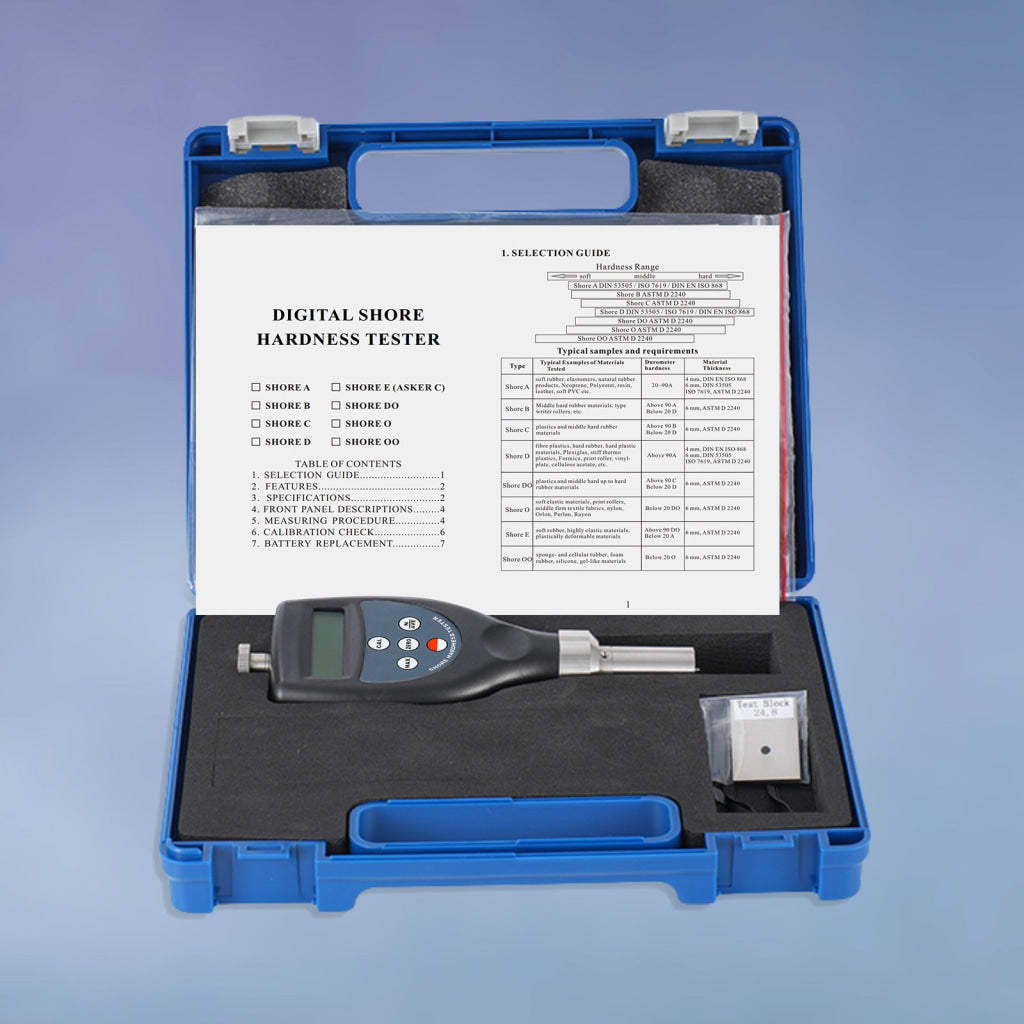

Set Includes:

  • 1 x English Instruction Manual

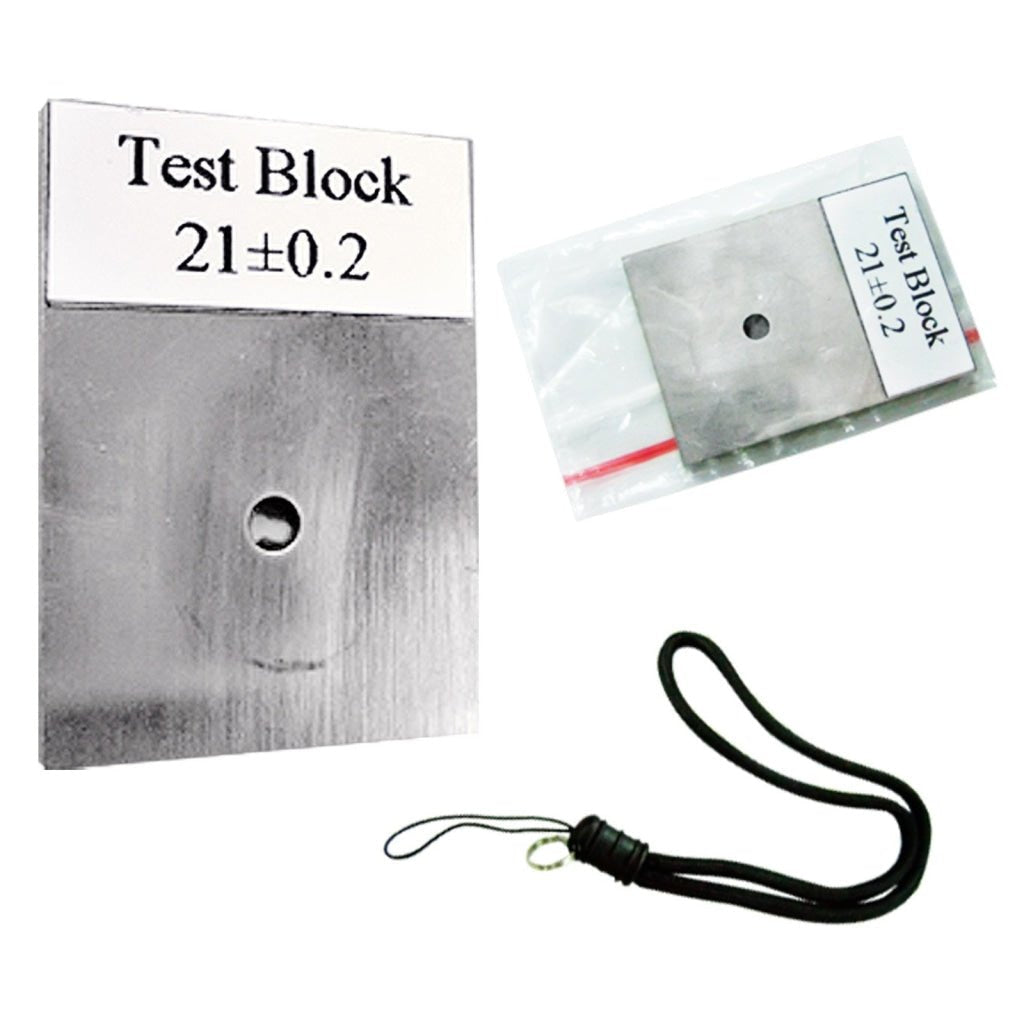

  • FREE Test Block
  • FREE Wrist Strap
  • FREE Hard plastic carry w/ padded & contoured interior



Optional Item (not included in set)
          Please click here to buy this optional item  CD Software and cables
          or you may contact us at info@instrulife.com if you want an optional items to be included in your order

A printed user manual is already included with this item. No digital user manual or software is available.
